Steering Column Disassembled View (Standard Column)

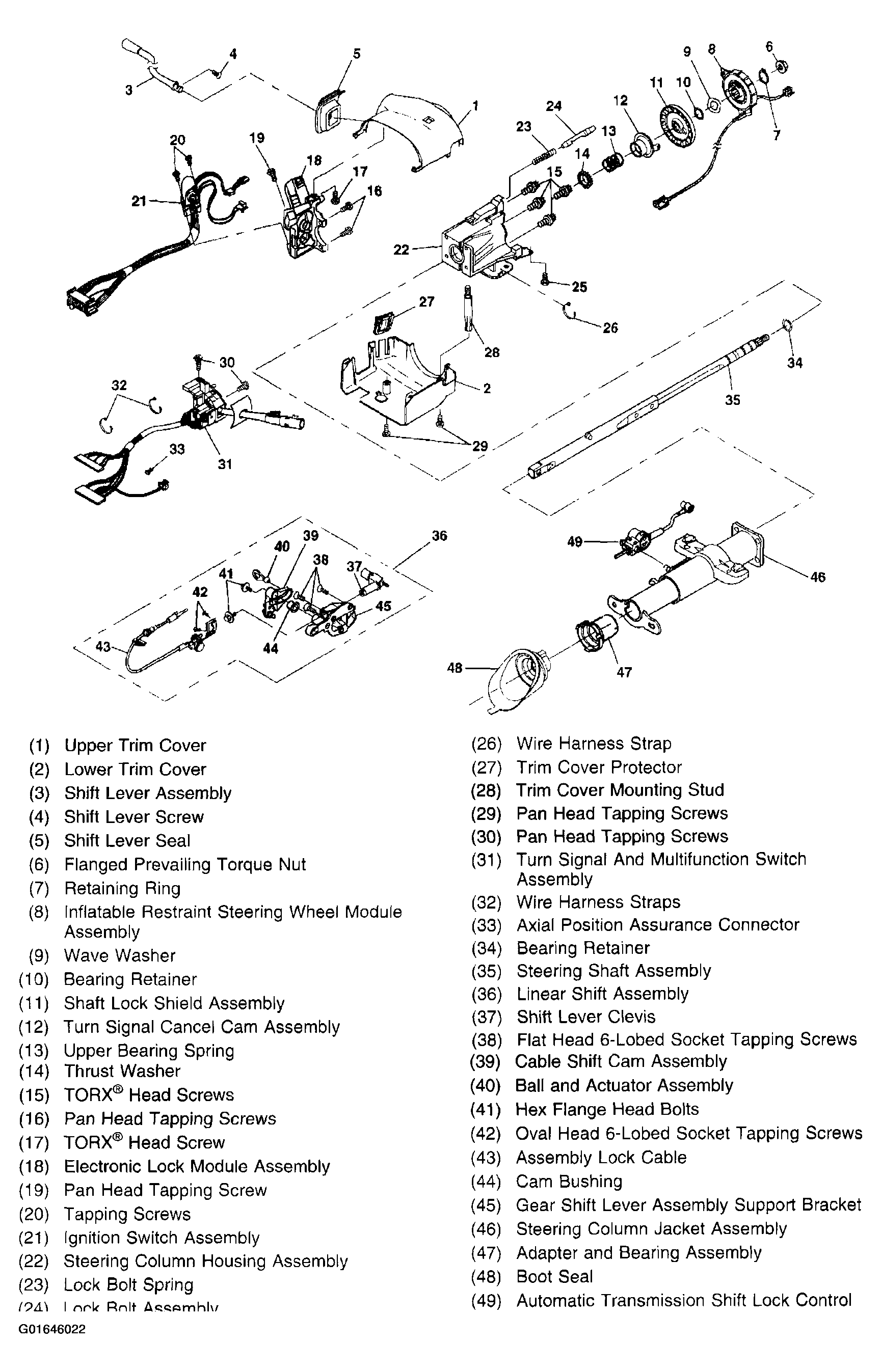

Fig 1: Steering Column Disassembled View (Standard Column)
G01646022Courtesy of GENERAL MOTORS CORP.
