Transfer Case Shift Control Module: Installation

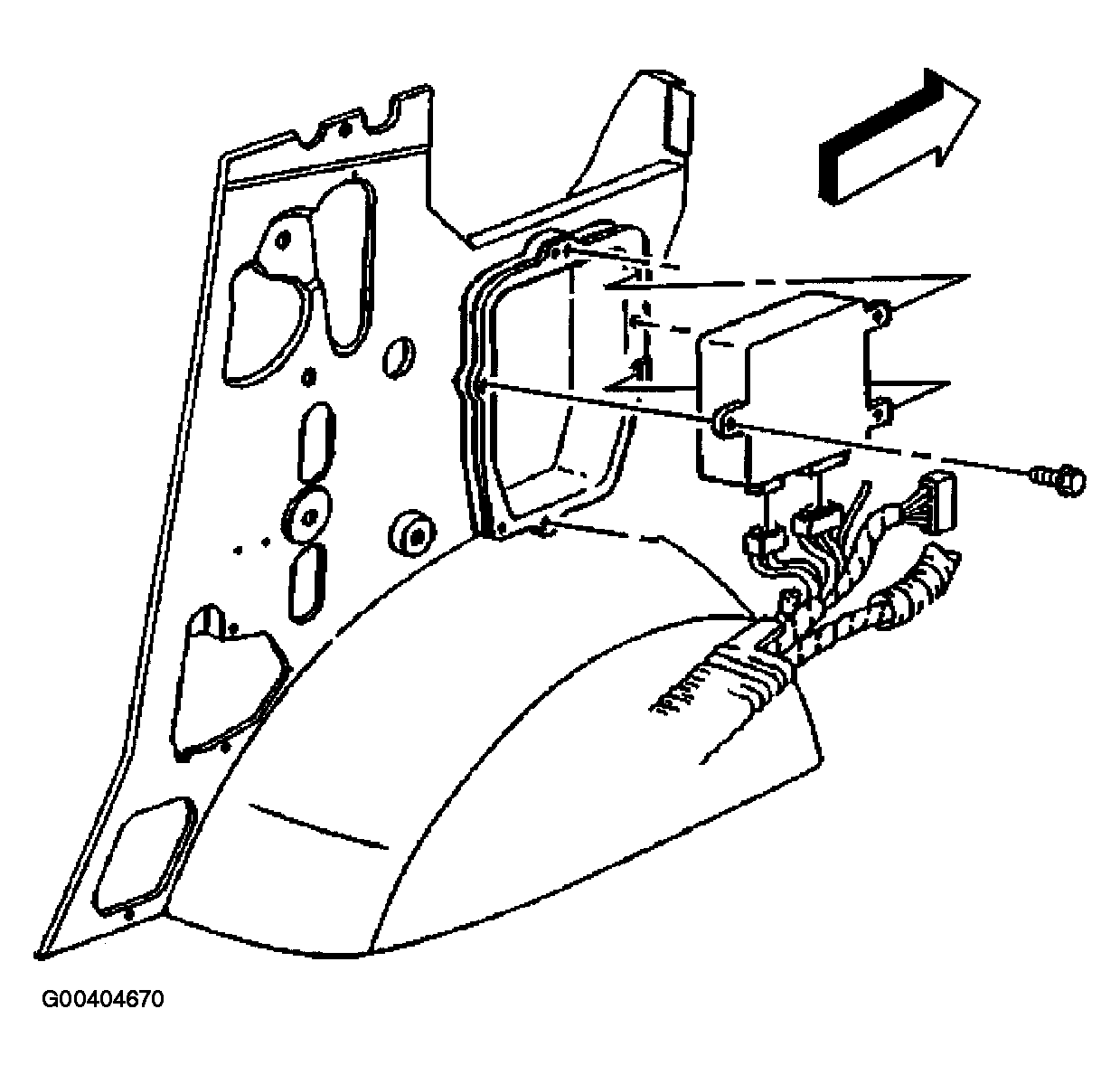

  1. Install the control module in the mounting bracket. See Figure .
    2. NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the mounting screws for the control module. Tighten the mounting screws to 53 lb in (6 N.m).
  3. Install the electrical connectors in the control module.

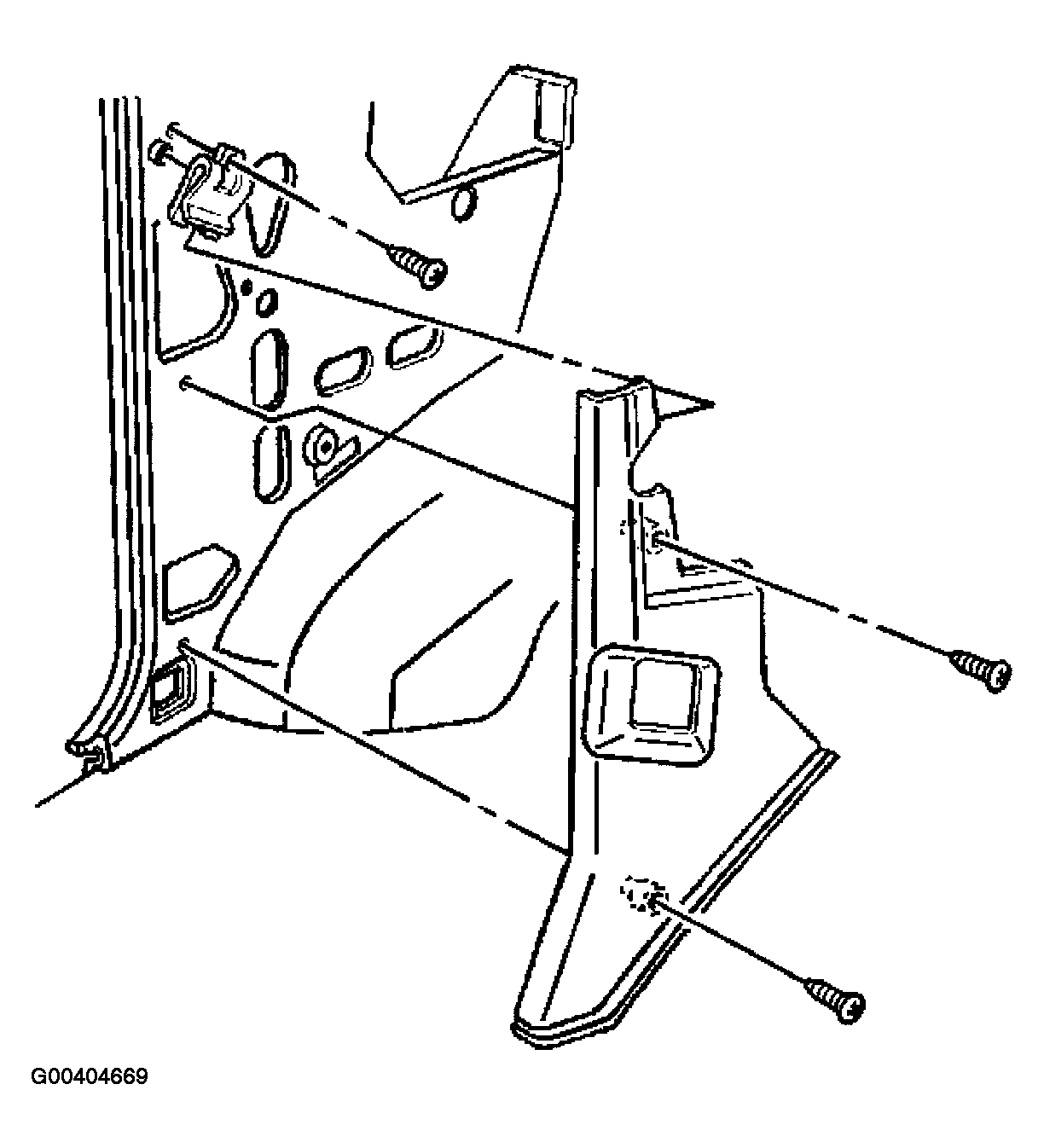

  4. Install the lower dash panel. See Figure .

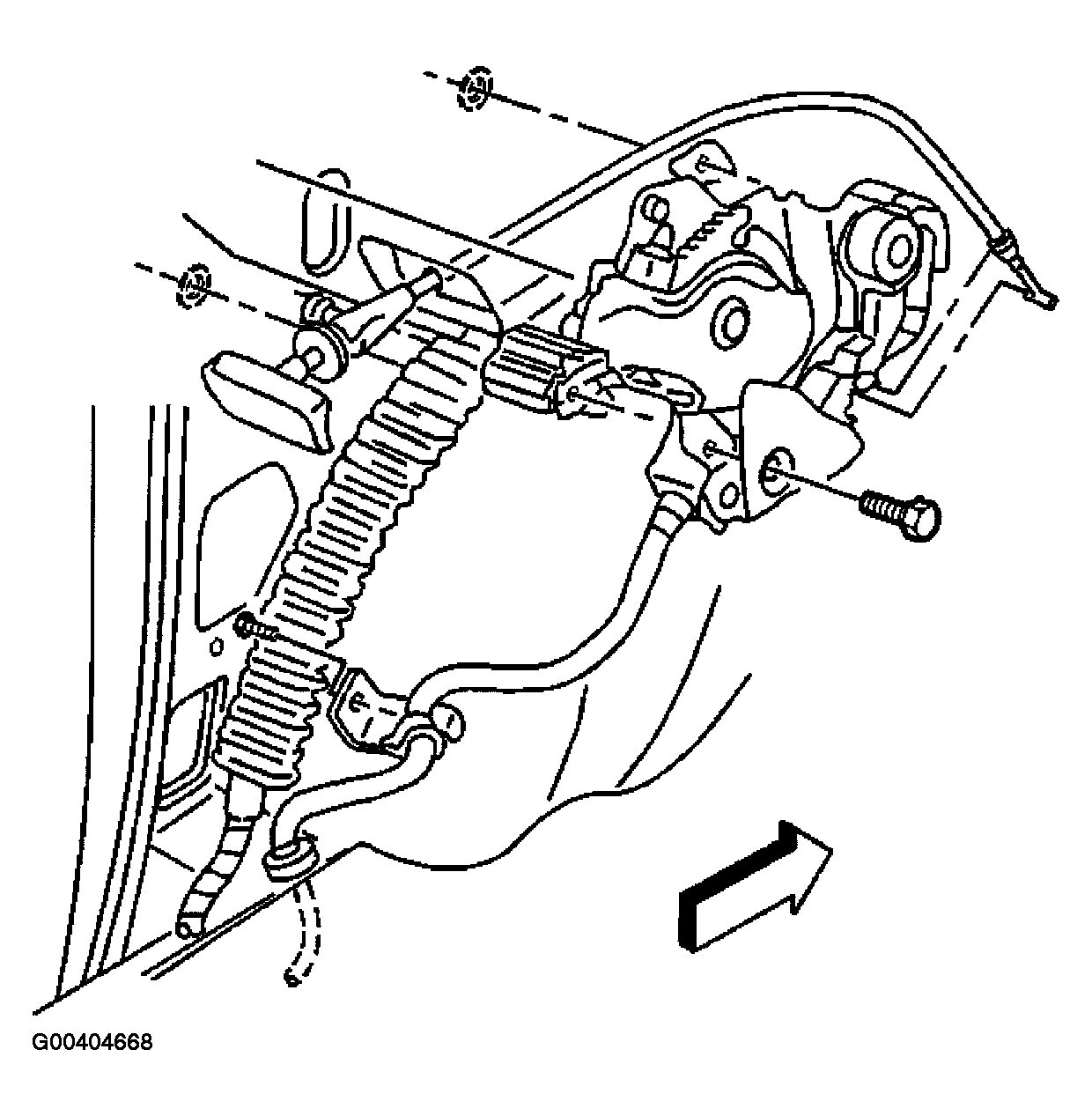

  5. Install the parking brake assembly. See Figure .
