Transfer Case Control Component Views

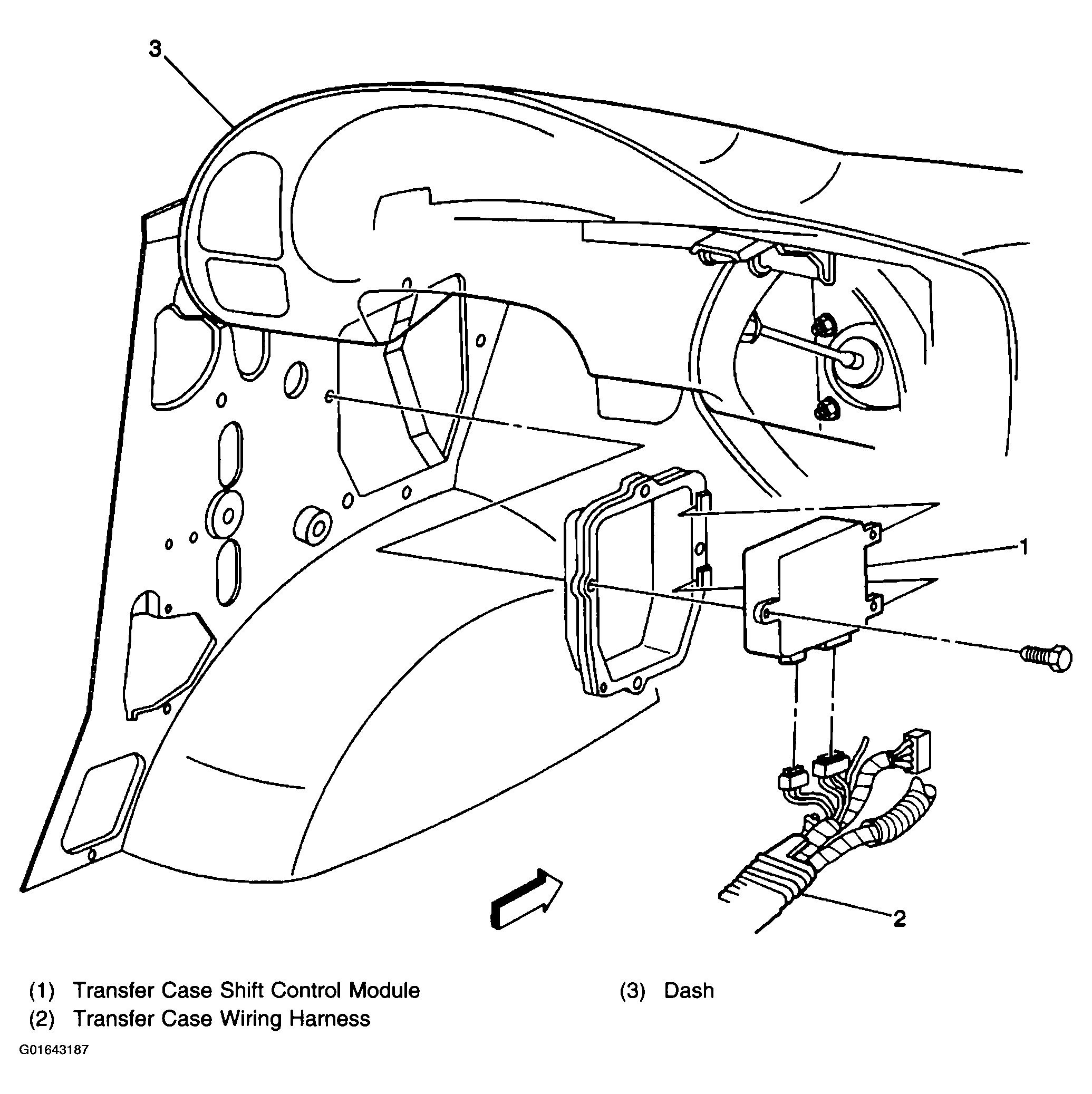

Fig 1: Transfer Case Control Module Locator View
G01643187Courtesy of GENERAL MOTORS CORP.

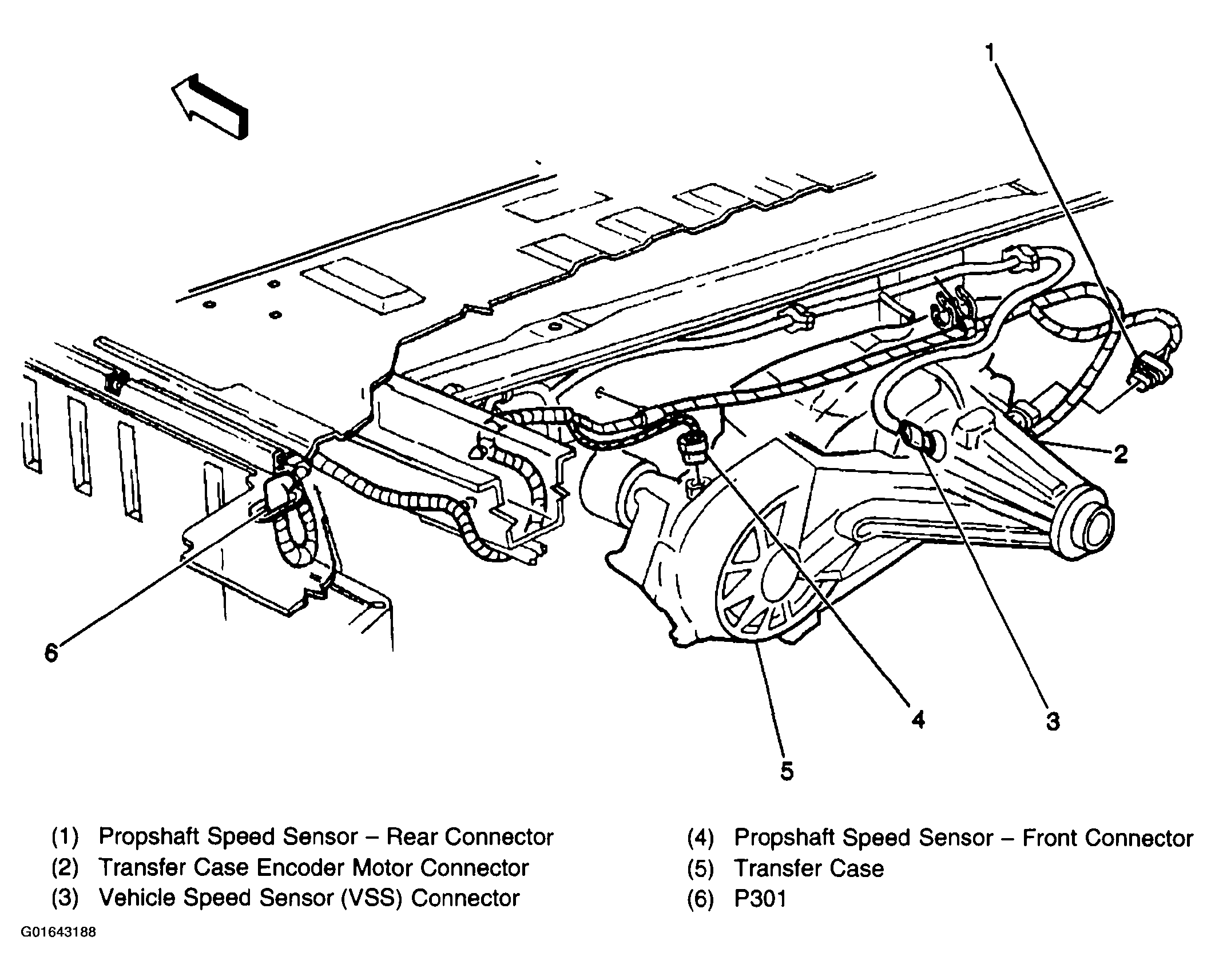

Fig 2: A4WD Transfer Case Locator View
G01643188Courtesy of GENERAL MOTORS CORP.
