Removal Procedure

  1. Remove the parking brake assembly mounting bolts only and lay the parking brake assembly aside. Refer to PARKING BRAKE PEDAL in Parking Brake.

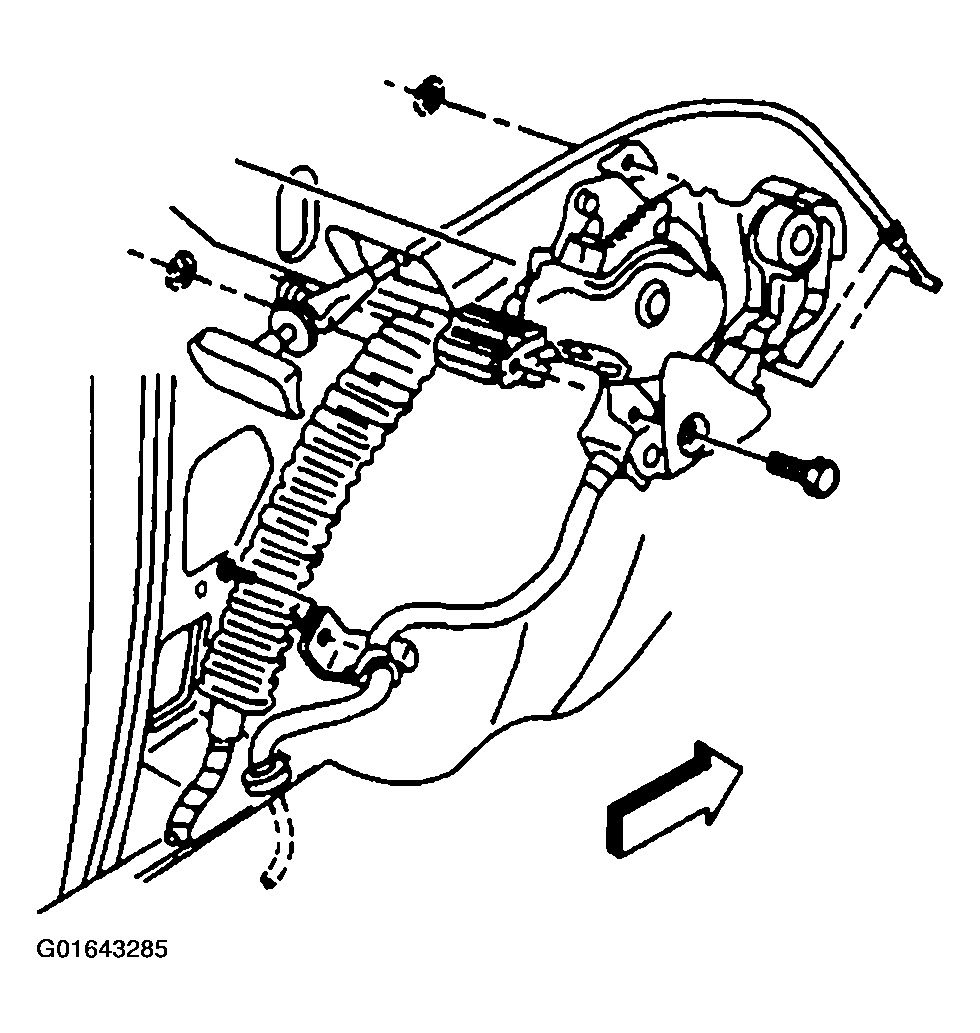

    Fig 1: Parking Brake Assembly Mounting Bolts
    G01643285Courtesy of GENERAL MOTORS CORP.
  2. Remove the lower dash panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE in Interior Trim.

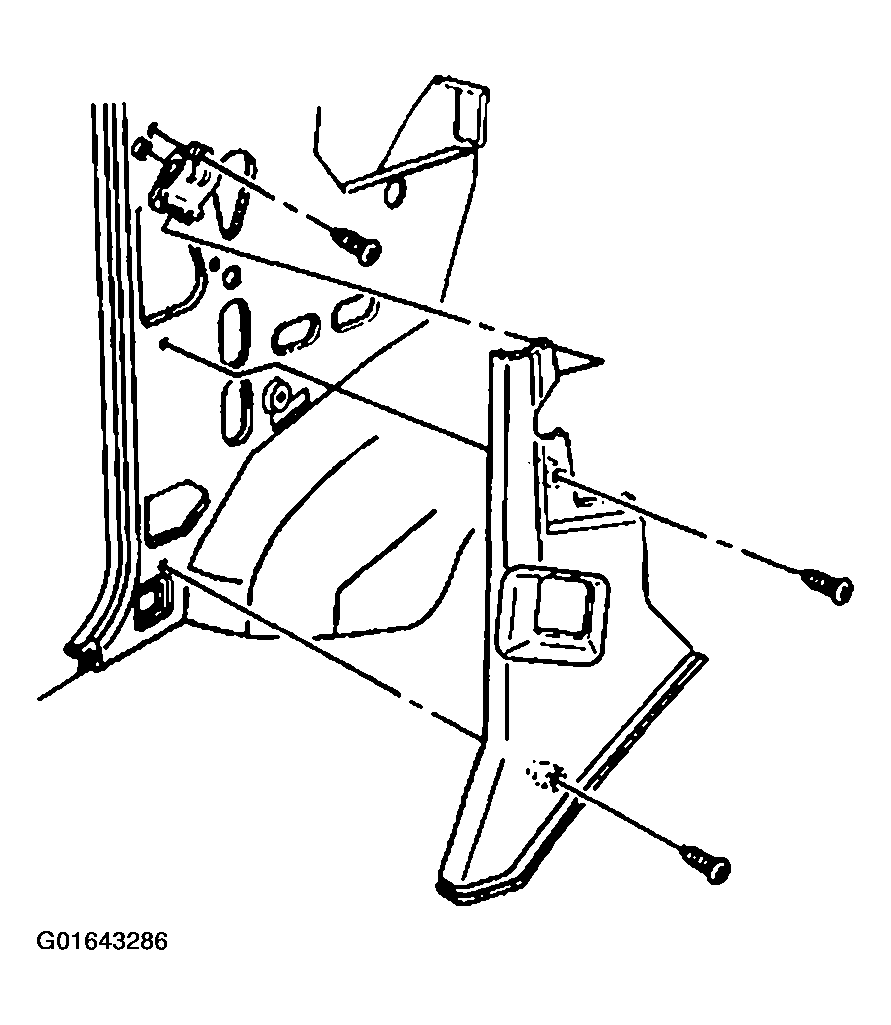

    Fig 2: Lower Dash Panel
    G01643286Courtesy of GENERAL MOTORS CORP.
  3. Remove the electrical connectors from the control module.
  4. Remove the mounting screws for the control module.

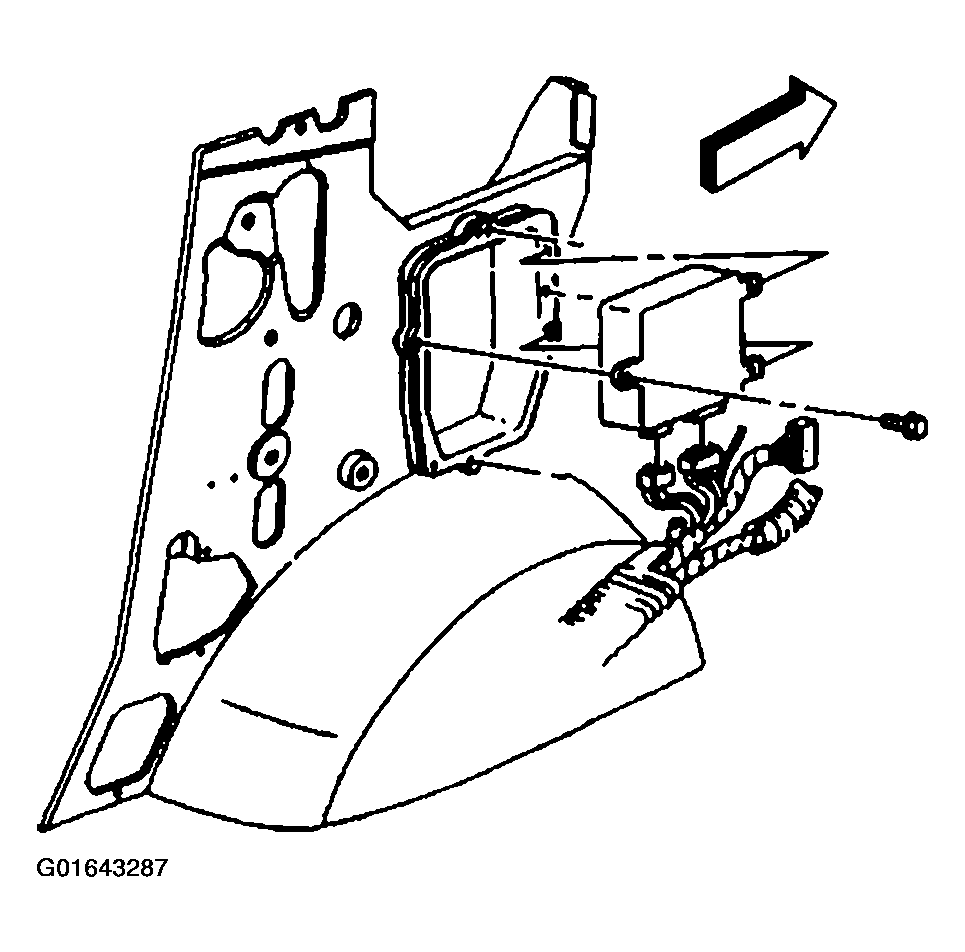

    Fig 3: Removing Electrical Connectors, Mounting Screws & Mounting Bracket From Control Module
    G01643287Courtesy of GENERAL MOTORS CORP.
  5. Remove the control module from the mounting bracket.
