Transfer Case Control Schematics (Power, Ground, DLC, Transfer Case Encoder Motor)

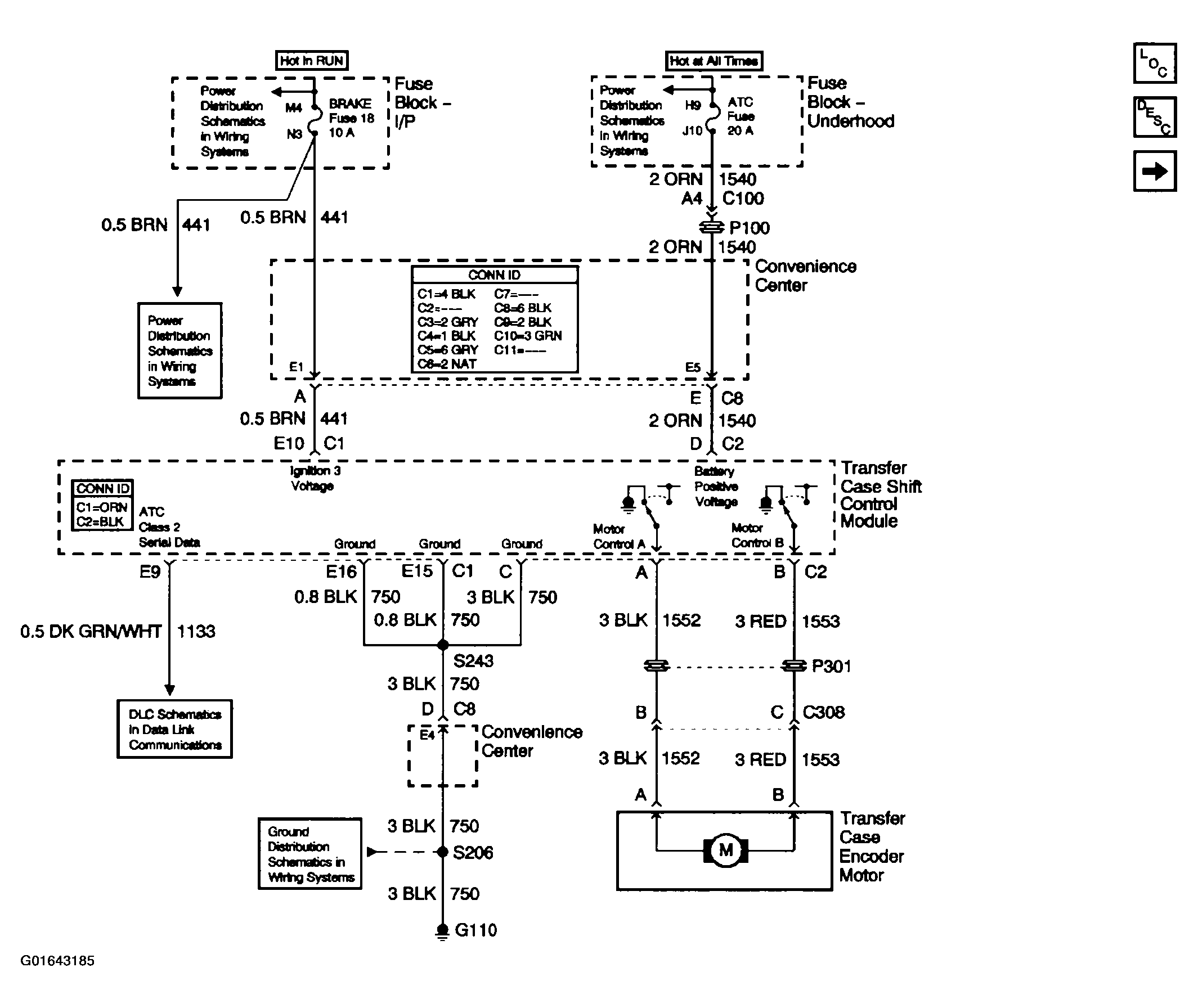

Fig 1: Transfer Case Control Schematics (Power, Ground, DLC, Transfer Case Encoder Motor)

Courtesy of GENERAL MOTORS CORP.

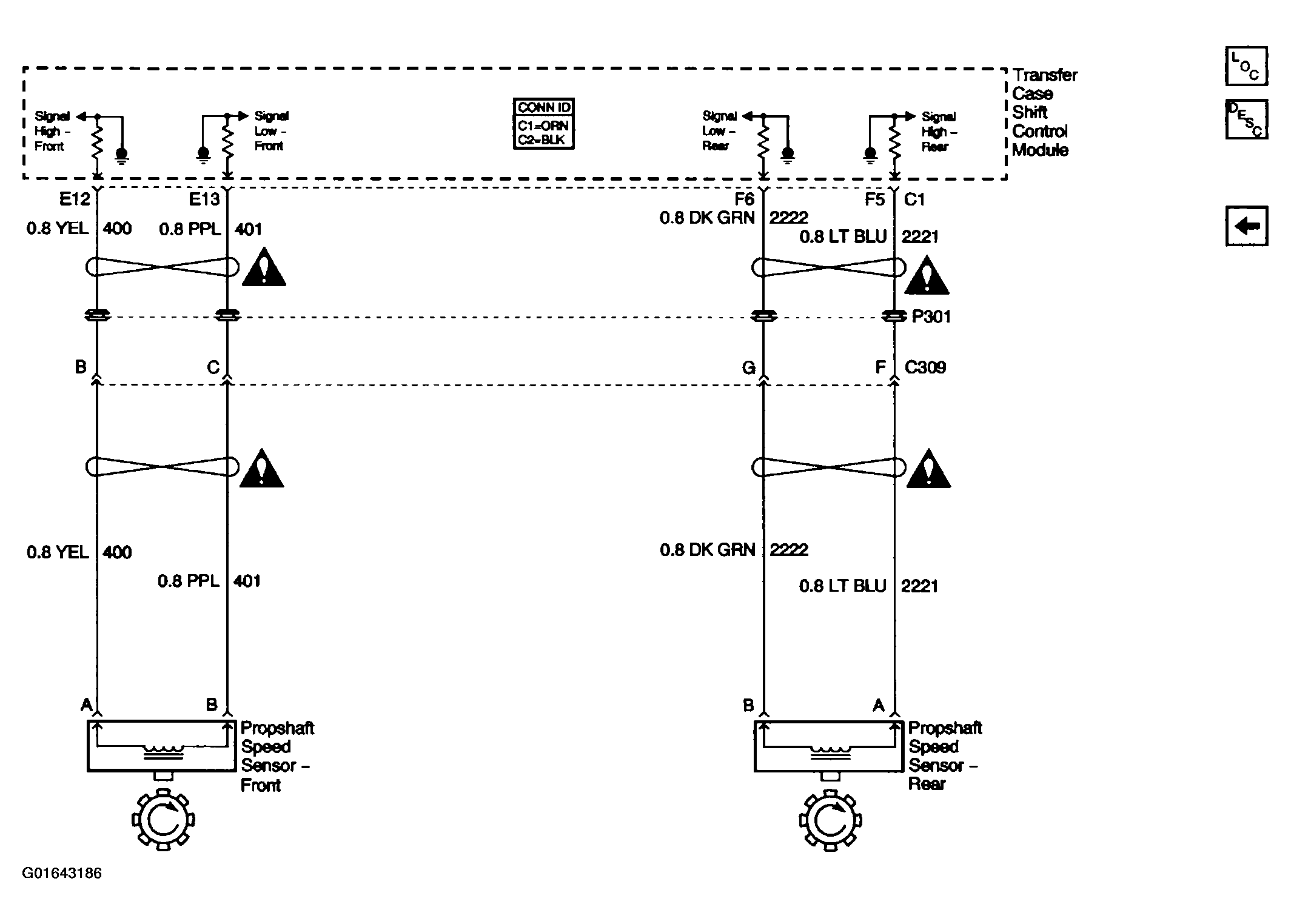

Fig 2: Transfer Case Control Schematics (Propshaft Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
