Disassembled Views

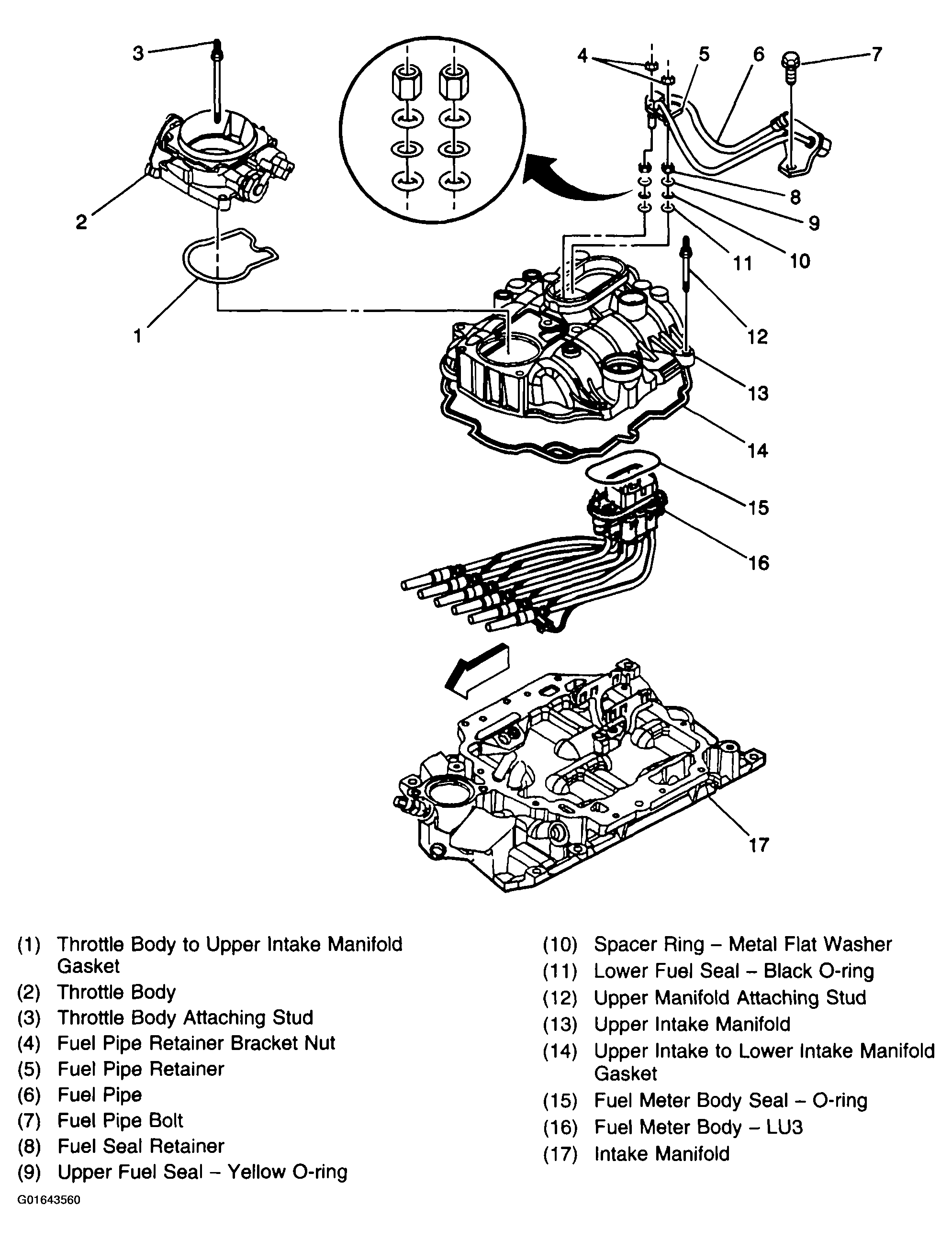

Fig 1: Upper And Lower Intake Manifold Disassembled View

Courtesy of GENERAL MOTORS CORP.

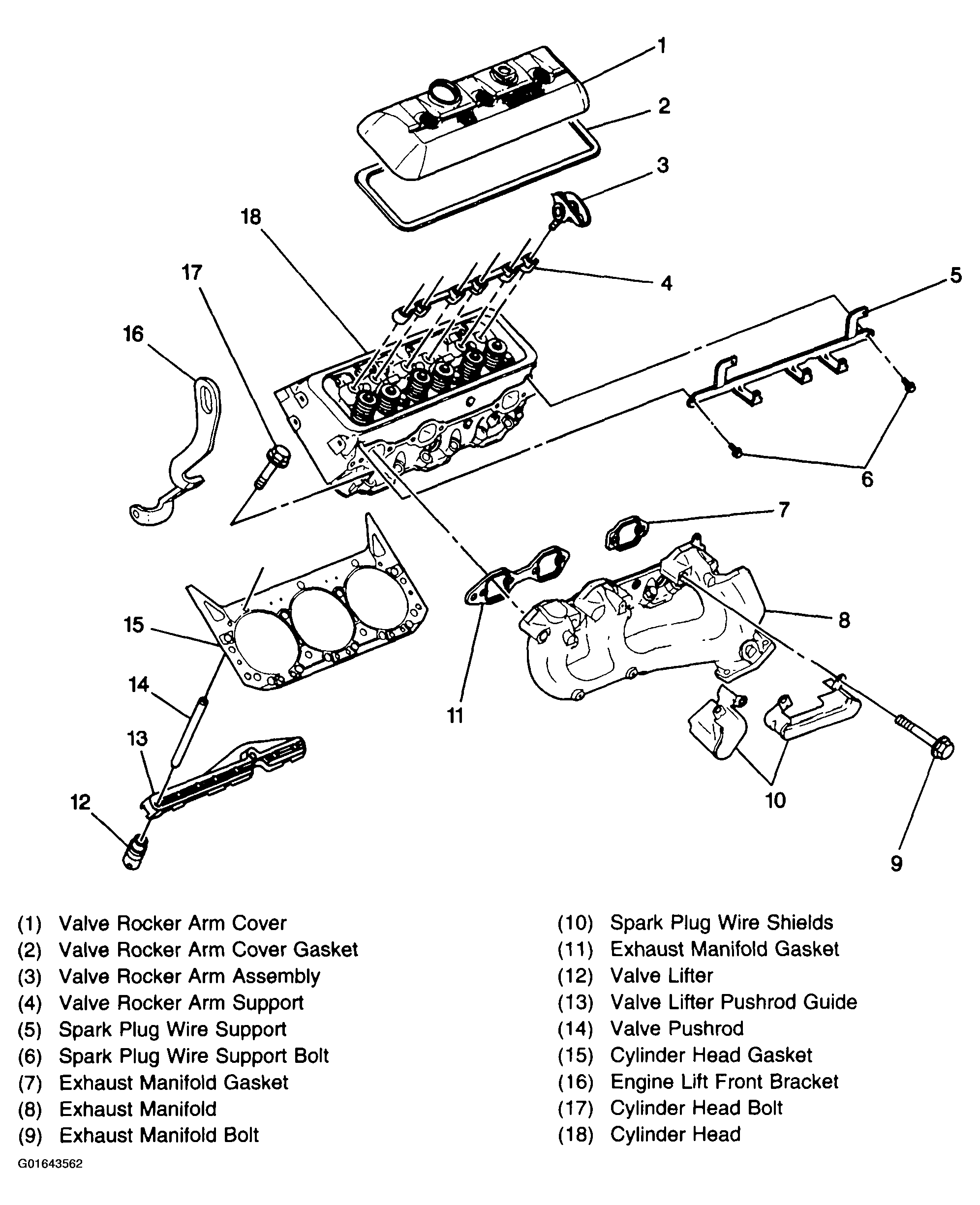

Fig 2: Upper Engine Disassembled View 1

Courtesy of GENERAL MOTORS CORP.

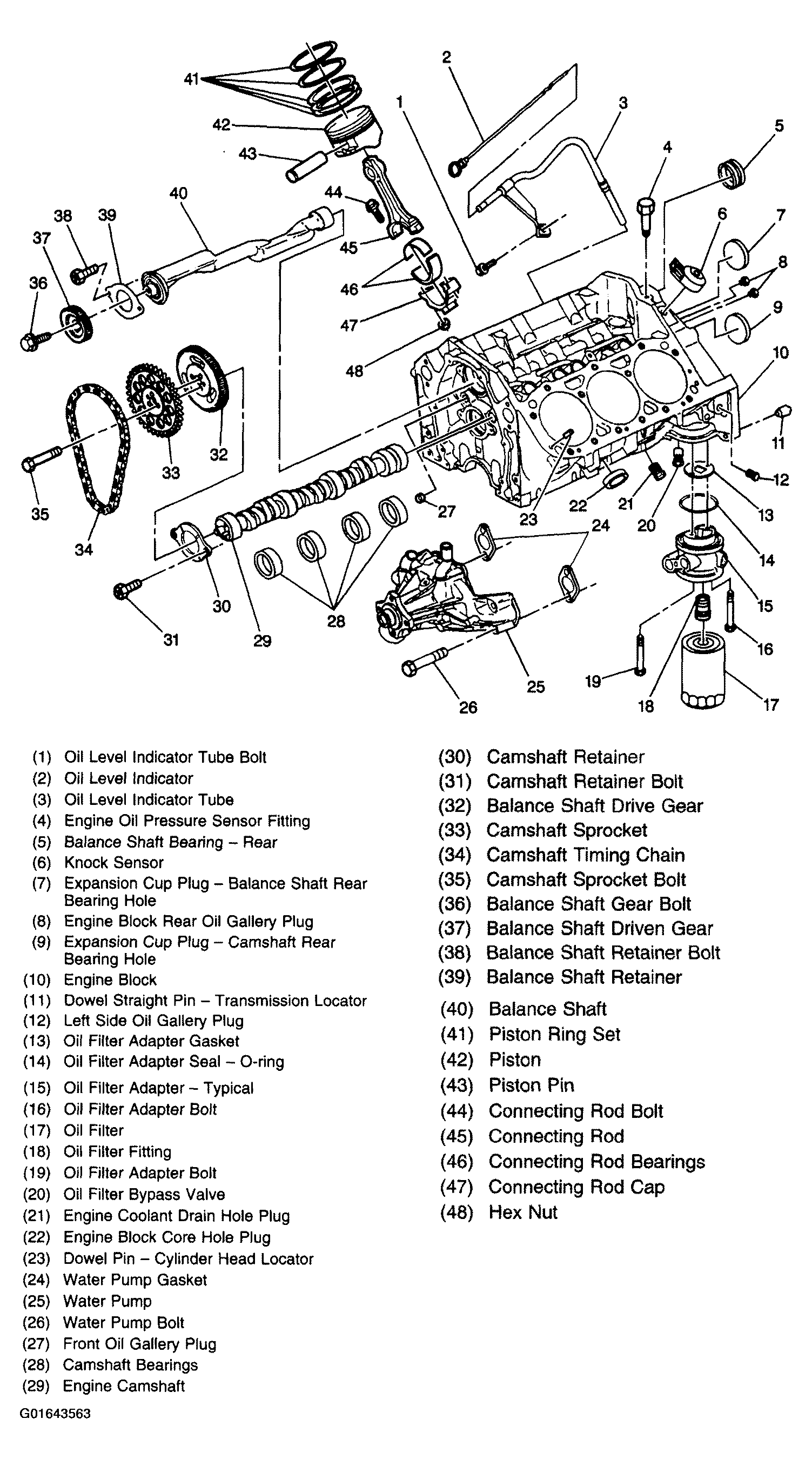

Fig 3: Upper Engine View Disassembled View 2

Courtesy of GENERAL MOTORS CORP.

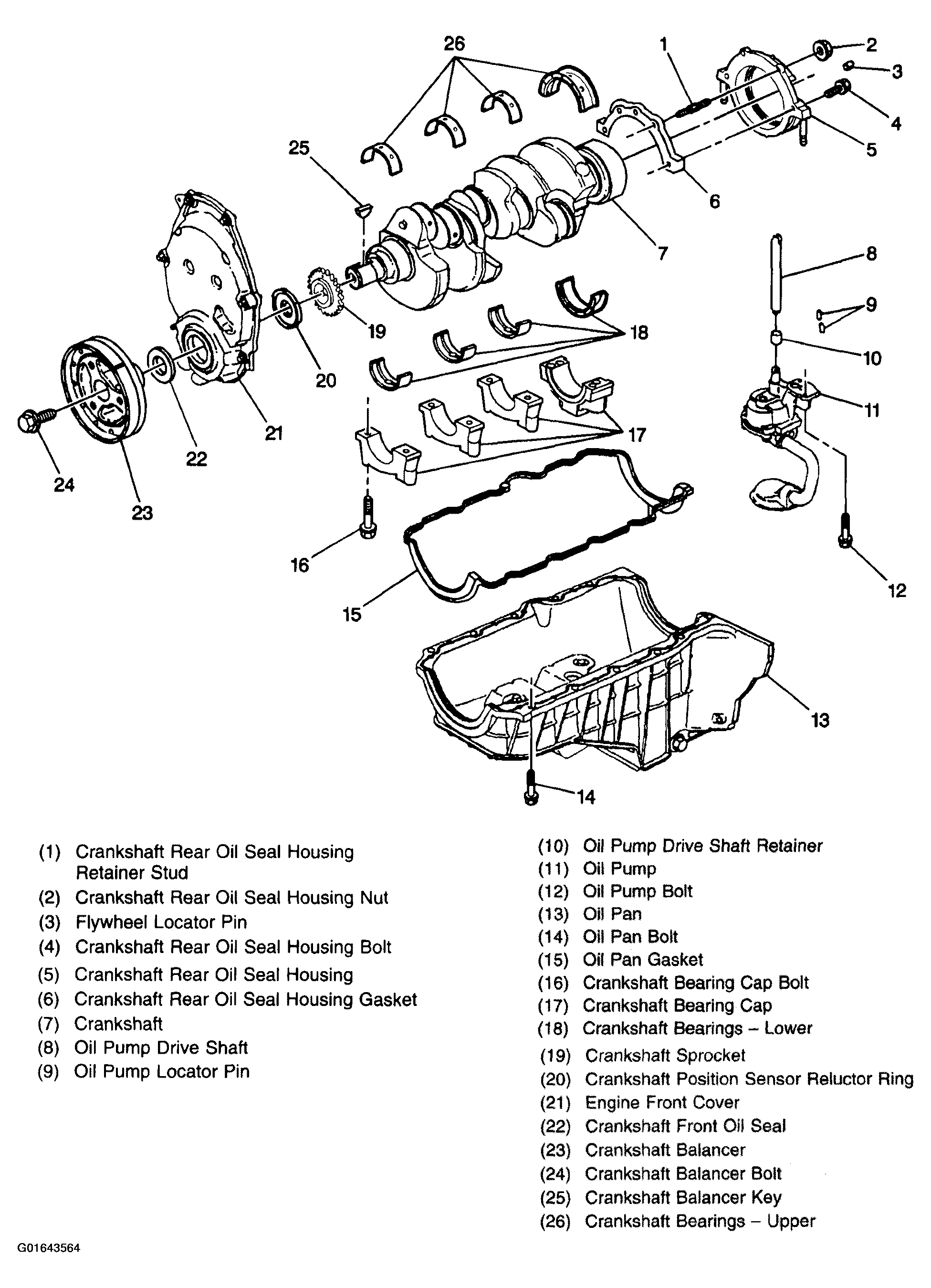

Fig 4: Lower Engine View Disassembled View 1

Courtesy of GENERAL MOTORS CORP.

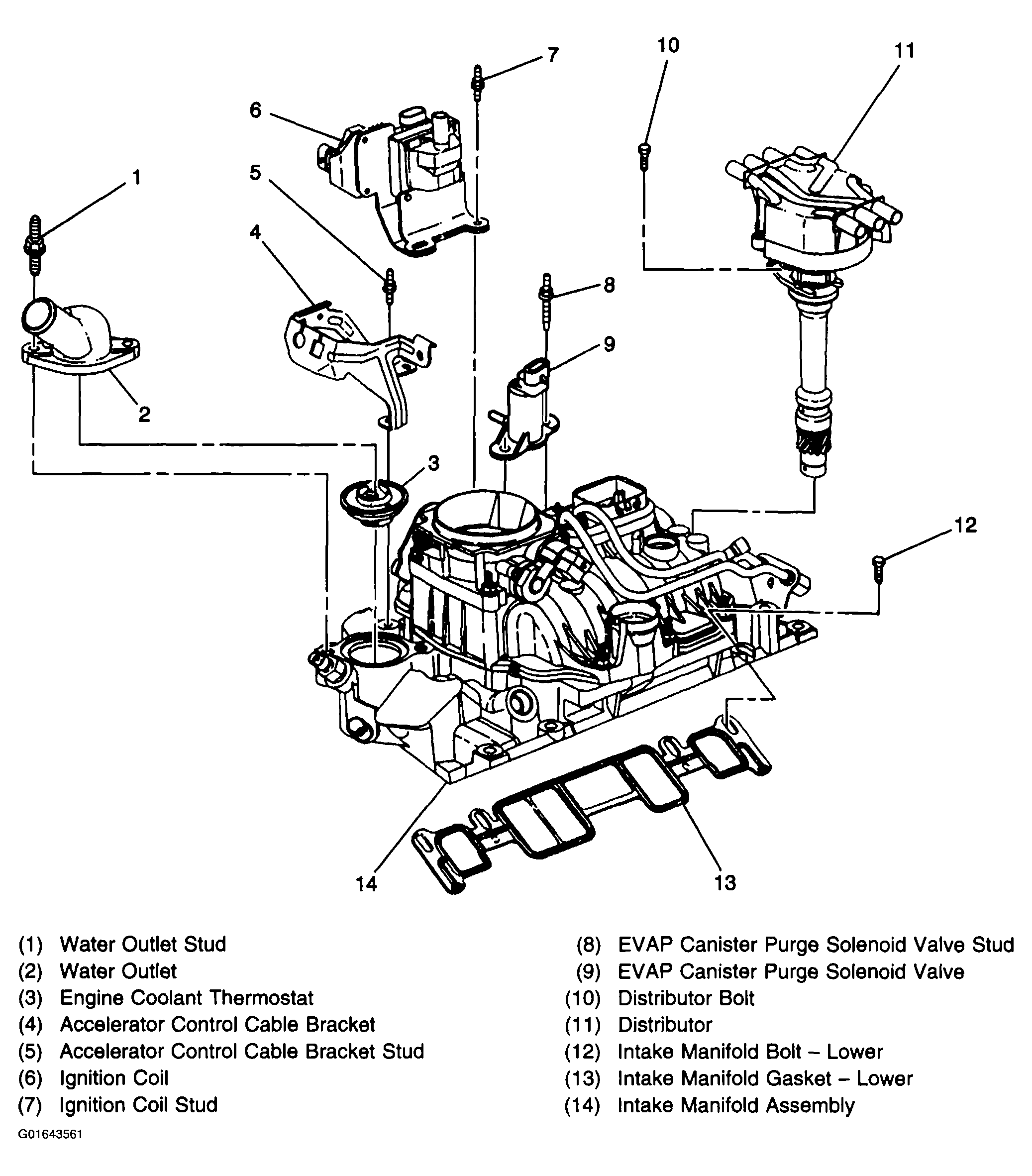

Fig 5: Lower Engine View Disassembled View 2

Courtesy of GENERAL MOTORS CORP.
