Timing Chain and Components

Timing Chain and Components

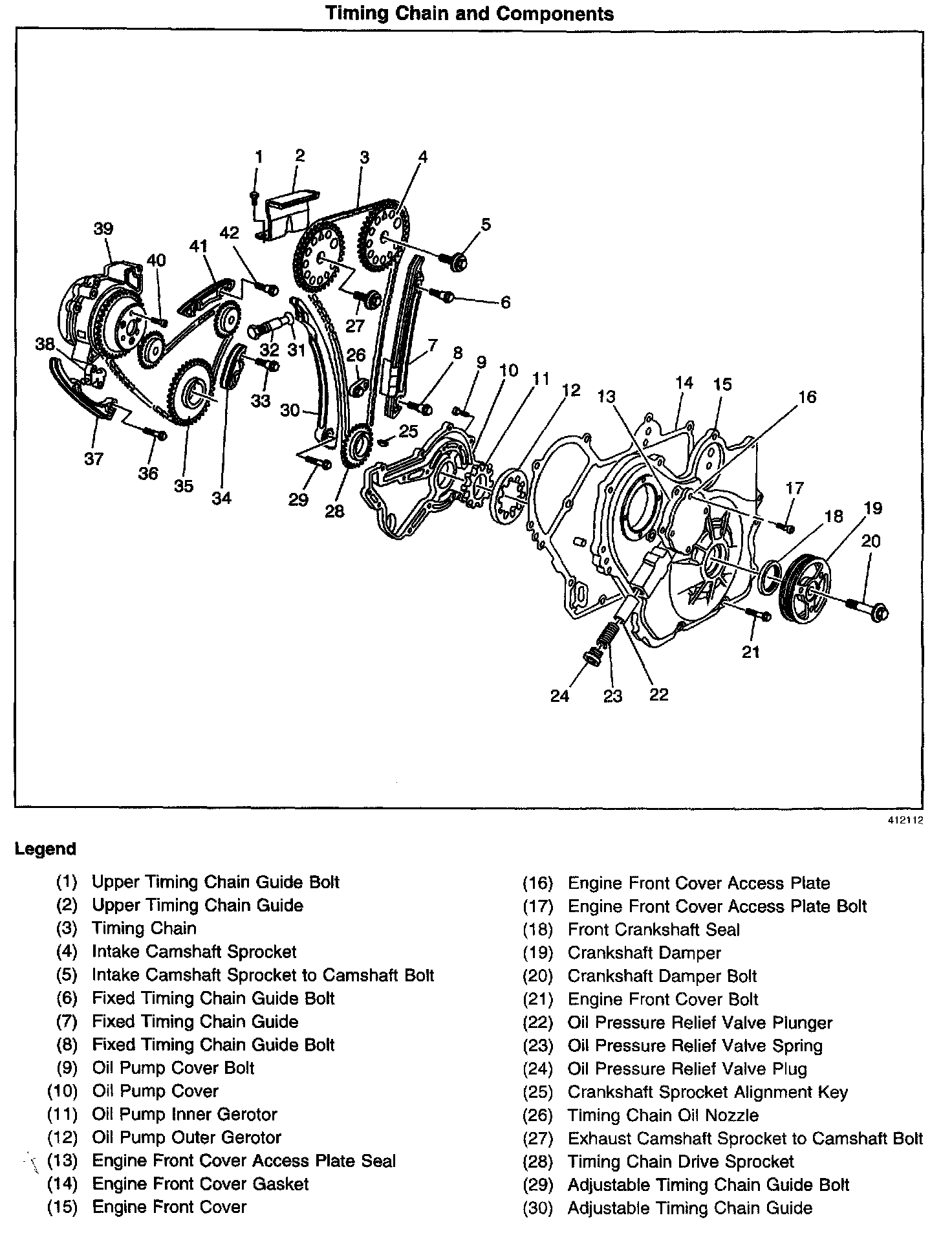

Timing Chain And Components:





Part 1 of 2

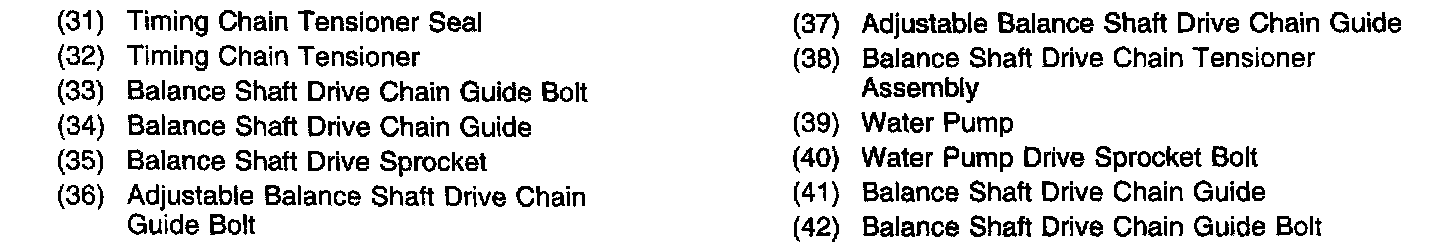

Timing Chain And Components Legend (cont'd):





Part 2 of 2
