Steering Column

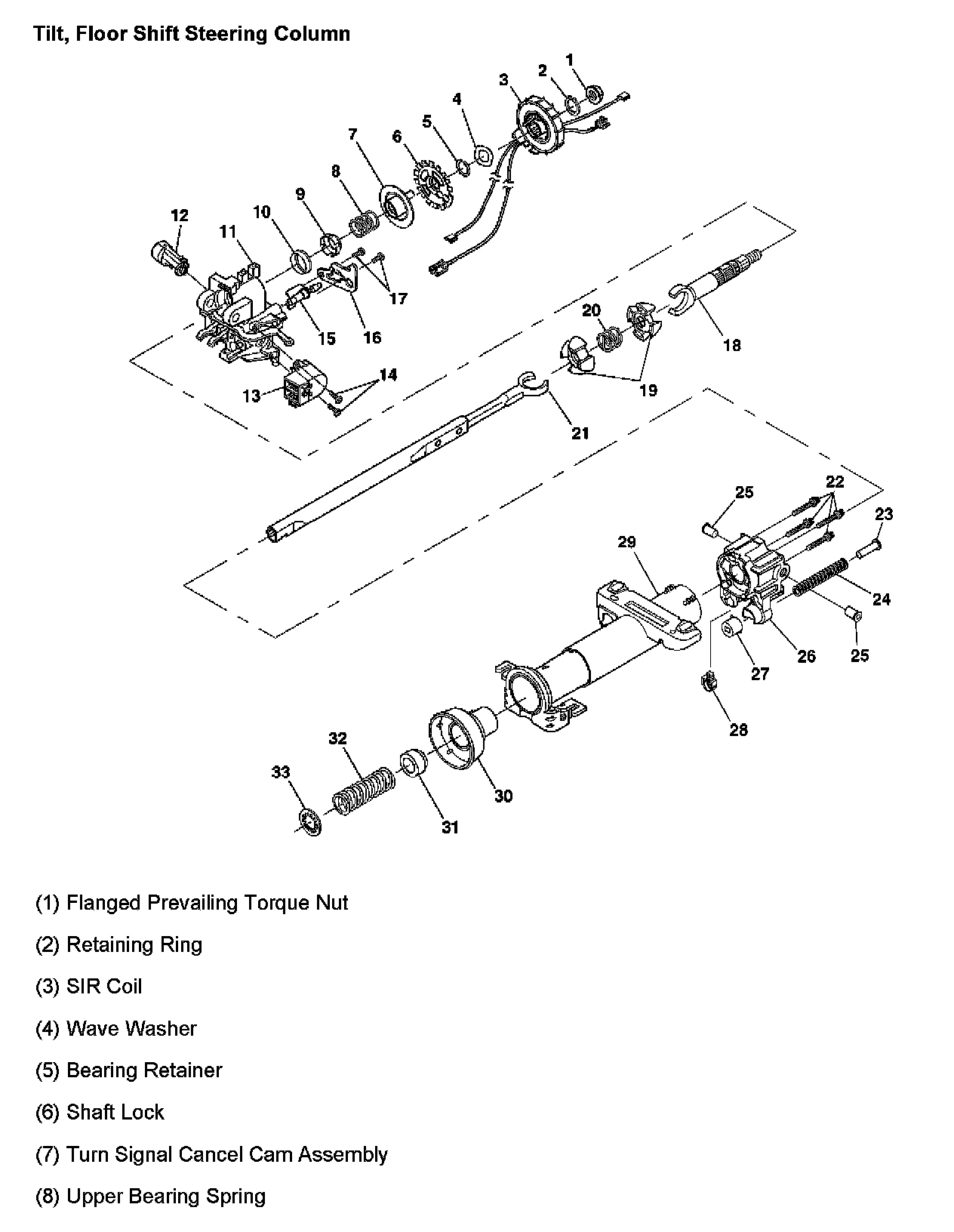

Tilt, Floor Shift Steering Column Part 1:

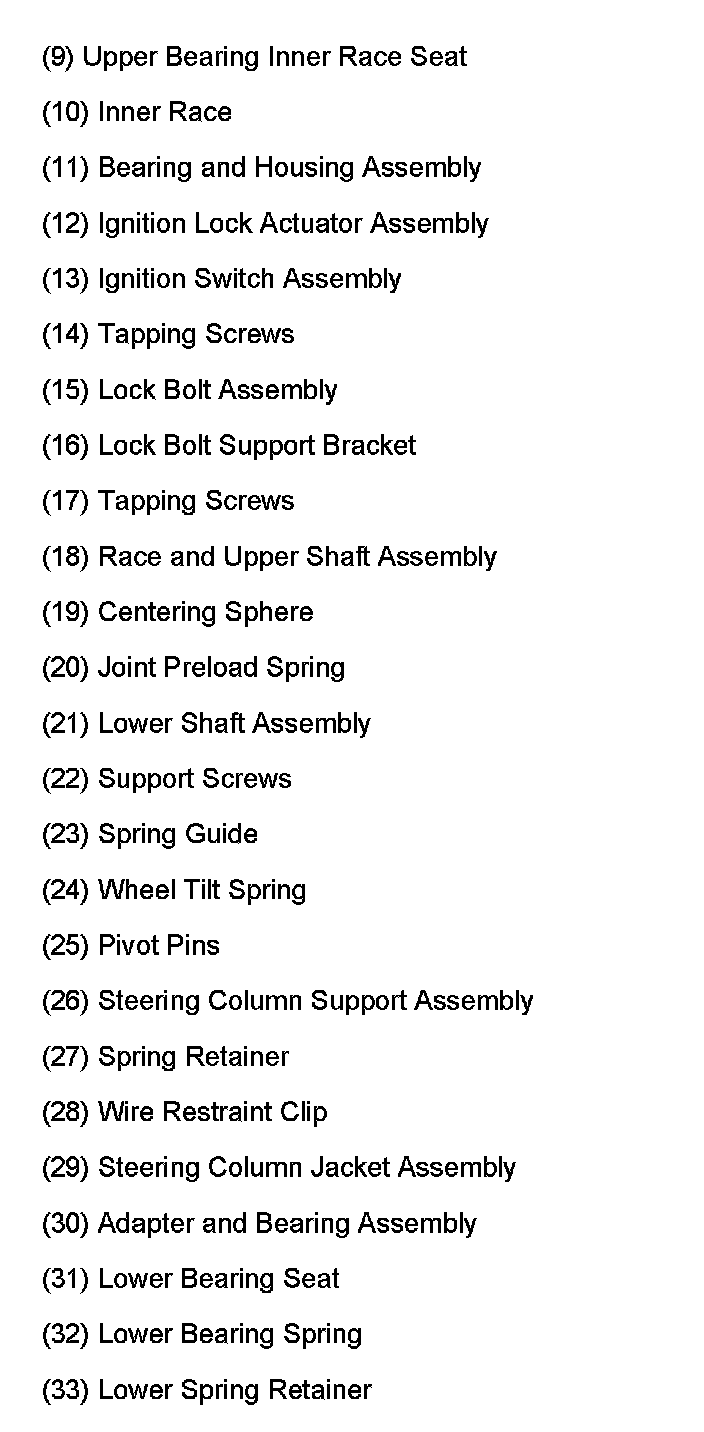

Tilt, Floor Shift Steering Column Part 2:

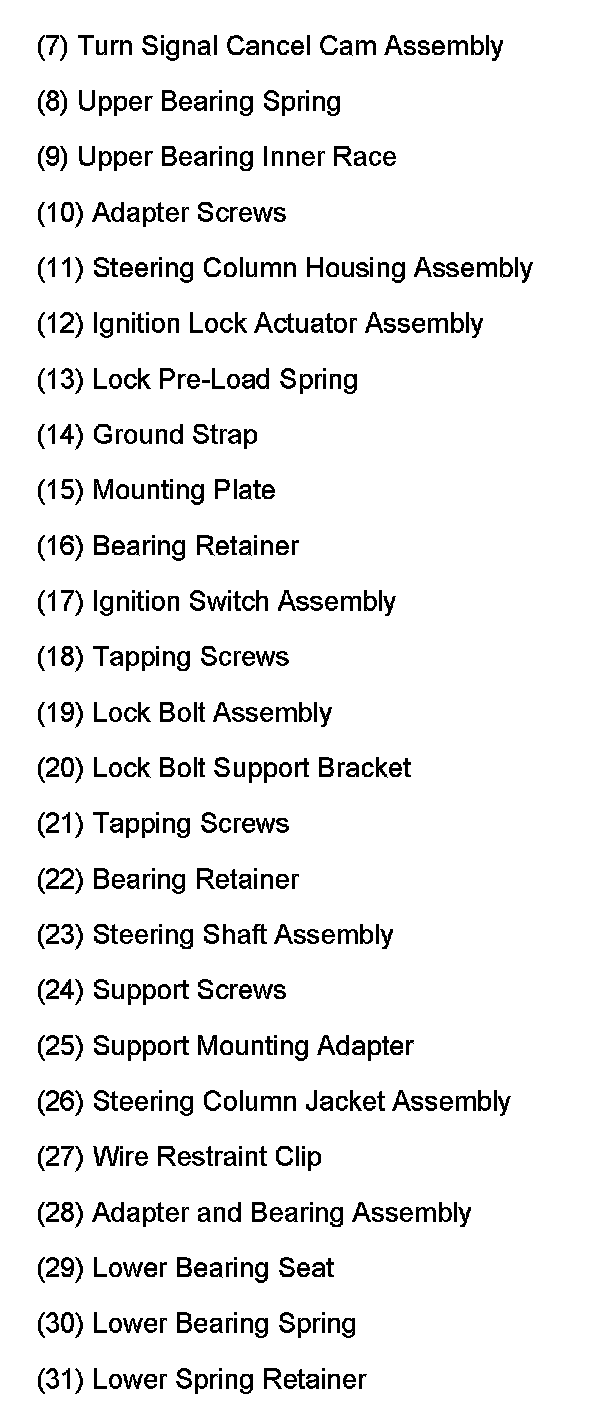

Standard Steering Column Part 1:



Standard Steering Column Part 2:
