Body Control Module: Service and Repair

BODY CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

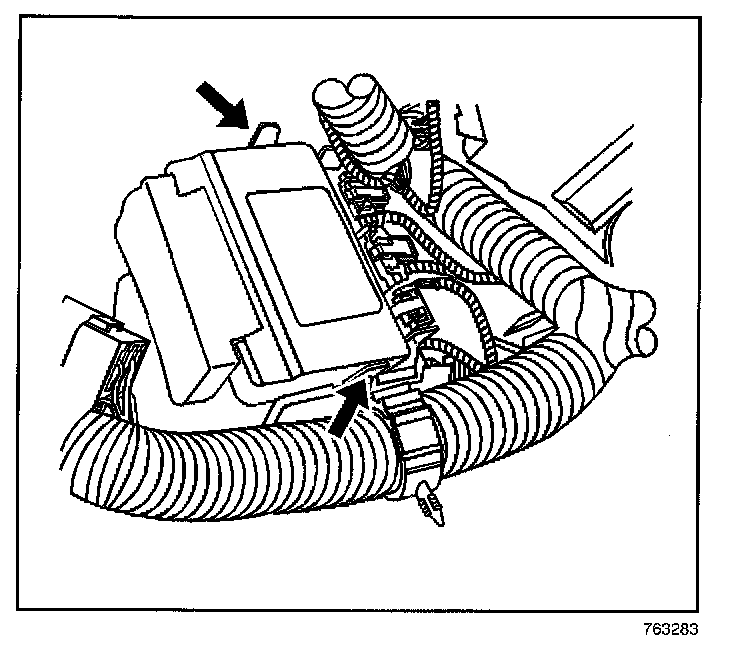

2. Release the body control module (BCM) wire harness retainer from the BCM bracket.
3. Disconnect the BCM electrical connectors from the BCM.
4. Release the lock tabs and remove the BCM from the BCM bracket.

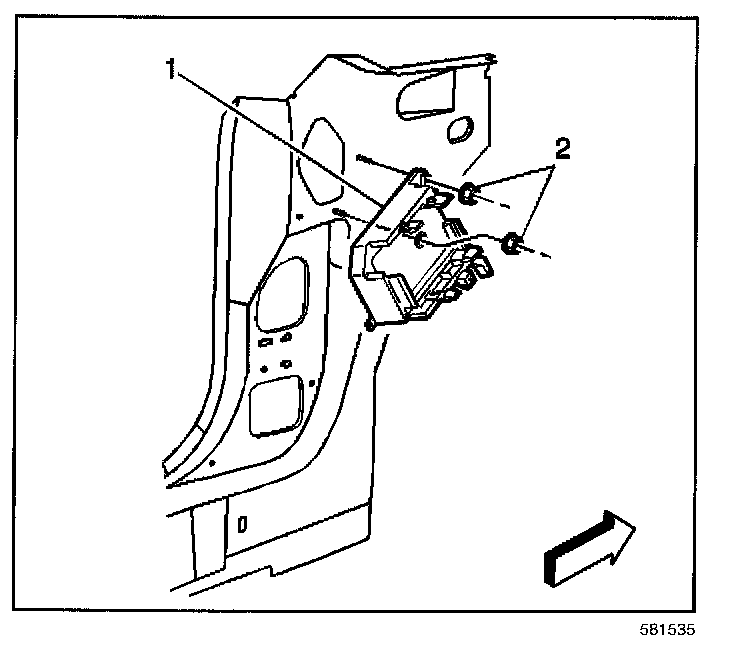

5. Remove the BCM bracket nuts (2) if required.
6. Remove the BCM bracket (1) as an assembly if required.

INSTALLATION PROCEDURE




1. Install the BCM bracket (1) as an assembly if required.
2. Install the BCM bracket nuts (2) if required.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the nuts to 5 N.m (44 lb in).




3. Install the BCM into the BCM bracket until lock tabs are fully seated.
4. Connect the BCM electrical connectors to the BCM.
5. Install the BCM wire harness retainer to the BCM bracket.
6. Connect the negative battery cable.
7. Reprogram the BCM. Programming and Relearning
