Automatic Transmission/Transaxle

Specifications

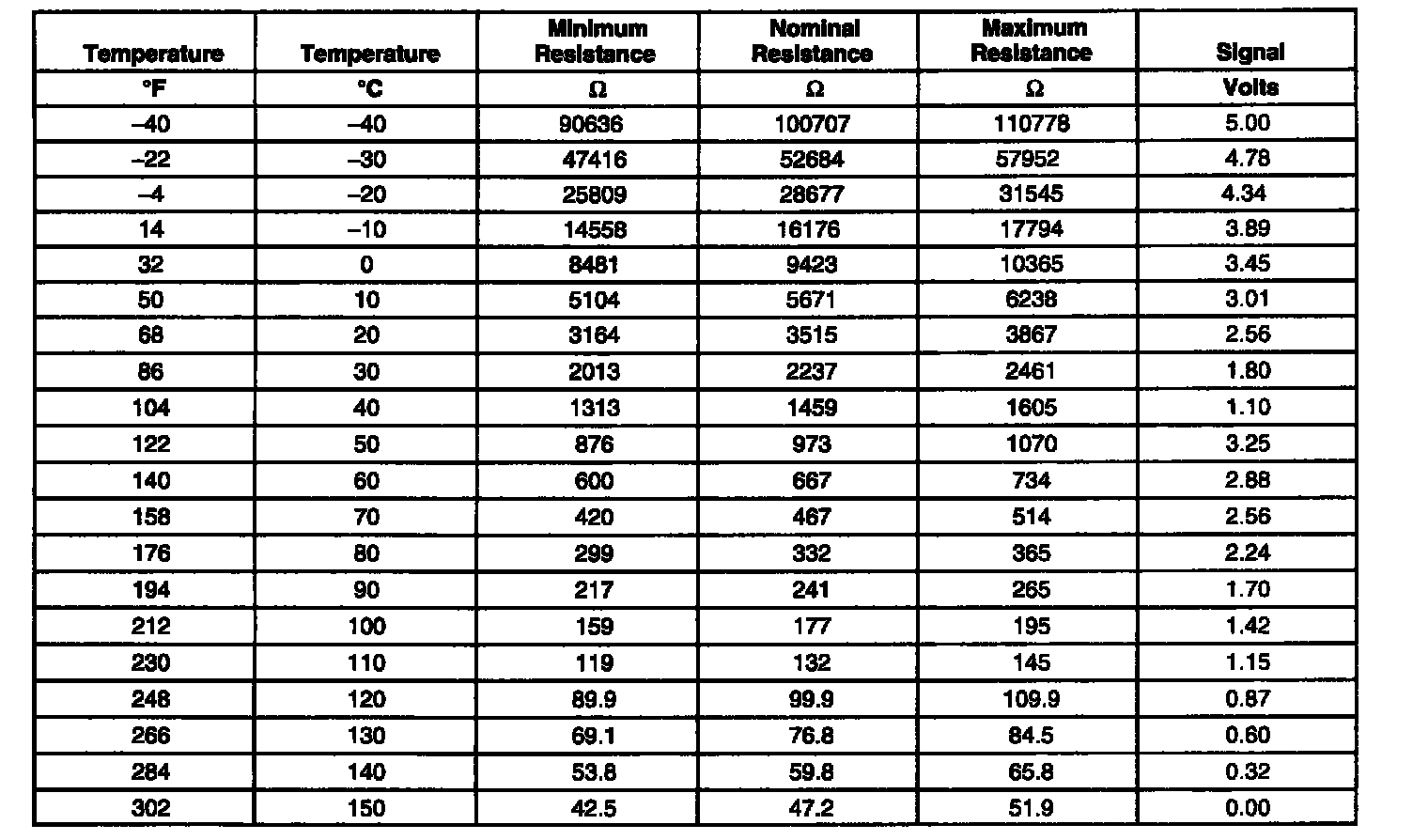

Transmission Fluid Temperature (TFP) Sensor Specifications

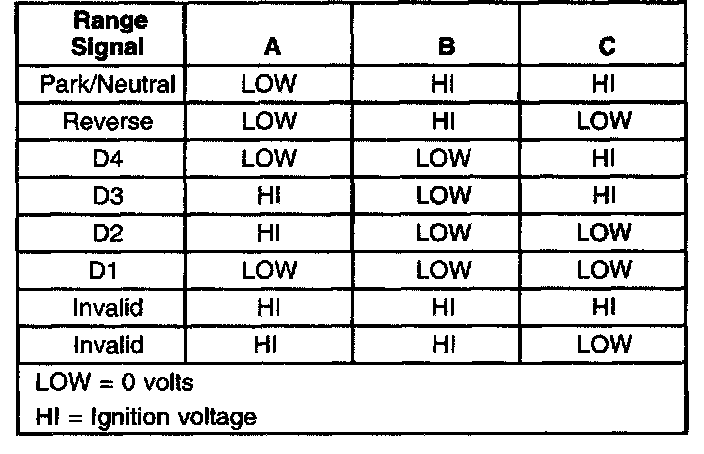

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

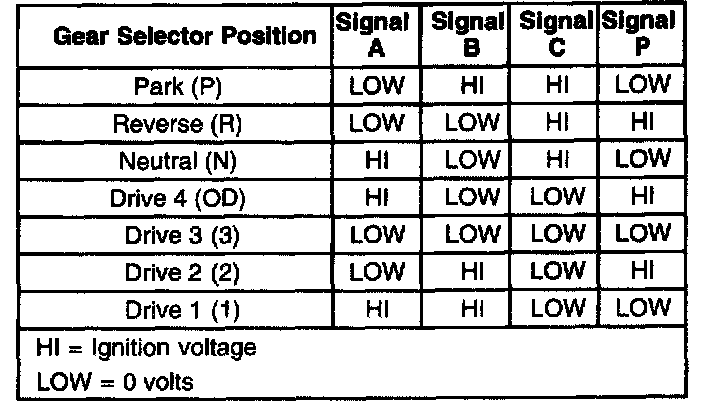

Transmission Range Switch Logic

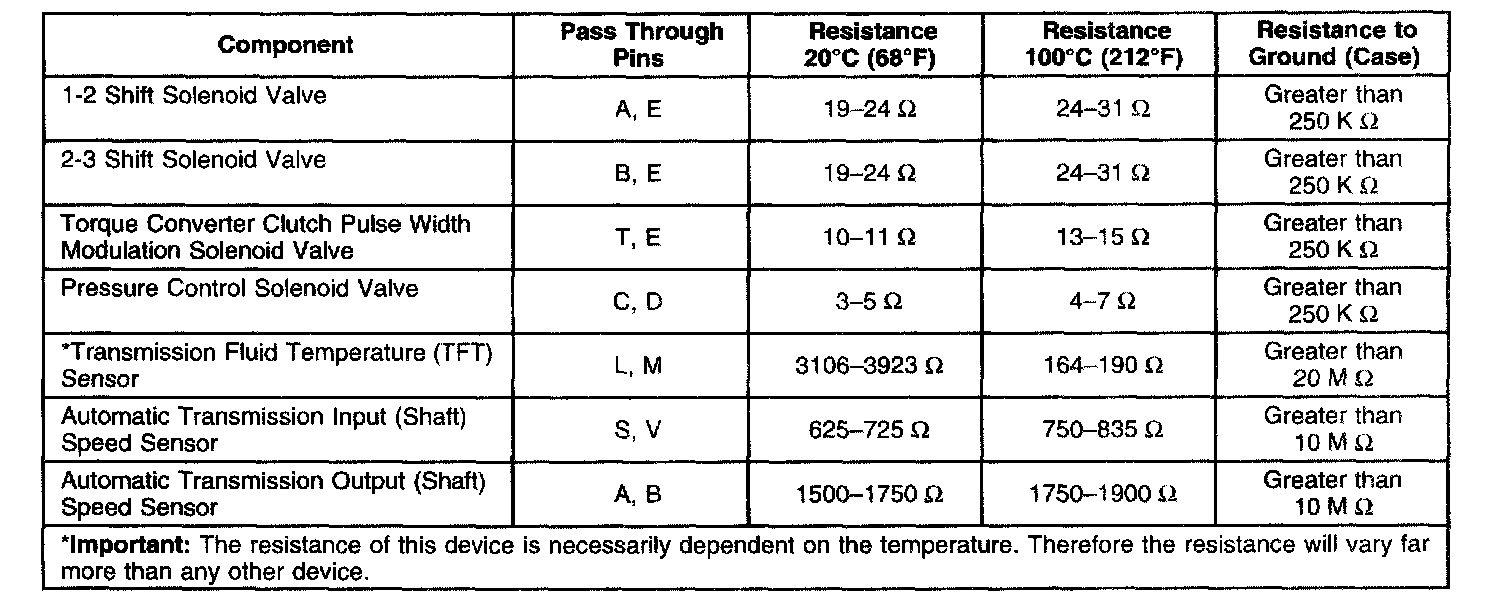

Component Resistance
