Removal Procedure

  1. Remove the weatherstrip from the door pillar by gently pulling on the weatherstrip.
  2. Remove the weatherstrip retainers from the holes in the door pillar.

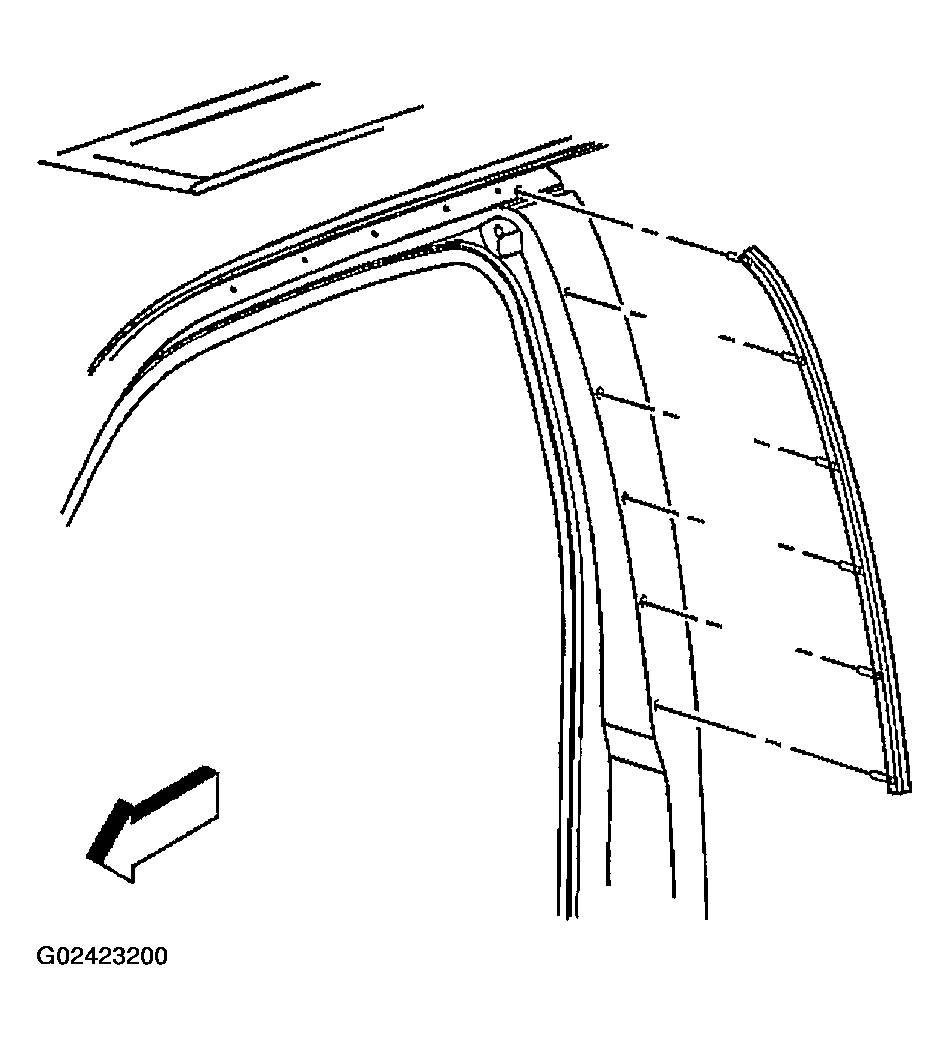

    Fig 1: Removing Front Door Upper Sealing Strip
    G02423200Courtesy of GENERAL MOTORS CORP.
