Powertrain Control Module: Notes

WARNING: This page is about a different variant/trim than selected.

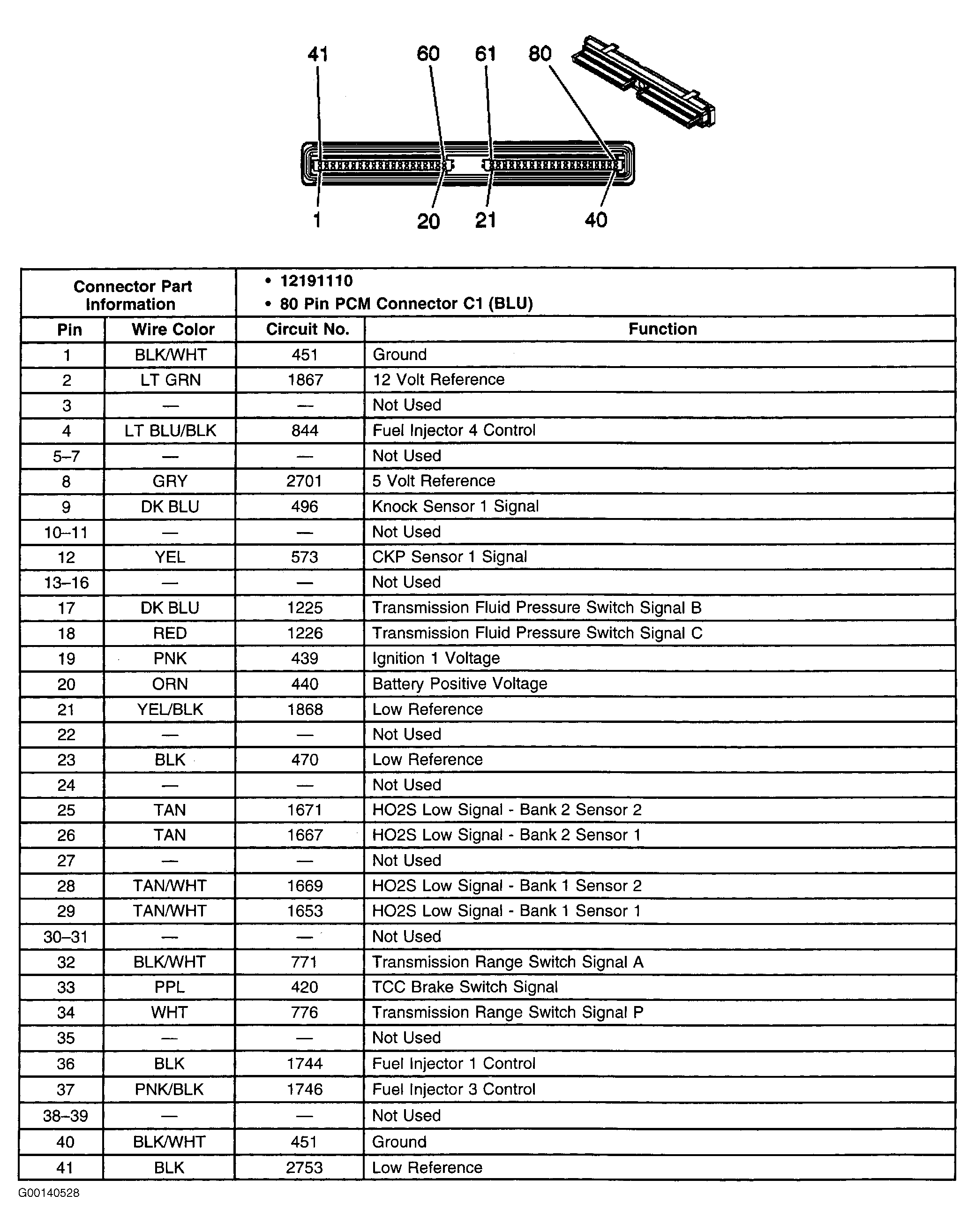

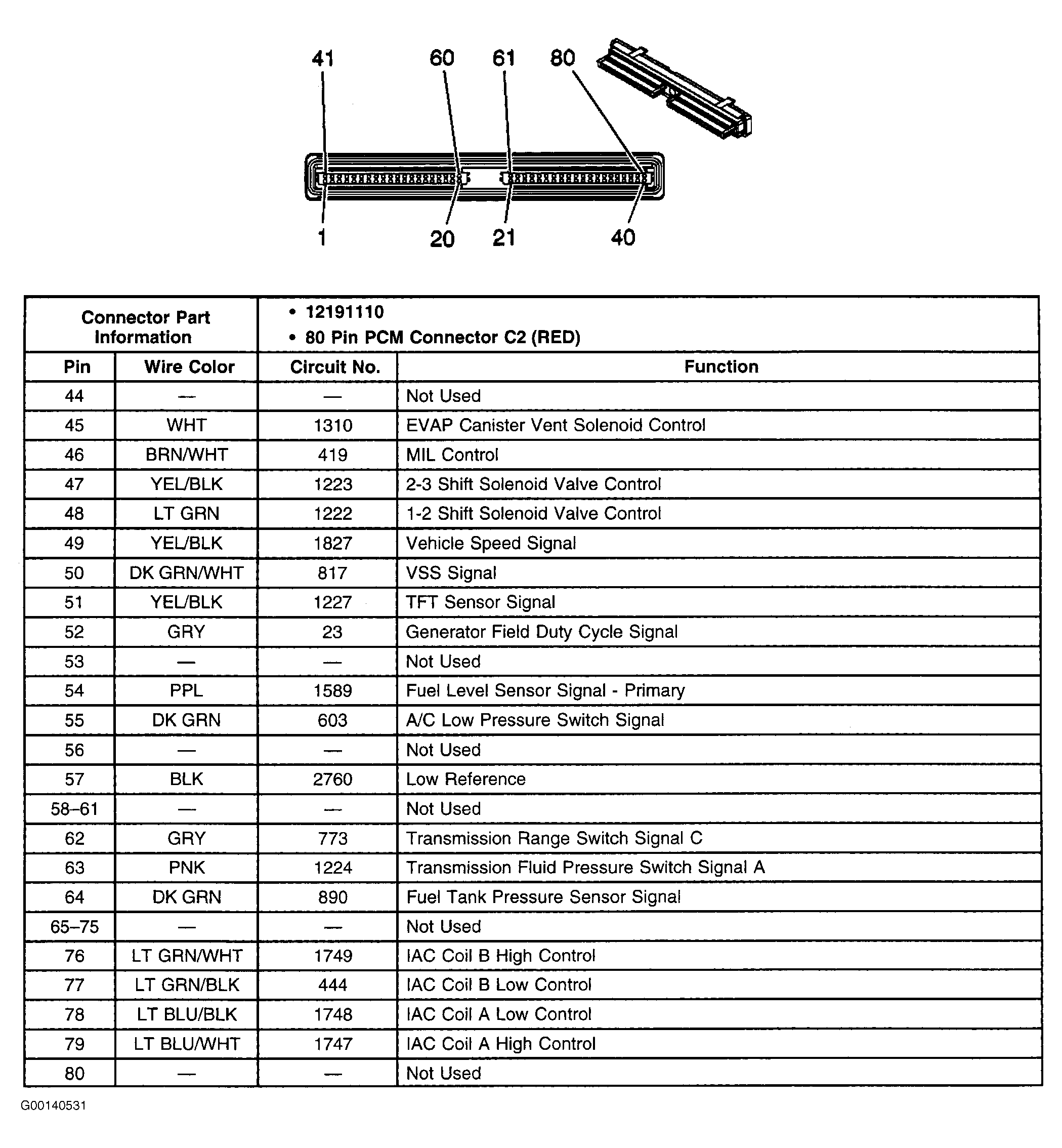

NOTE: To identify circuits referenced in the following ground and power tests, see WIRING DIAGRAMS  or see Figure-Figure .
