Steering Controls Component Views

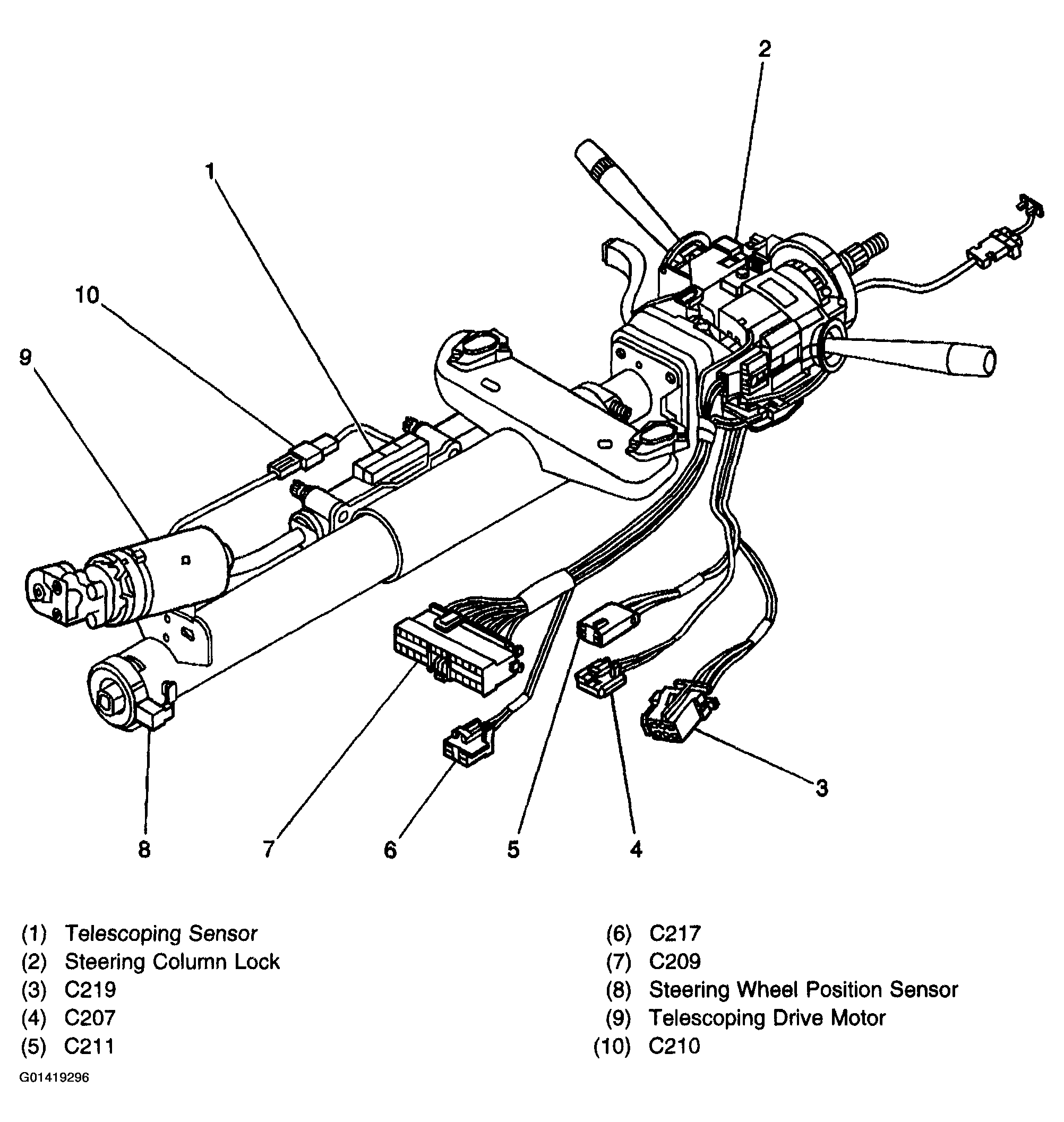

Fig 1: Exploded View Of Steering Column Components
G01419296Courtesy of GENERAL MOTORS CORP.

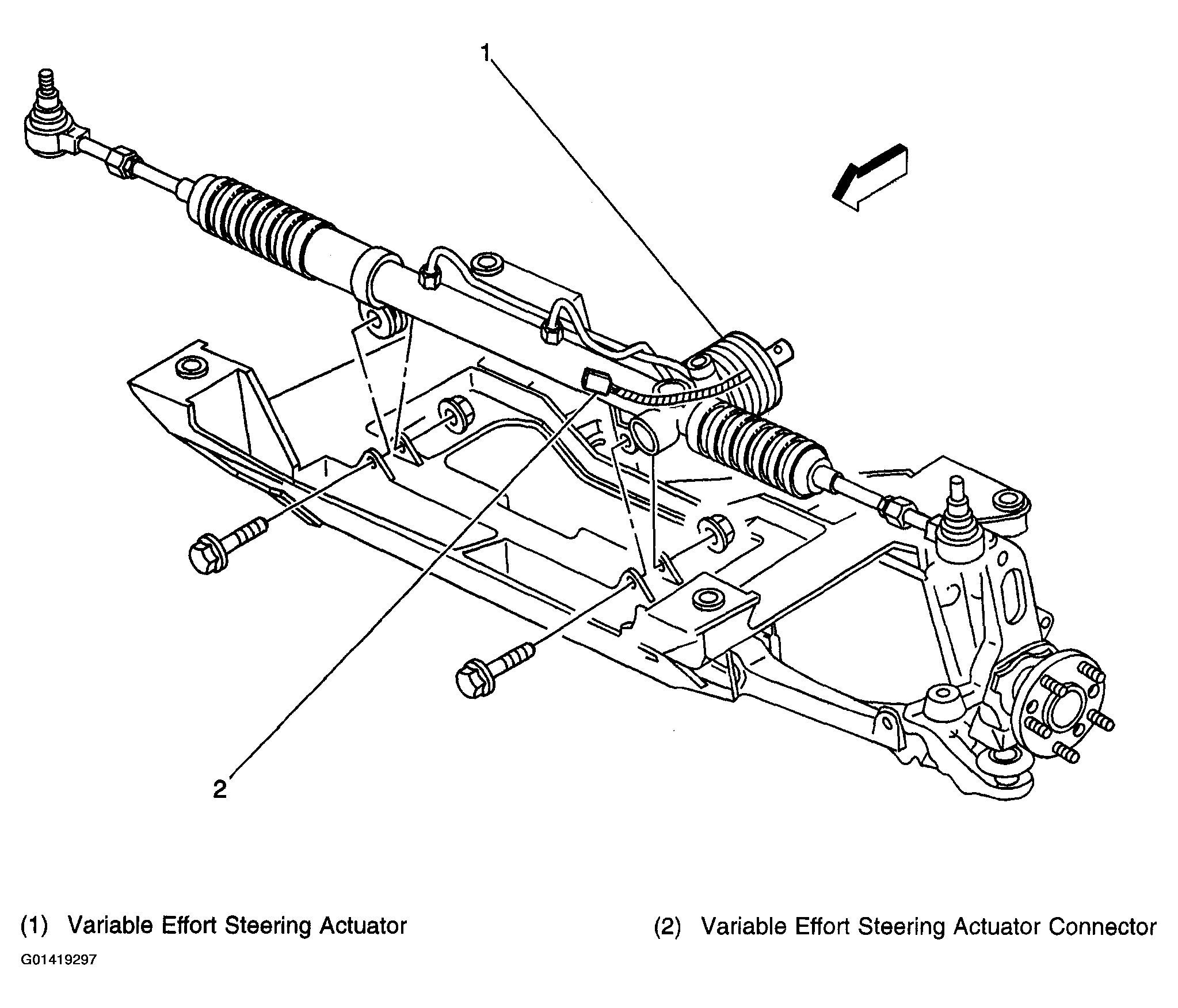

Fig 2: Exploded View Of Lower Front Of Vehicle
G01419297Courtesy of GENERAL MOTORS CORP.
