Exploded View Of Adapter Plate & Gears Components

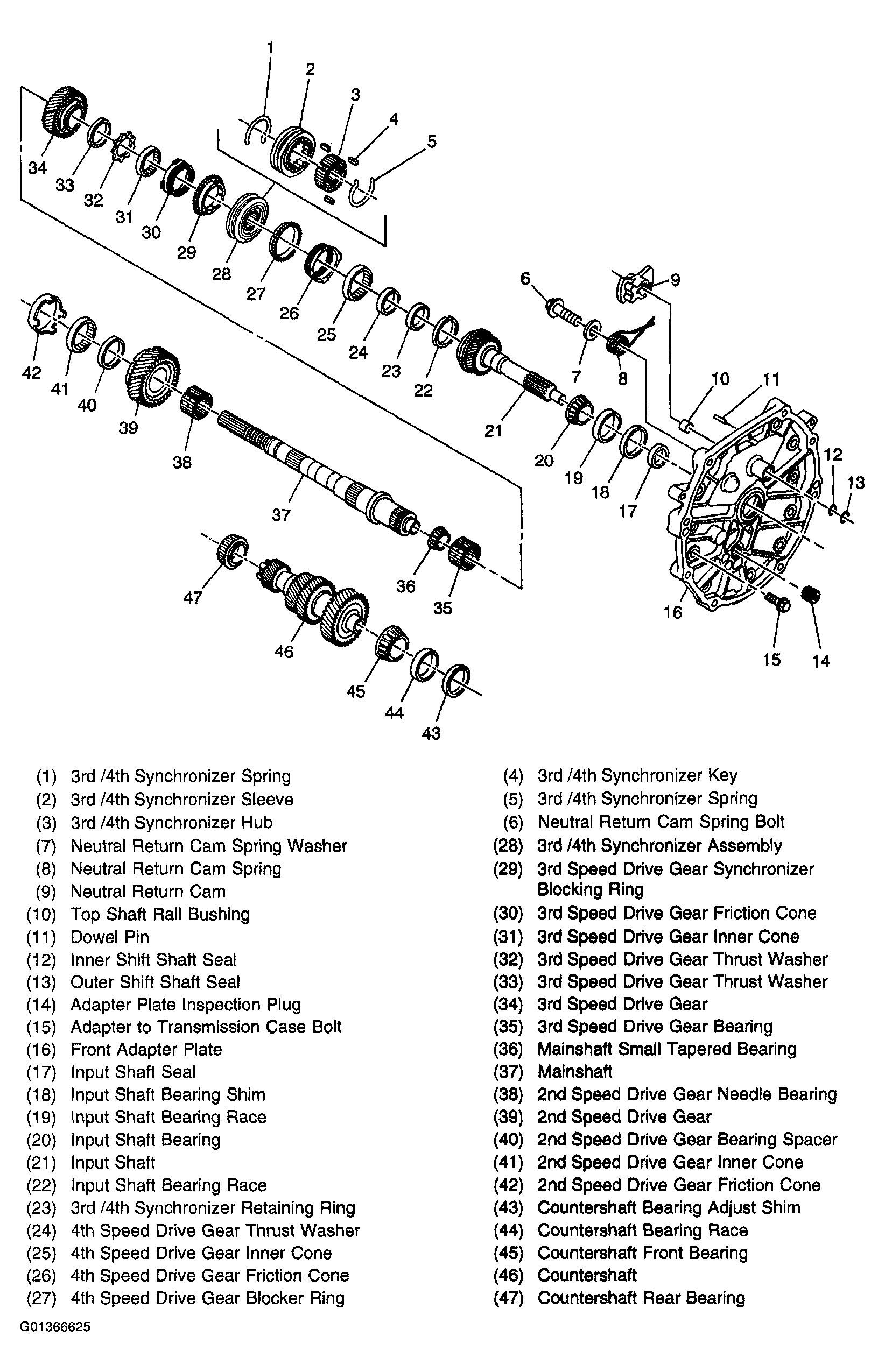

Fig 1: Exploded View Of Adapter Plate & Gears Components
G01366625Courtesy of GENERAL MOTORS CORP.
