Adapter Plate

Tools Required

• J 23907 Slide Hammer. See Special Tools and Equipment .
• J 39439-2 Bushing Remover. See Special Tools and Equipment .

1. Remove the neutral return cam.
2. Remove the neutral return cam spring retaining bolt and washer.
3. Remove the neutral return cam spring.

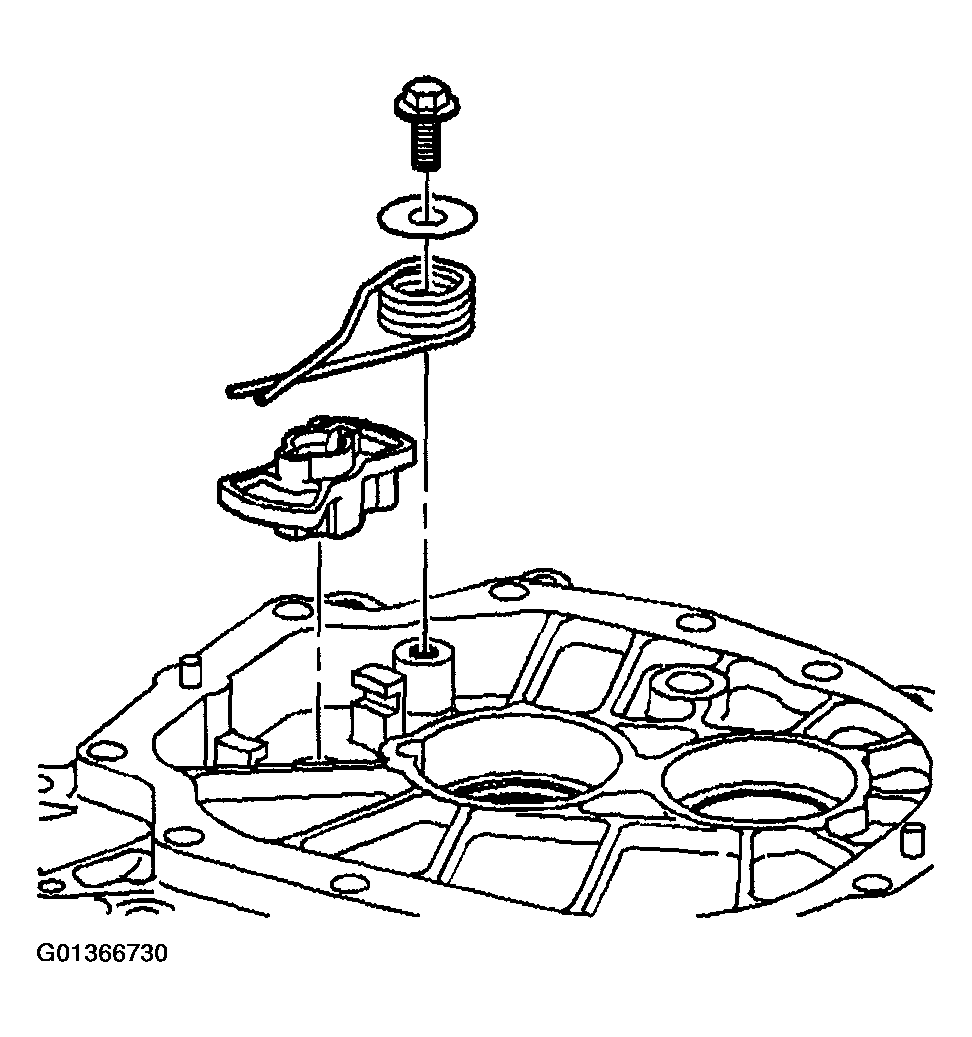

   Fig 1: Removing Neutral Return Cam Spring

   Courtesy of GENERAL MOTORS CORP.
4. Remove the input shaft bearing race and the shim.

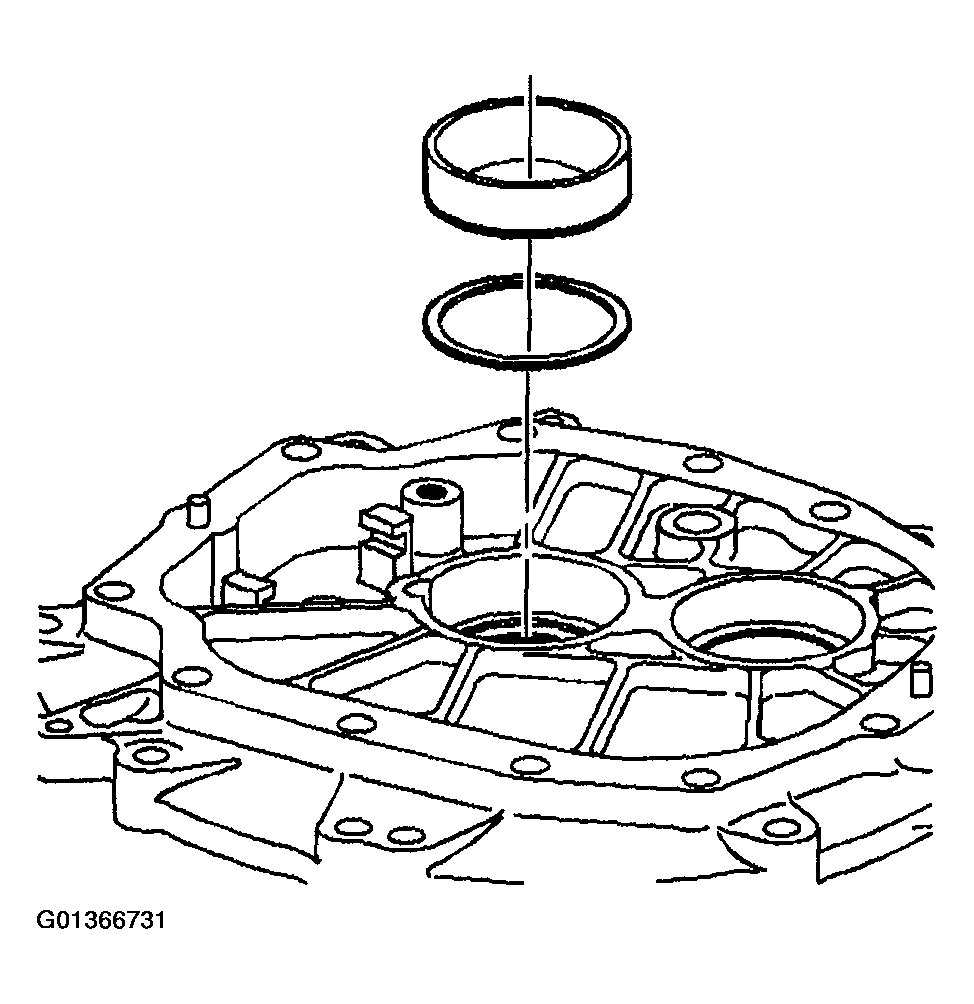

   Fig 2: Removing Input Shaft Bearing Race & Shim

   Courtesy of GENERAL MOTORS CORP.
5. Remove the countershaft bearing race and the shim.

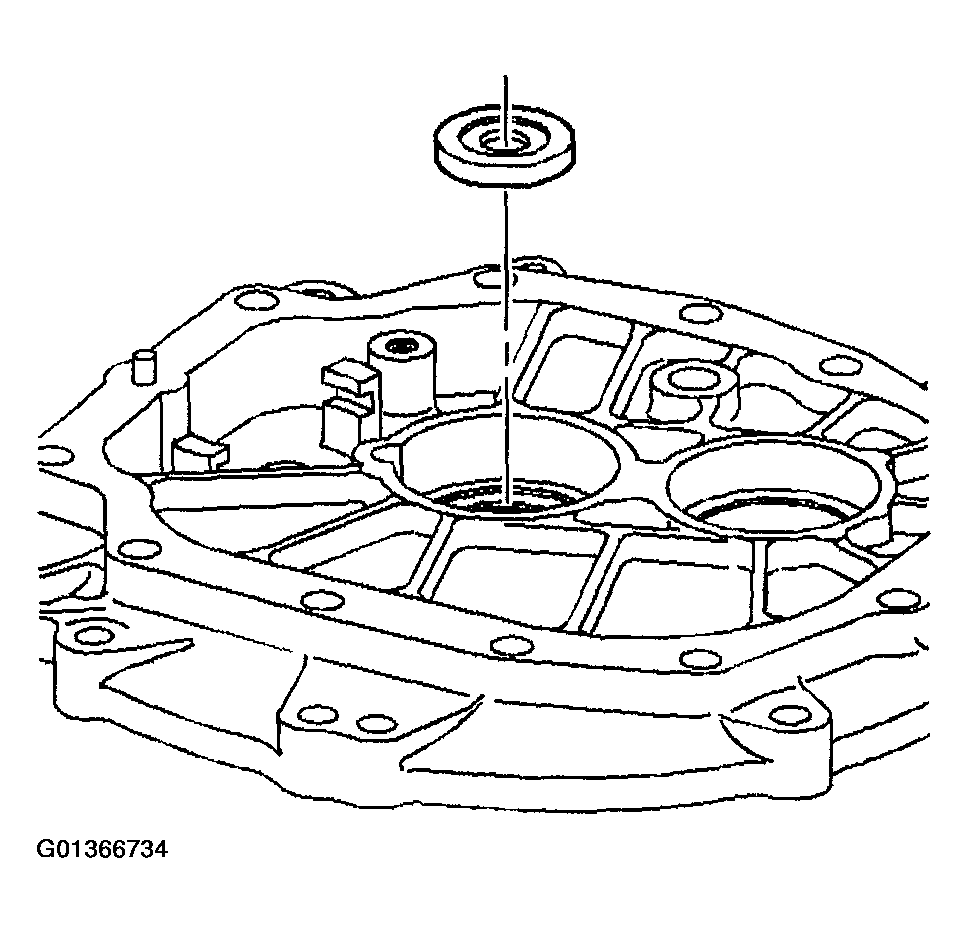

   Fig 3: Removing Countershaft Bearing Race & Shim

   Courtesy of GENERAL MOTORS CORP.
6. Remove the adapter plate plug.

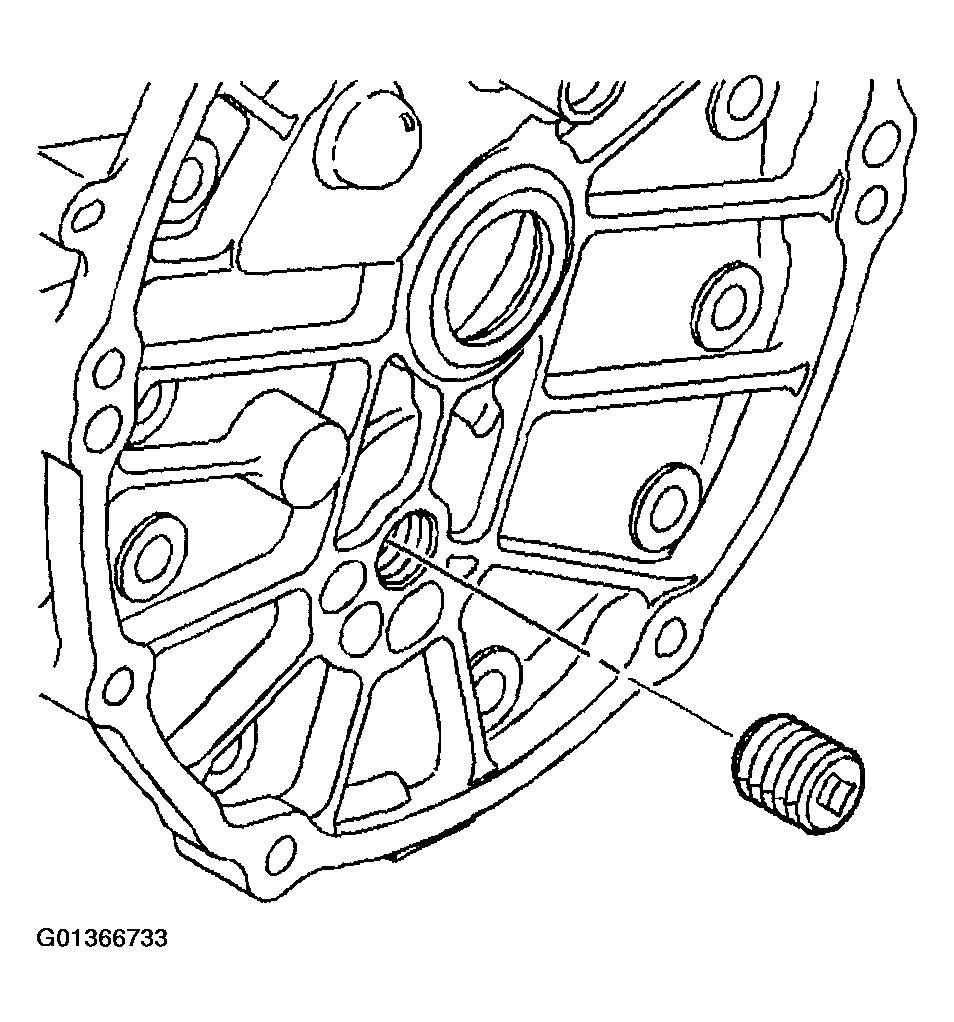

   Fig 4: Removing Adapter Plate Plug

   Courtesy of GENERAL MOTORS CORP.
7. Remove the input shaft seal.

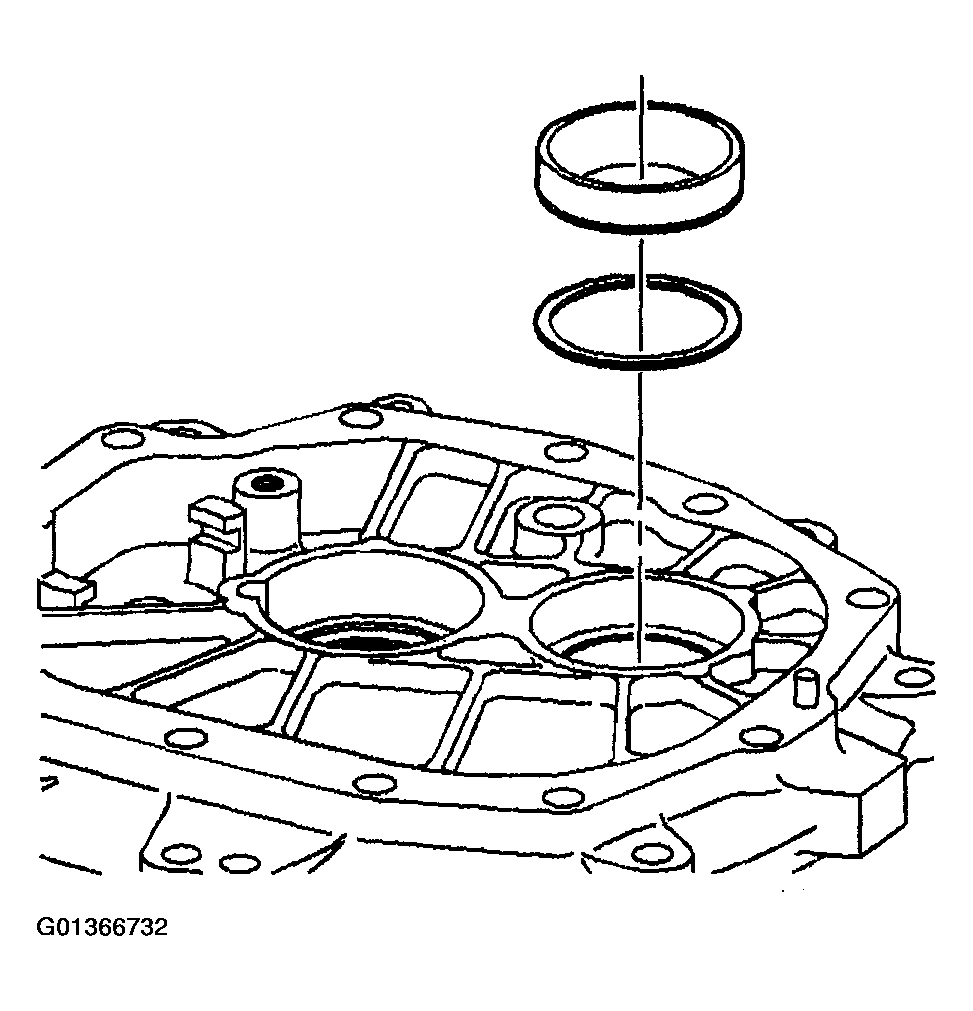

   Fig 5: Removing Input Shaft Seal

   Courtesy of GENERAL MOTORS CORP.

   Important:  Do not replace the bushing unless inspection shows bushing damage.

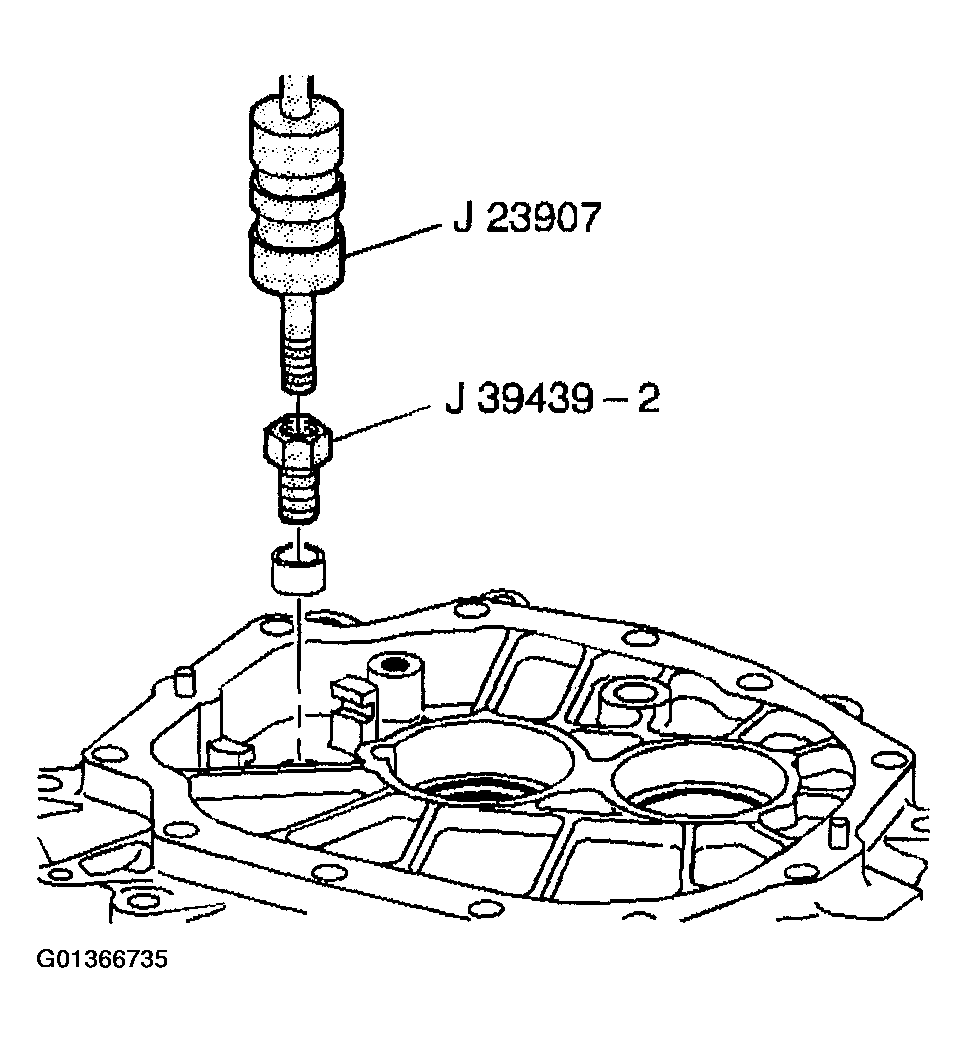

   Fig 6: Removing 1st/2nd & 3rd/4th Shift Shaft Bushing

   Courtesy of GENERAL MOTORS CORP.
8. Remove the 1st/2nd and the 3rd/4th shift shaft bushing, using the J 23907 with the J 39439-2.
9. Remove the 1st/2nd and the 3rd/4th shift shaft seals (1) and (2).

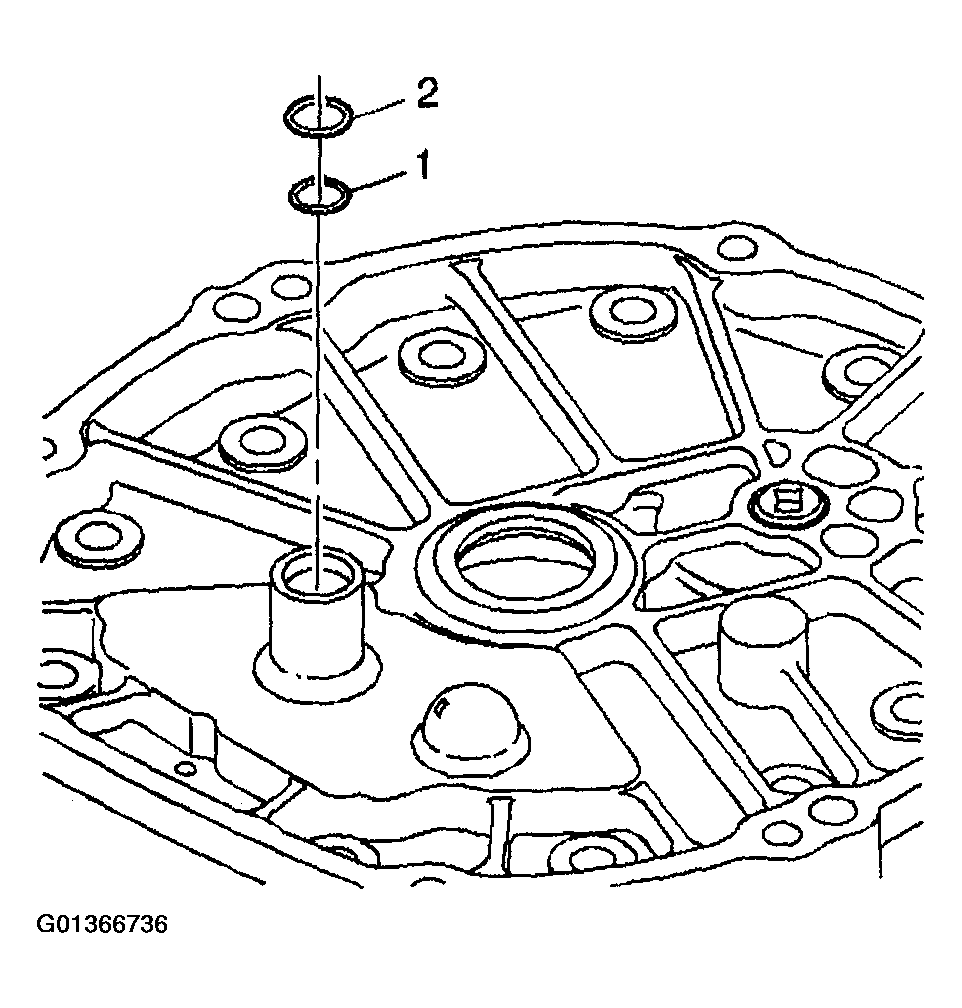

   Fig 7: Removing 1st/2nd And 3rd/4th Shift Shaft Seals

   Courtesy of GENERAL MOTORS CORP.
10. Remove the dowel pins.

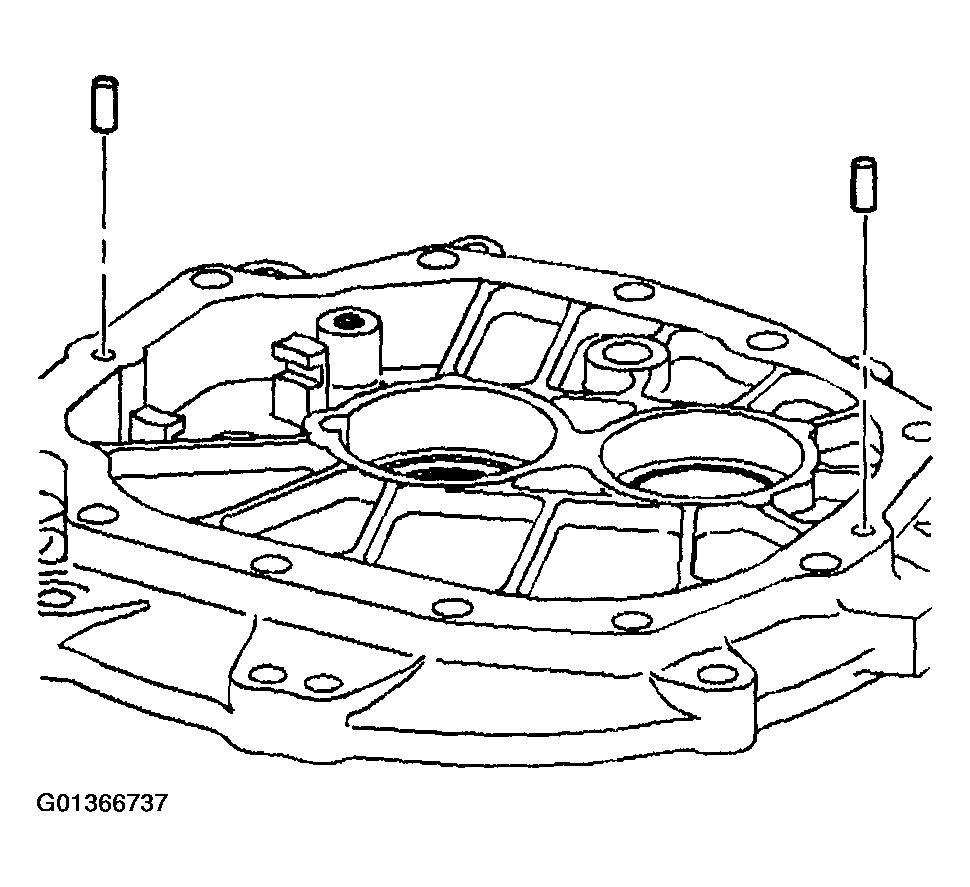

Fig 8: Removing Dowel Pins

Courtesy of GENERAL MOTORS CORP.
