Fuel Level Sensor: Locations

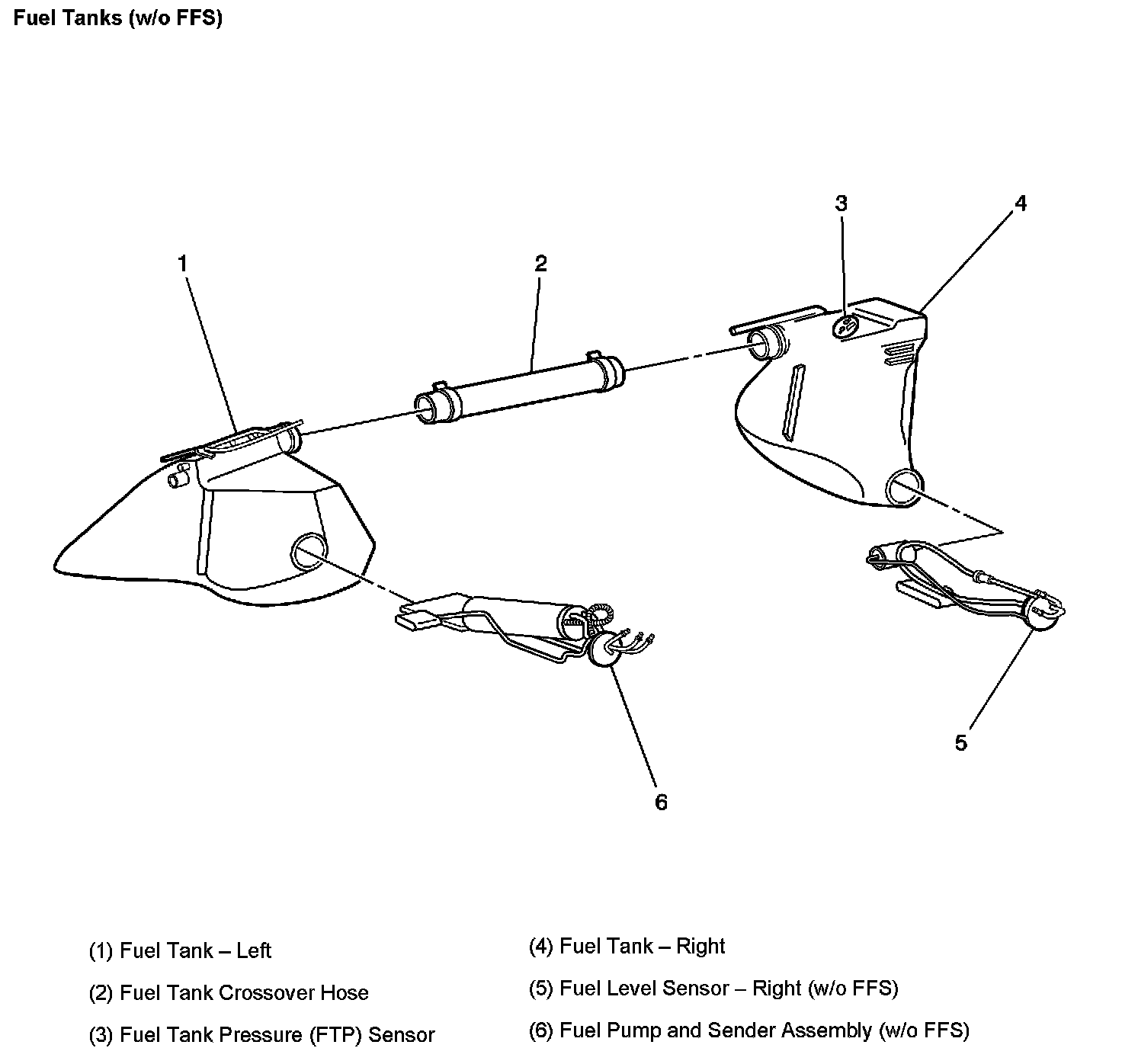

Fuel Tanks (w/o FFS):

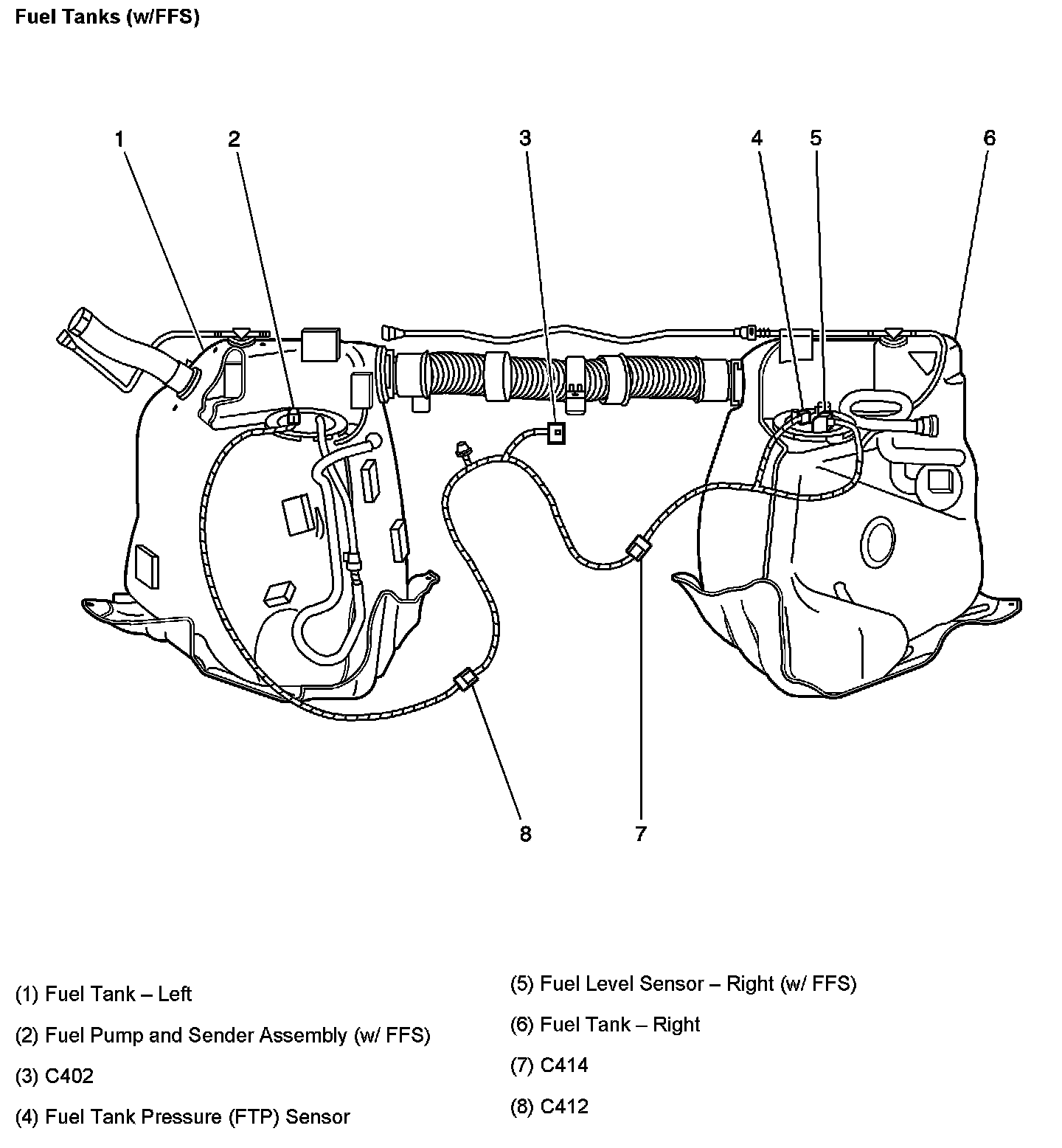

Fuel Tanks (w/FFS):

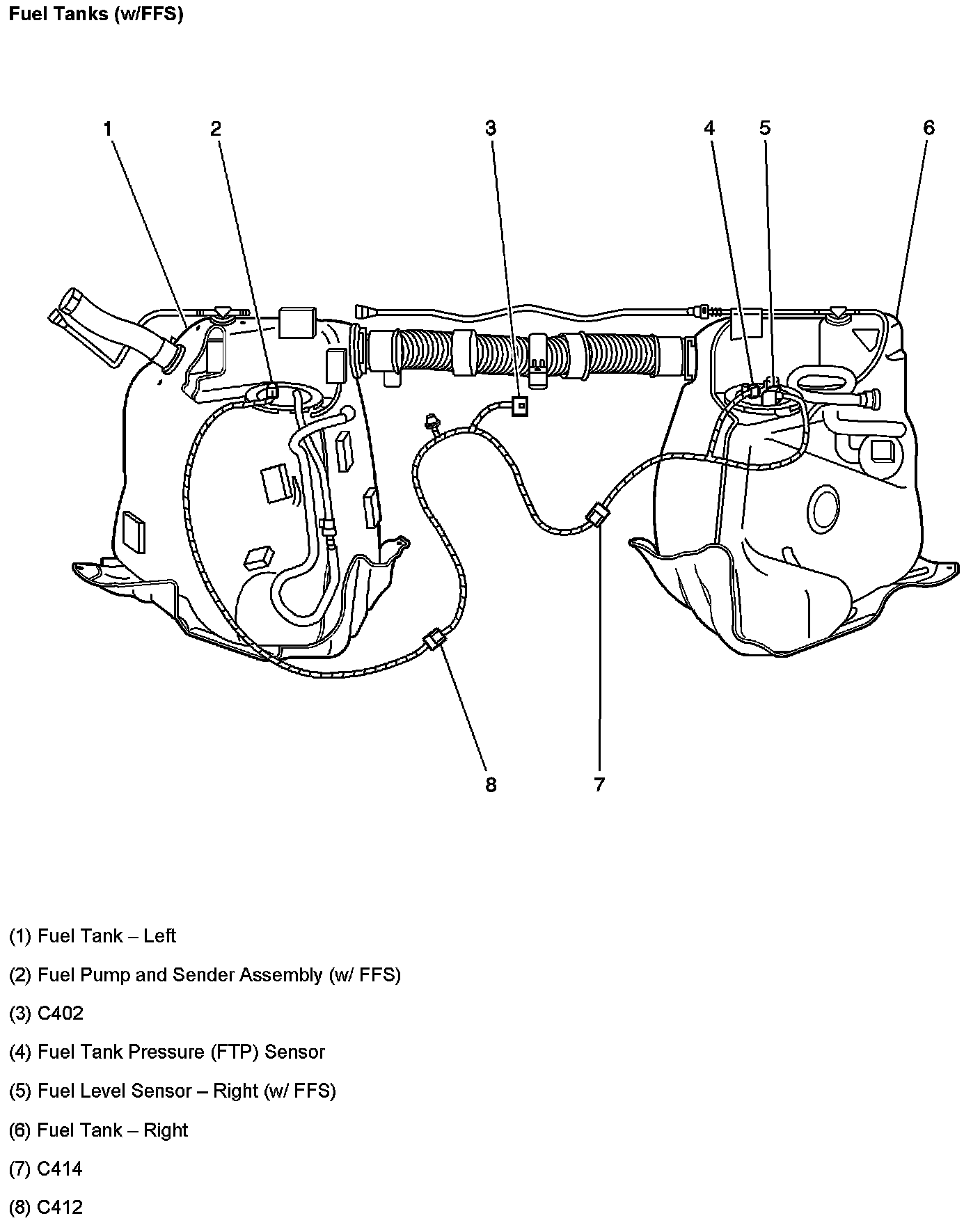

Fuel Tanks (w/FFS):

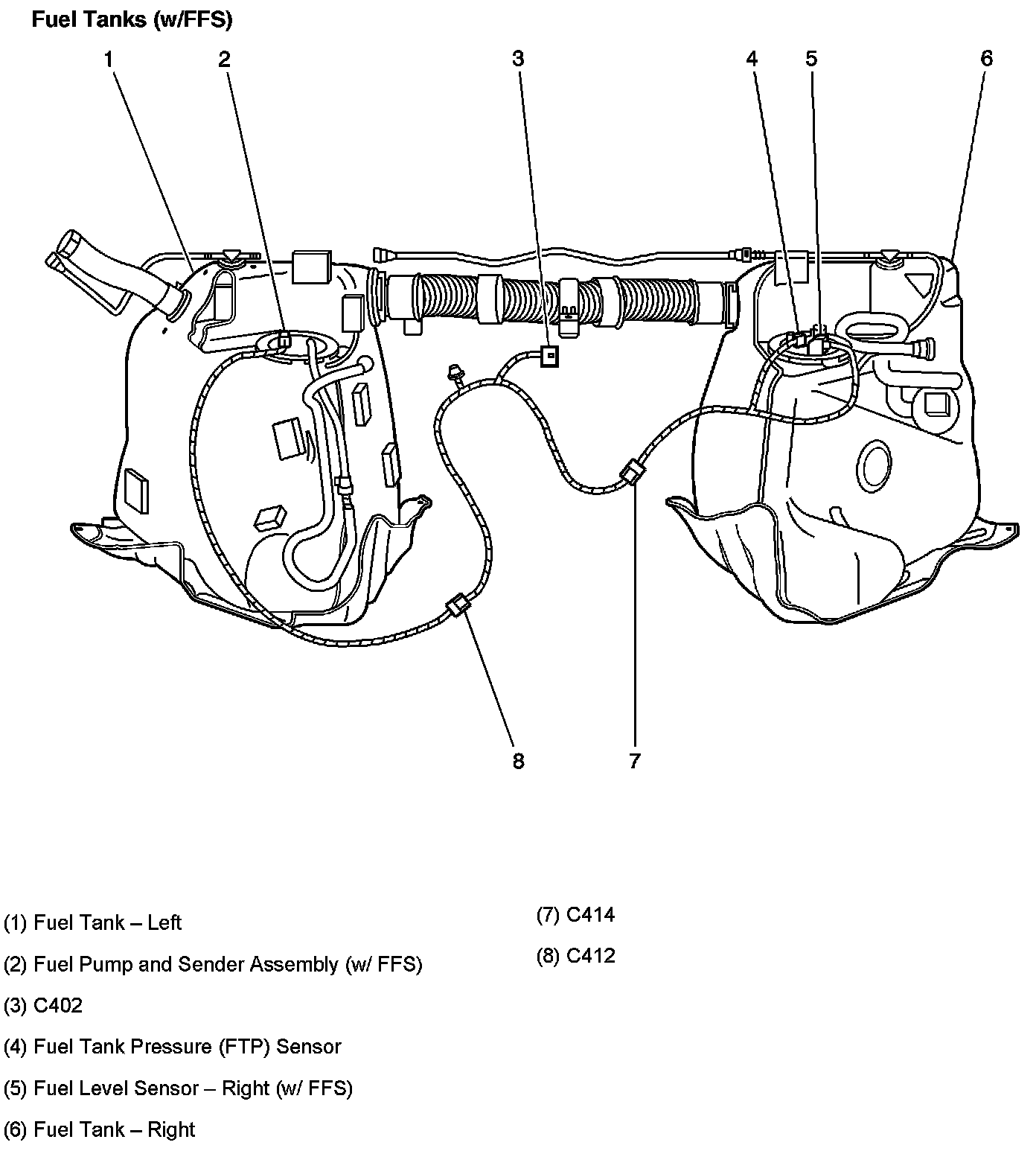

Fuel Tanks (With RPO Code FFS):

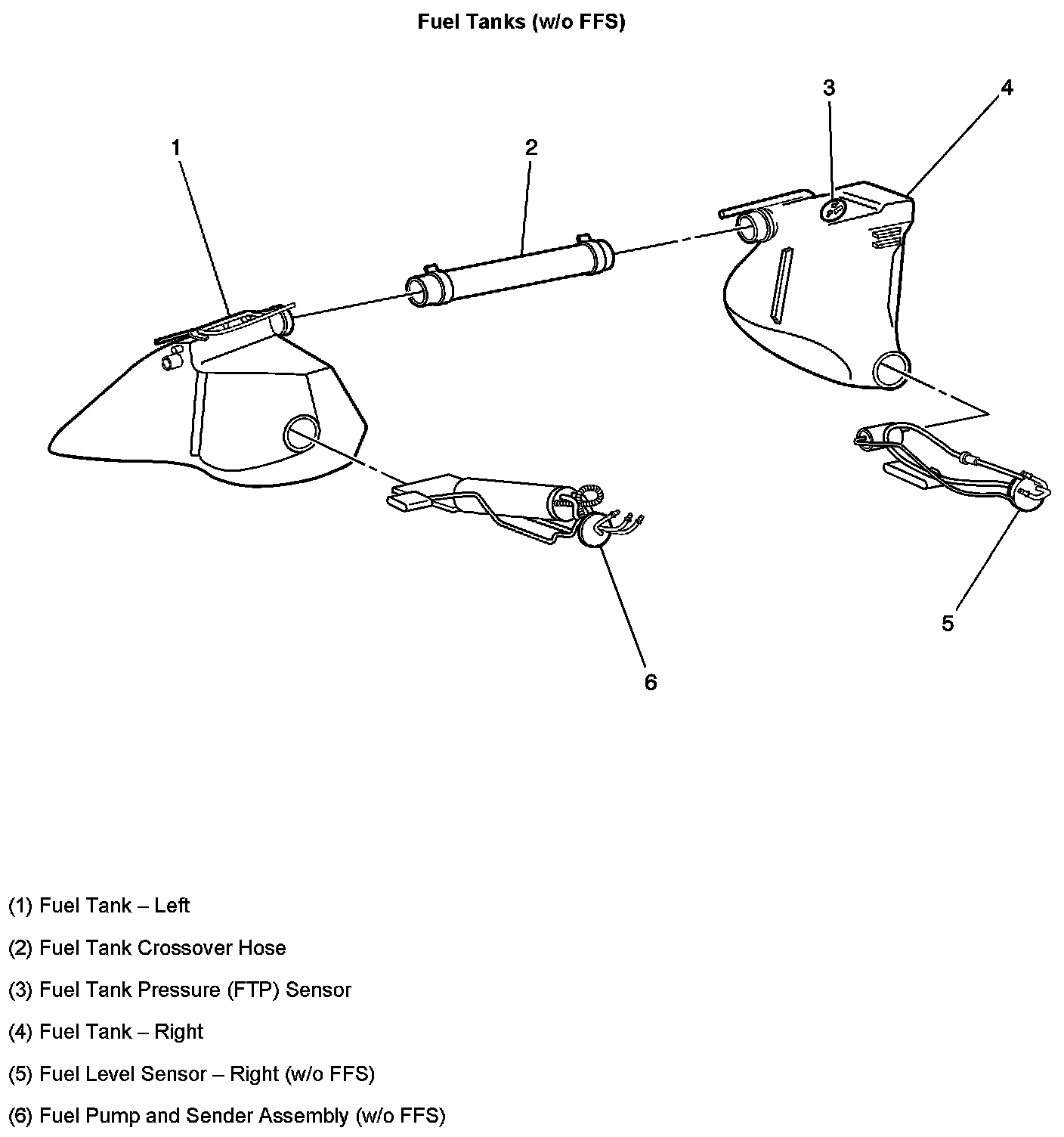

Fuel Tanks (Without RPO Code FFS):
