Home >> Chevrolet >> 2003 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Engine Block-Front View

April 5, 2026: LEMON Manuals is launched! Read the announcement.

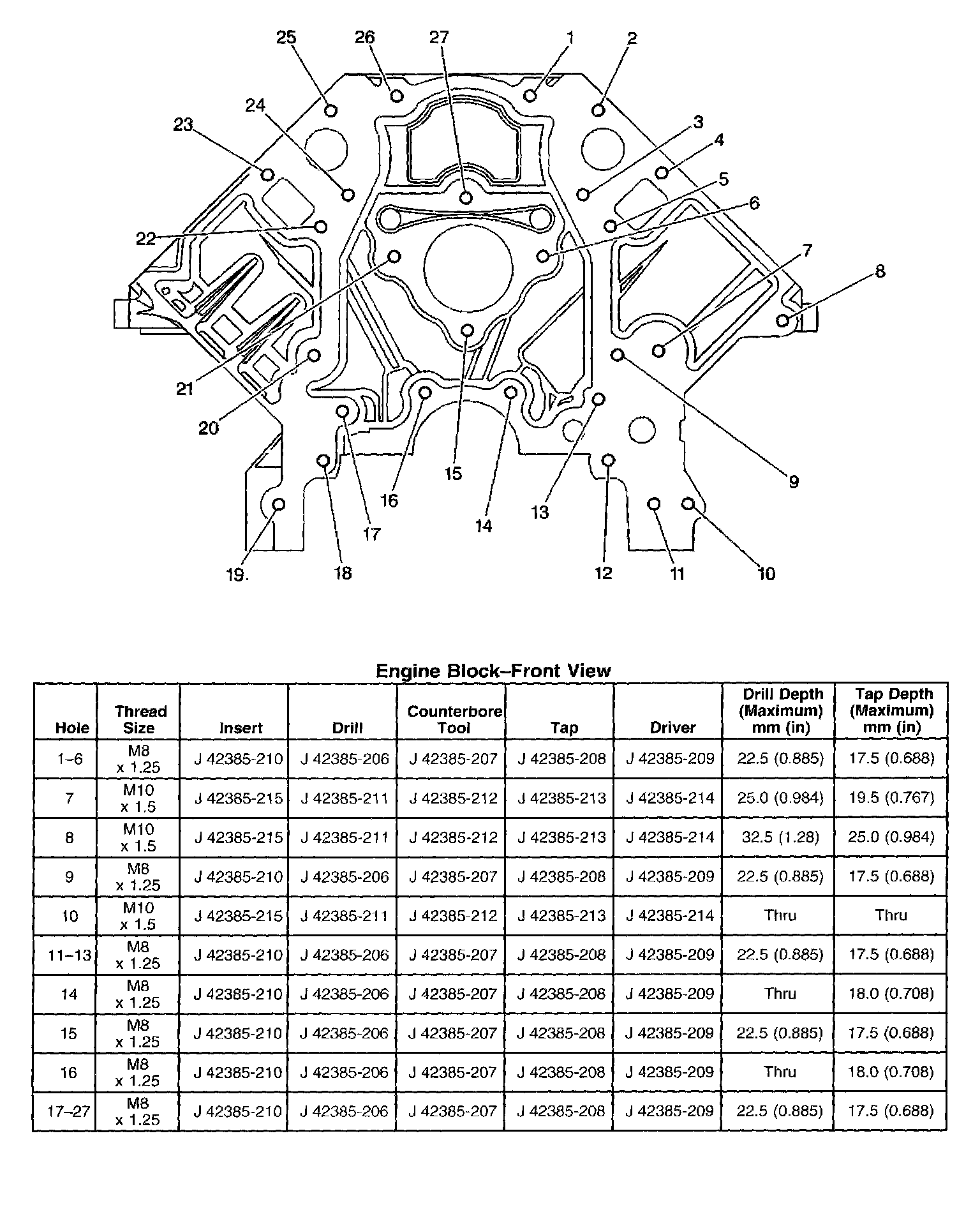

Engine Block-Front View
