Scan Tool Output Controls

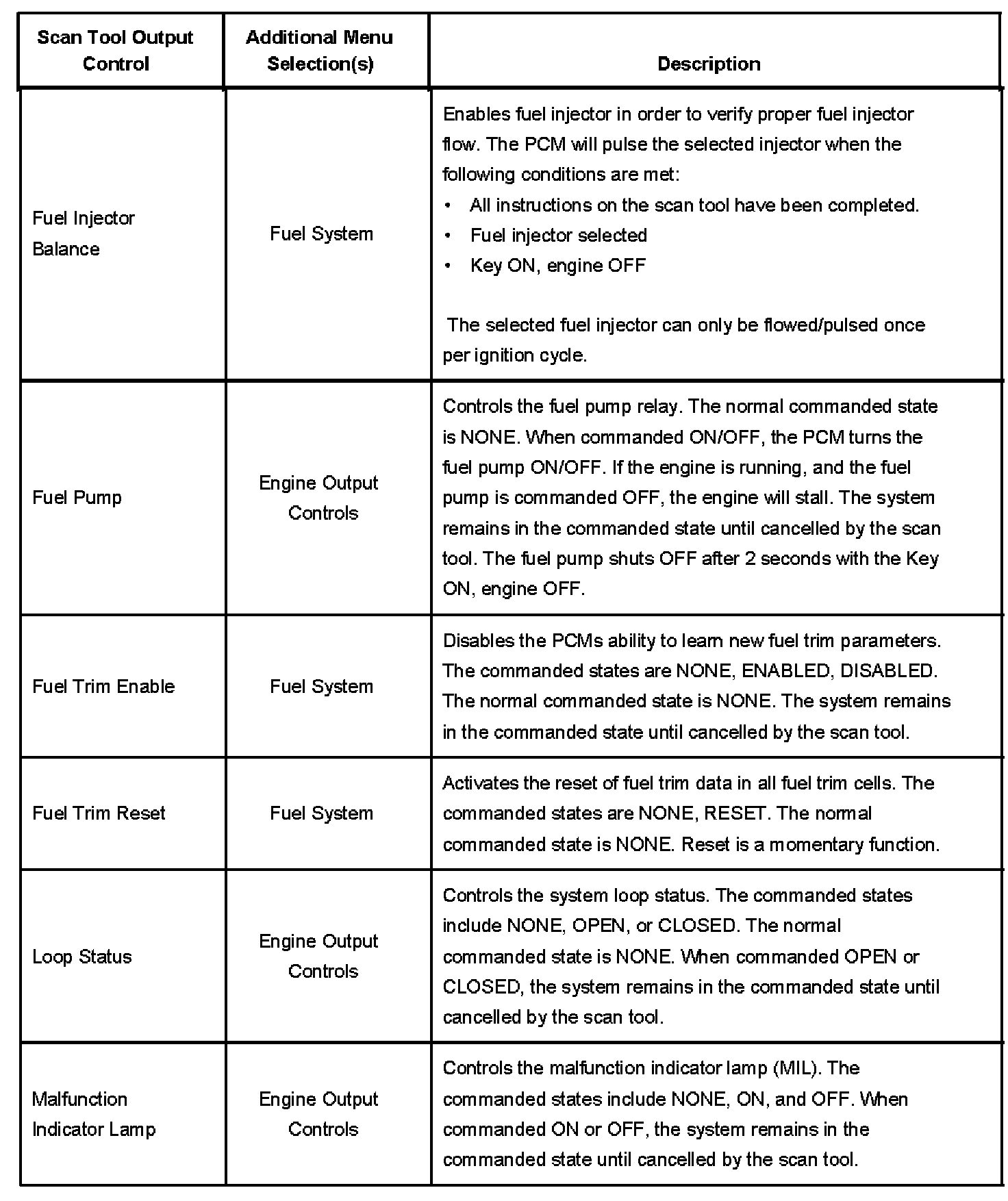

Scan Tool Output Controls - Computers And Control System 1:

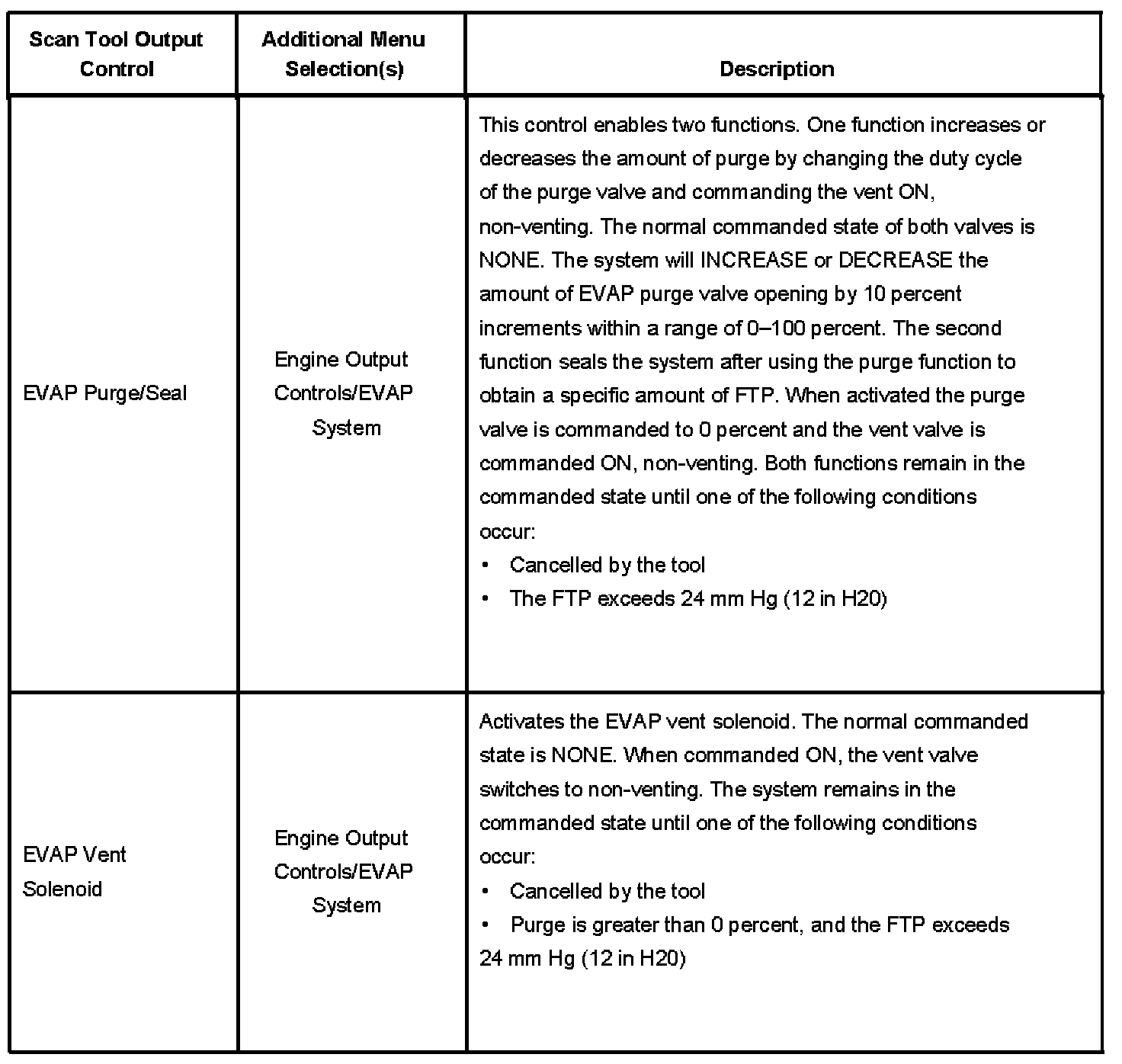

Scan Tool Output Controls - Computers And Control System 2:

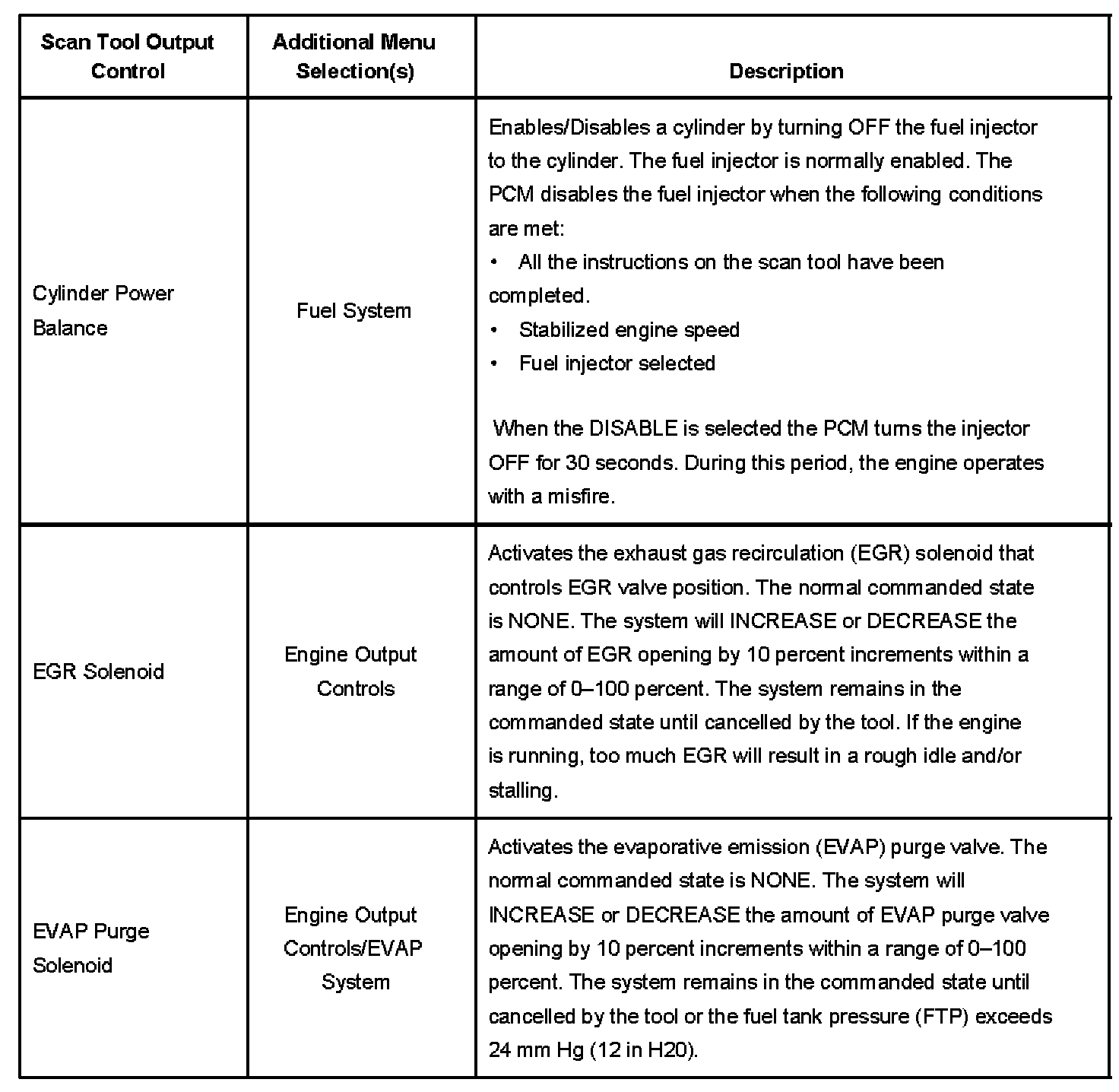

Scan Tool Output Controls - Computers And Control System 3:

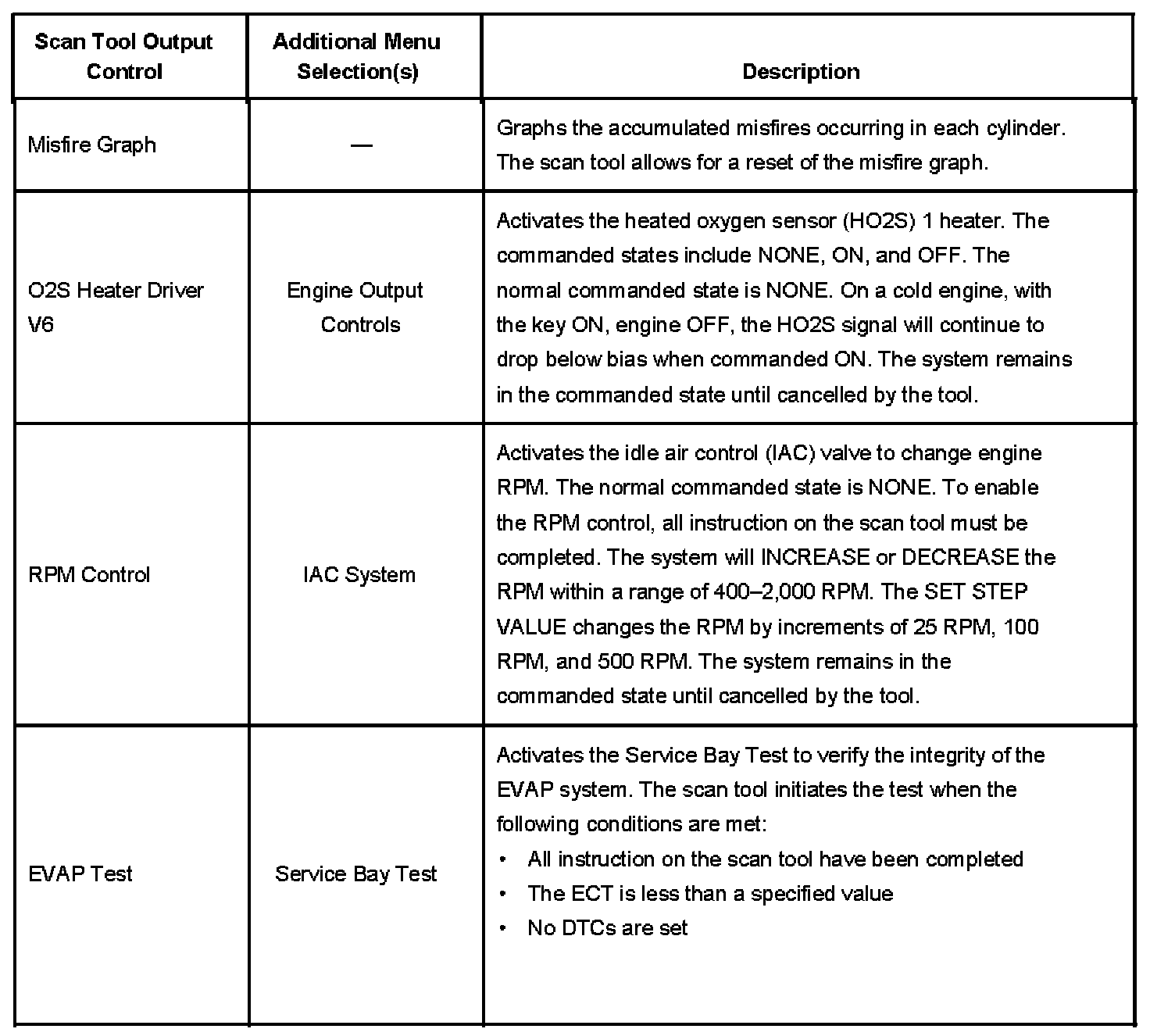

Scan Tool Output Controls - Computers And Control System 4:




Scan Tool Output Controls - Computers And Control System 5:
