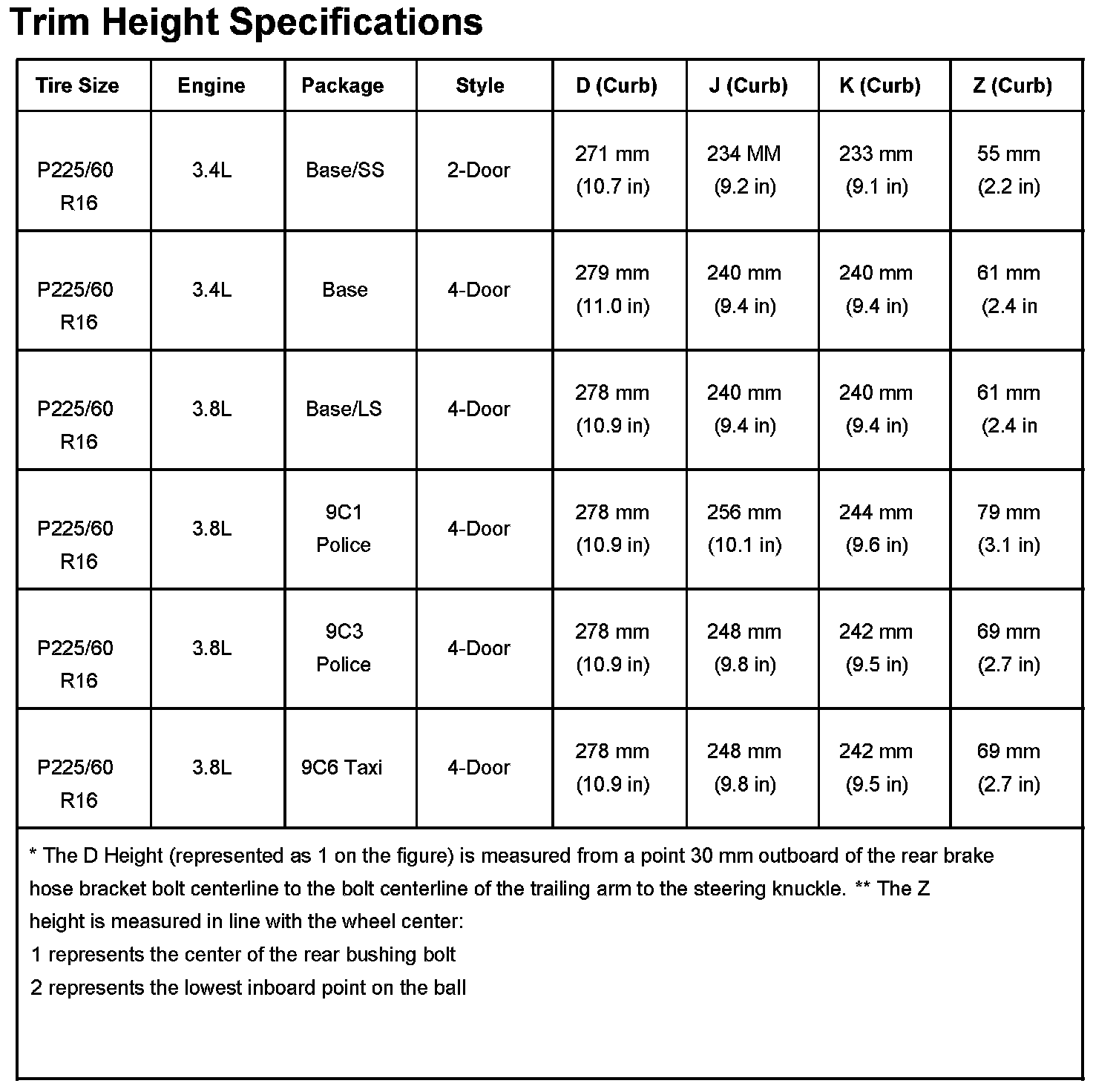

Ride/Trim Height Specifications



Measuring Z Height:



Measuring D Height:



Measuring J Or K Height:
