Wiper/Washer System Component Views

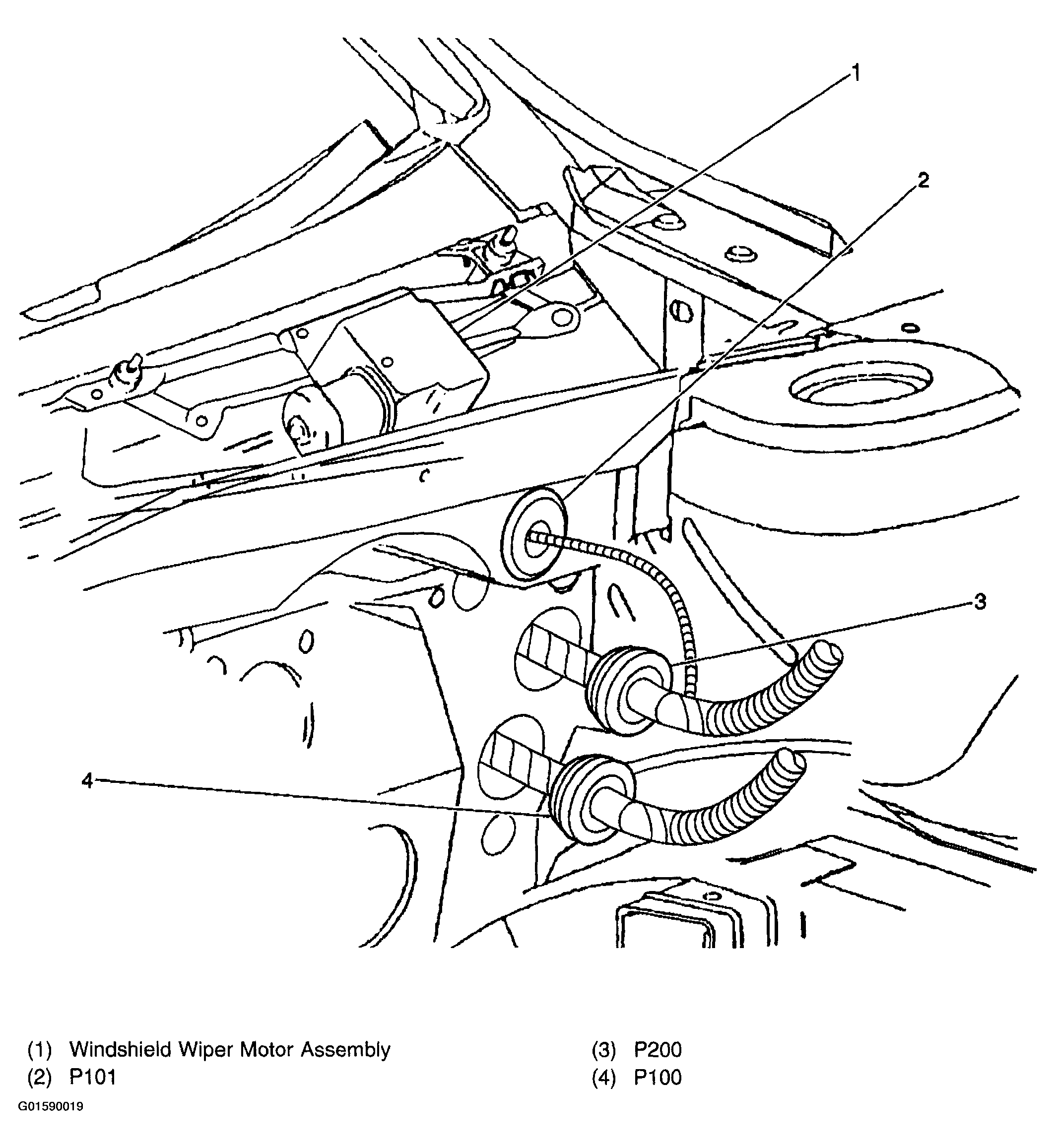

Fig 1: Component Location - Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

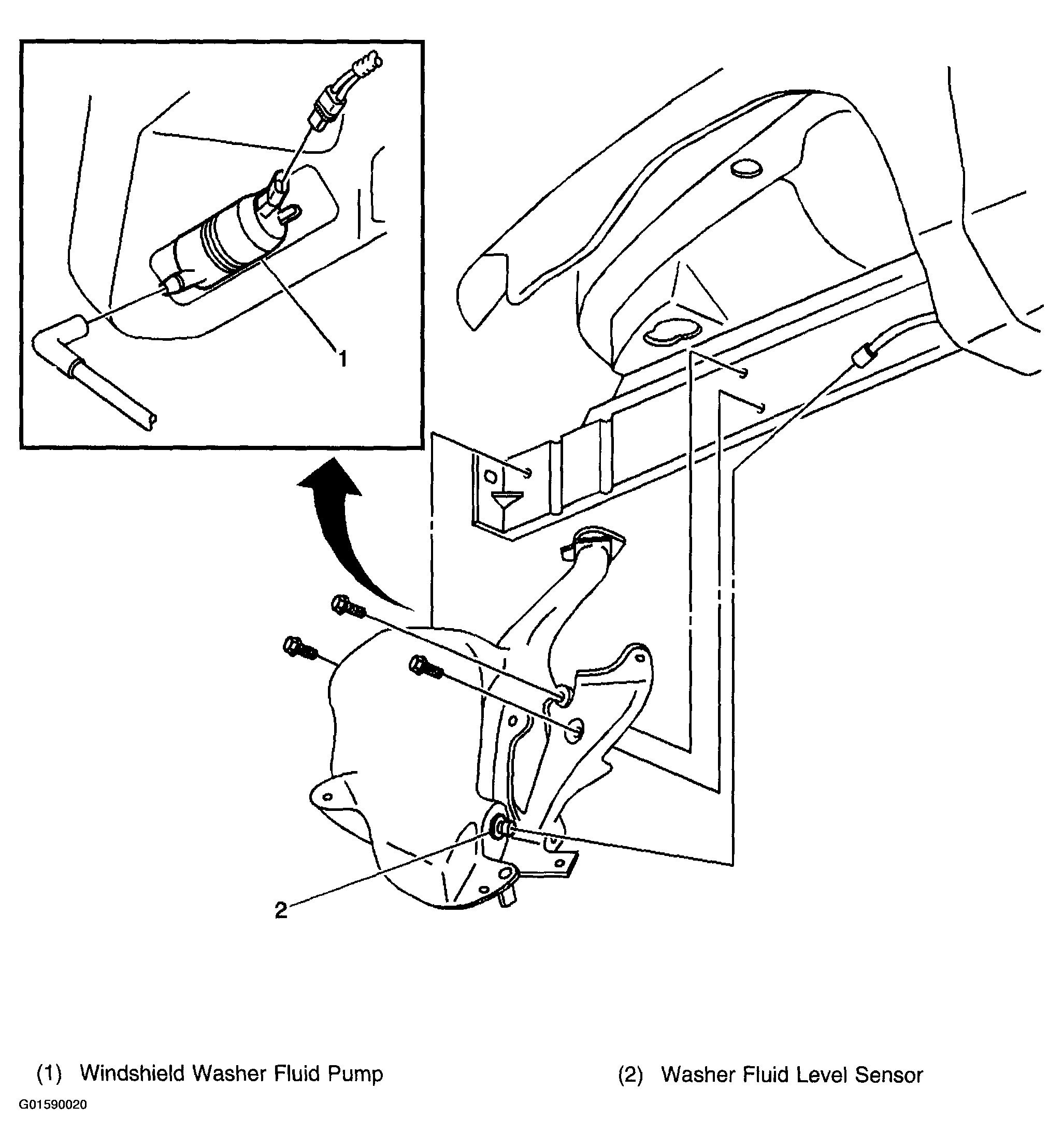

Fig 2: Locating Windshield Washer Fluid Pump And Washer Fluid Level Sensor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
