Removal & Installation

  1. Disconnect all the harness connectors at the Ignition Control Module (ICM).

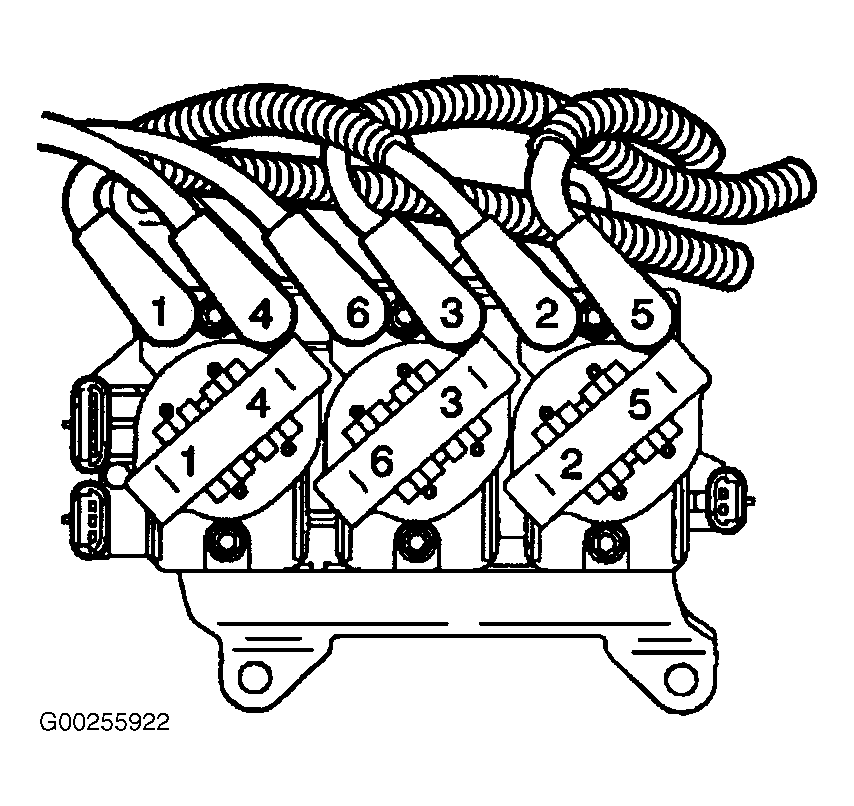

  2. Note position of spark plug wires for installation and disconnect the spark plug wires from ignition coils. See Figure.
  3. Remove the screws securing coil assemblies to the ICM.
  4. Disconnect the coils from the ICM.
  5. Remove the ICM from the bracket.
  6. To install, reverse removal procedure. Tighten ignition coil mounting screws to specification. See TORQUE SPECIFICATIONS .
