ABS Schematics (Electronic Brake Control Module (EBCM), Brake Indicator, 4WD Indicator, Stoplamp Switch, Brake Fluid Level Switch)

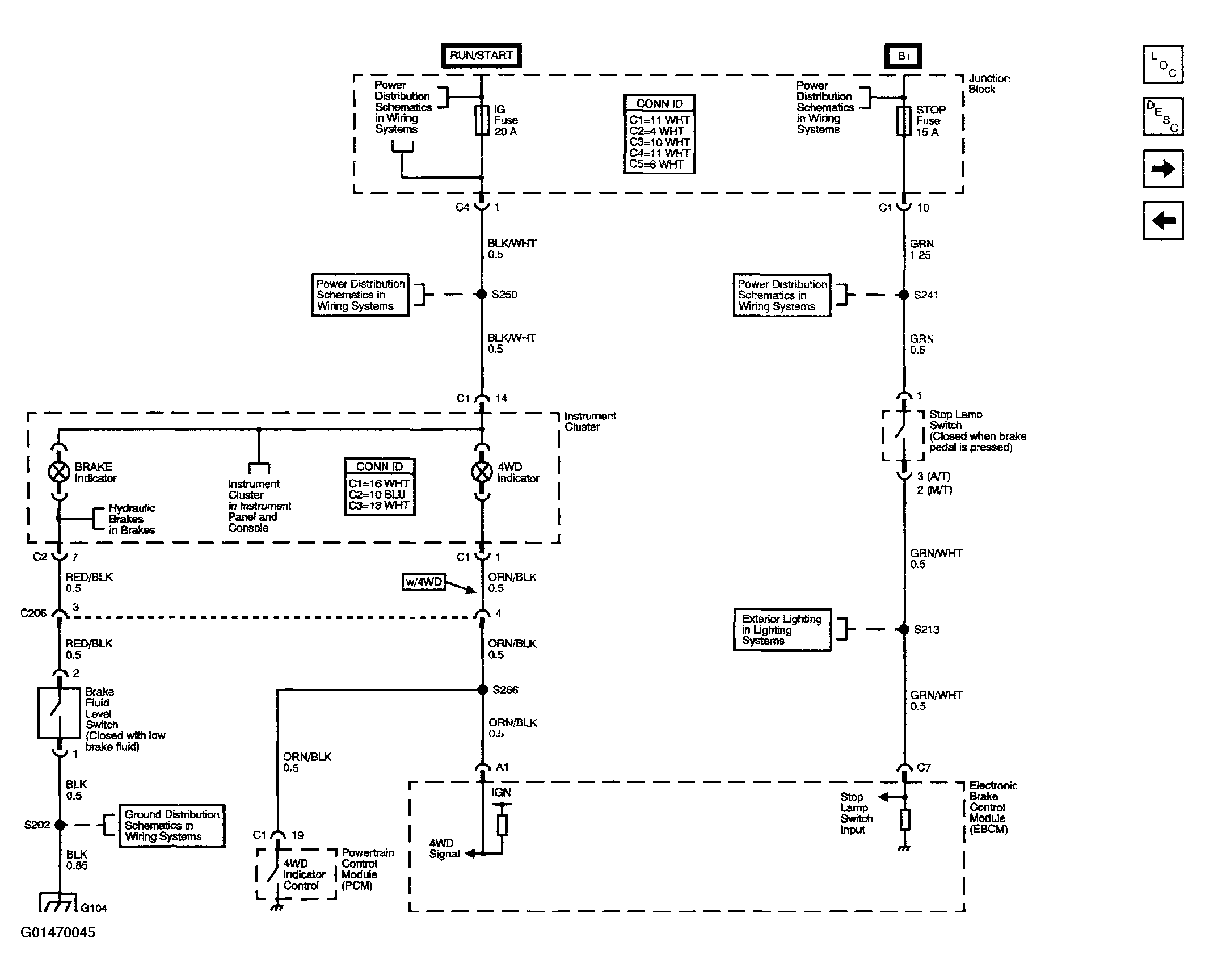

Fig 1: ABS Schematics (Electronic Brake Control Module (EBCM), Brake Indicator, 4WD Indicator, Stoplamp Switch, Brake Fluid Level Switch)
G01470045Courtesy of GENERAL MOTORS CORP.
