Body Control System Schematics (Power, Ground and Controlled/Monitored References)

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

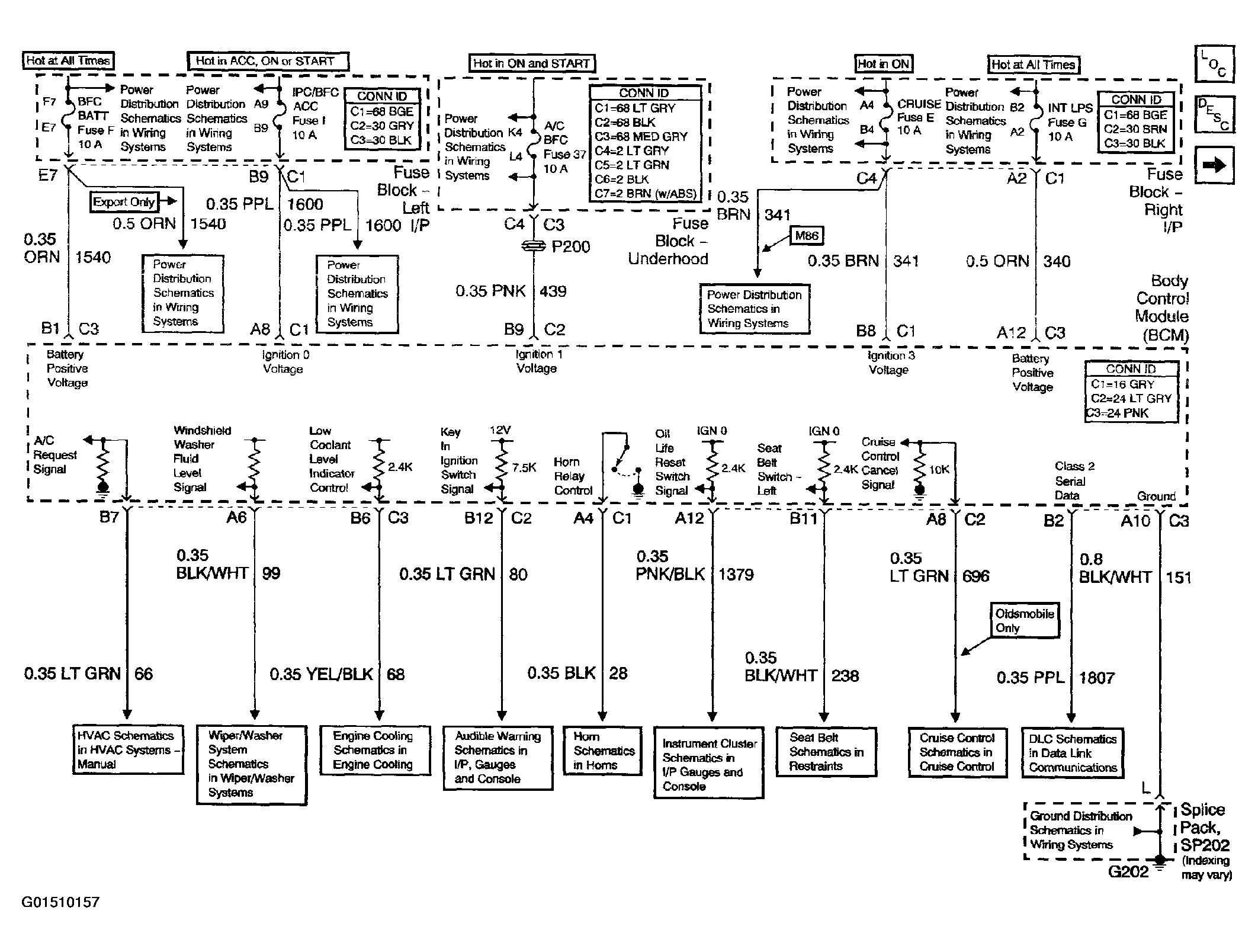

Fig 1: Body Control System Schematics (Power, Ground and Controlled/Monitored References
G01510157Courtesy of GENERAL MOTORS CORP.

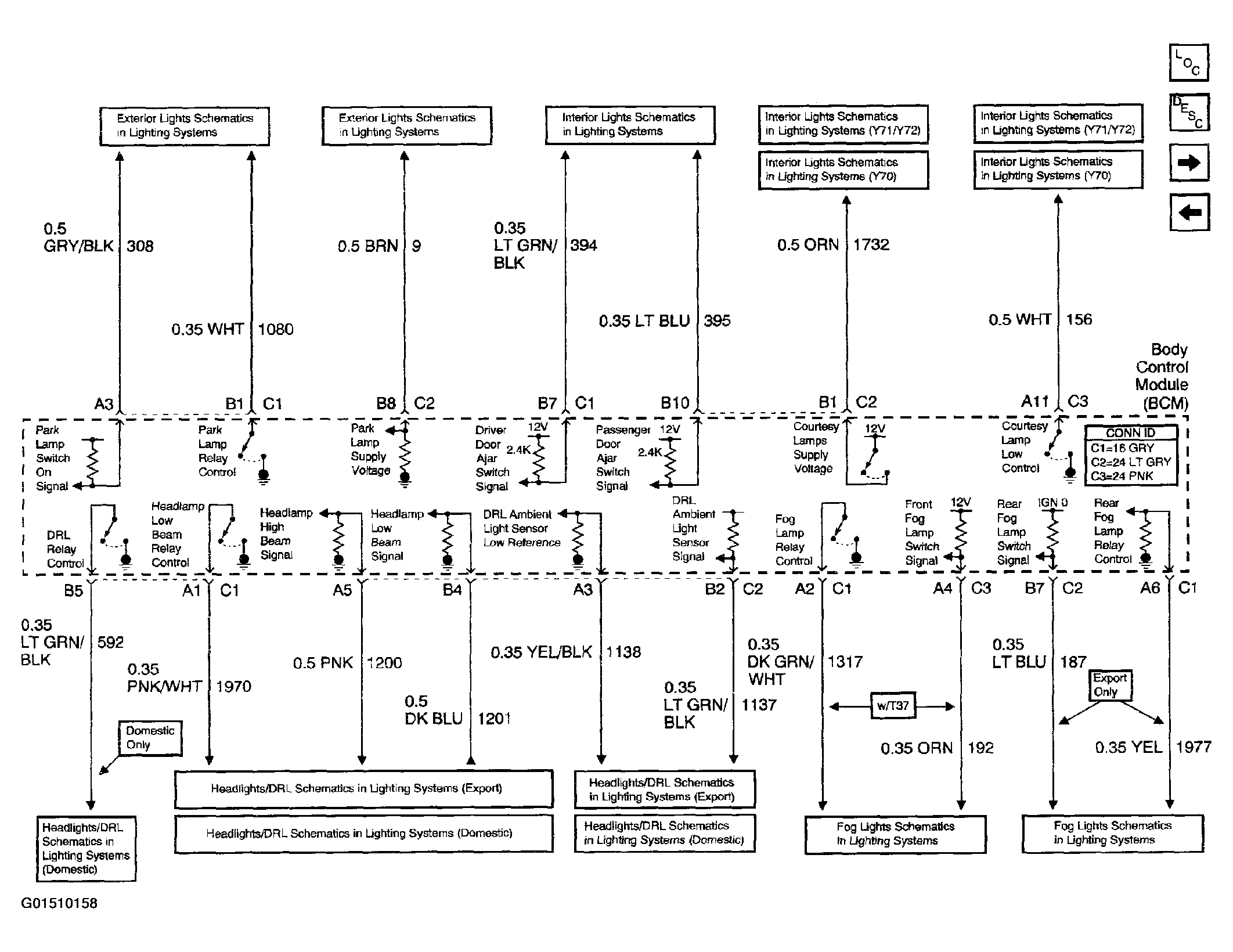

Fig 2: Body Control System Schematics (Controlled/Monitored Lighting References)
G01510158Courtesy of GENERAL MOTORS CORP.

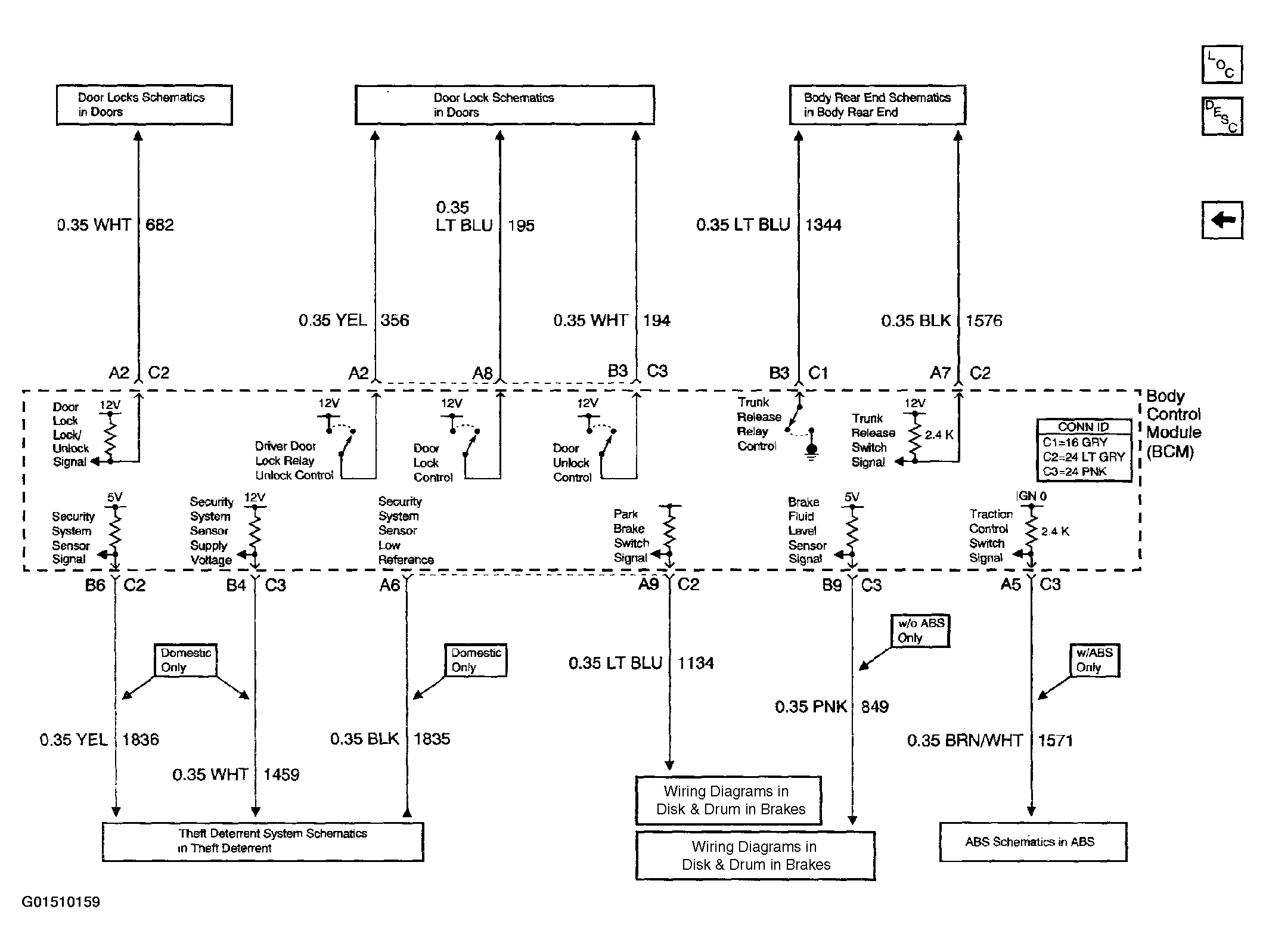

Fig 3: Body Control System Schematics (Controlled/Monitored Lock, Theft Deterrent, Brake References)
G01510159Courtesy of GENERAL MOTORS CORP.
