Body Control System Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

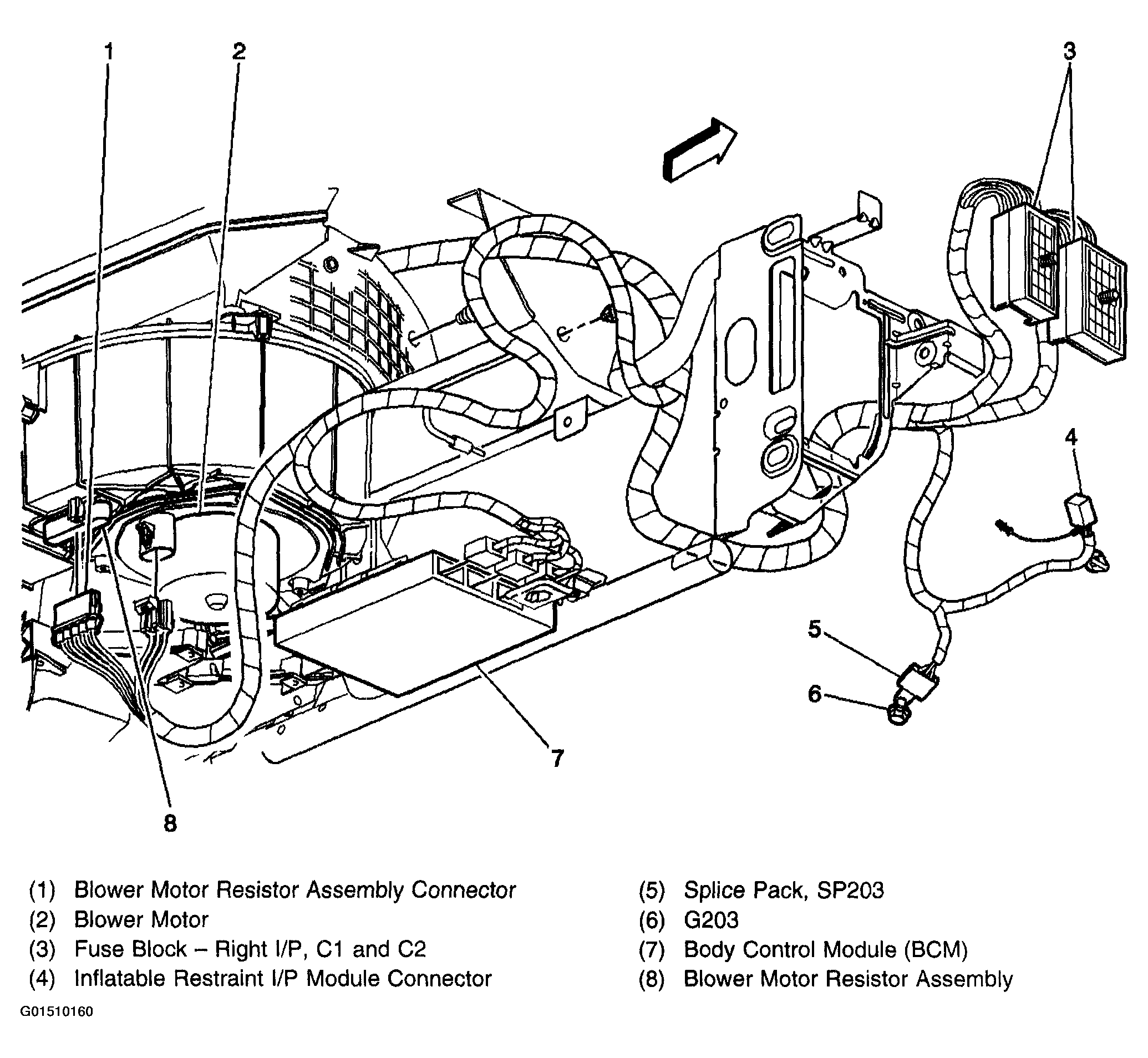

Fig 1: Identifying I/P Wiring Harness (RH)
G01510160Courtesy of GENERAL MOTORS CORP.
