WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

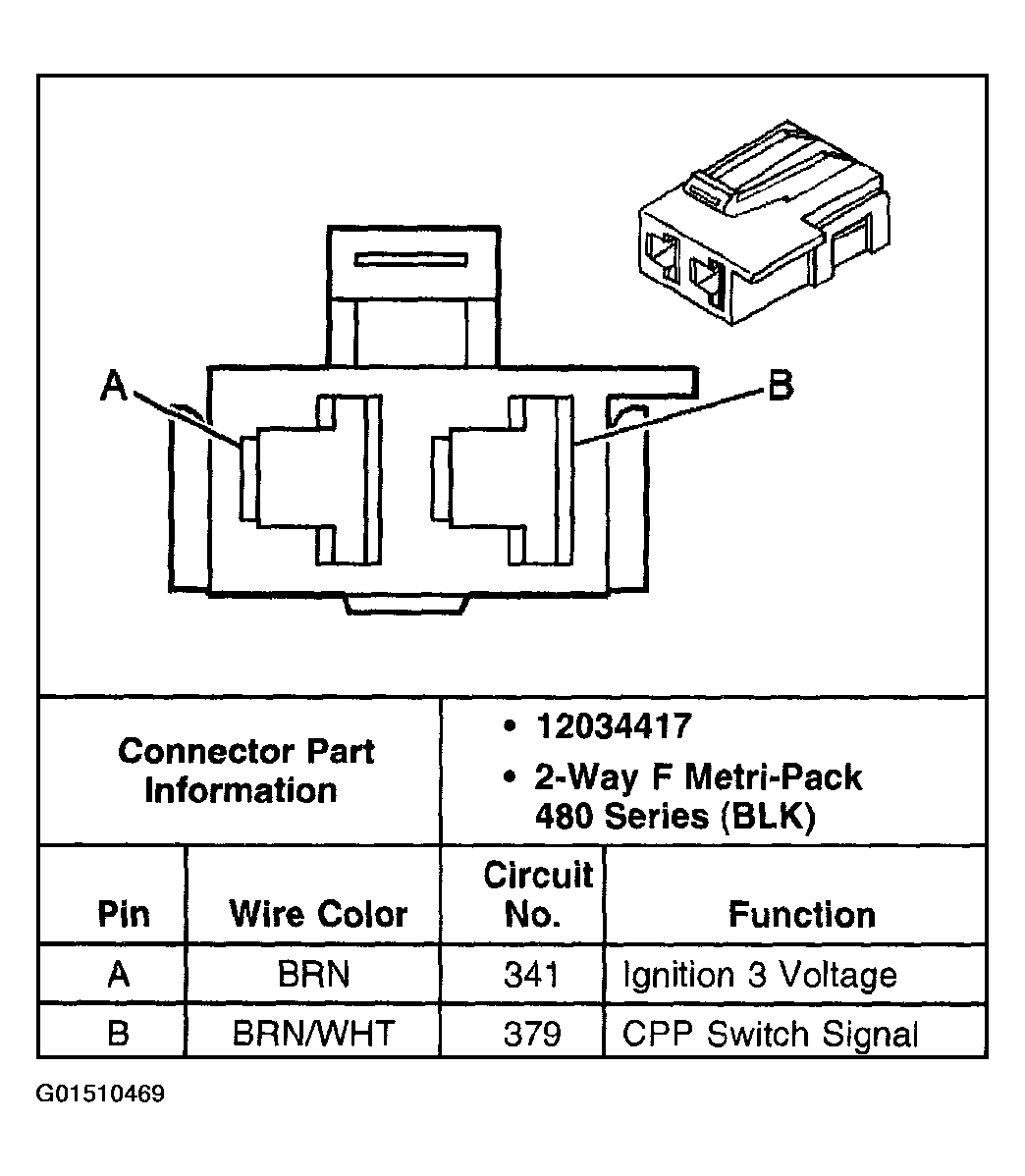

Fig 1: Identifying Connectors Of Clutch Pedal Position (CPP) Switch
Courtesy of GENERAL MOTORS CORP.

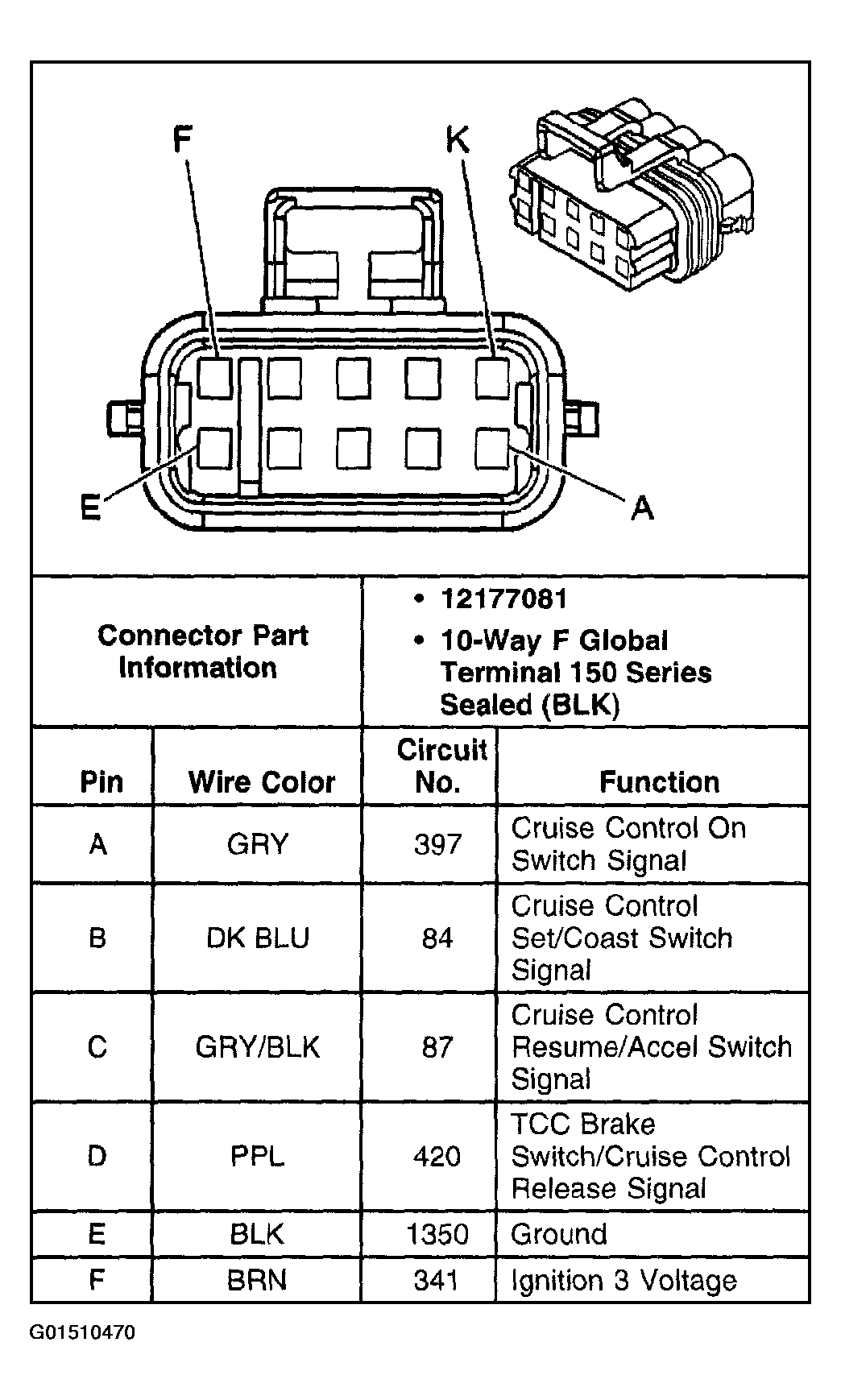

Fig 2: Identifying Connectors Of Cruise Control Module (CCM) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

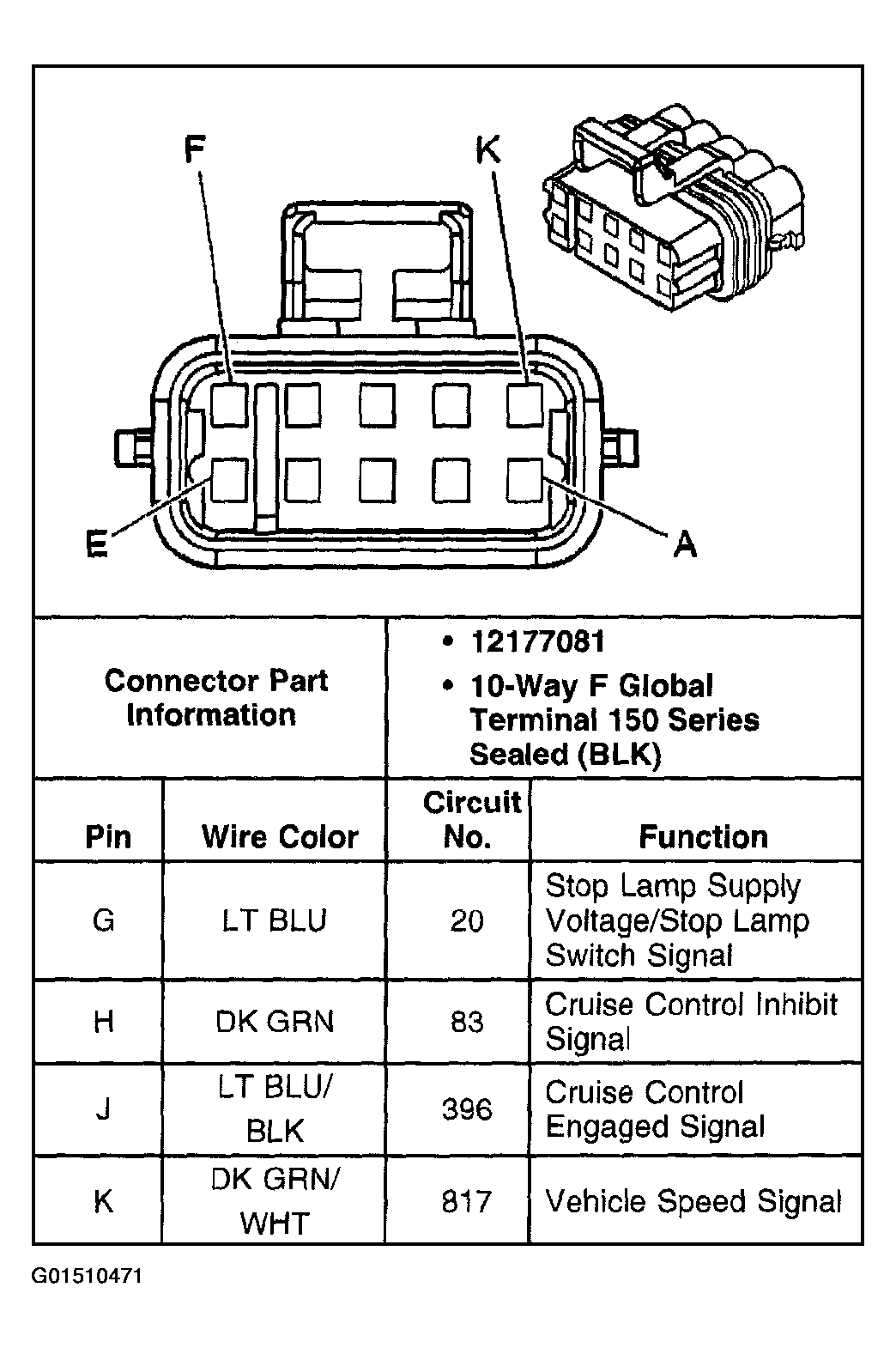

Fig 3: Identifying Connectors Of Cruise Control Module (CCM) (2 Of 2)
