Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cruise control mounting bracket to the engine compartment.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the cruise control mounting bracket.

    Tighten

    Tighten the bolts to the cruise control module to 10 N.m (89 lb in).

  3. Connect the wiring harness to the connector and reposition the wiring harness.

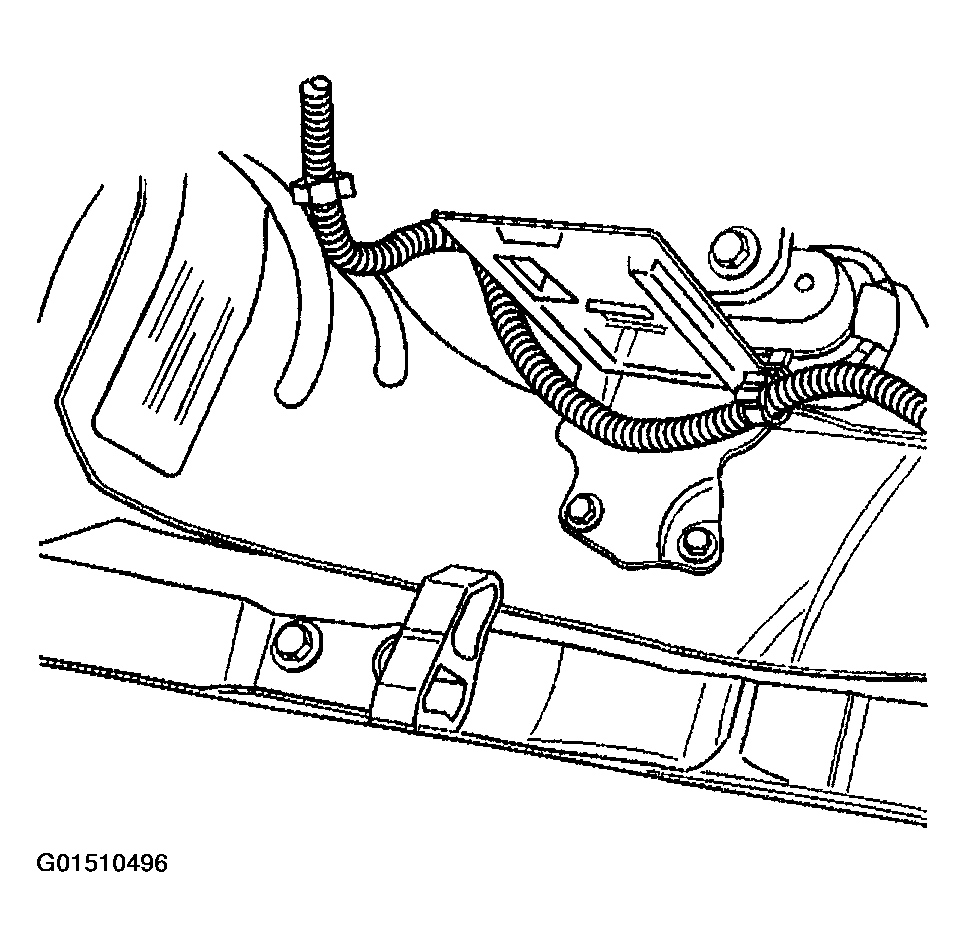

    Fig 1: Installing Cruise Control Mounting Bracket To Engine Compartment
    G01510496Courtesy of GENERAL MOTORS CORP.
  4. Position the cruise control module to the mounting bracket.

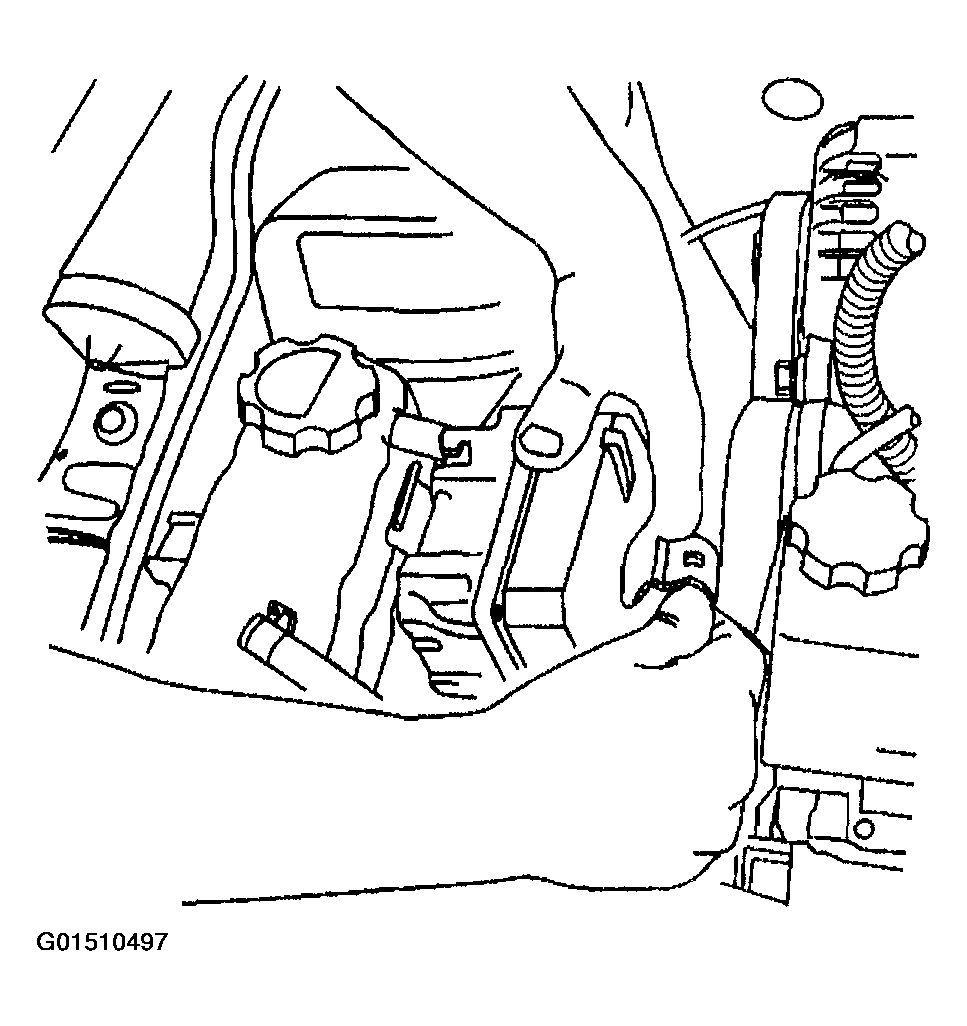

    Fig 2: Installing Cruise Control Module To Mounting Bracket
    G01510497Courtesy of GENERAL MOTORS CORP.
  5. Attach the retainer strap to the cruise control module mounting bracket pressing into place until fully seated.

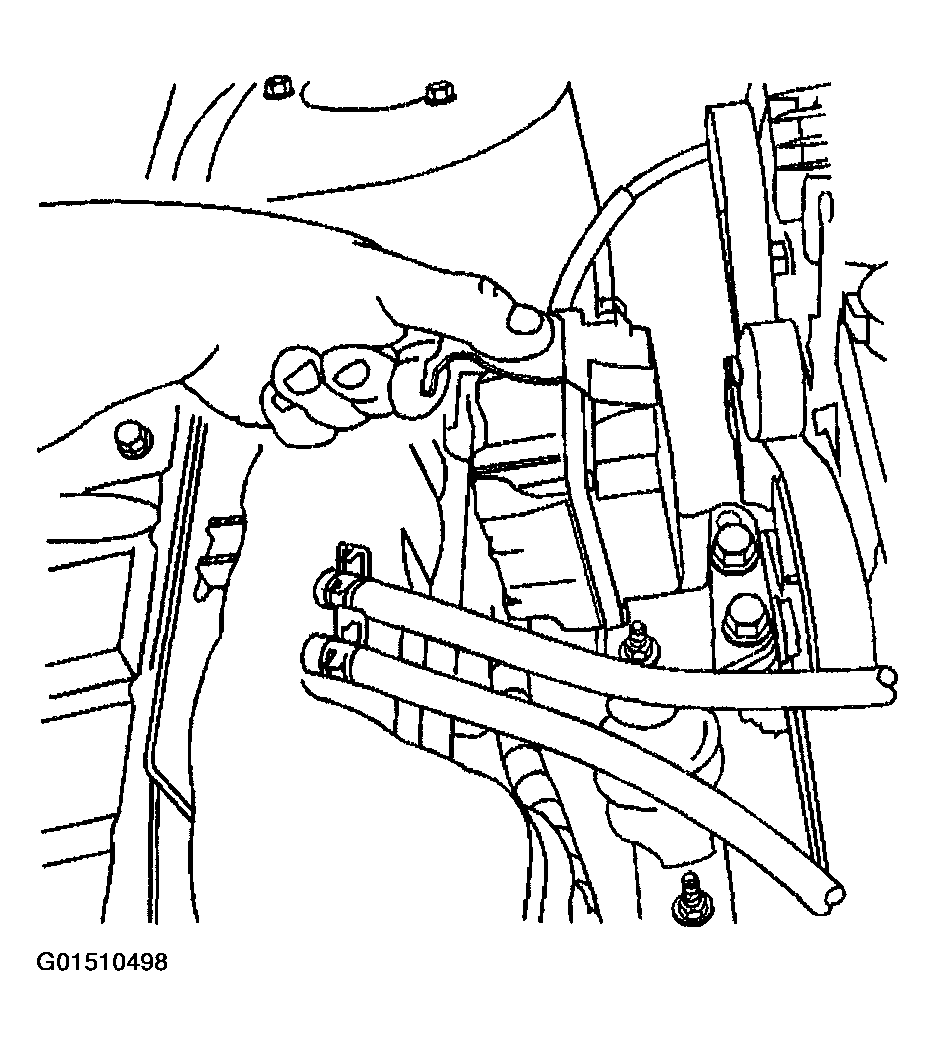

    Fig 3: Attaching Retainer Strap To Cruise Control Module Mounting Bracket
    G01510498Courtesy of GENERAL MOTORS CORP.

    Important:  The ribbon must not be twisted.

  6. Connect the cruise control cable slug to the ribbon buckle.
  7. Insert the cruise control cable into the cruise control module until the seal touches the module.
  8. Position the narrow cable tab into the narrow slot and the wide tab into the wide slot.

    Important:  The adjuster tab must be pointing toward the front of the car after installation.

  9. Connect the cruise control cable to the cruise control module by turning the cable clockwise.

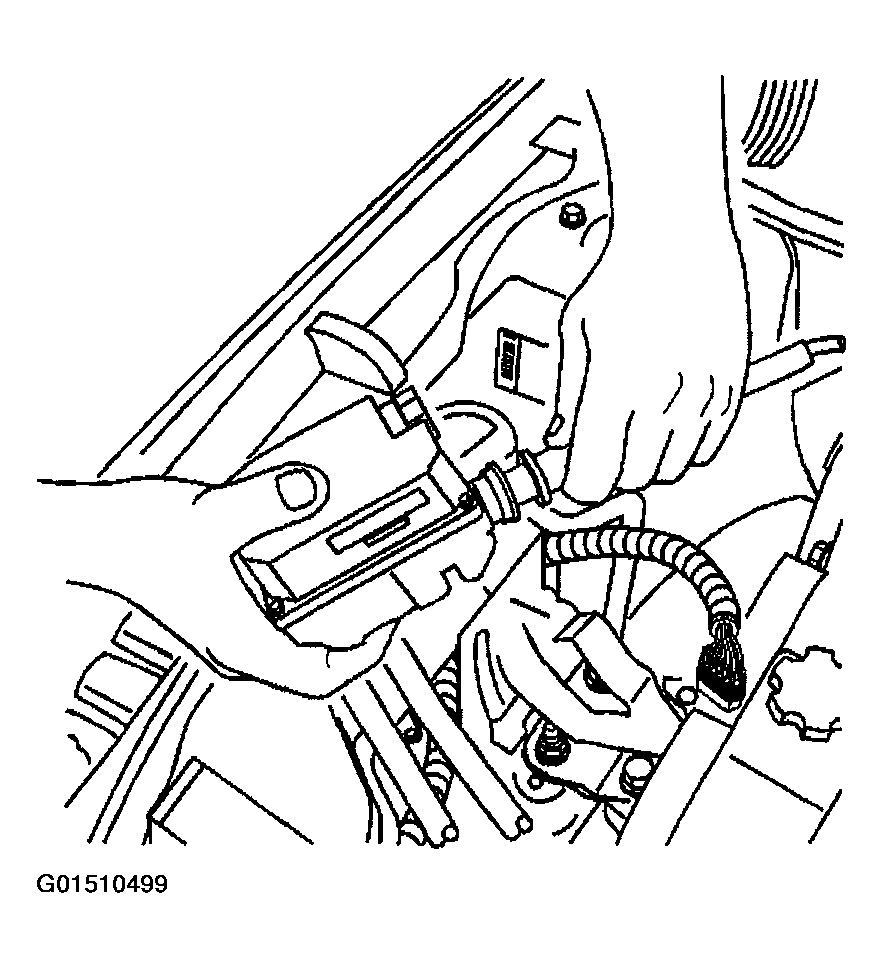

    Fig 4: Connecting Cruise Control Cable Slug To Ribbon Buckle
    G01510499Courtesy of GENERAL MOTORS CORP.
  10. Connect the electrical connector to the cruise control module.

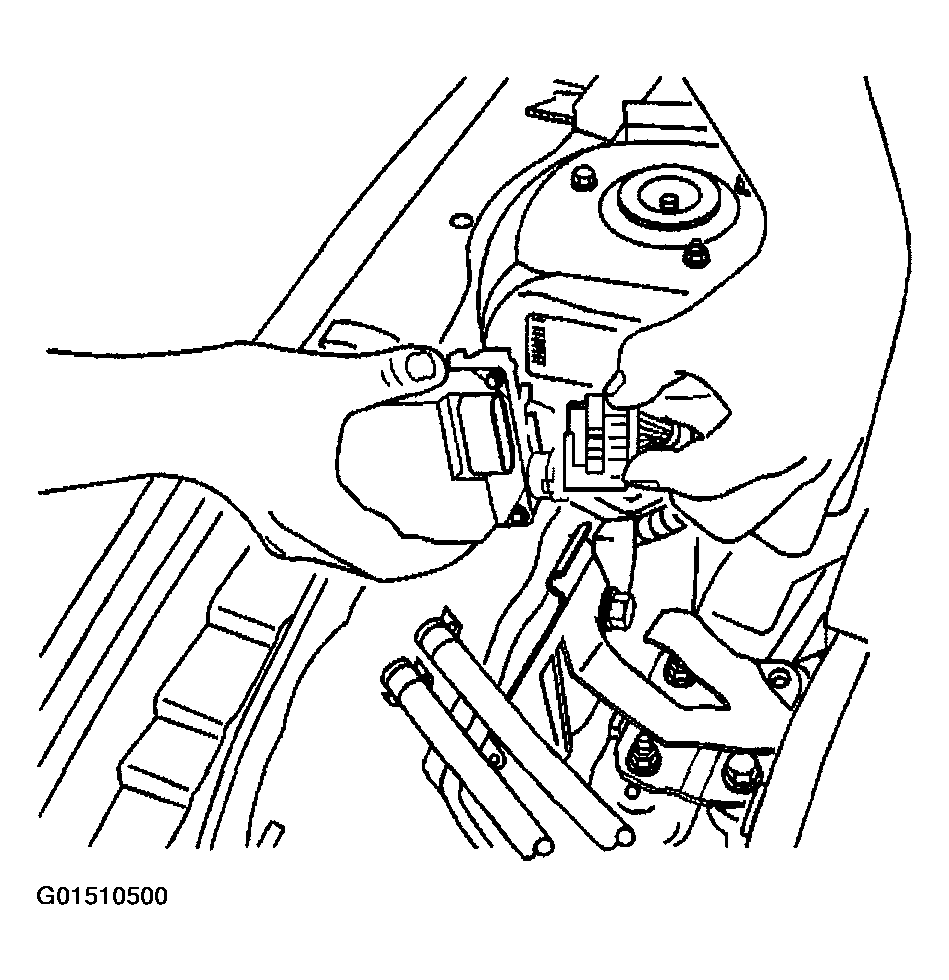

    Fig 5: Connecting Electrical Connector To Cruise Control Module
    G01510500Courtesy of GENERAL MOTORS CORP.
  11. Install the cruise control cable to the retainer clip on the engine.
  12. Install the cruise control cable to the throttle body bracket pressing into place until fully seated.
  13. Open the throttle body cam slightly.
  14. Connect the cruise control cable to the throttle body cam lever.
  15. Reposition the surge tank. Refer to SURGE TANK REPLACEMENT in Engine Cooling.
  16. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

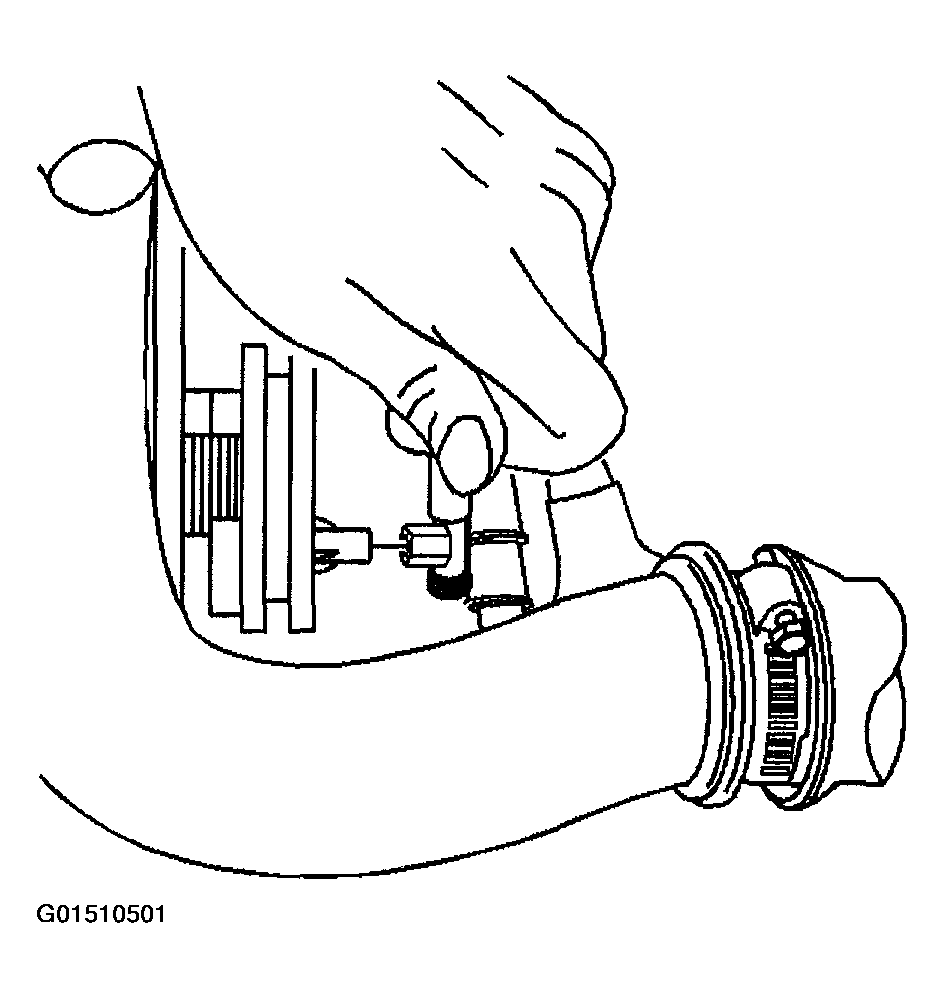

    Fig 6: Installing Cruise Control Cable To Retainer Clip On Engine
    G01510501Courtesy of GENERAL MOTORS CORP.
