Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
Disconnect the electrical connector from the cruise control module.

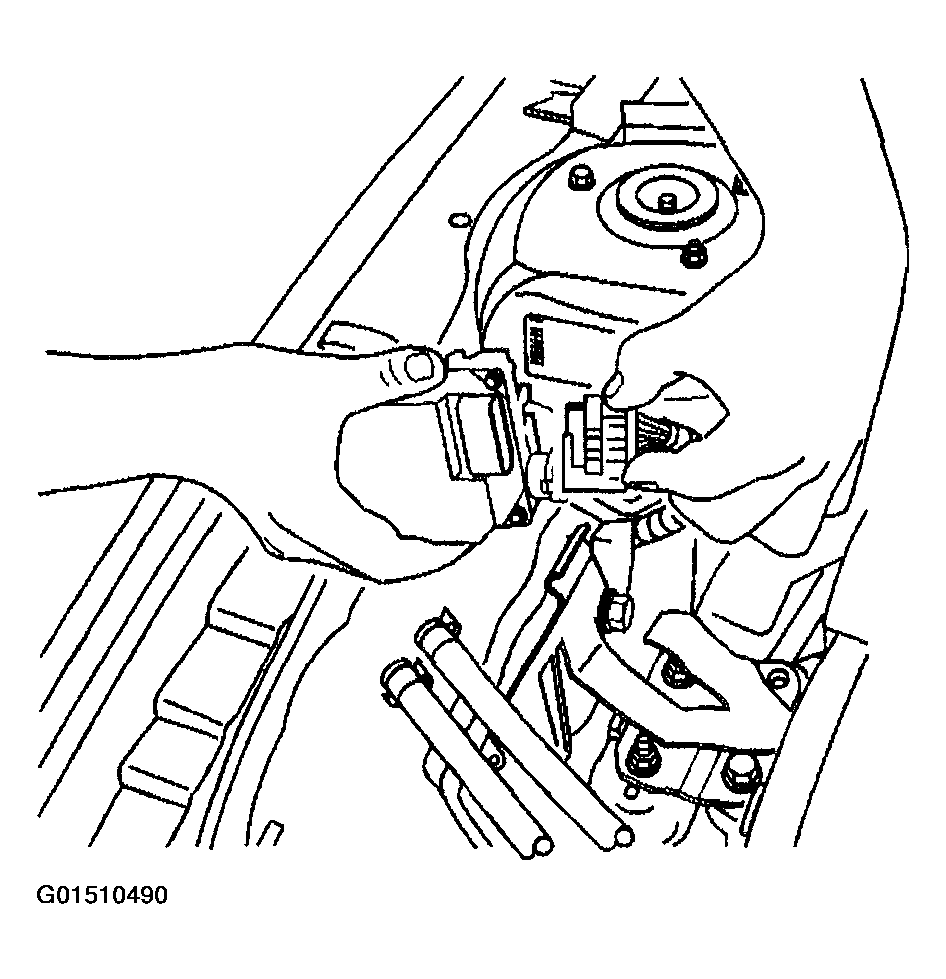

Fig 1: Disconnecting Electrical Connector From Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Open the throttle body cam slightly.
Disconnect the cruise control cable from the throttle body cam lever.
Remove the cruise control cable from the throttle body bracket.
Remove the cruise control cable from the retainer clip on the engine.

Fig 2: Removing Cruise Control Cable From Retainer Clip On Engine
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable from the cruise control module by turning the cable 1/4 turn counterclockwise.
Disconnect the cruise control cable slug from the ribbon buckle.
Remove the cruise control cable from the engine compartment.

Fig 3: Removing Cruise Control Cable From Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Release the retainer strap from the cruise control module mounting bracket.

Fig 4: Releasing Retainer Strap From Cruise Control Module Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module from the mounting bracket.

Fig 5: Removing Cruise Control Module From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Reposition the surge tank to access the bolts to the cruise control mounting bracket. Refer to SURGE TANK REPLACEMENT in Engine Cooling.
Disconnect the wiring harness from the connector and reposition the wiring harness.
Remove the bolts from the cruise control mounting bracket.
Remove the cruise control mounting bracket from the engine compartment.

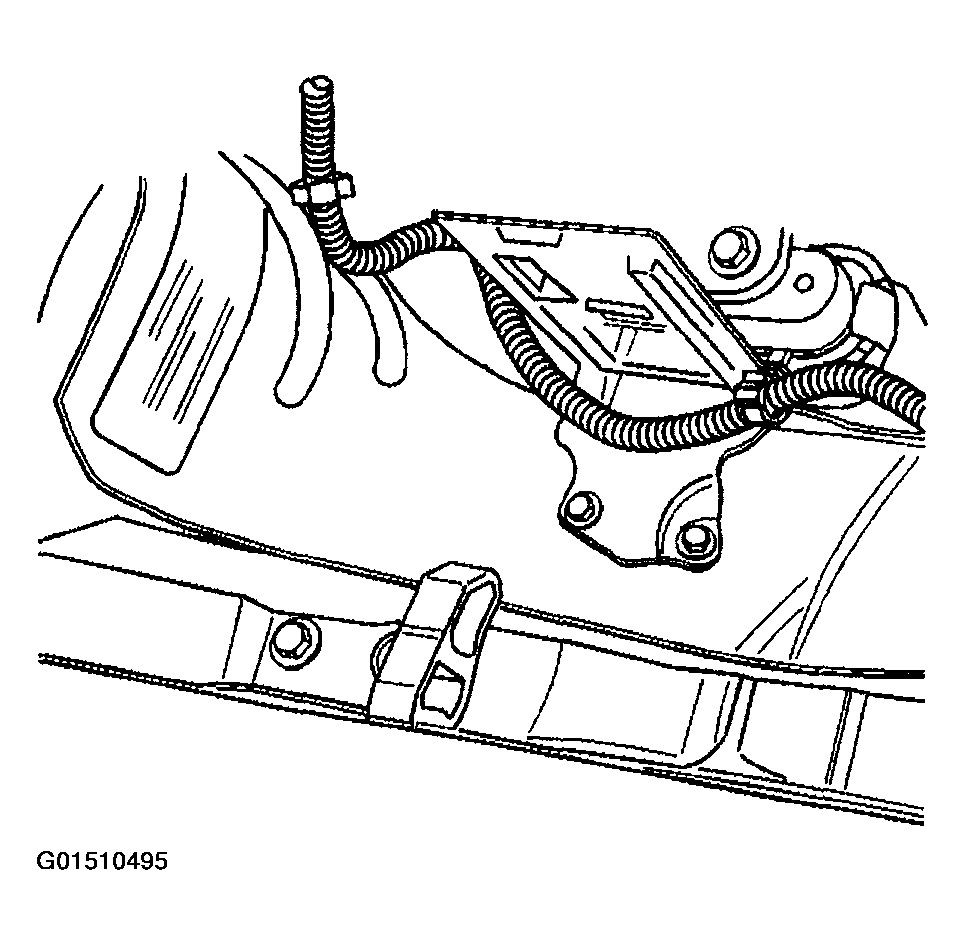

Fig 6: Removing Cruise Control Mounting Bracket From Engine Compartment
Courtesy of GENERAL MOTORS CORP.
