Interface Module (VCIM)

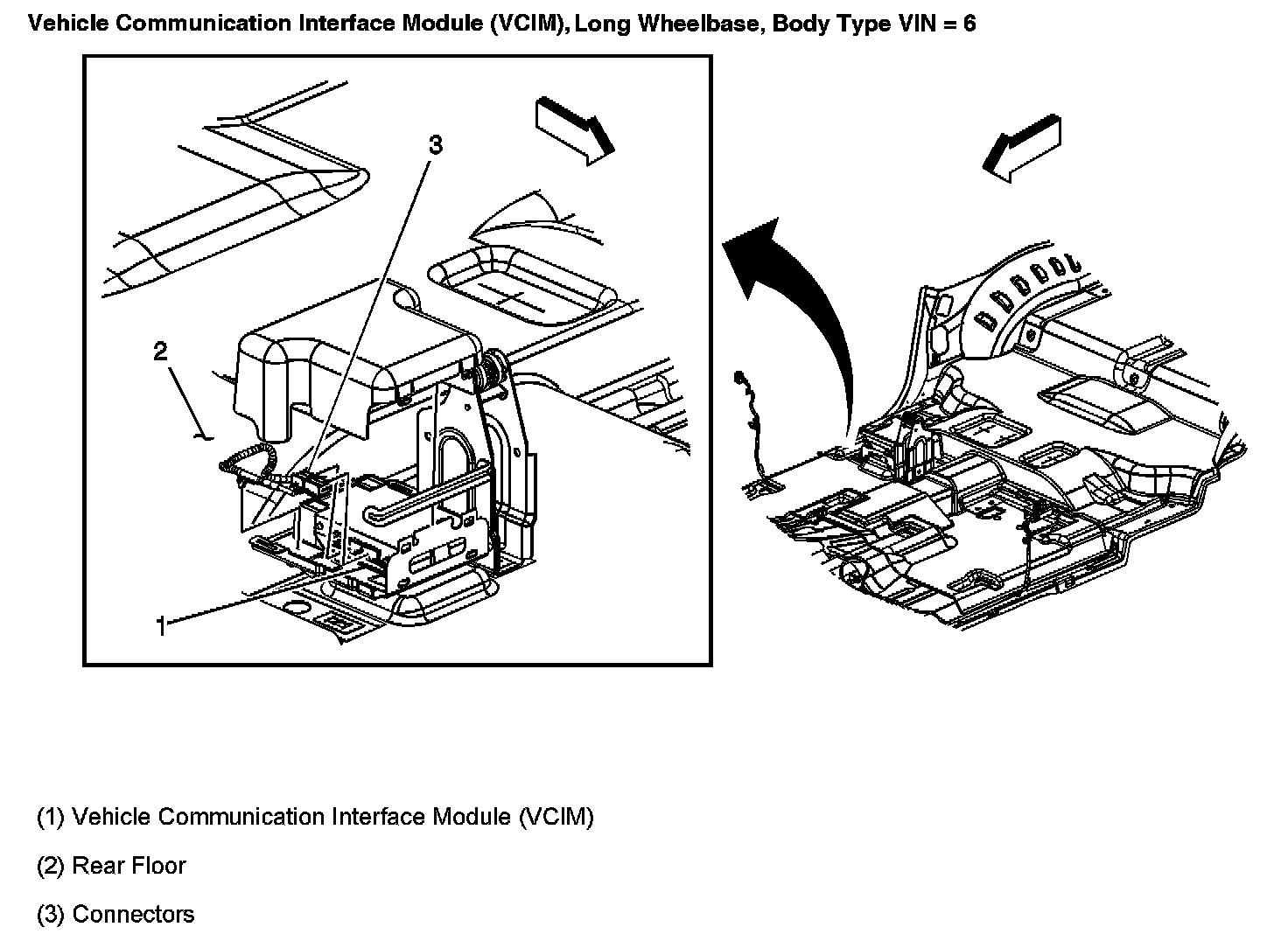

Vehicle Communication Interface Module (VCIM), Long Wheelbase, Body Type VIN = 6:

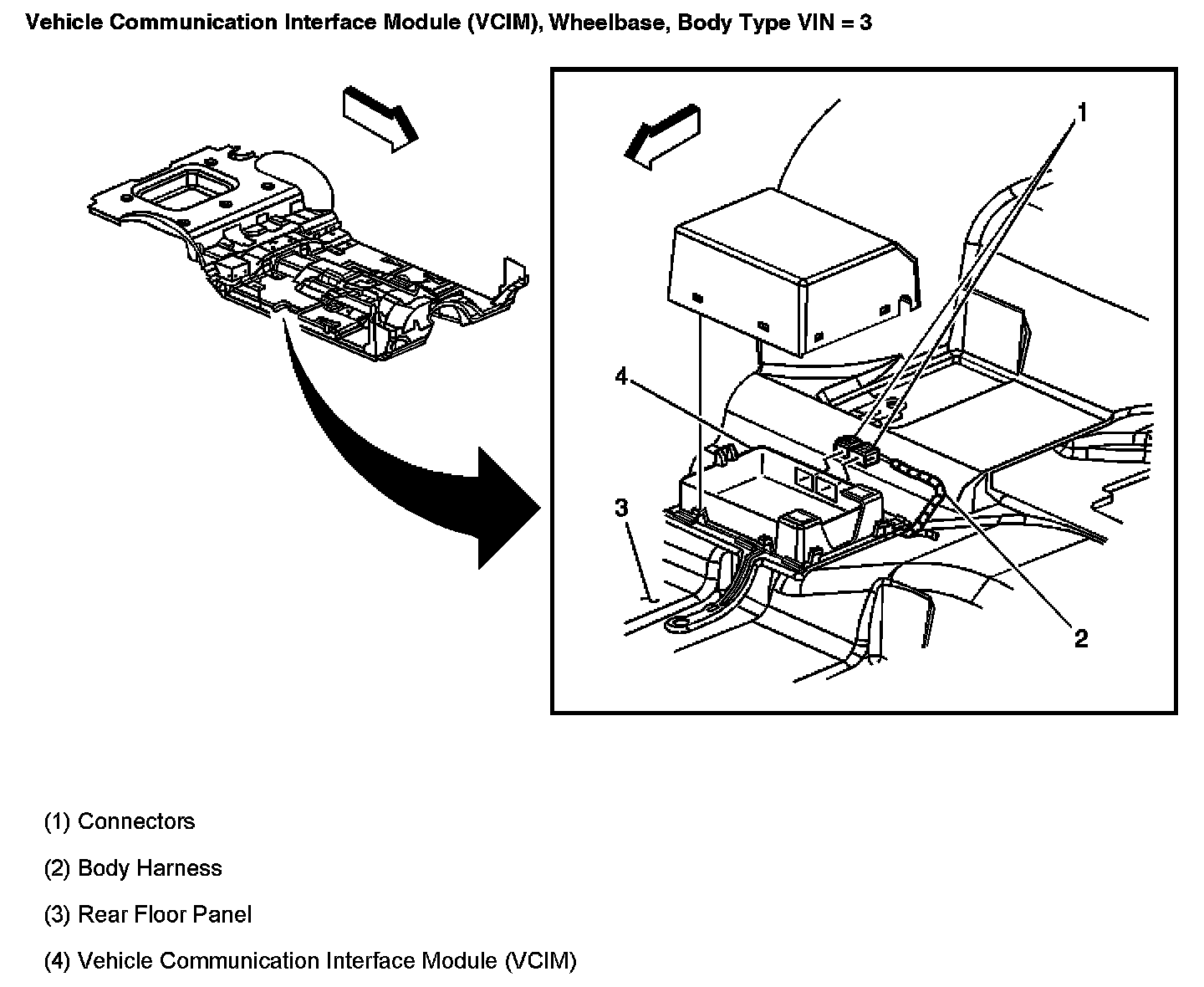

Vehicle Communication Interface Module (VCIM), Short Wheelbase, Body Type VIN = 3:
