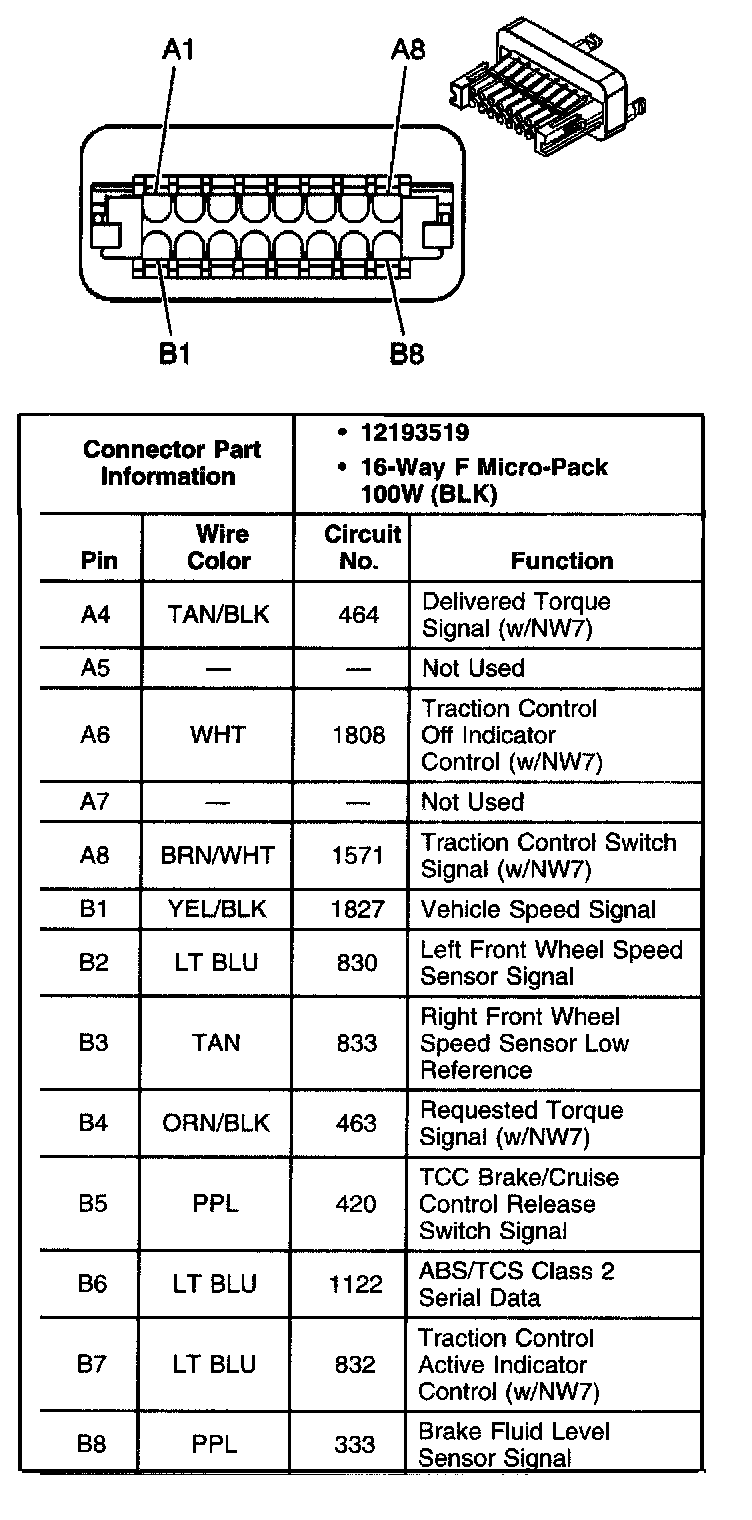

Electronic Brake Control Module (EBCM) C2
Electronic Brake Control Module
(EBCM) C2
Part 1 of 2
Part 2 of 2
