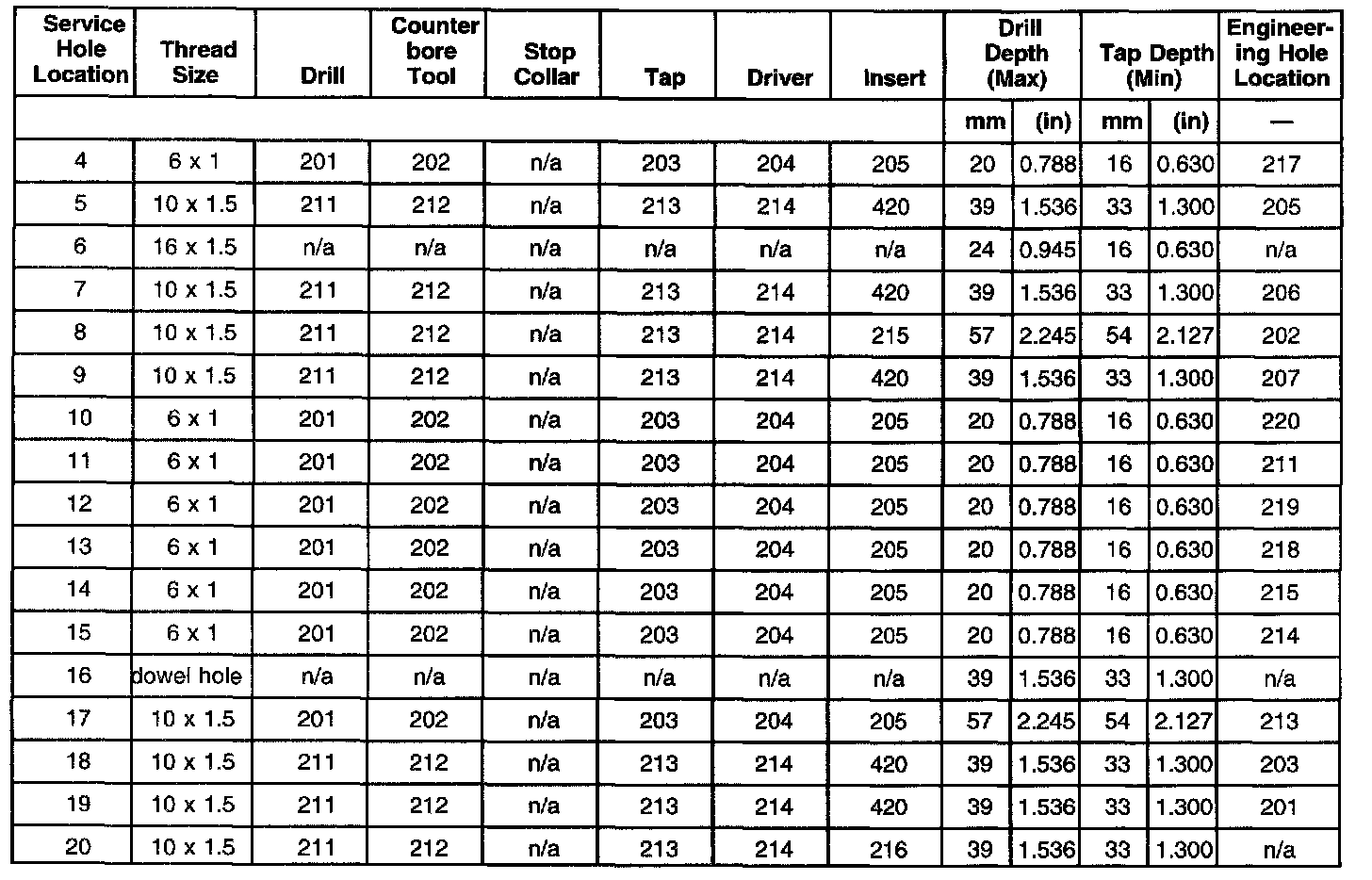

Thread Repair Specifications
>>
Engine Block - Rear View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

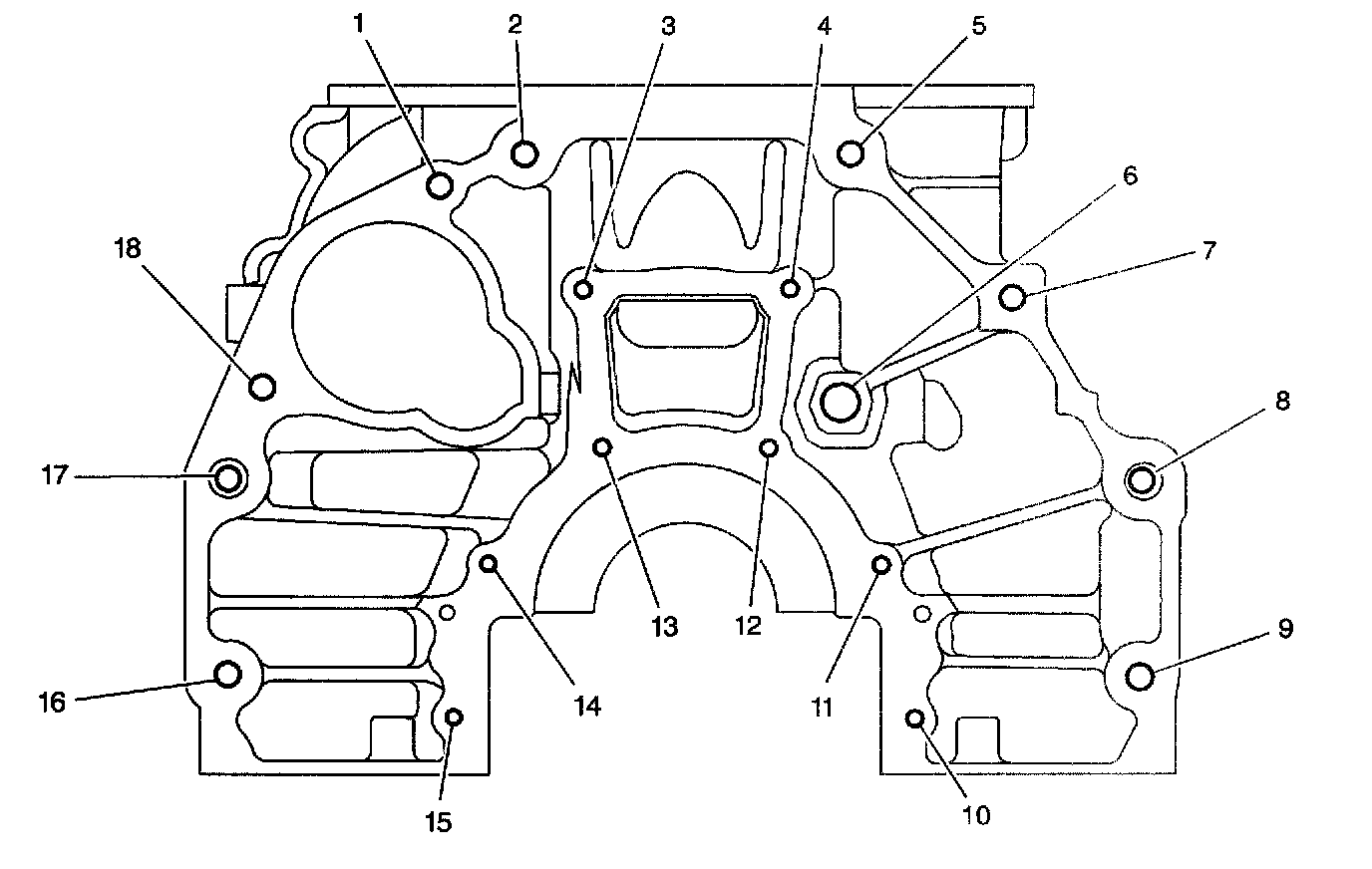

Engine Block - Rear View
Engine Block - Rear View
Part 1 of 3
Part 2 of 3
Part 2 of 3
