Roof Rail Reading Lamp-Front

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

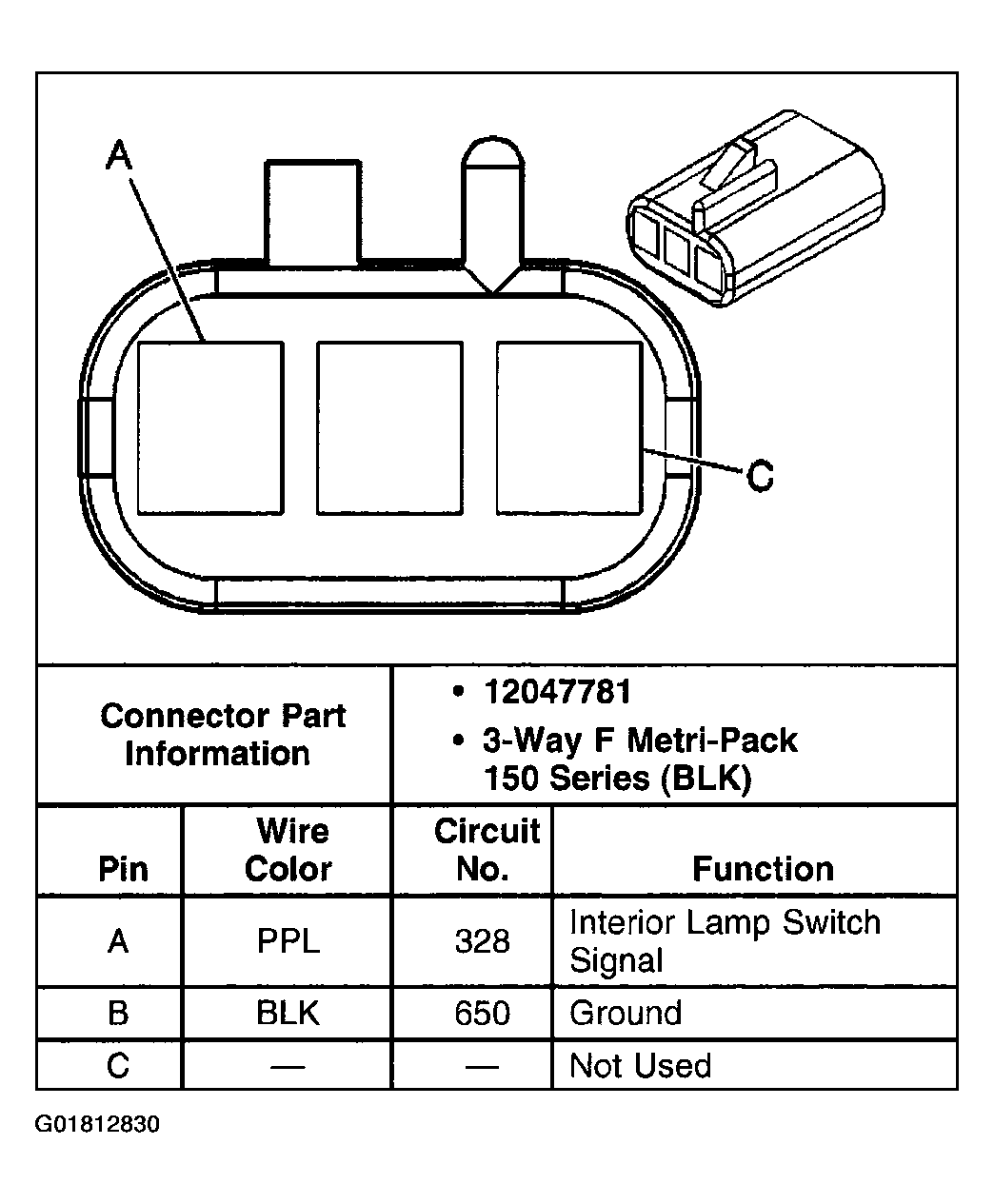

Fig 1: Roof Rail Reading Lamp-Front
G01812830Courtesy of GENERAL MOTORS CORP.

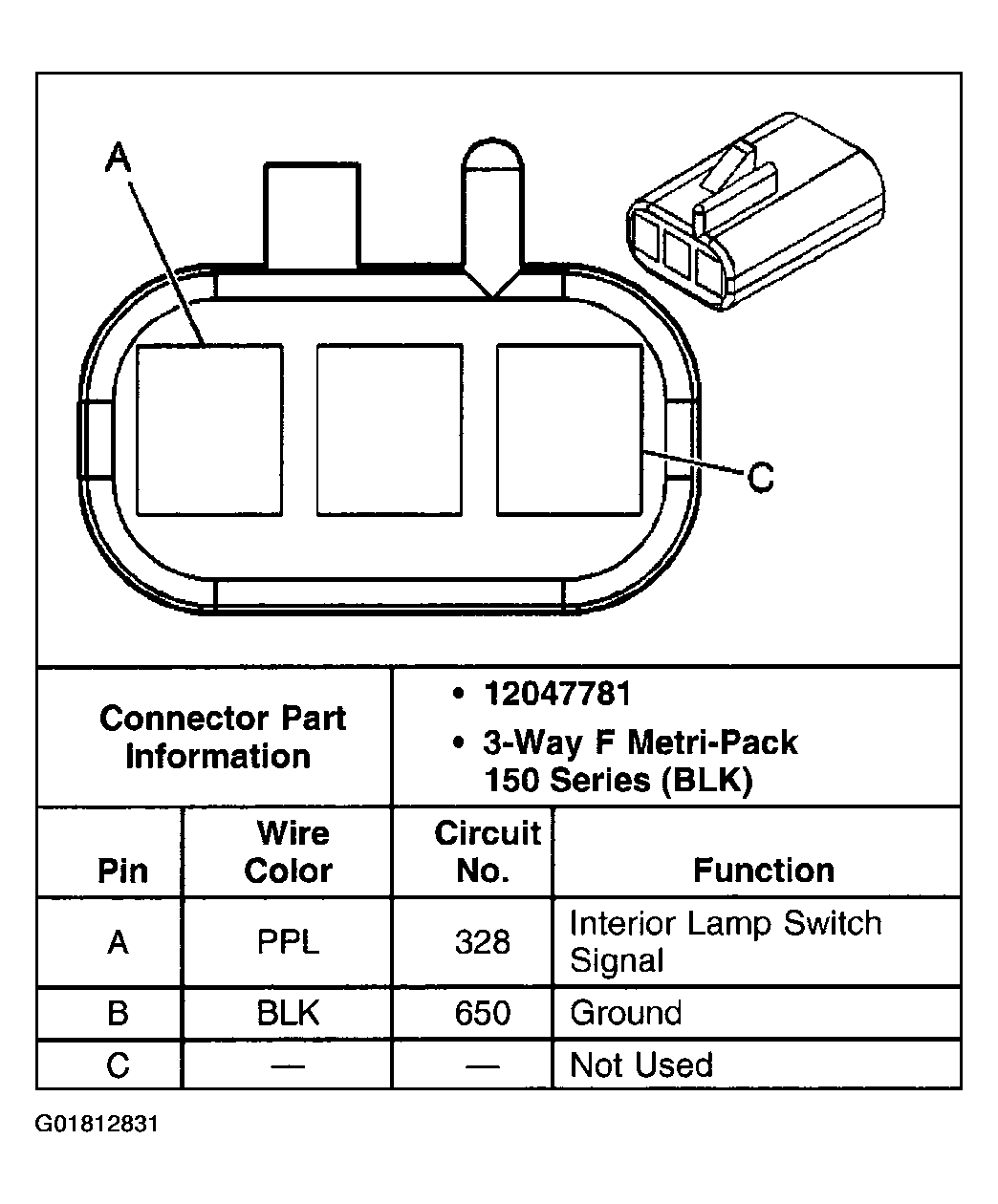

Fig 2: Roof Rail Reading Lamp-Rear
G01812831Courtesy of GENERAL MOTORS CORP.

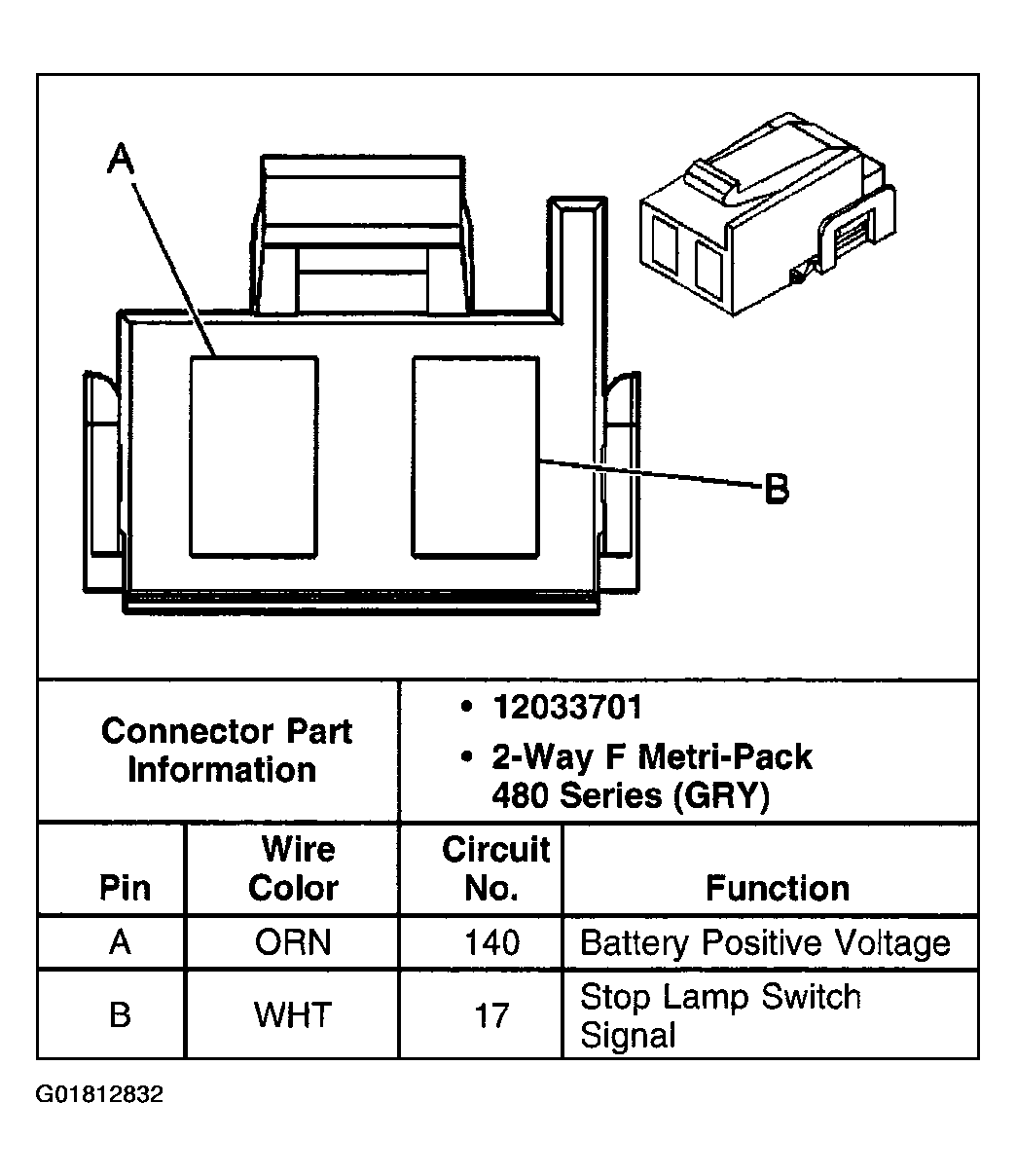

Fig 3: Stop Lamp Switch C1
G01812832Courtesy of GENERAL MOTORS CORP.
Fig 4: Tail Lamp-Left
G01812833Courtesy of GENERAL MOTORS CORP.

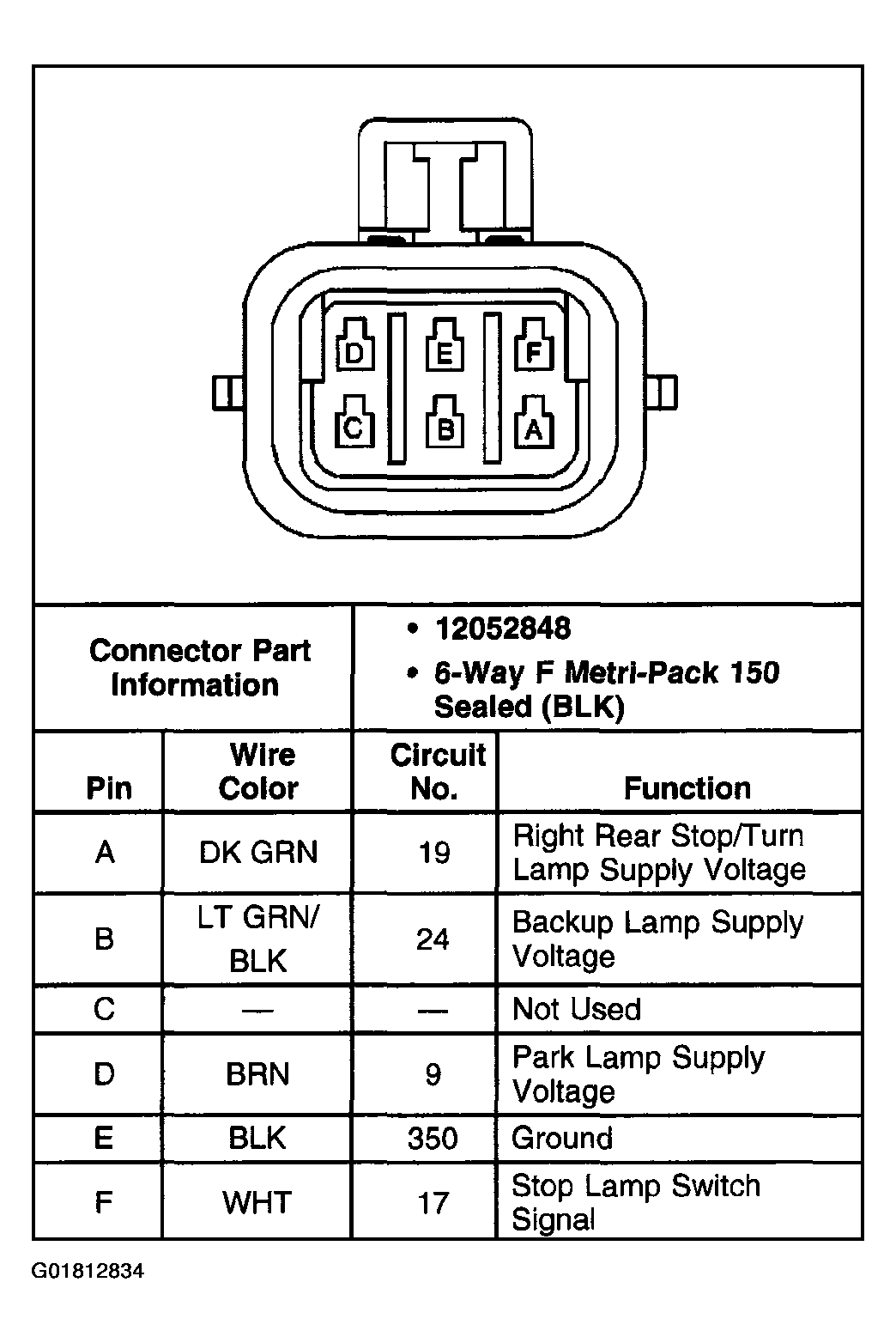

Fig 5: Tail Lamp-Right
G01812834Courtesy of GENERAL MOTORS CORP.

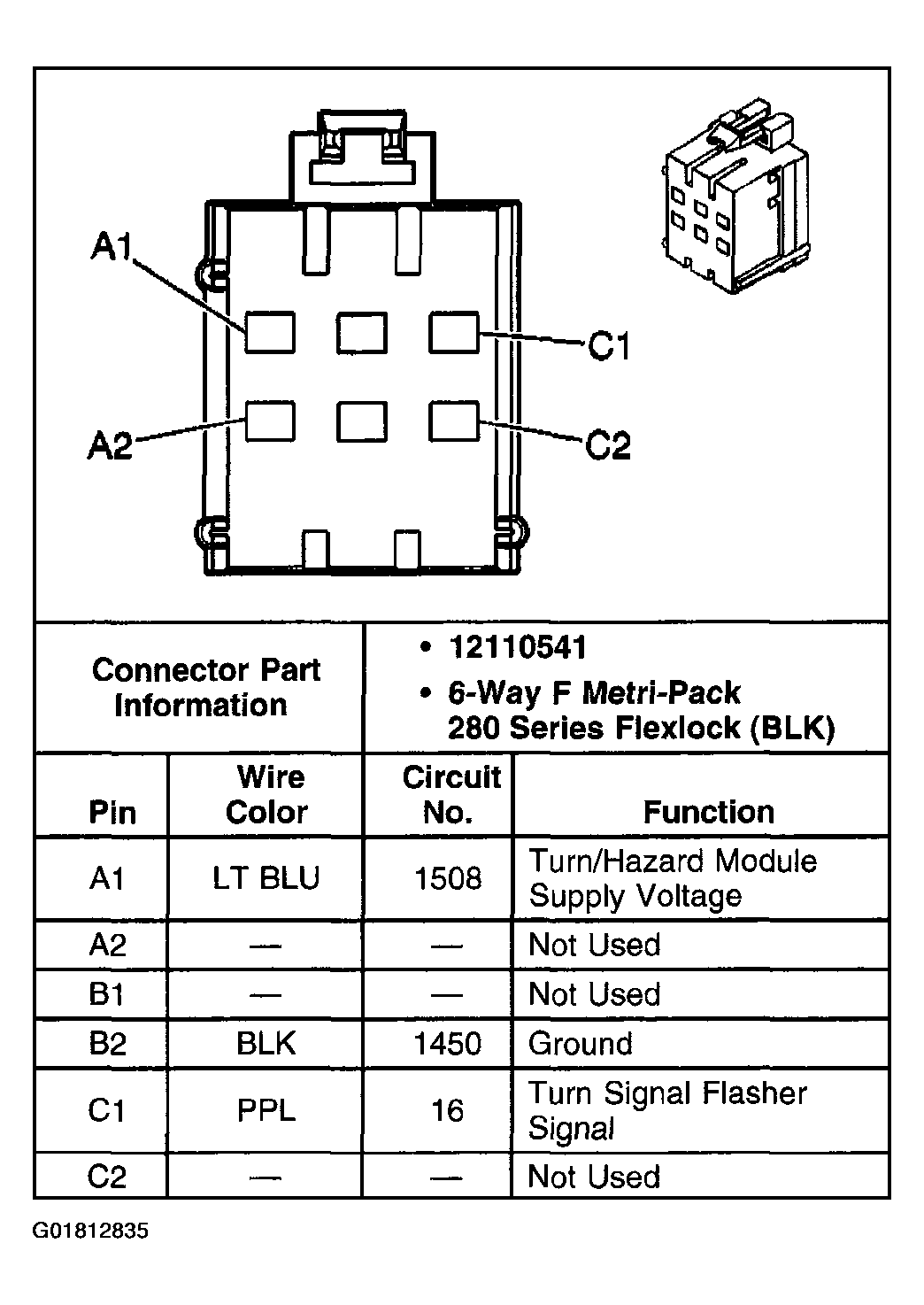

Fig 6: Turn Signal/Hazard Flasher
G01812835Courtesy of GENERAL MOTORS CORP.
Fig 7: Vanity Mirror Lamp-Left
G01812836Courtesy of GENERAL MOTORS CORP.

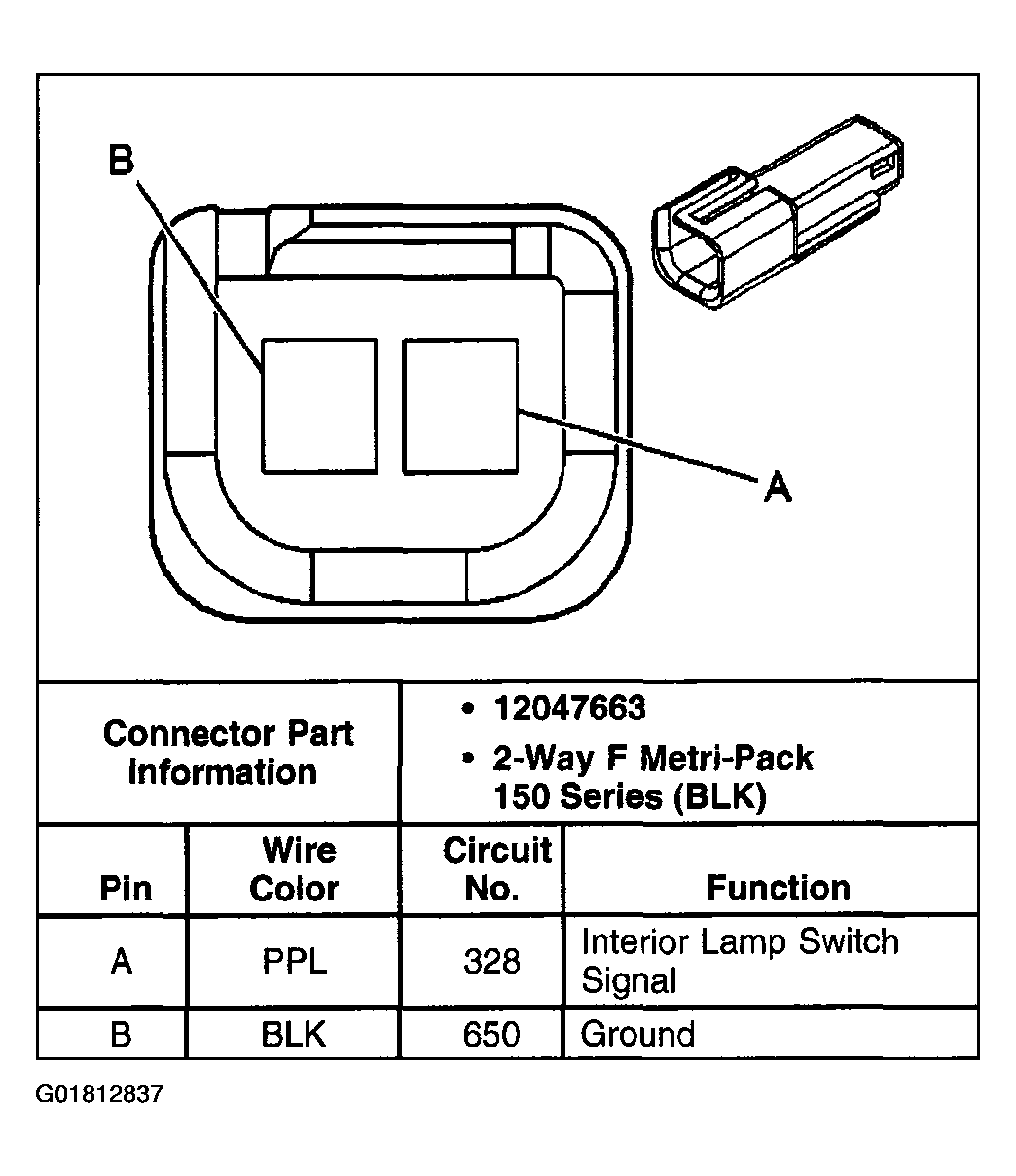

Fig 8: Vanity Mirror Lamp-Right
G01812837Courtesy of GENERAL MOTORS CORP.

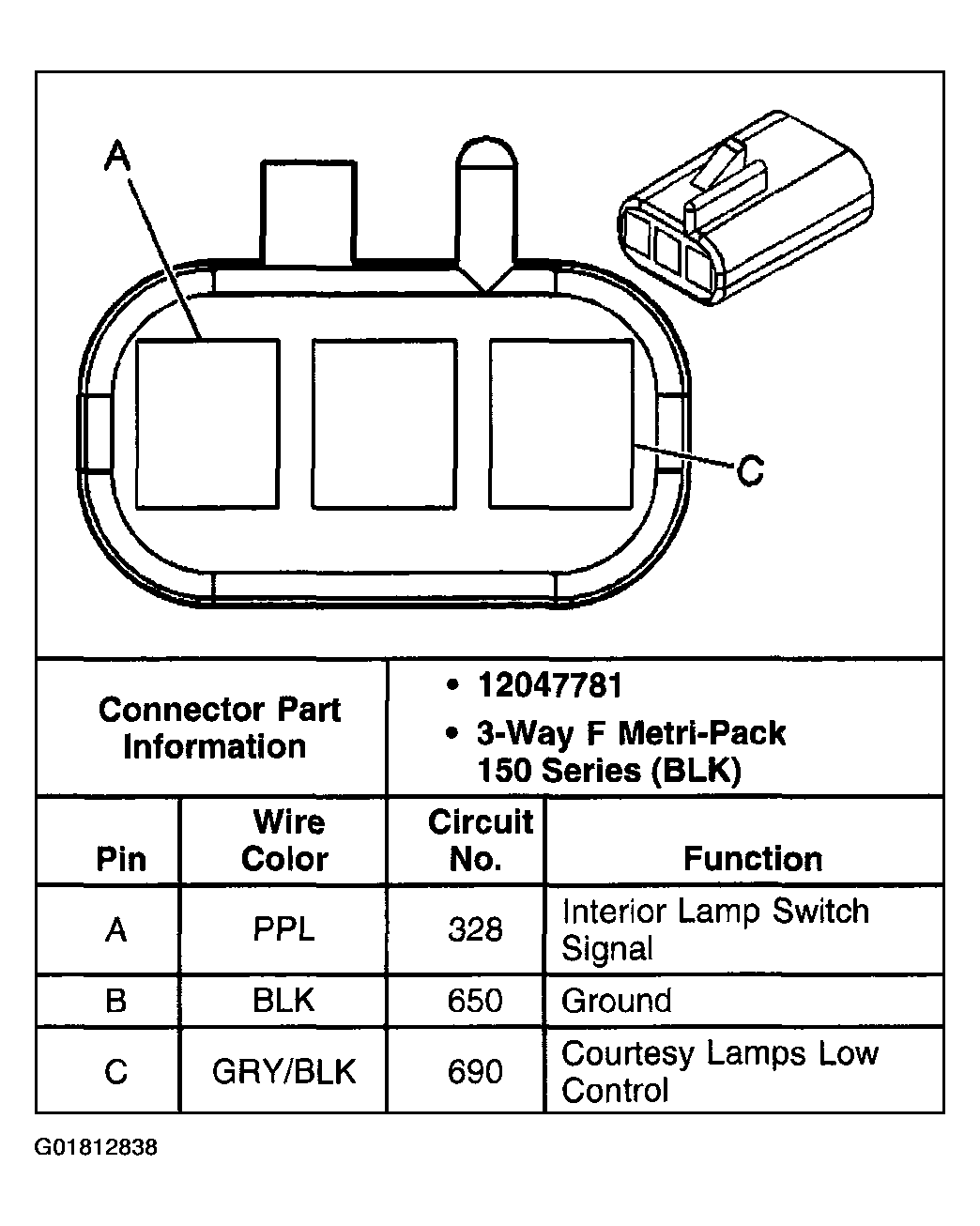

Fig 9: Windshield Header Courtesy/Reading Lamps
G01812838Courtesy of GENERAL MOTORS CORP.
