Installation Procedure

  1. Connect the electrical connector to the steering wheel control switch.
  2. Push the steering wheel controls switch into the steering wheel.
  3. Install the steering wheel controls wire harness to the retainers in the steering wheel.
  4. Install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE)  in Airbag.

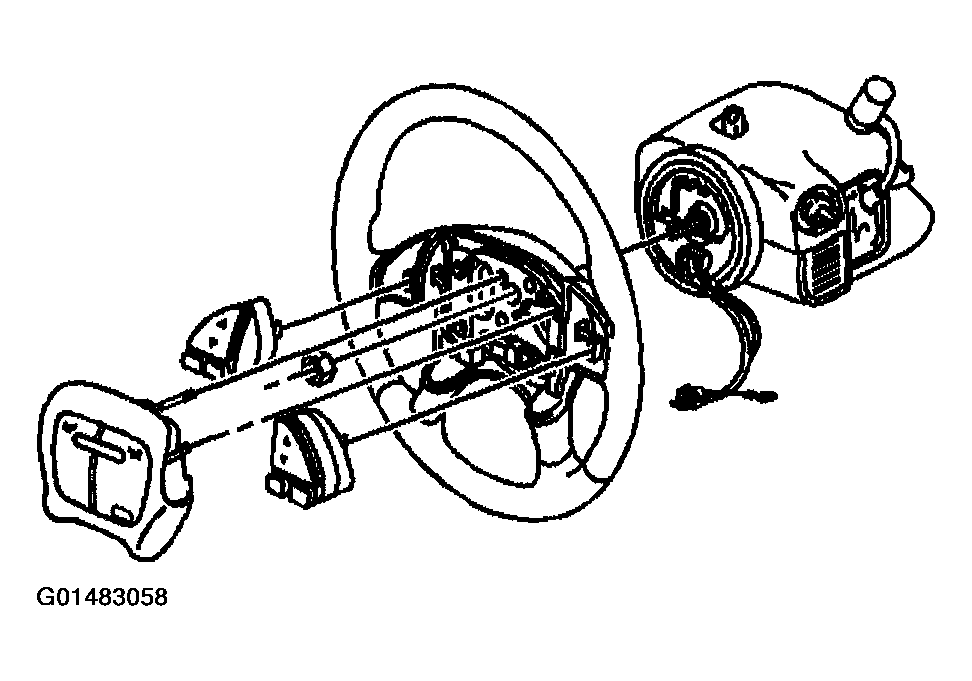

    Fig 1: Installing Steering Wheel Controls Wire Harness
    G01483058Courtesy of GENERAL MOTORS CORP.
