Daytime Running Lamps Control Module Connector End View C2 (2 Of 2)

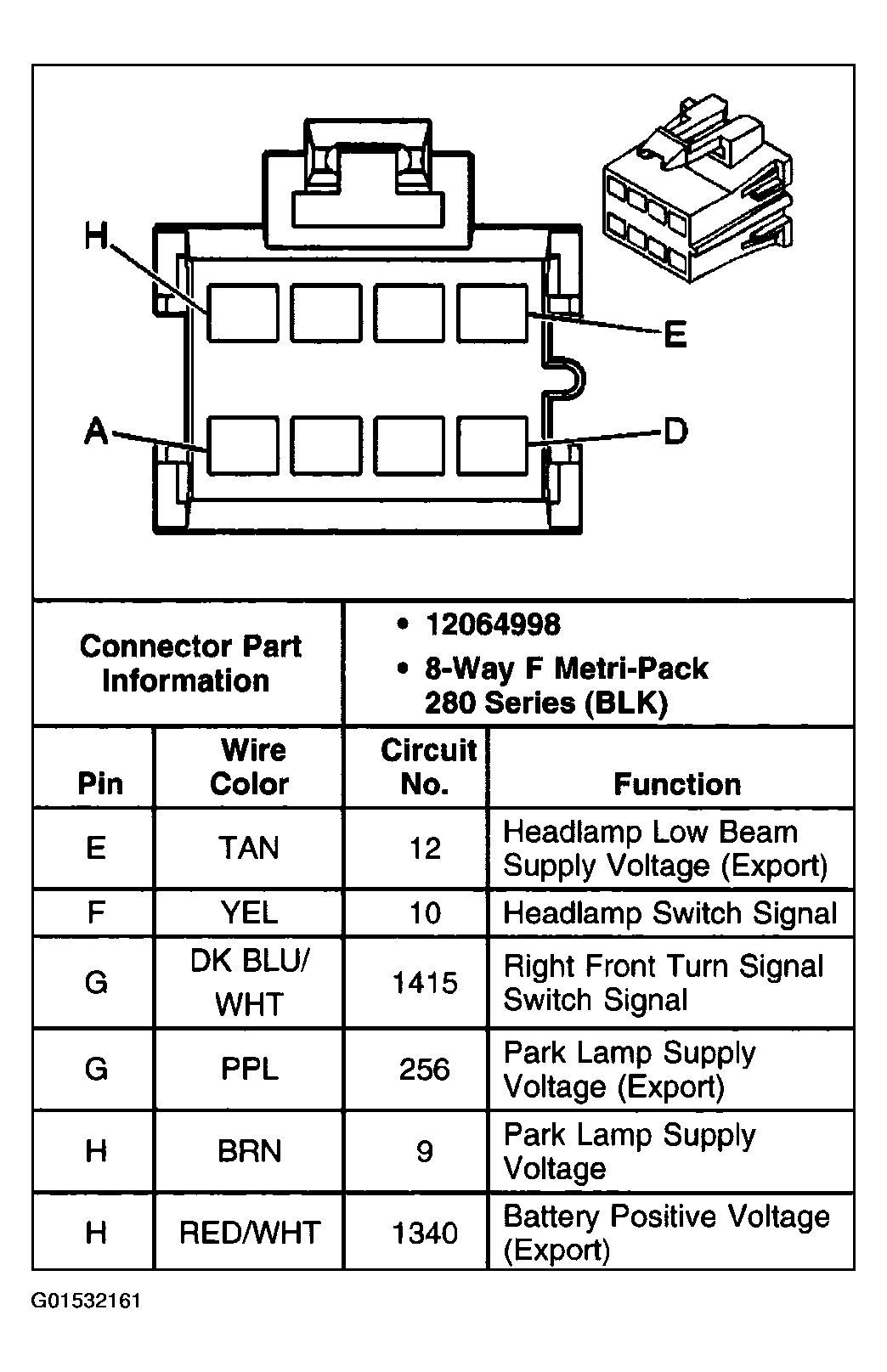

Fig 1: Daytime Running Lamps Control Module Connector End View C2 (2 Of 2)
G01532161Courtesy of GENERAL MOTORS CORP.
