OnStar® Button Assembly Connector End View

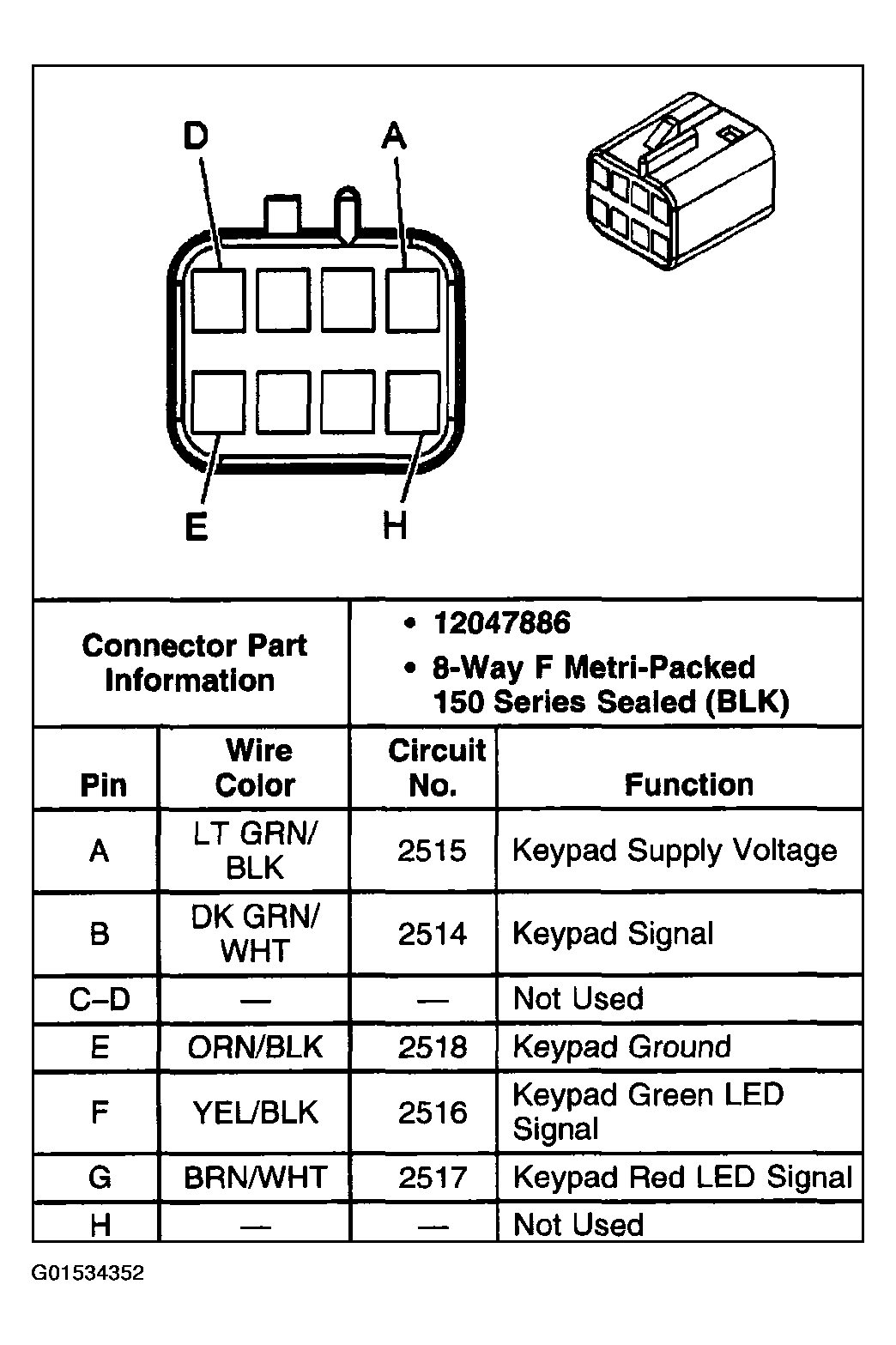

Fig 1: OnStar® Button Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
