Rear Window Wiper/Washer and Multi-Function Switch Connector End View C1

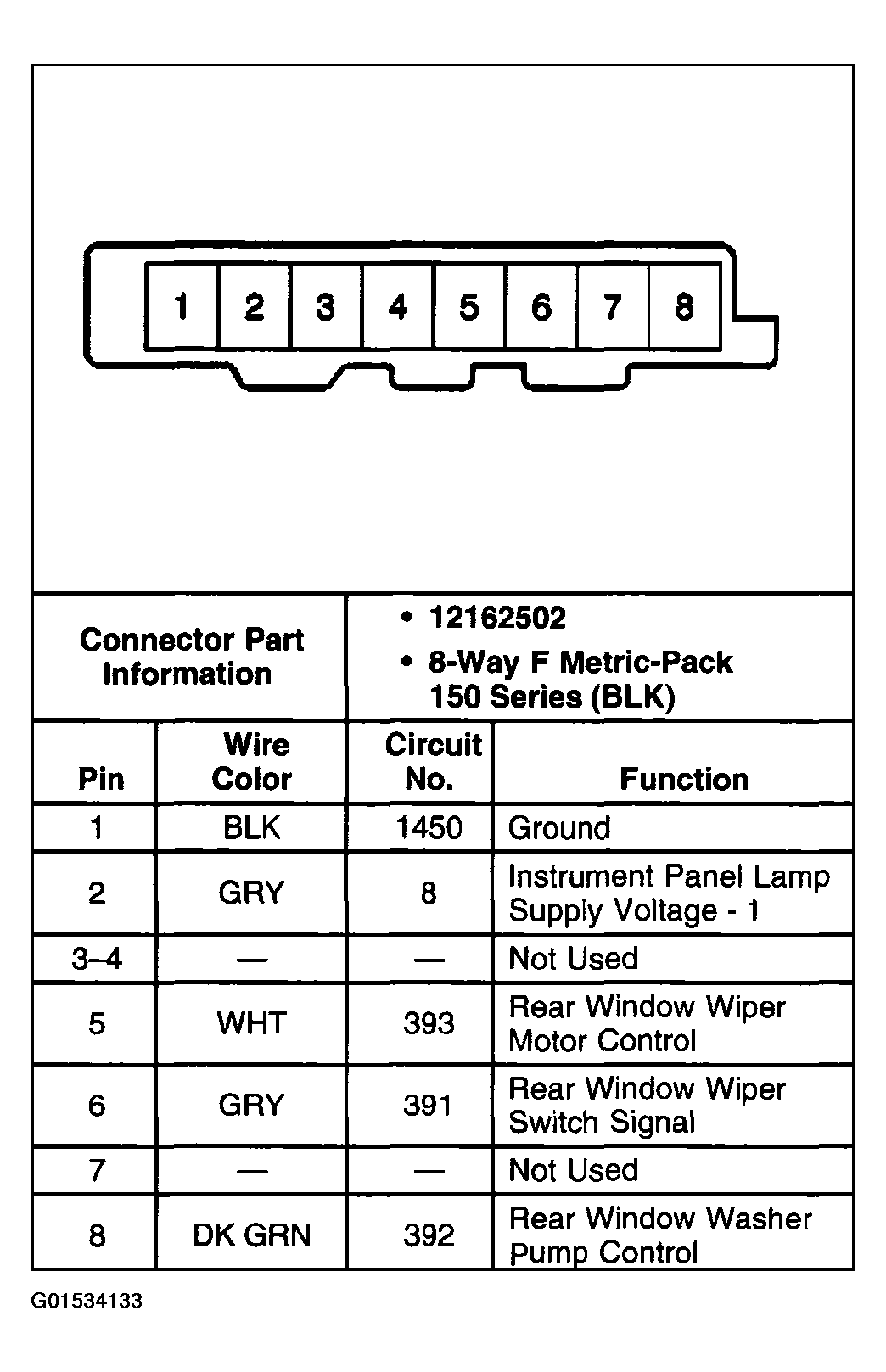

Fig 1: Rear Window Wiper/Washer and Multi-Function Switch Connector End View C1
G01534133Courtesy of GENERAL MOTORS CORP.
