Removal Procedure

  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY  in Instrument Panel, Gages and Console.
    Fig 1: Identifying Instrument Panel Accessory Trim Plate
    G01483740Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the switch bank to instrument panel.
  3. Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

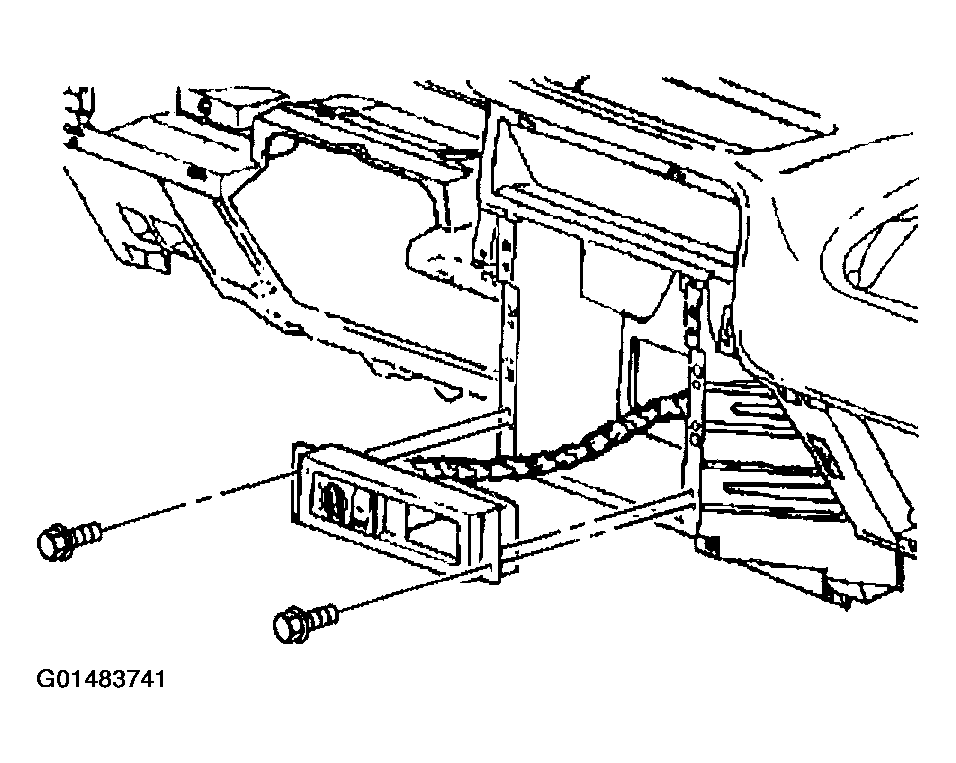

    Fig 2: Pulling Straight Out From Instrument Panel To Remove Switch Bank From Instrument Panel
    G01483741Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

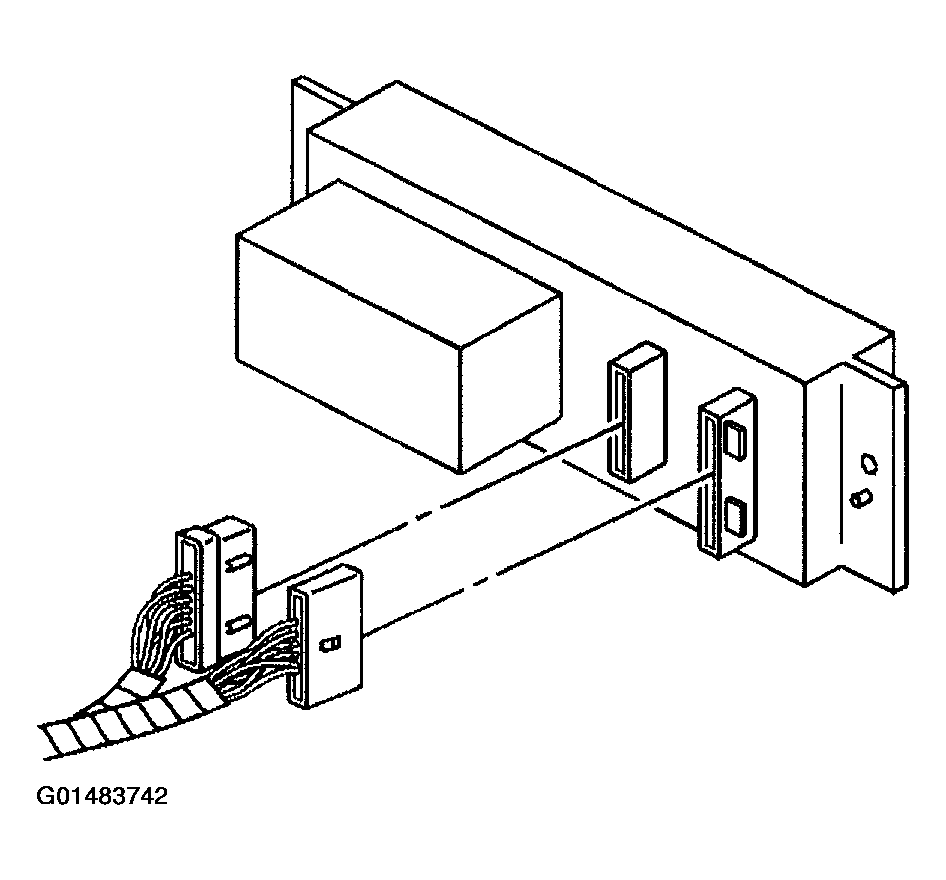

    Fig 3: Disconnecting Electrical Connectors
    G01483742Courtesy of GENERAL MOTORS CORP.
