Wiper/Washer System Component Views

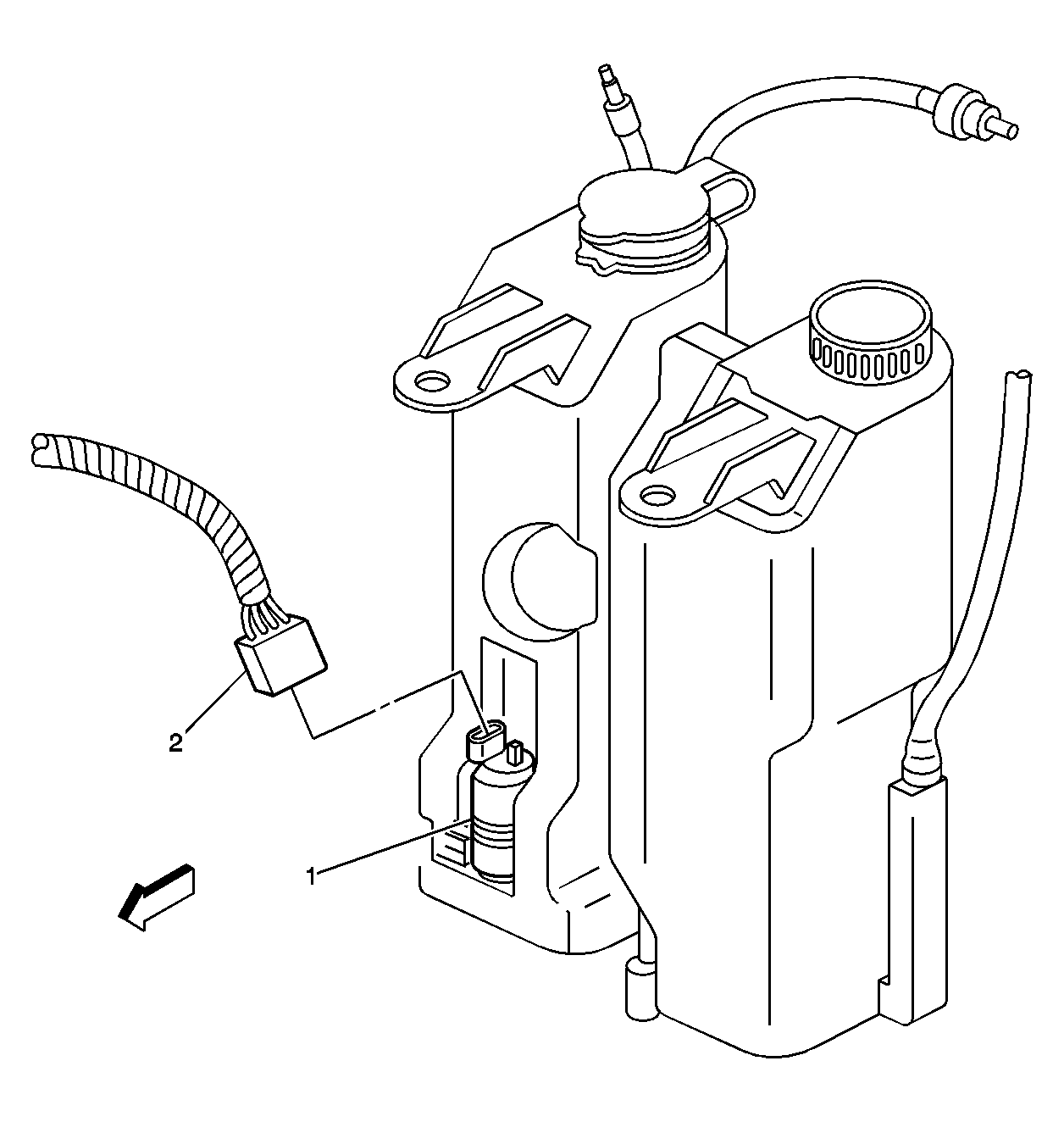

Fig 1: Windshield Coolant Recovery Reservoir Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Washer Fluid Pump Connector

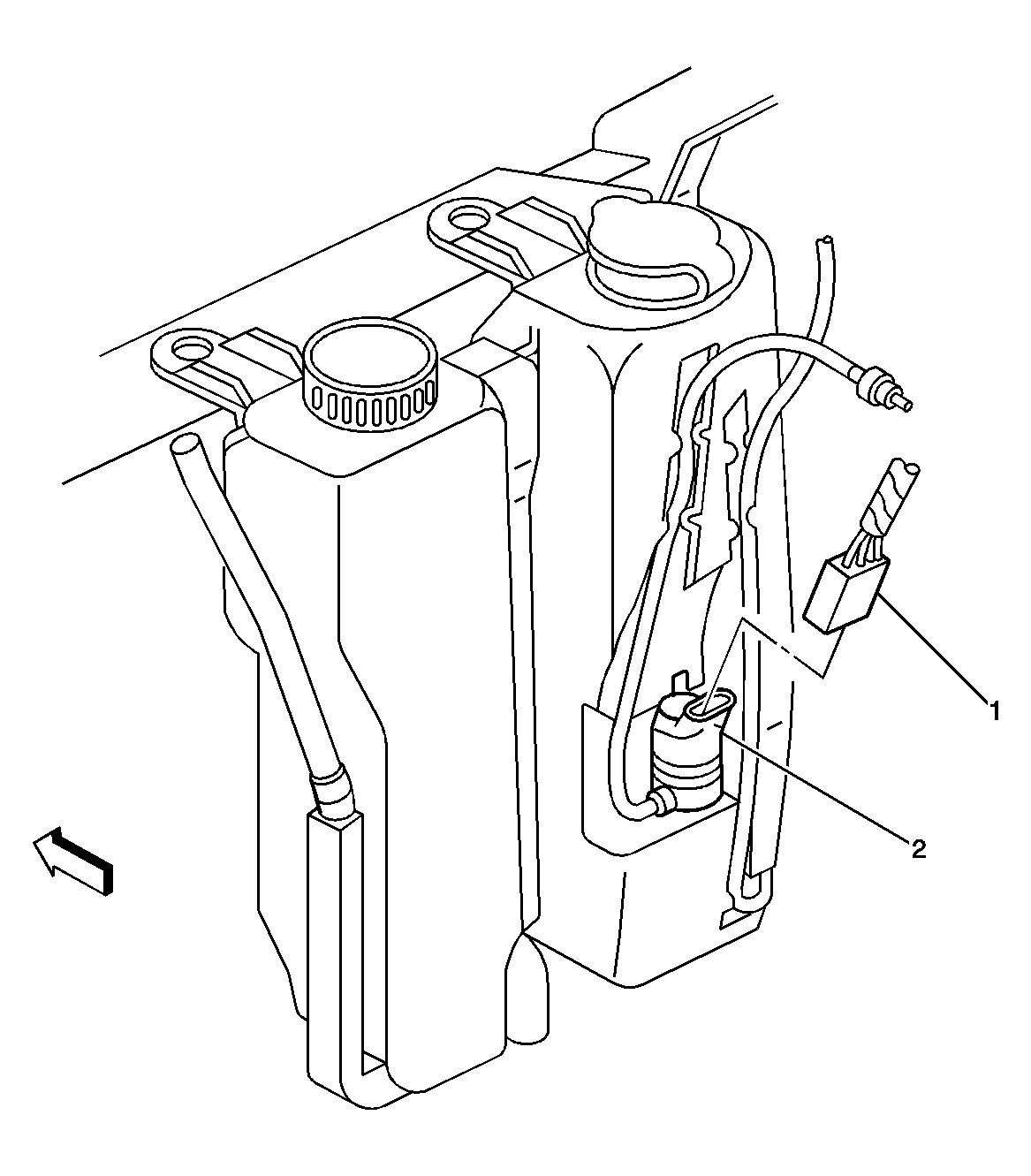

Fig 2: Rear Window Coolant Recovery Reservoir Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Washer Fluid Pump Connector
2	Rear Window Washer Fluid Pump

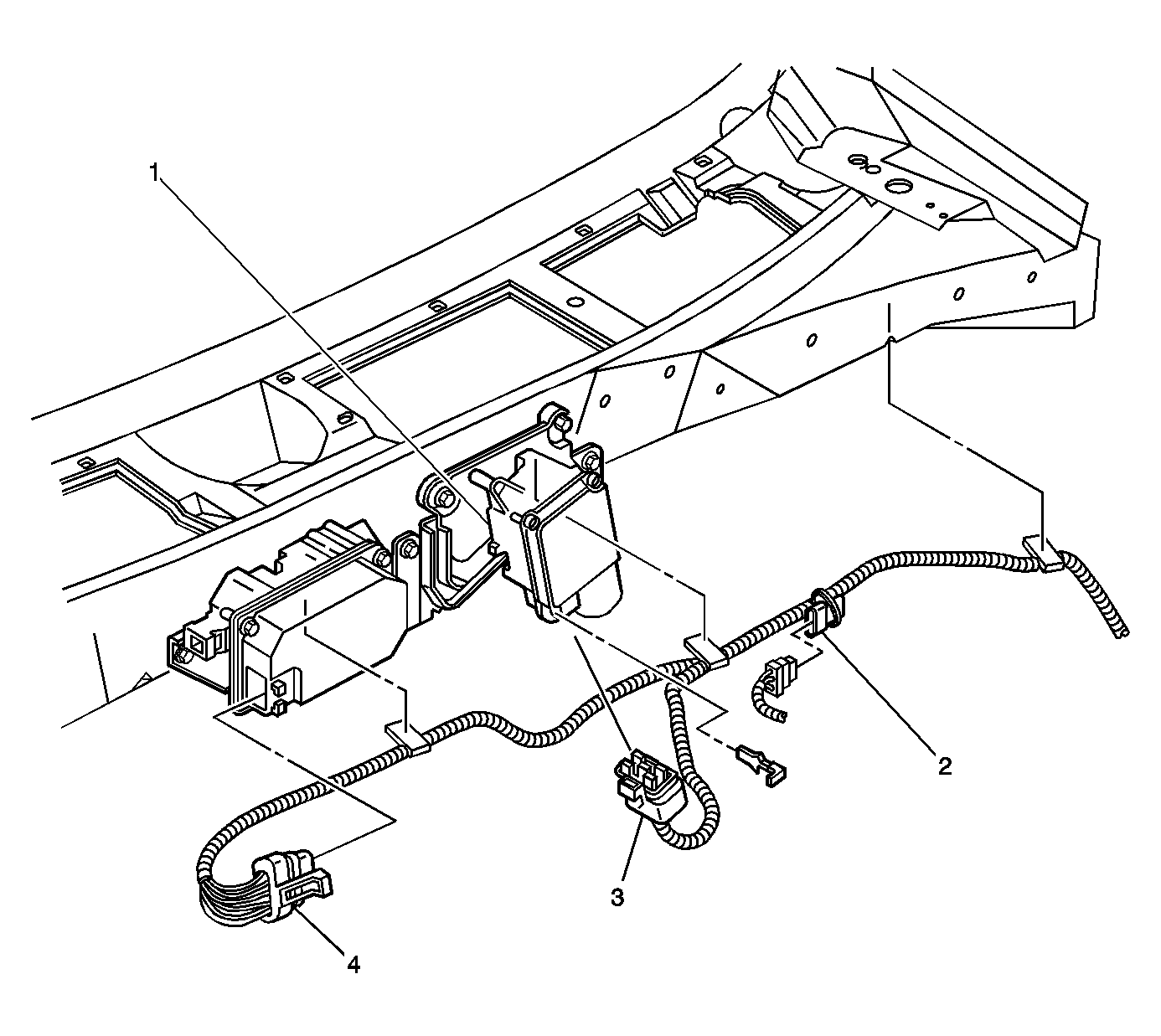

Fig 3: Cruise Control Module, And Wiper Motor Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor And Module
2	C108
3	Windshield Wiper Motor And Module Connector
4	Cruise Control Module (CCM) Connector

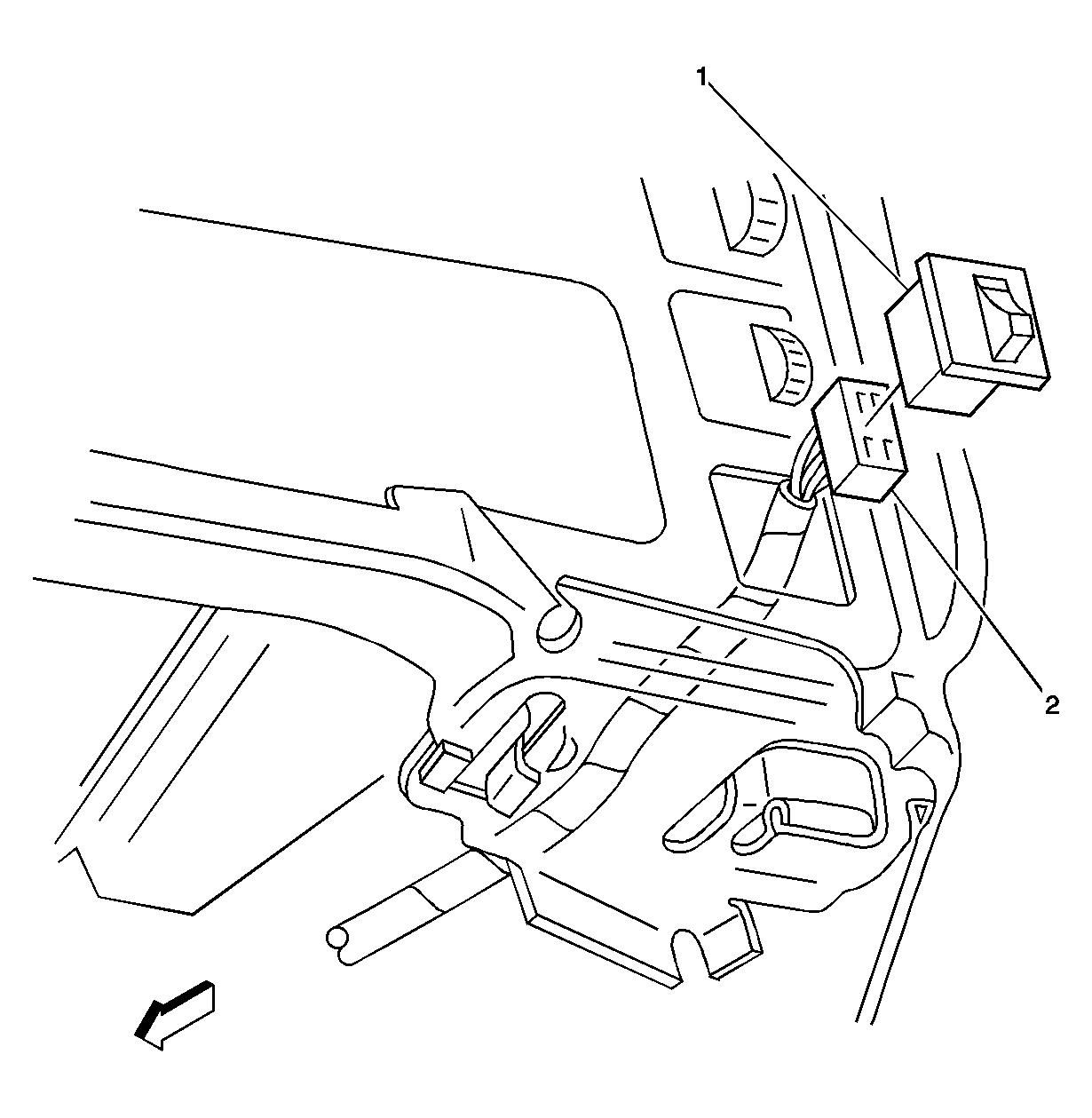

Fig 4: Rear Window Wiper/Washer Switch Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch
2	Rear Window Wiper/Washer Switch Connector

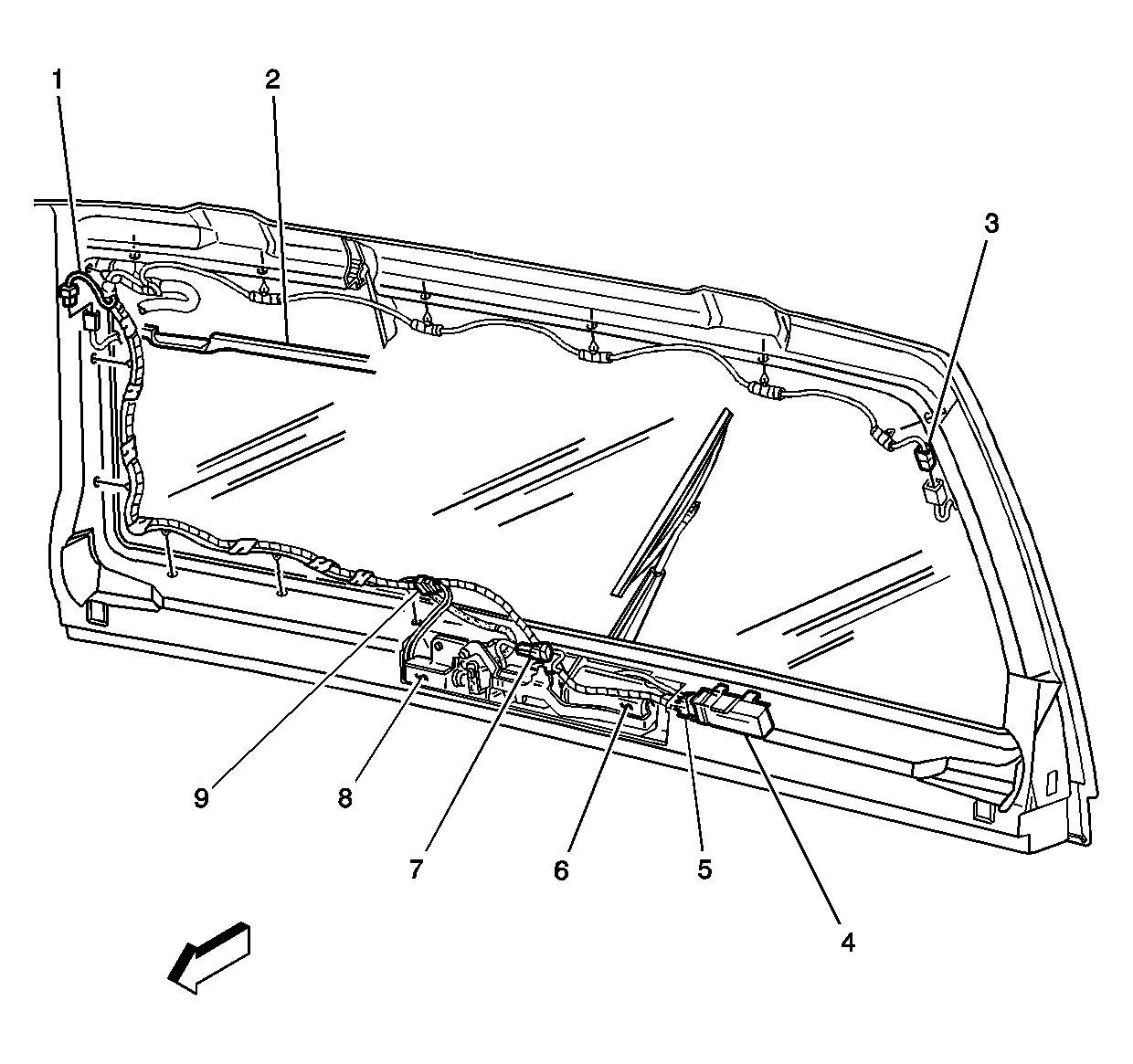

Fig 5: Liftgate Harness Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector C1
2	Rear Window Defogger Grid
3	Rear Window Defogger Grid Connector C2
4	Rear Window Wiper/Washer Module
5	Rear Window Wiper/Washer Module Connector
6	Rear Window Wiper Motor
7	Liftglass Lock/Unlock Release Switch Connector
8	Liftglass Release Actuator
9	Liftglass Release Actuator Connector
