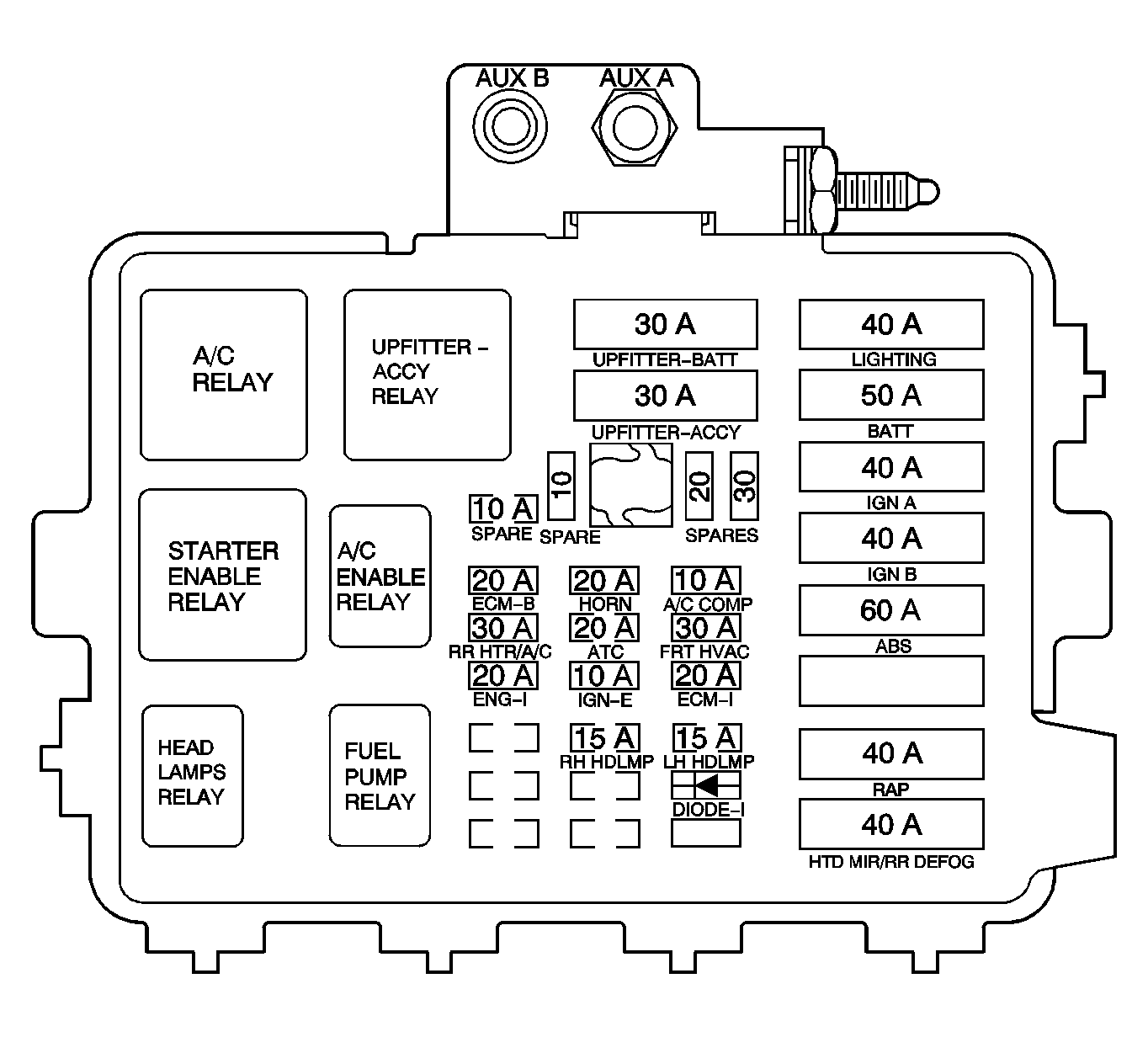

Fuse Block - Underhood (Front View, Fuse Identification)
Electrical Center Identification Views
| Device | Rating | Description |
|---|---|---|
| DIODE - I | 1A | A/C Clutch |
| RH HDLMP | 15A | Headlamp - RH - Sealed, Headlamp High Beam - Right - Composite, Headlamp Low Beam - Right - Composite |
| LH HDLMP | 15A | Headlamp - LH - Sealed, Headlamp High Beam - Left - Composite, Headlamp Low Beam - Left - Composite |
| ENG-I | 20A | Oxygen Sensors, Mass Air Flow (MAF) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid, Evaporative Emission (EVAP) Canister Vent Solenoid |
| IGN-E | 10A | A/C Enable Relay |
| ECM-I | 20A | Fuel Injectors, Powertrain Control Module (PCM), Ignition Control Module (ICM), Ignition Coil |
| RR - HTR/A/C | 30A | A/C Relay |
| ATC | 20A | Transfer Case Shift Control Module |
| FRT HVAC | 30A | Blower Motor Resistor Assembly |
| ECM-B | 20A | Fuel Pump (FP) Relay, Powertrain Control Module (PCM) |
| HORN | 20A | Horn Relay |
| A/C COMP | 10A | A/C Enable Relay |
| HAD MIR/RR DEFOG | 40A | HVAC Control Assembly |
| RAP | 40A | RAP Relay |
| ABS | 60A | Electronic Brake Control Module (EBCM) |
| IGN B | 40A | Ignition Switch |
| IGN A | 40A | Ignition Switch, Starter Enable Relay |
| BATT | 50A | Fuse Block - I/P |
| LIGHTING | 40A | Headlamps Relay, Fuse Block - I/P |
| UPFITTER-ACCY | 30A | Upfitter Accy Relay |
| UPFITTER-BATT | 30A | Portable/Installed by Upfitter, Trailer Wiring Harness |
| Headlamps Relay | Micro | Headlamp Supply Voltage |
| Starter Enable Relay | Mini | Starter Solenoid Crank Voltage |
| A/C Relay | Mini | Auxiliary HVAC Switch Supply Voltage |
| Fuel Pump Relay | Micro | Fuel Pump and Sender Assembly Supply Voltage |
| A/C Enable Relay | Micro | A/C Compressor Clutch Supply Voltage |
| Upfitter - ACCY Relay | Mini | Ignition 1 Voltage |
