Transfer Case Control Component Views

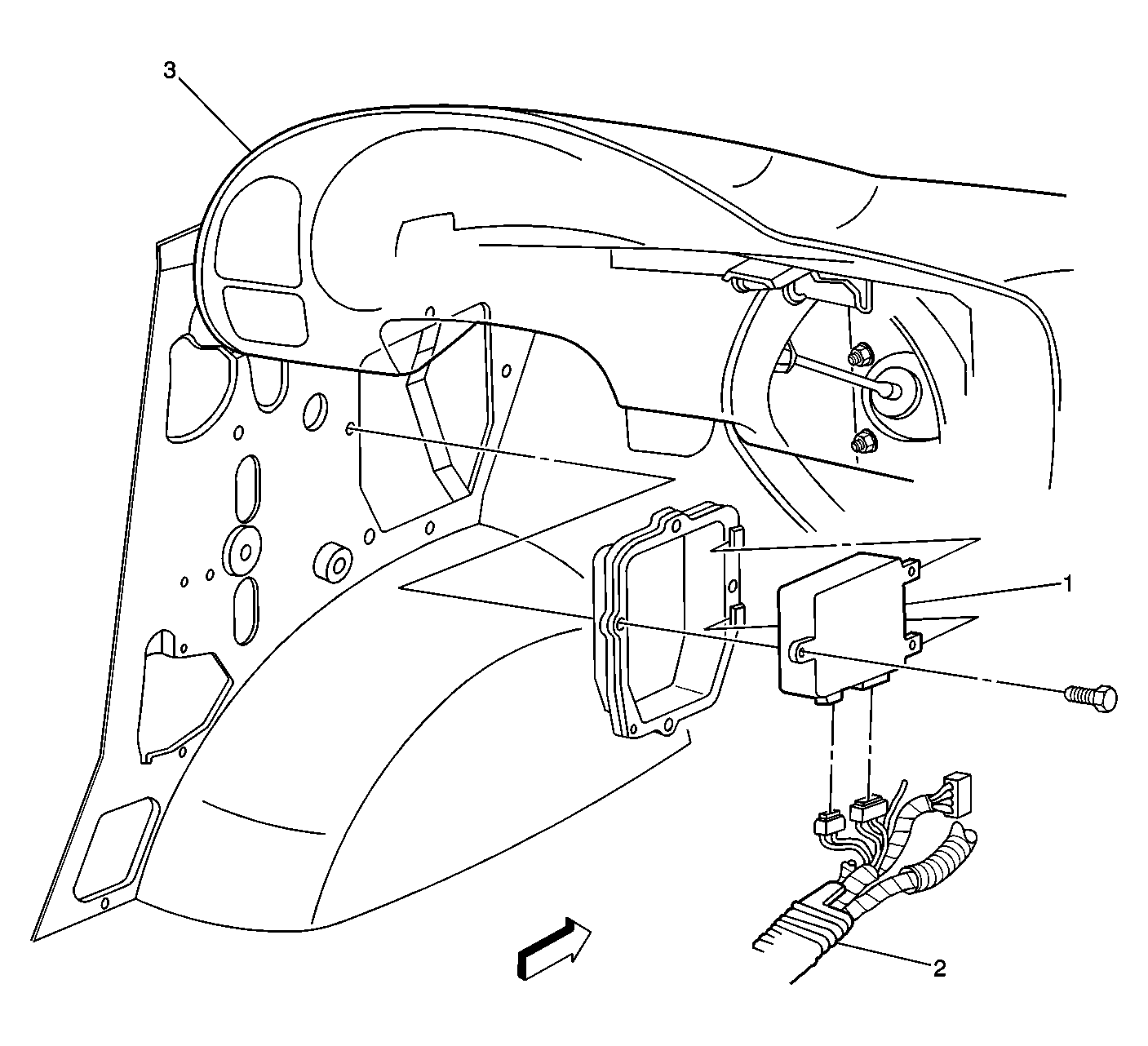

Fig 1: Transfer Case Control Module Locator View
GM377257Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transfer Case Shift Control Module
2 Transfer Case Wiring Harness
3 Dash
Fig 2: A4WD Transfer Case Locator View
GM516428Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Propshaft Speed Sensor - Rear Connector
2 Transfer Case Encoder Motor Connector
3 Vehicle Speed Sensor (VSS) Connector
4 Propshaft Speed Sensor - Front Connector
5 Transfer Case
6 P301
