Power Door Systems Component Views

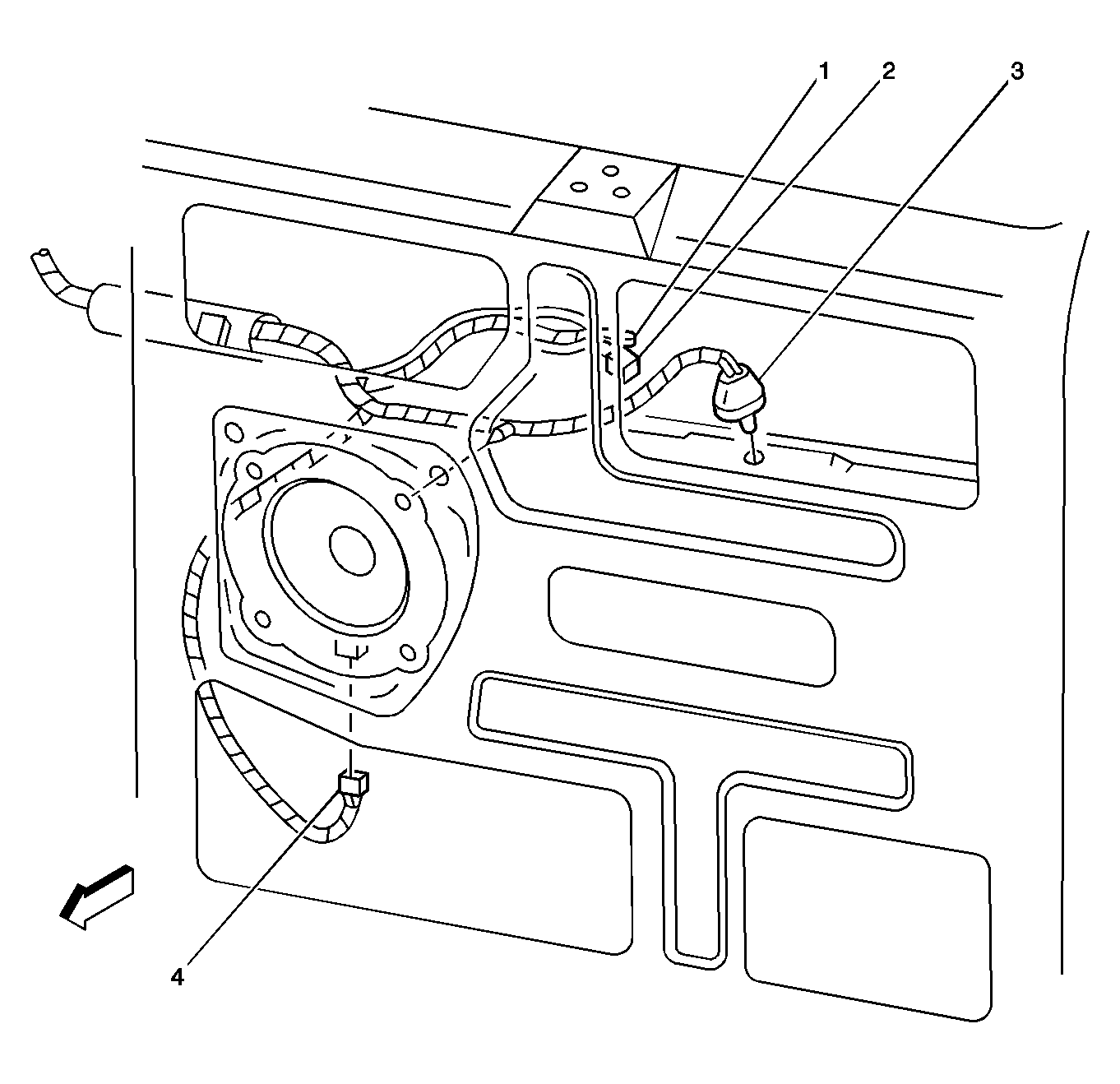

Fig 1: I/P Wiring To Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Relay
2	G200
3	Door Jamb Switch - Front Passenger
4	C205
5	C203
6	S232

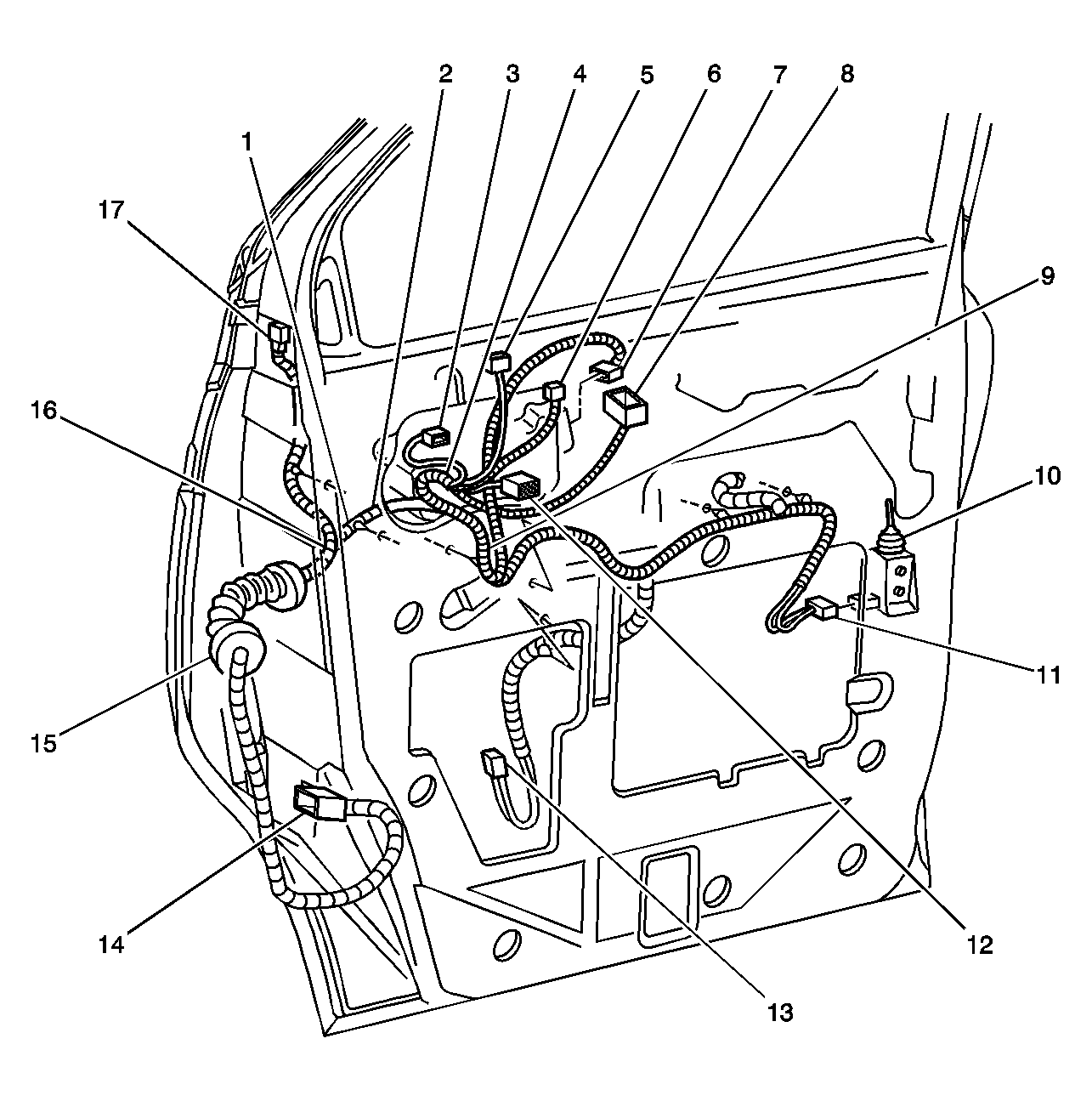

Fig 2: Front Door Wiring (Front Passenger Shown, Driver Opposite) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S500 - Driver, S602 - Front Passenger
2	S503 - Driver, S601 - Front Passenger
3	Speaker - RF Door Tweeter Connector
4	S506 - Driver, S600 - Front Passenger
5	Outside Rearview Mirror Switch Connector- Driver
6	Window Switch Front Passenger Connector C1/Window Master Switch - Driver Connector C2
7	Window Motor - Front Passenger Connector
8	Window Switch Front Passenger Connector C2/Window Master Switch - Driver Connector C1
9	S502 - Driver, S603 - Front Passenger
10	Door Lock Actuator - Front Passenger
11	Door Lock Actuator - Front Passenger Connector
12	Door Lock Switch - Front Passenger Connector
13	Speaker - RF Door Connector
14	C301 - Driver, C205 - Front Passenger
15	P500 - Driver, P600 - Front Passenger
16	S501 - Driver, S605 - Front Passenger
17	Outside Rearview Mirror - Passenger Connector

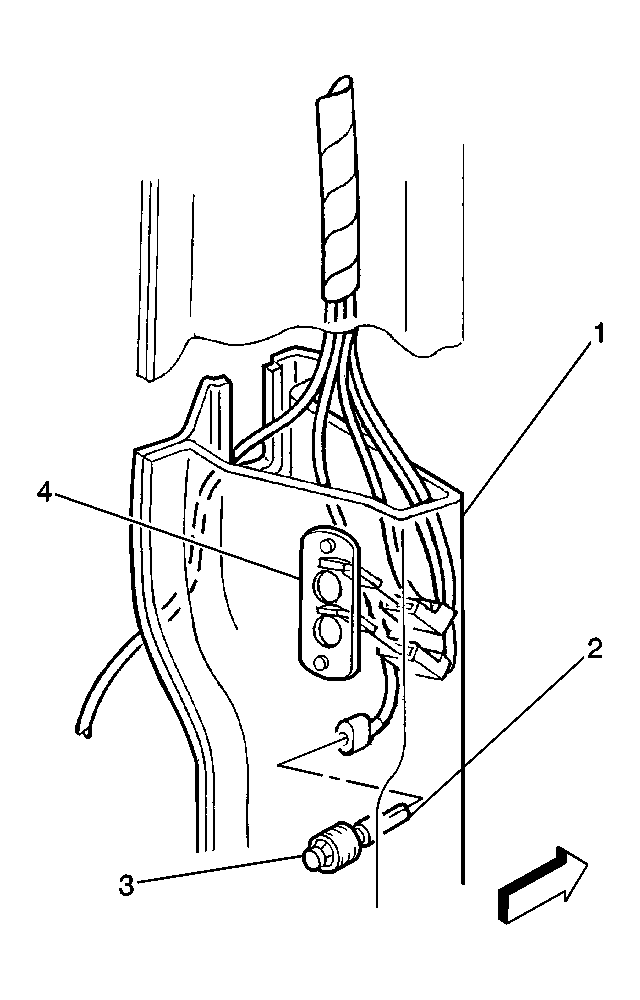

Fig 3: Door Control Switches - Driver Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Master Switch - Driver Connector
2	Outside Rearview Mirror Switch Connector
3	Speaker - LF Door Tweeter
4	Door Lock Switch - Driver Connector
5	Door Lock Switch - Driver
6	Window Master Switch - Driver
7	Outside Rearview Mirror Switch

Fig 4: Side Door Contact Plate And Side Door Jamb Switch Wiring Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right B-Pillar
2	Side Door Jamb Switch Connectors
3	Side Door Jamb Switch
4	Side Door Contact Plate

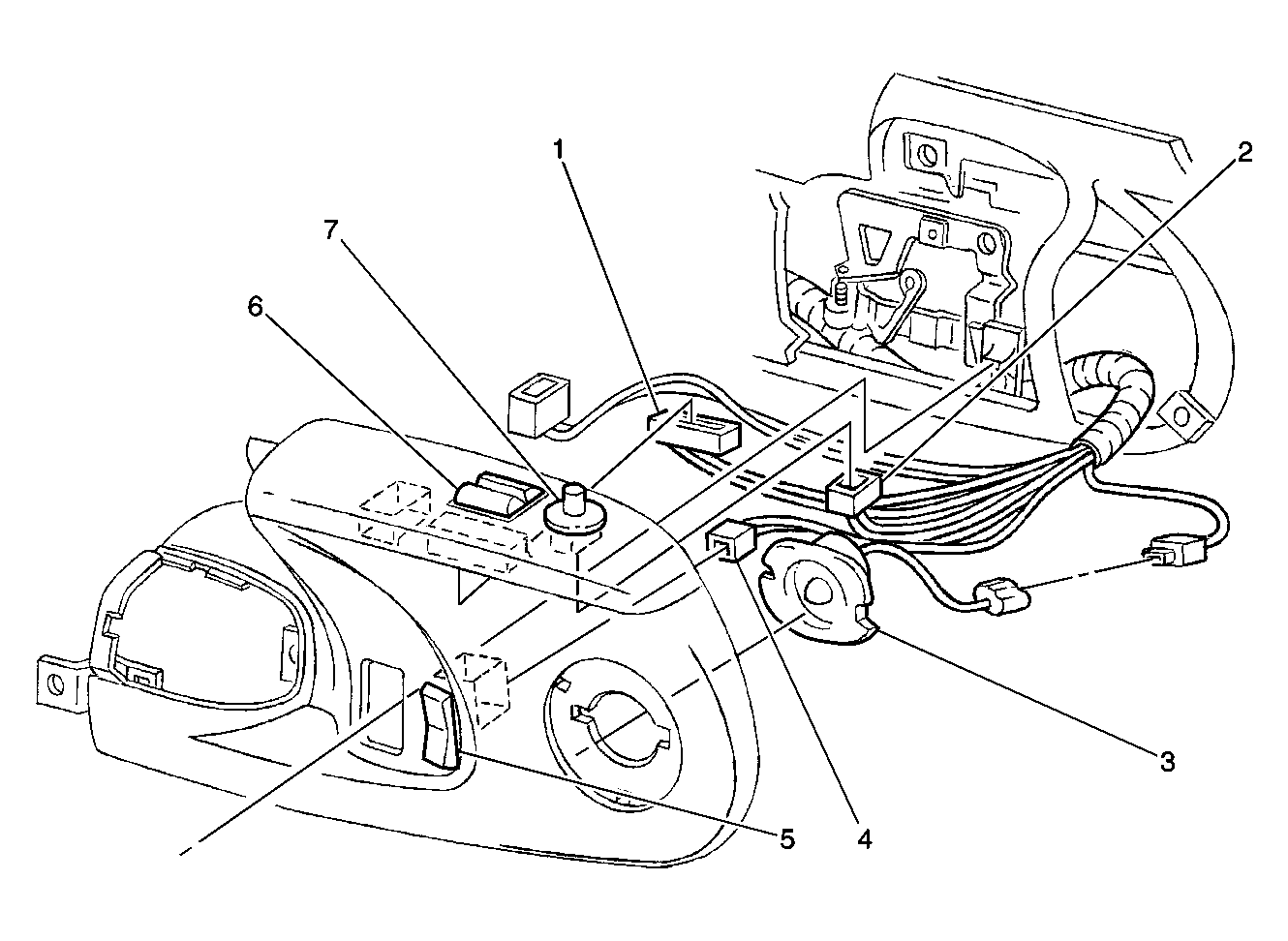

Fig 5: Door Location View - RR Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Rear
2	Door Lock Actuator - Rear
3	License Lamp
4	Speaker - RR Door (Base Radio) Speaker - RR Subwoofer (Premium Radio)
