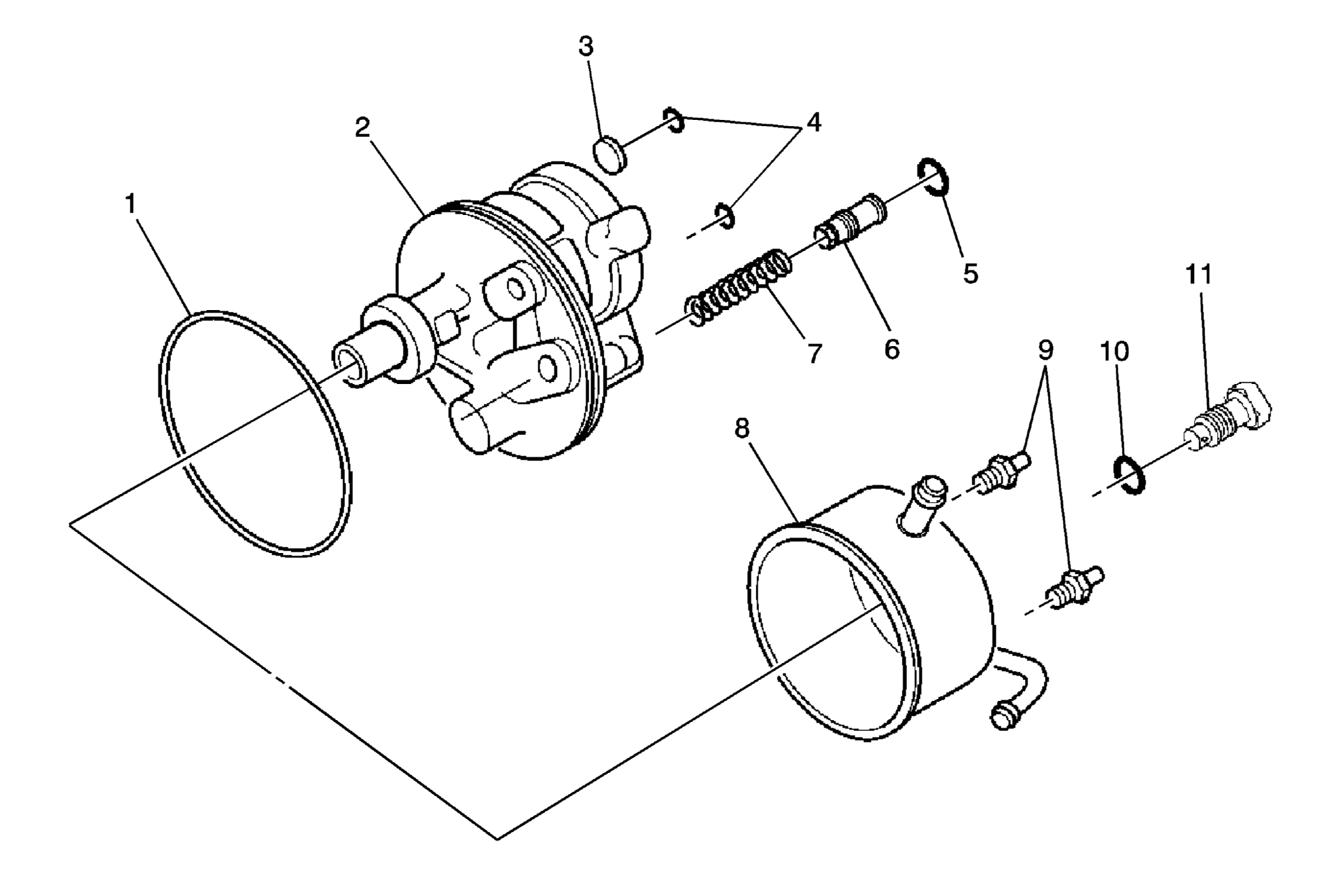

Power Steering Pump Disassembled View
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
O-ring Seal |
| 2 |
Hydraulic Pump Housing Assembly |
| 3 |
Magnet |
| 4 |
Rectangular Section Seal |
| 5 |
Rectangular Section Seal |
| 6 |
Control Valve Assembly |
| 7 |
Flow Control Spring |
| 8 |
Hydraulic Pump Reservoir Assembly |
| 9 |
Pump Mounting Studs |
| 10 |
O-ring Seal |
| 11 |
Connector and Fitting Assembly |
