Engine Control Module: Locations

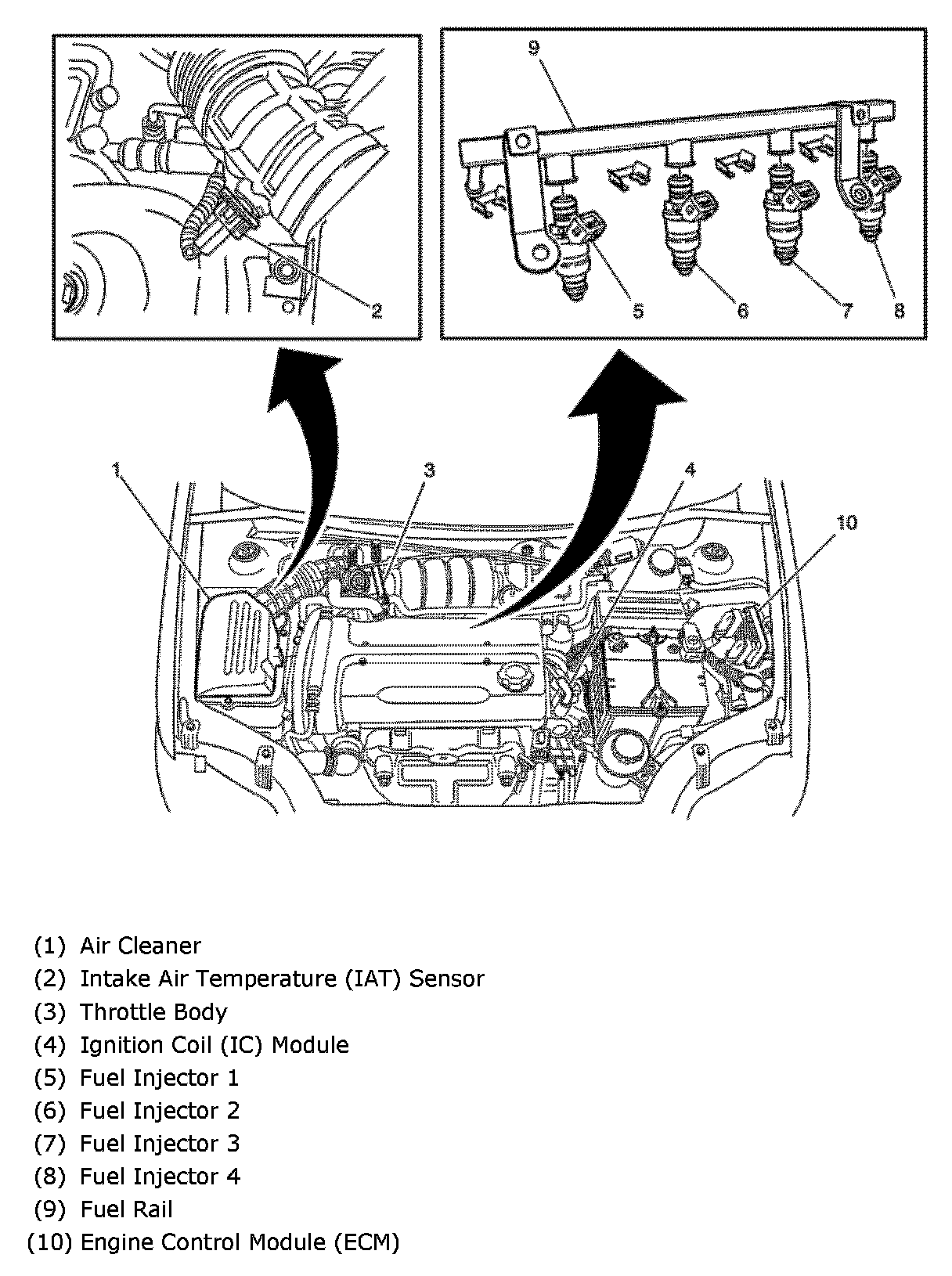

Fuel Injection and Air Cleaner:






Note: Mounted to the inside of the left front fender, near the battery.
