Engine Control Module

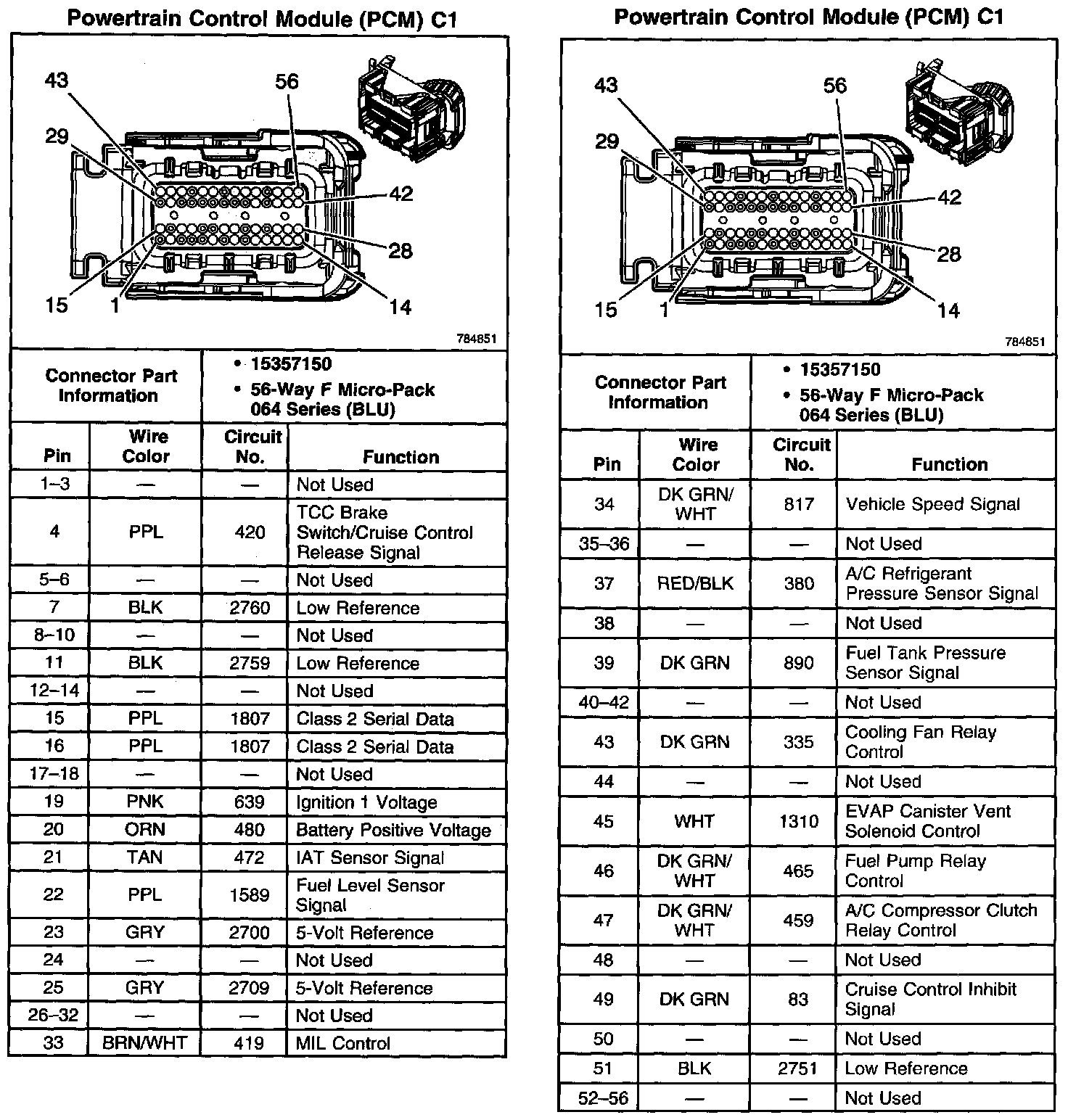

Powertrain Control Module (PCM) C1:

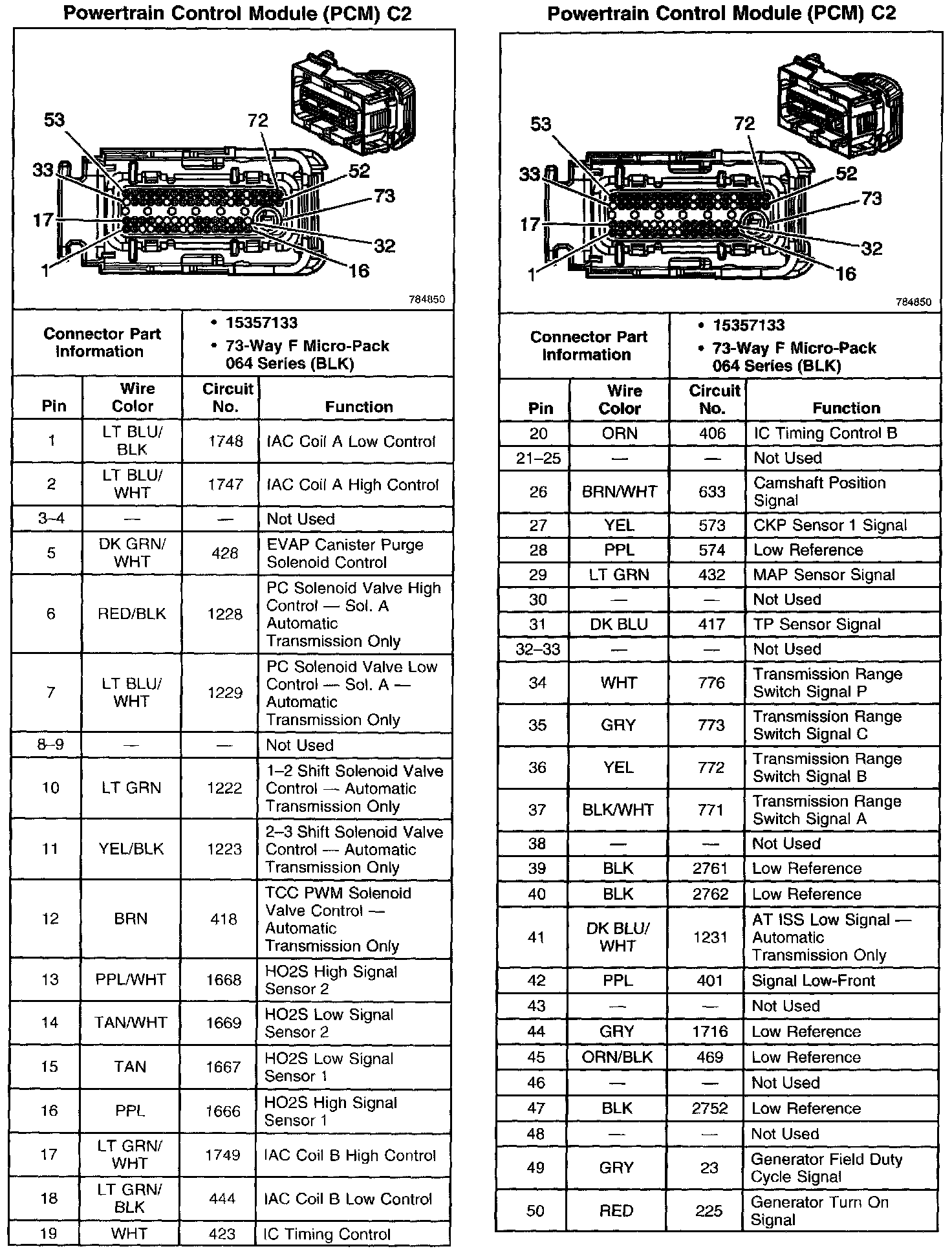

Powertrain Control Module (PCM) C2 Part 1:

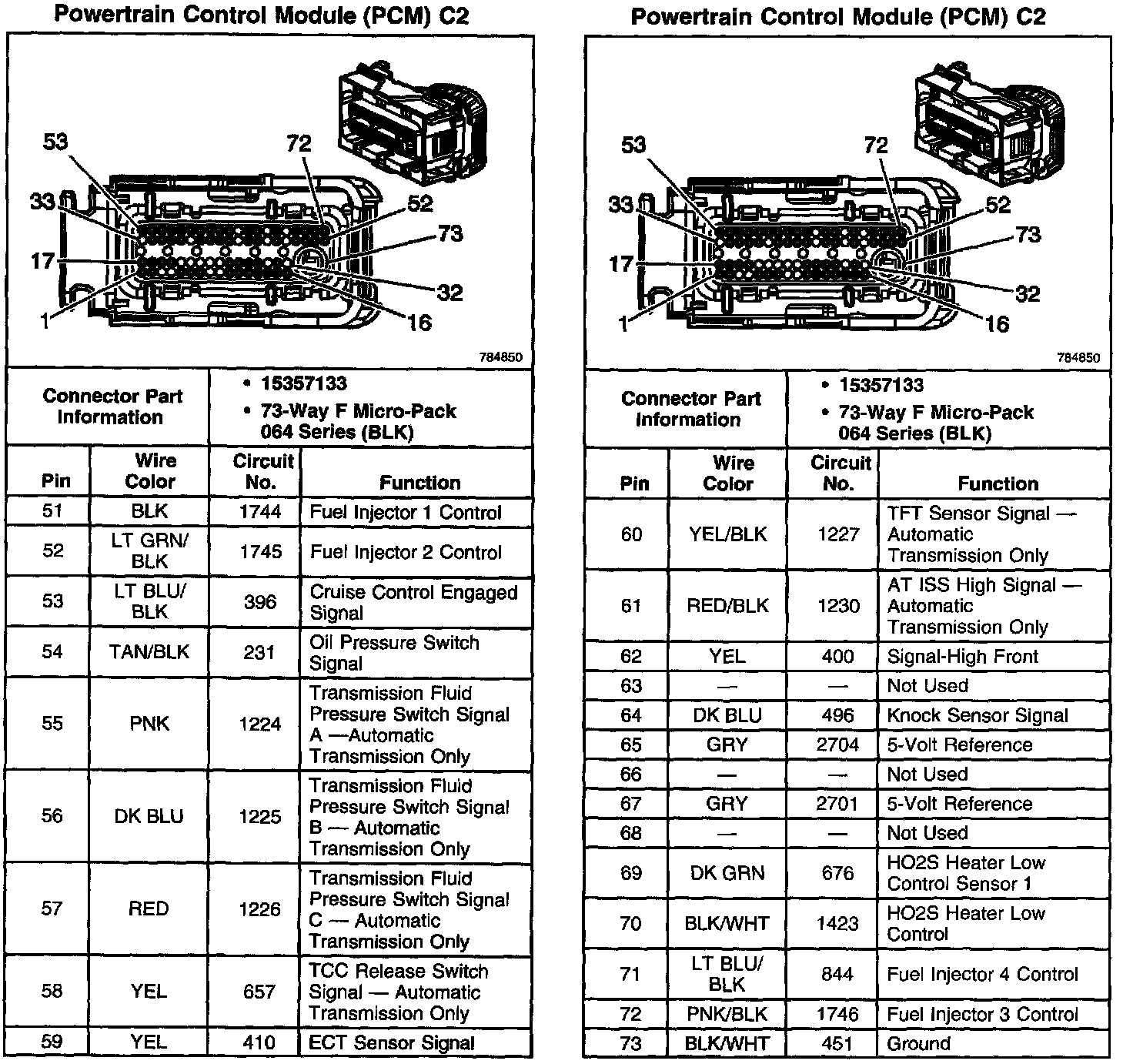

Powertrain Control Module (PCM) C2 Part 2:
