Thread Repair Specifications
Thread Repair Specifications

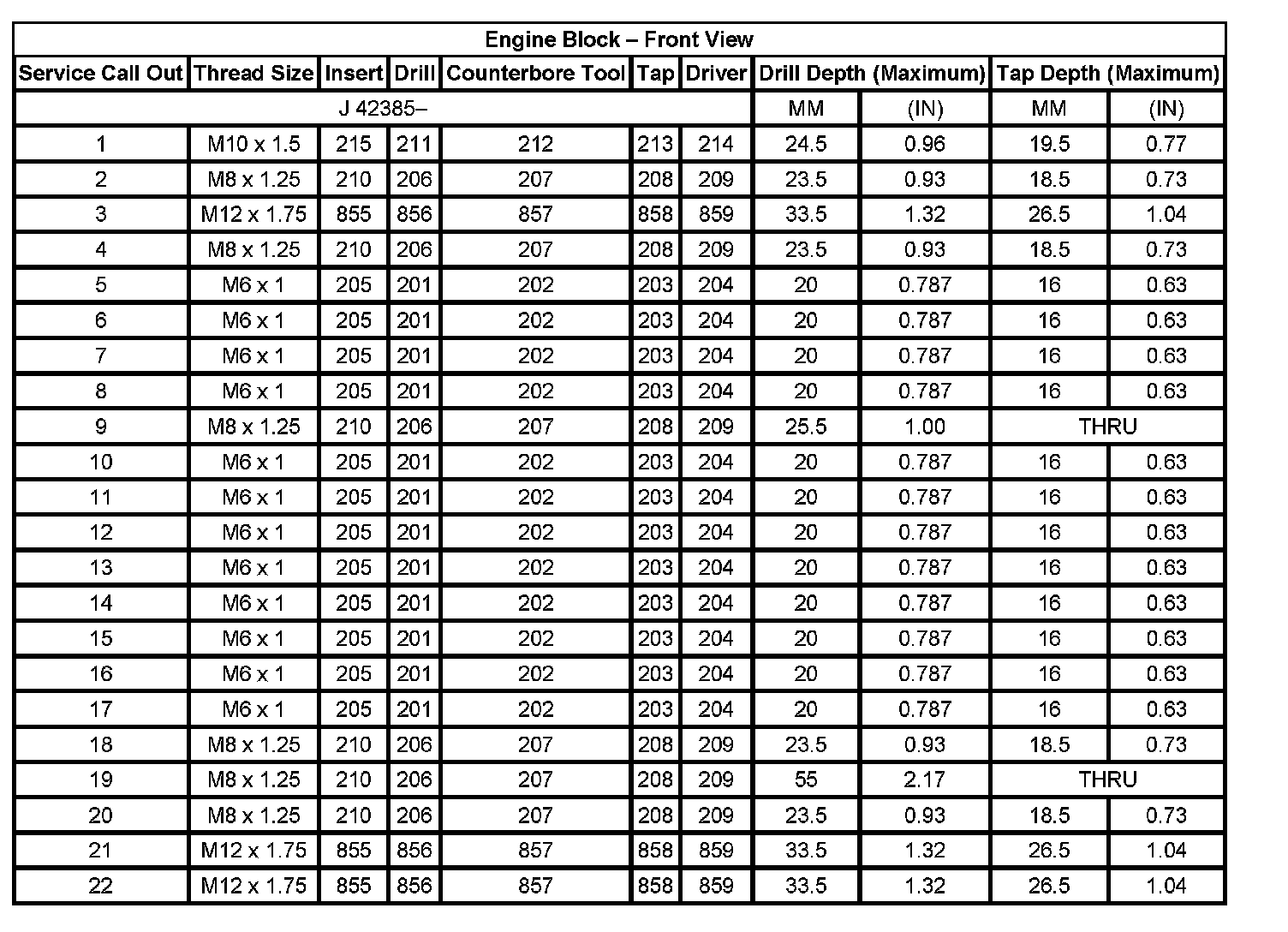

Engine Block - Front View

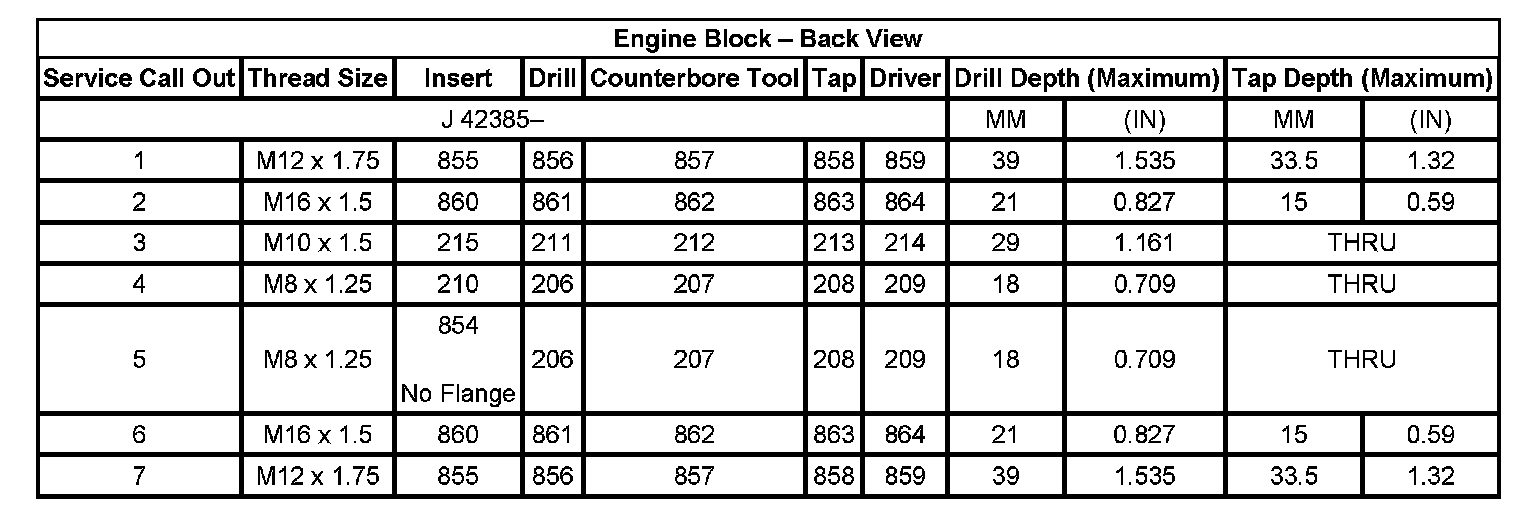

Engine Block - Back View

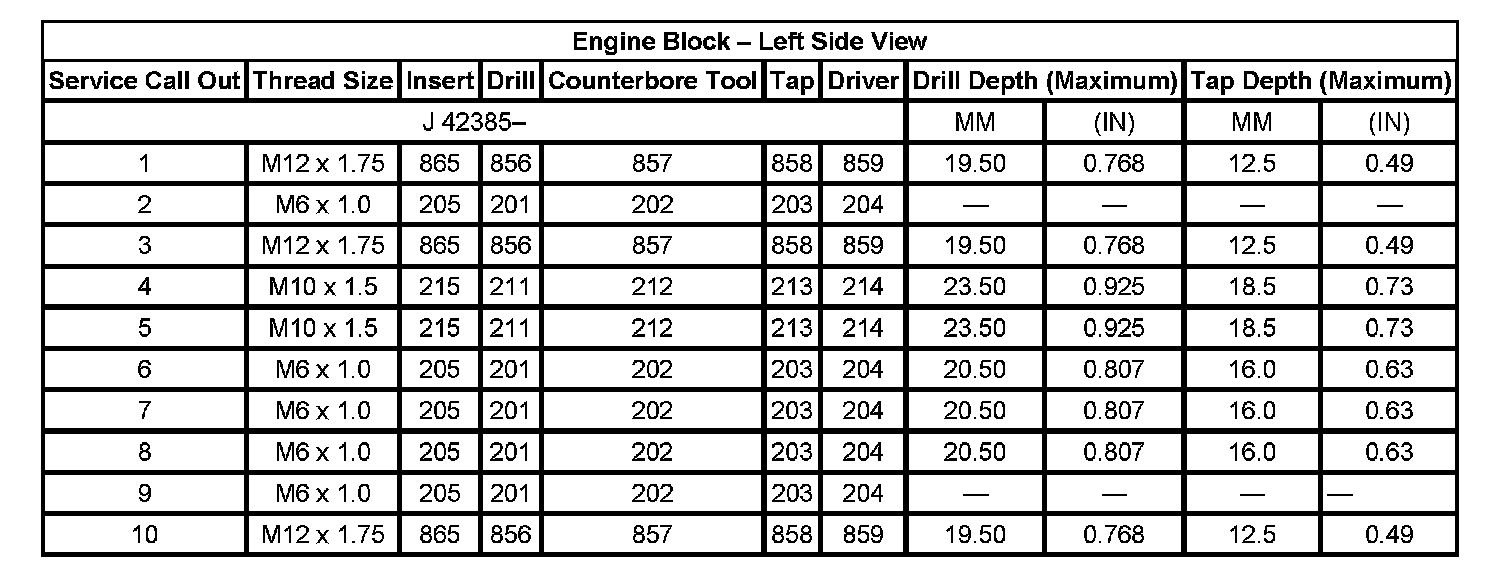

Engine Block - Left Side View

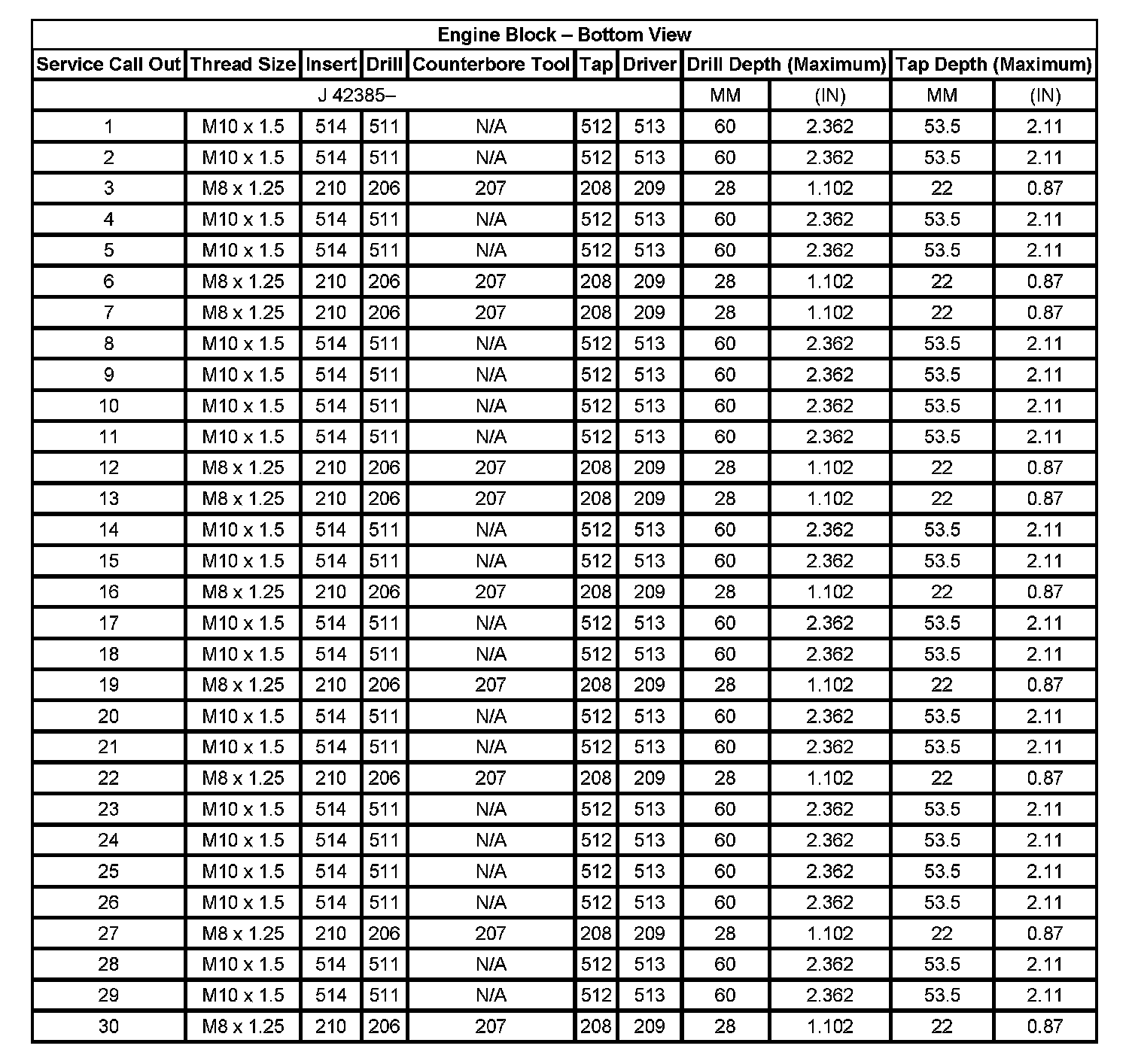

Engine Block - Bottom View

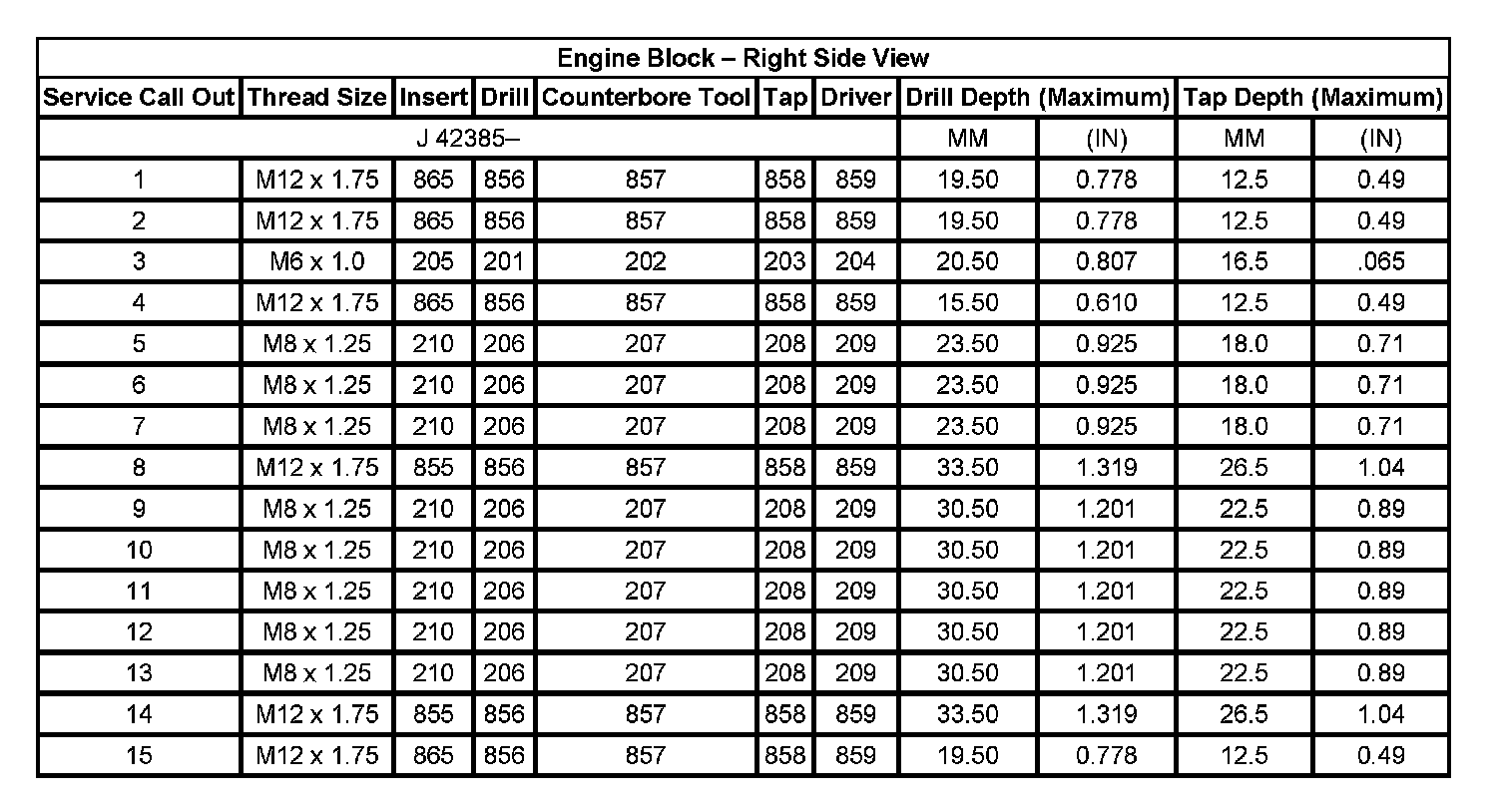

Engine Block - Right Side View

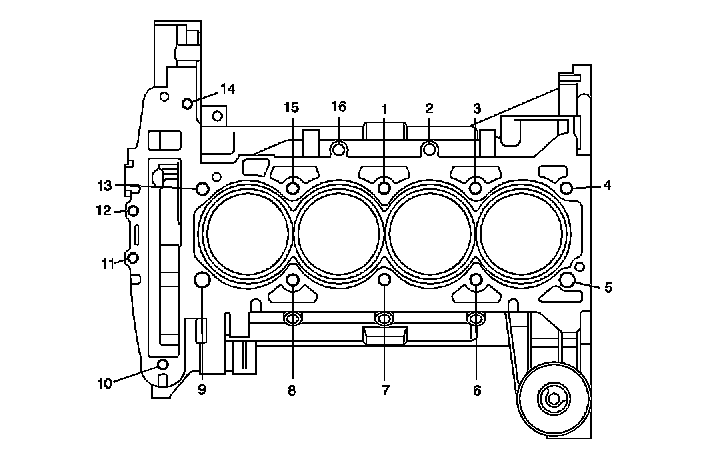

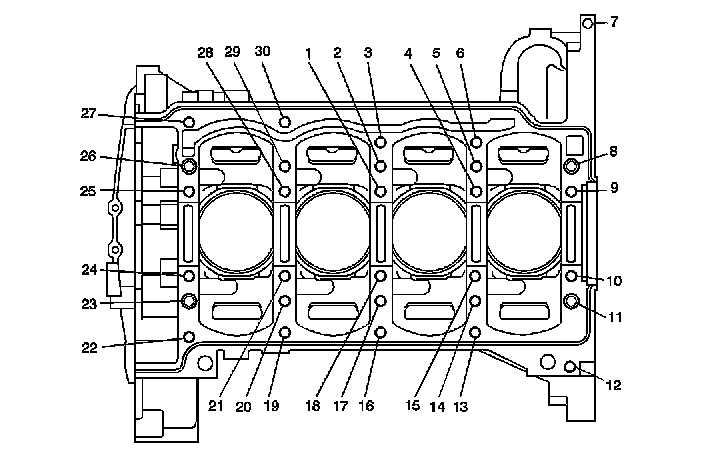

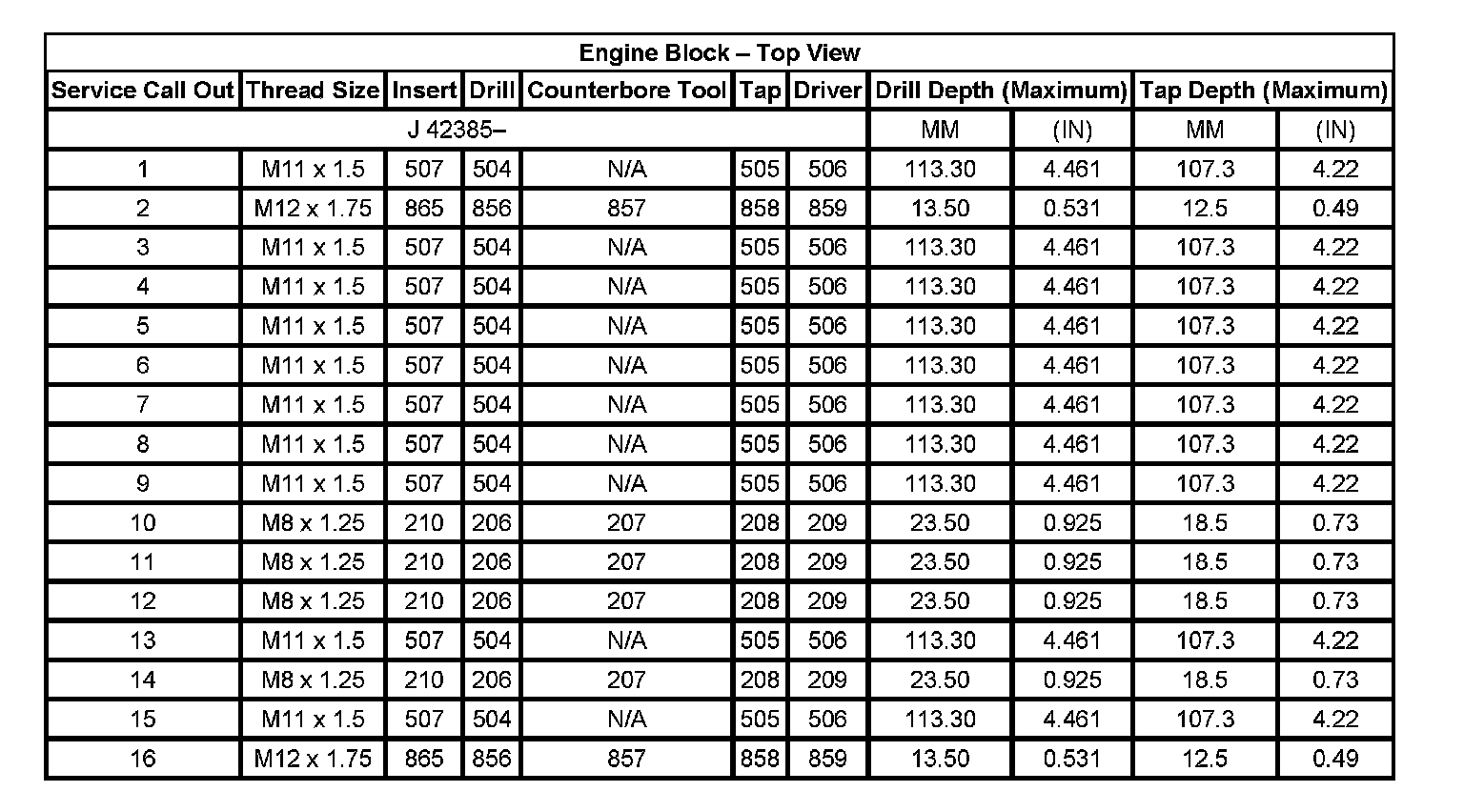

Engine Block - Top View

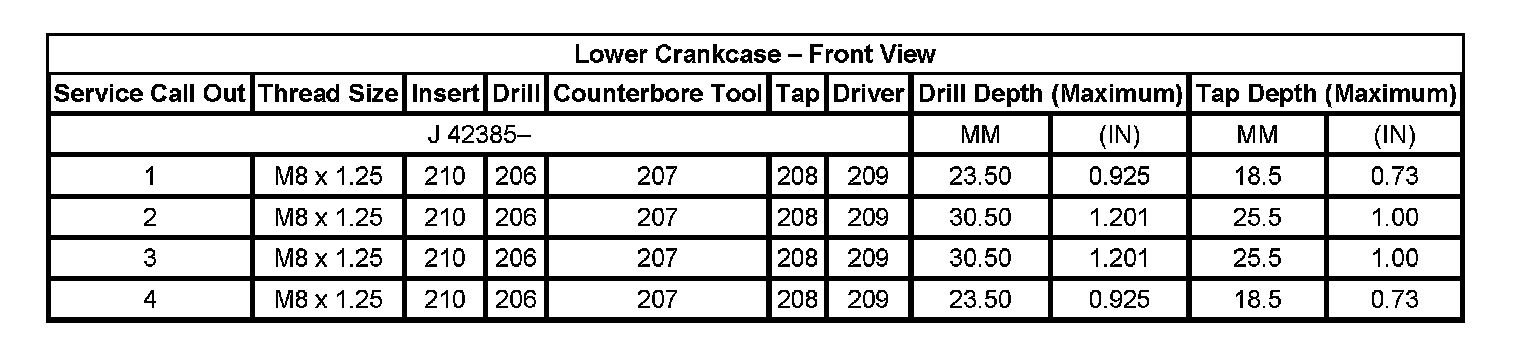

Lower Crankcase - Front View

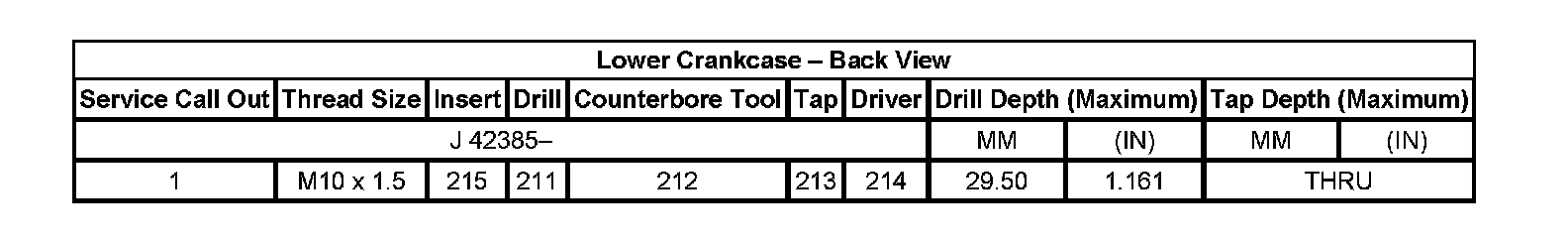

Lower Crankcase - Back View

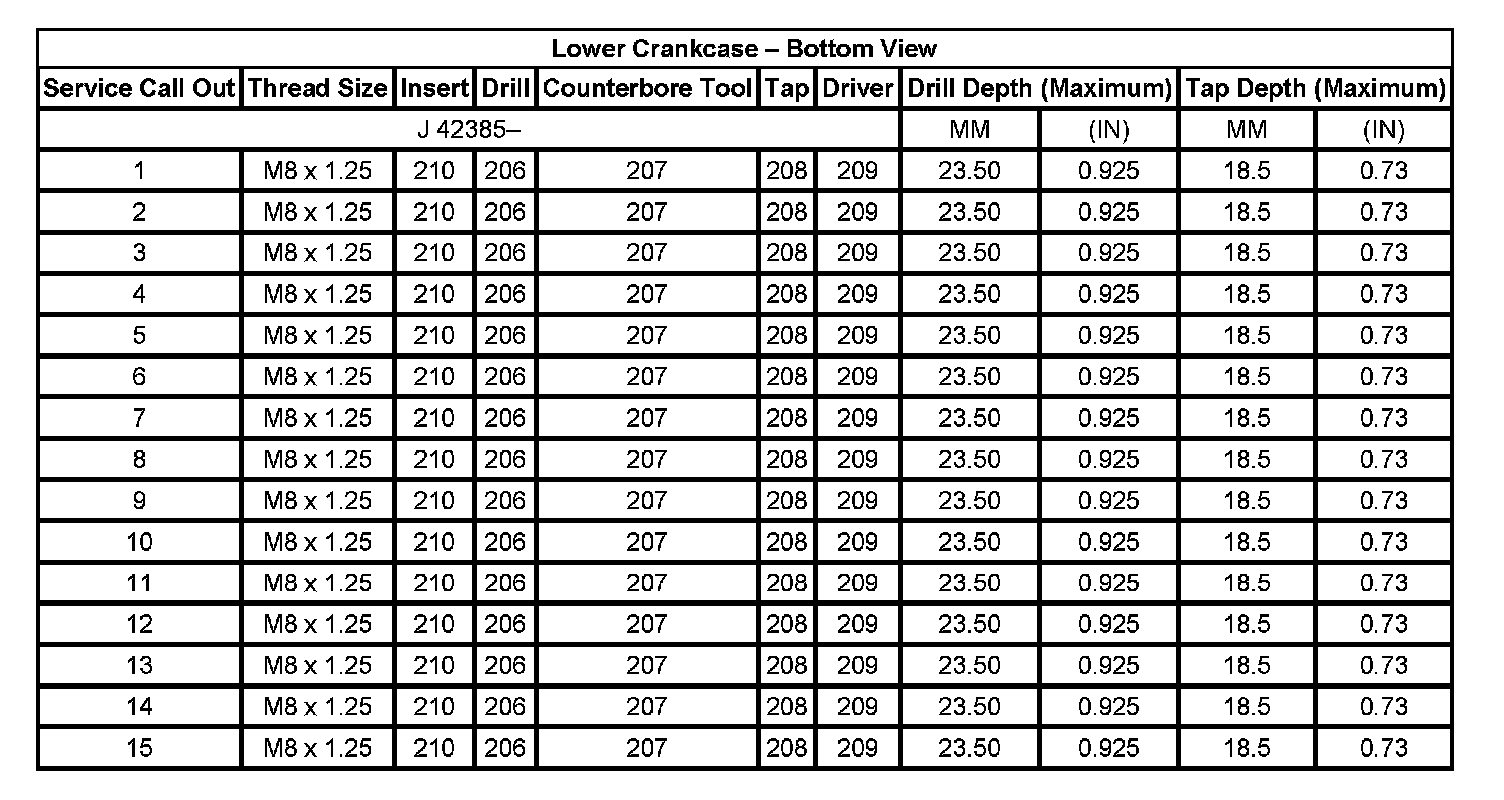

Lower Crankcase - Bottom View

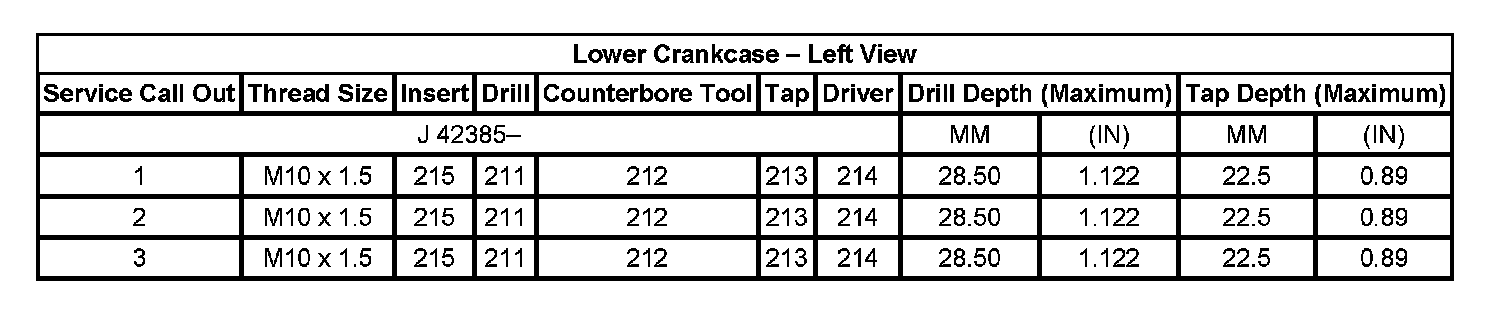

Lower Crankcase - Left View

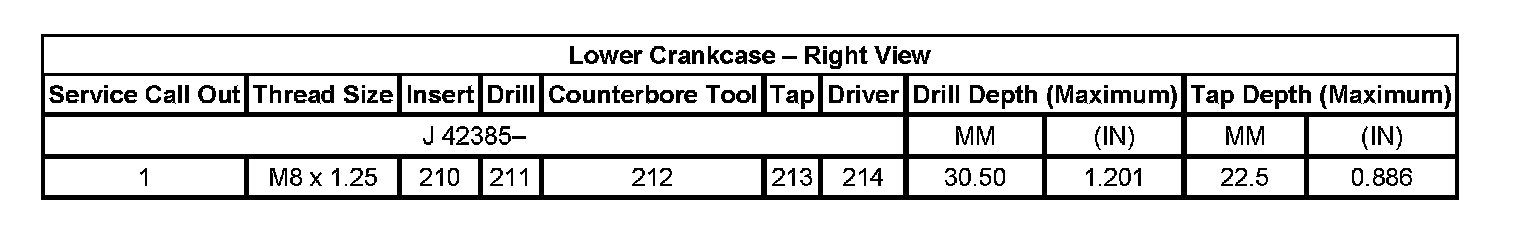

Lower Crankcase - Right View

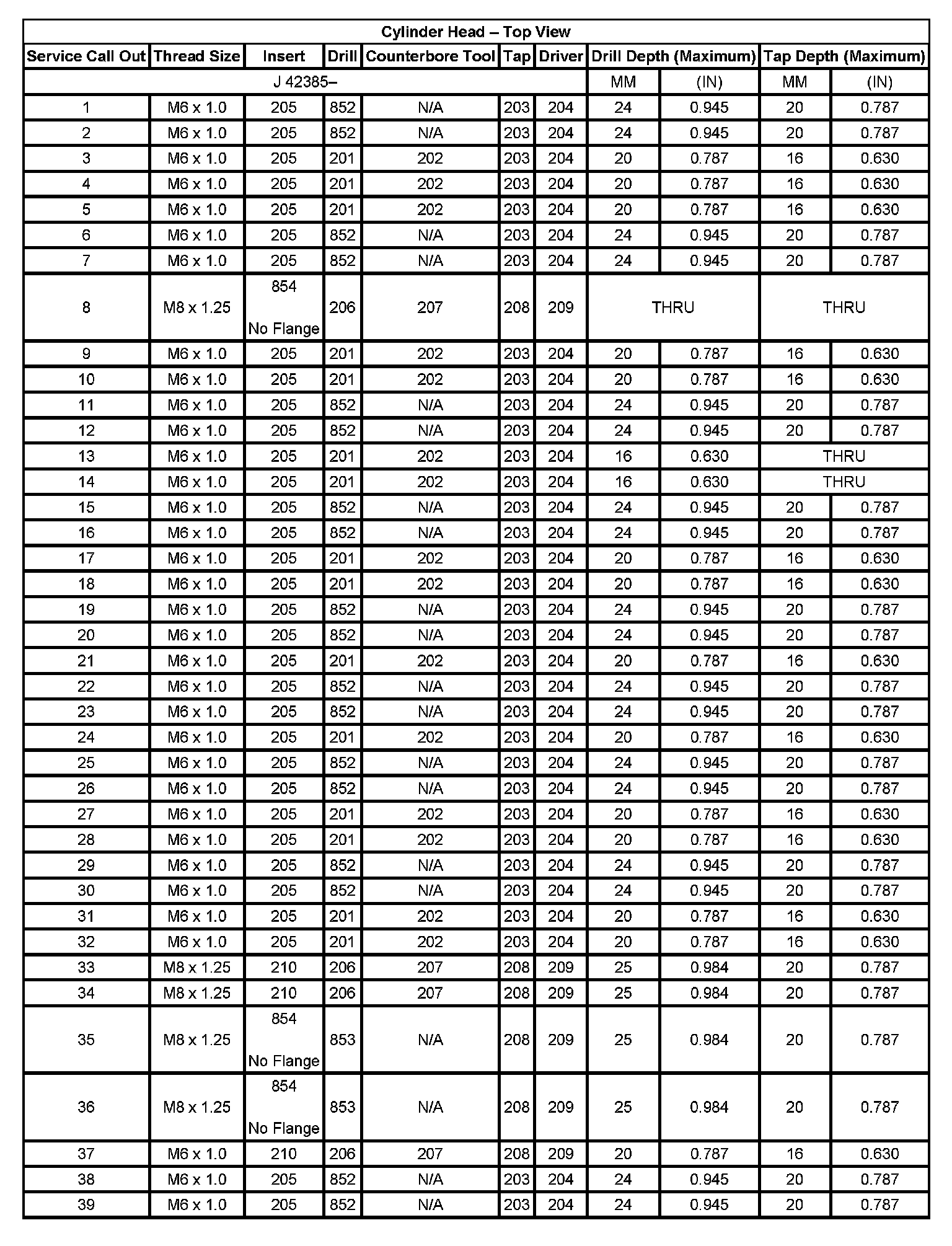

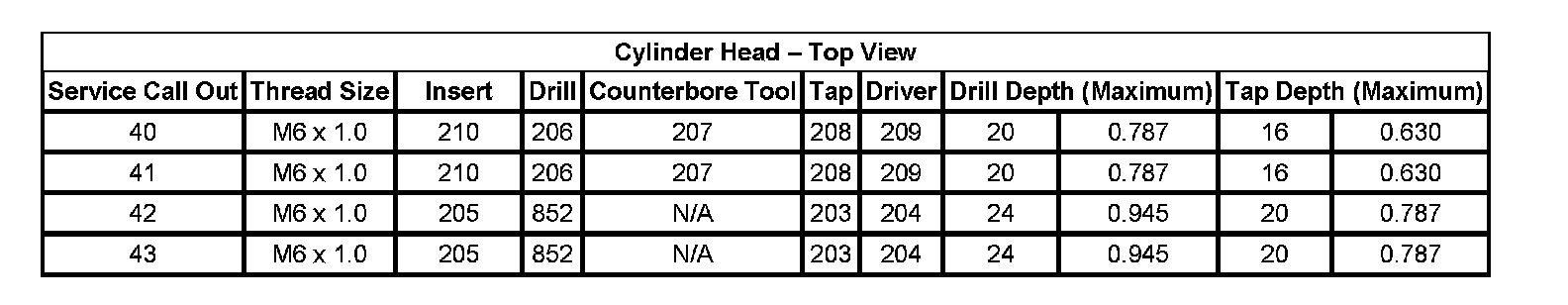

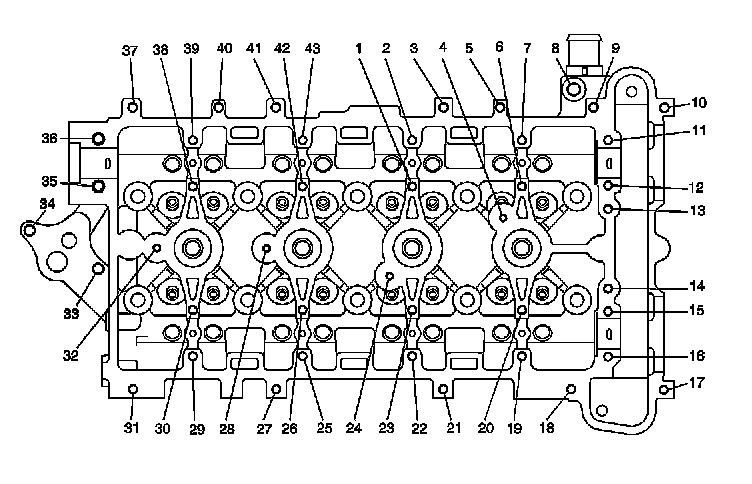

Cylinder Head - Top View

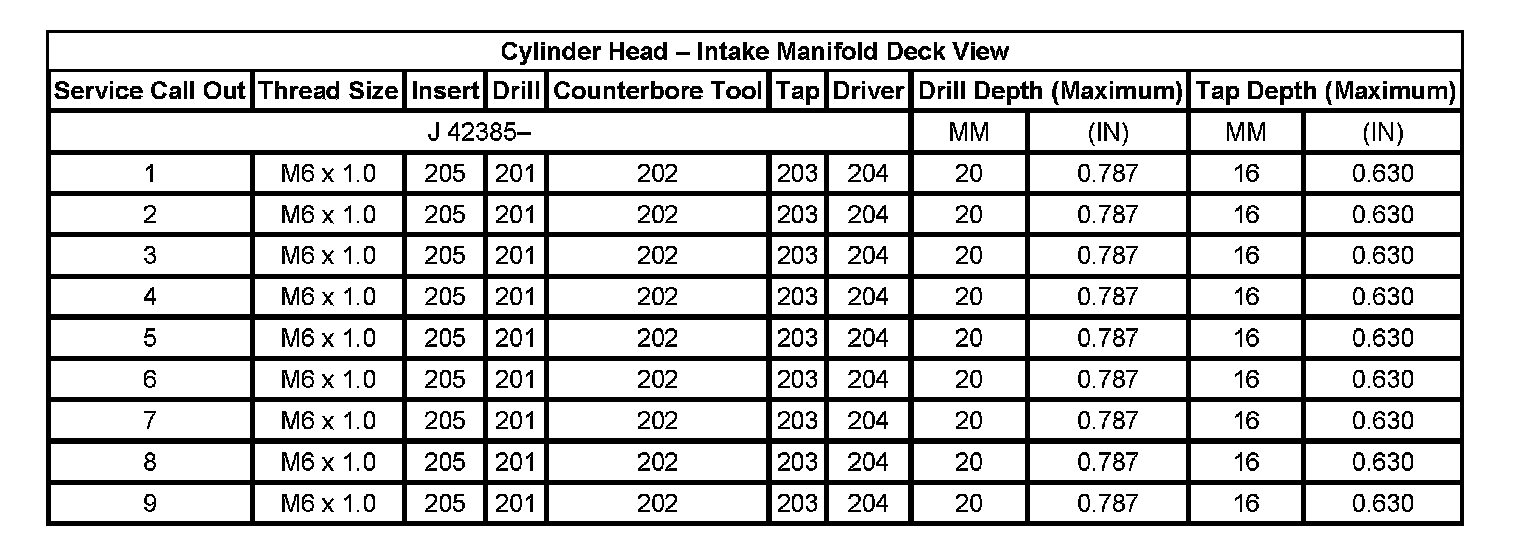

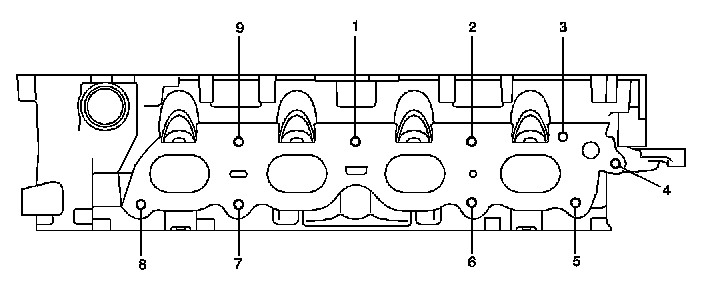

Cylinder Head - Intake Manifold Deck View

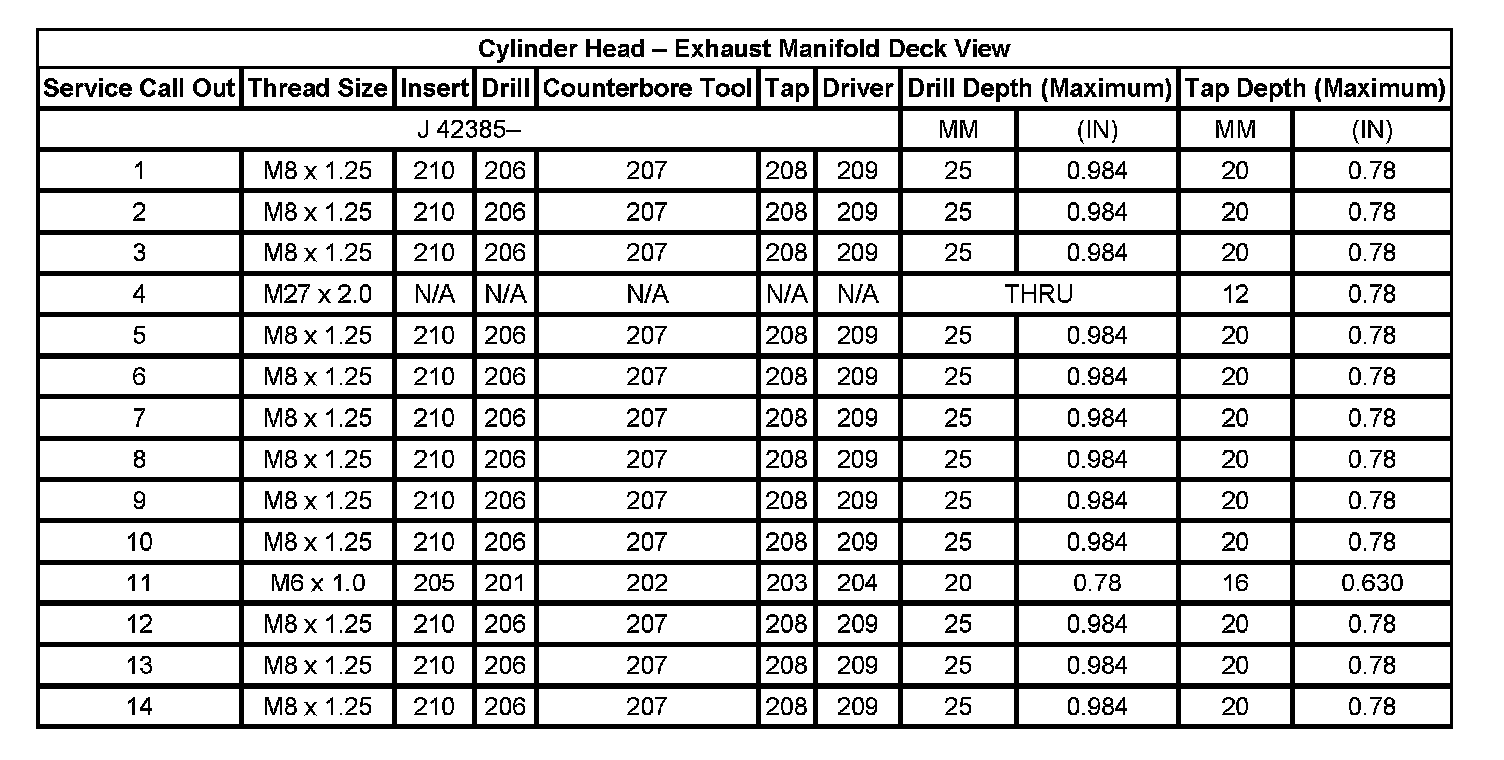

Cylinder Head - Exhaust Manifold Deck View

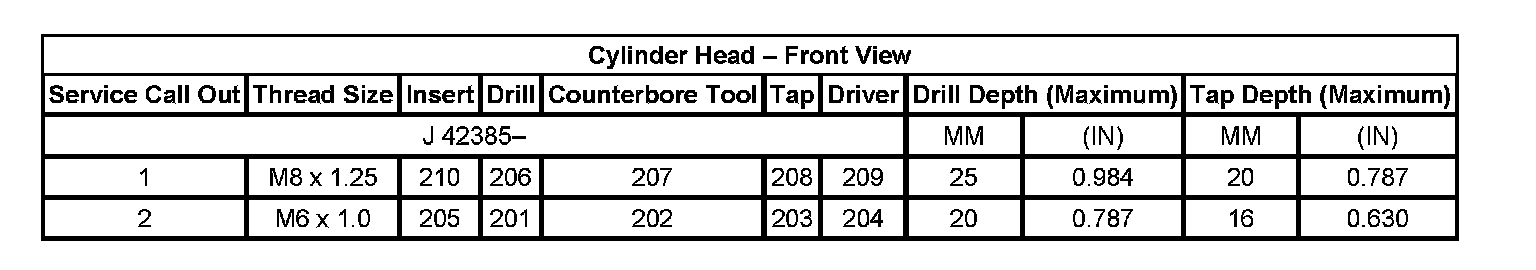

Cylinder Head - Front View

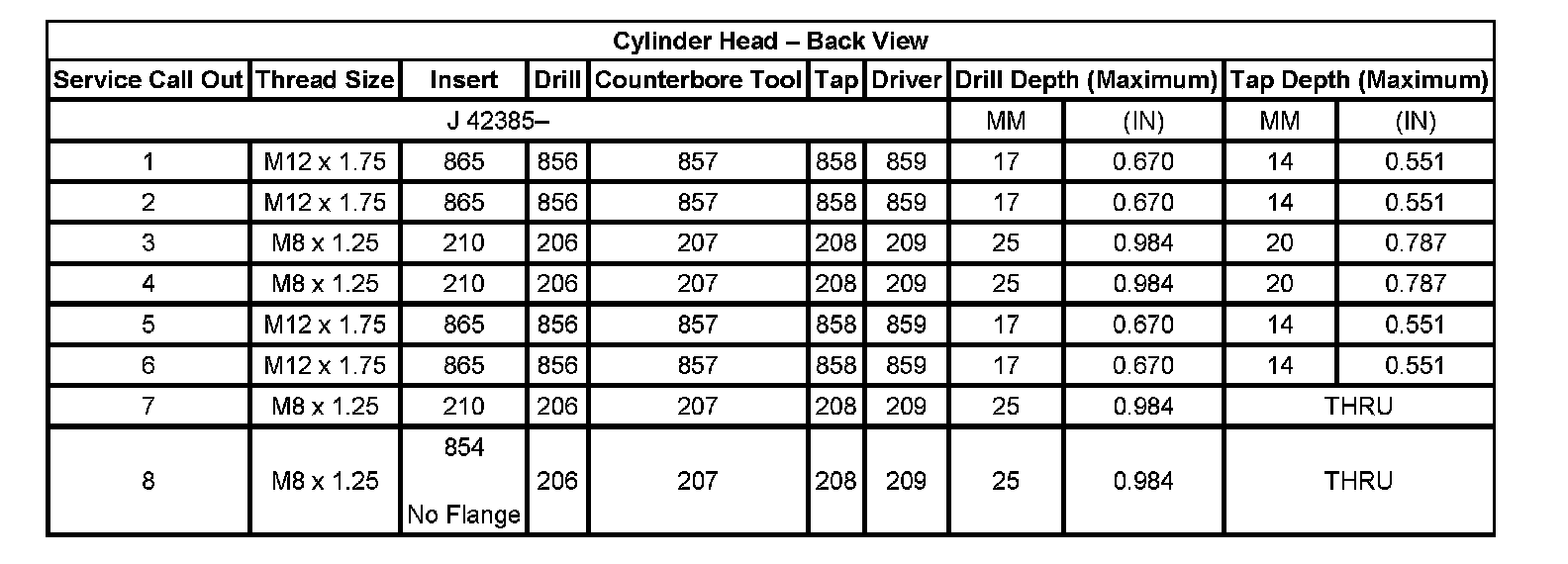

Cylinder Head - Back View

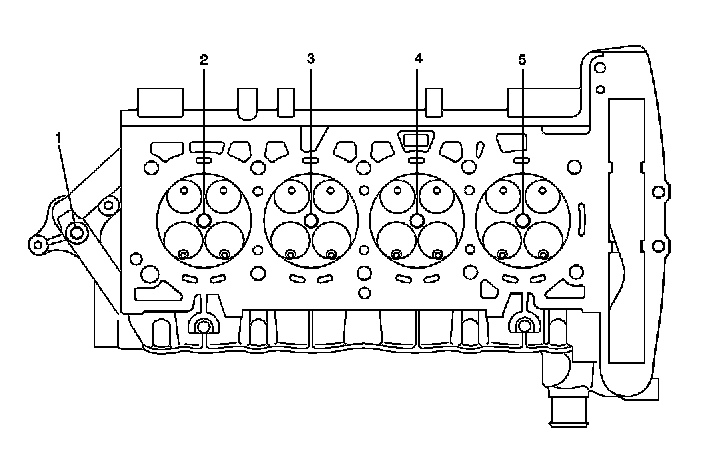

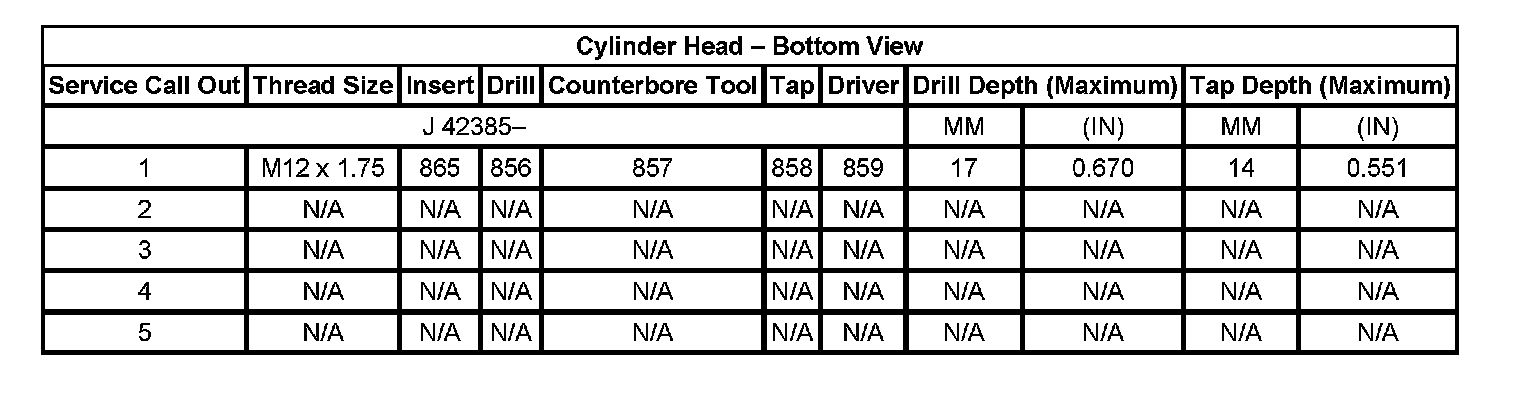

Cylinder Head - Bottom View
