Cruise Control Component Views

Fig 1: Right Side of Engine Compartment Component View
GM409956Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Module (CCM)
Fig 2: View Of Cruise & Brake Switches
GM409957Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 TCC/Brake Switch
2 Dash Harness
3 Stop Lamp Switch
4 Brake Pedal

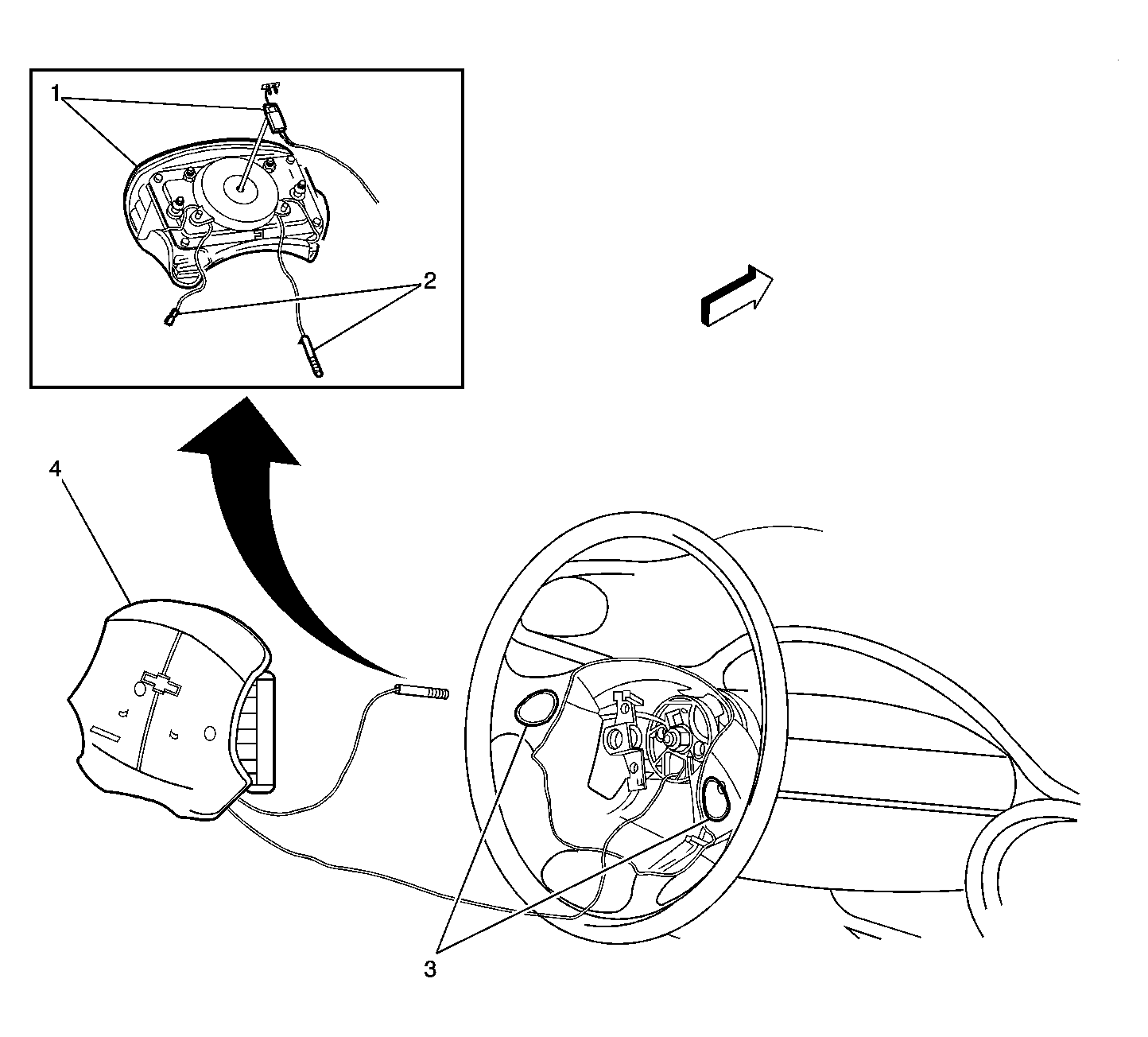

Fig 3: Steering Wheel Assembly Component View
GM1332651Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module
2 Horn Connectors
3 Cruise Control Switches
4 Inflatable Restraint Steering Wheel Module with Horn Switch
