Engine Electrical Component Views

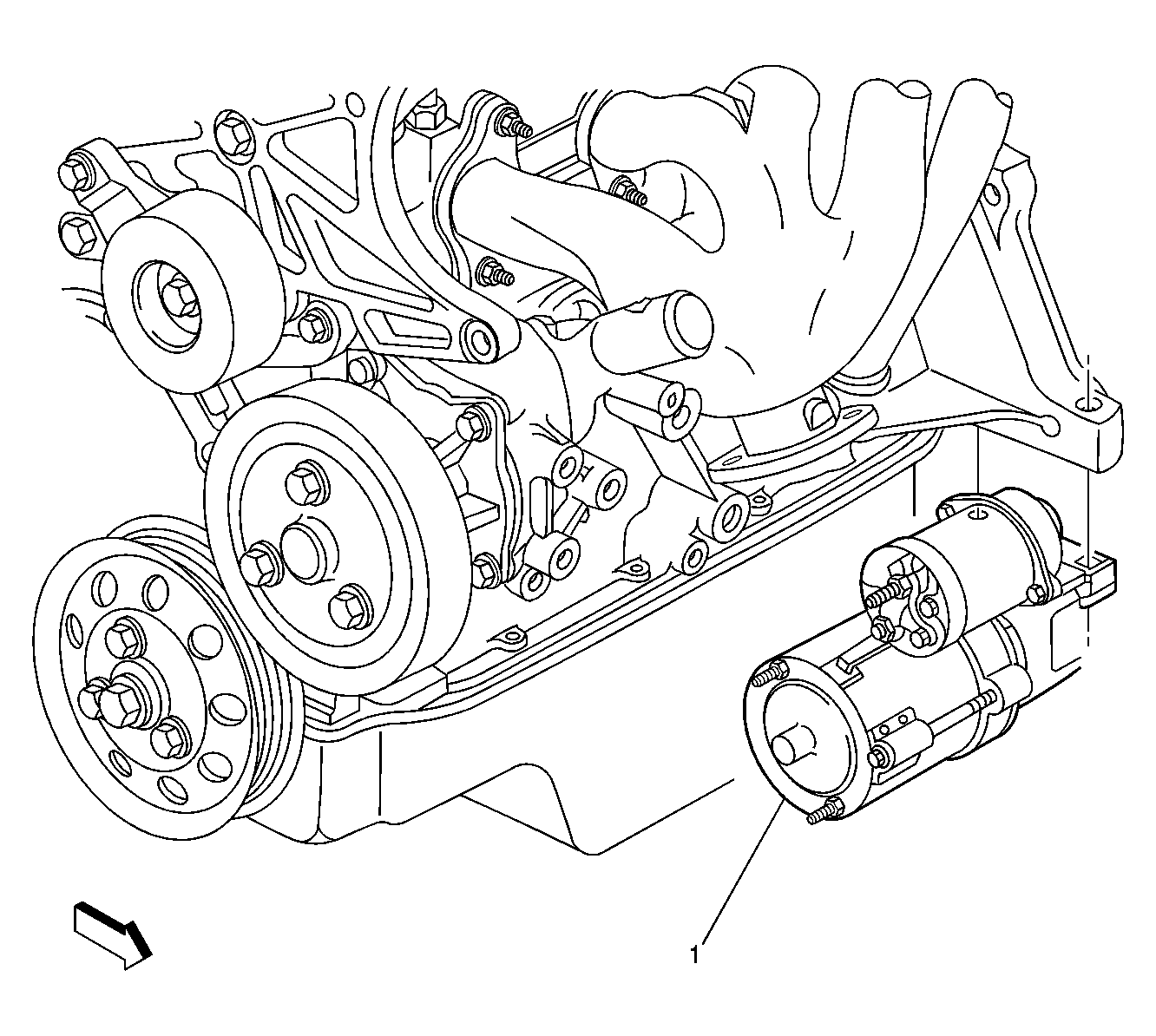

Fig 1: Starter Motor Component View
GM743130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter

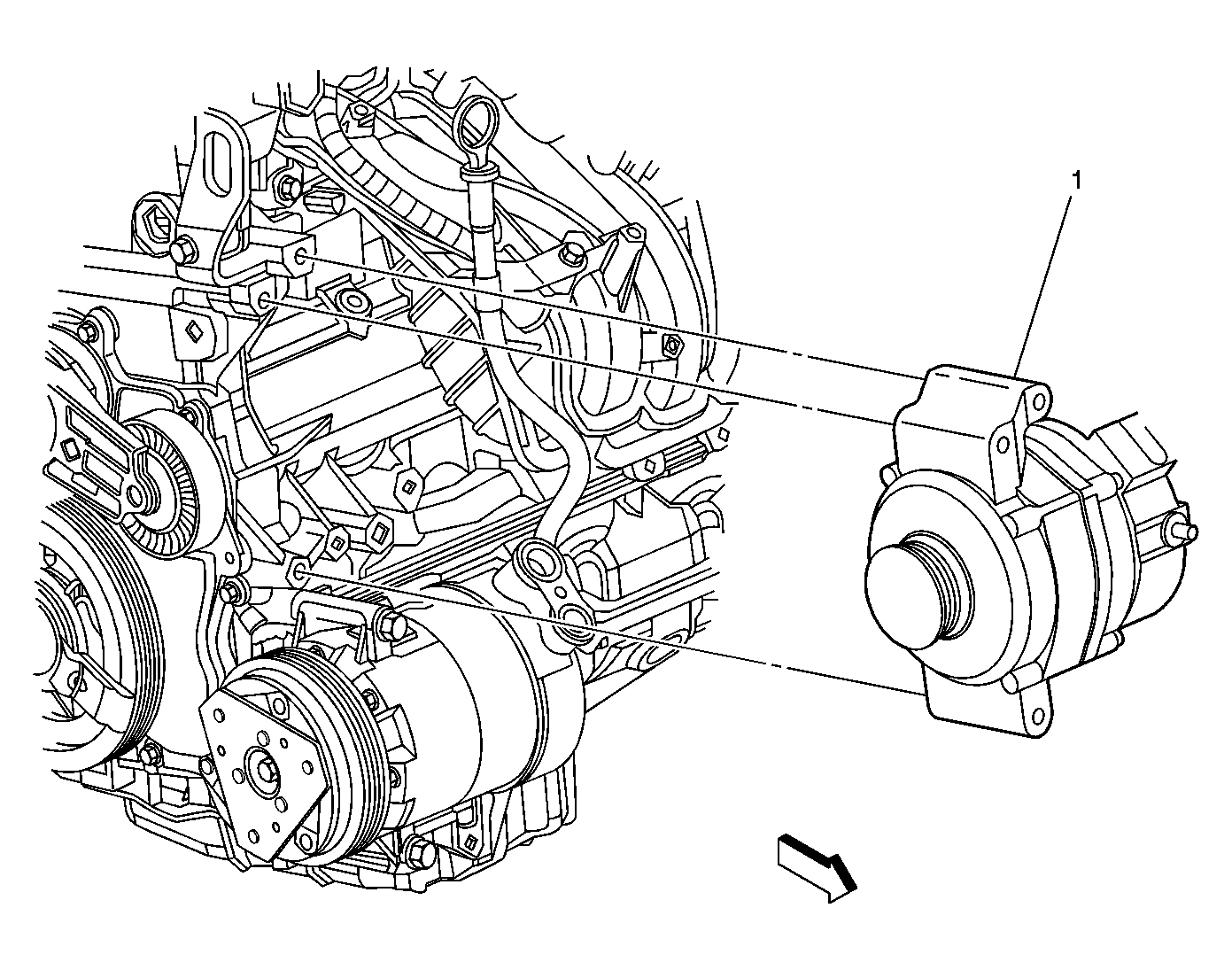

Fig 2: Generator Component View
GM743133Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
