Engine Electrical Connector End Views

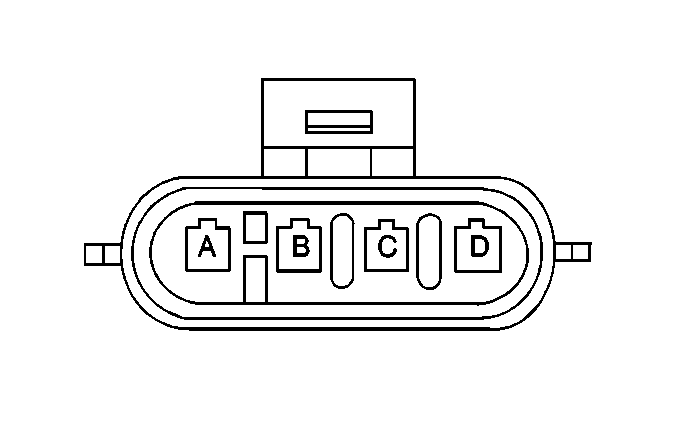

Generator Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15355088 4-Way F Metri-Pack 150 Series (BGE)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	RED	225	Generator Terminal L Monitor/Control
C	GRY	23	Generator Terminal F Input
D	-	-	Not Used

Park/Neutral Position (PNP) Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15416724 12-Way F Metri-Pack Mixed Series (GRY)
Pin	Wire Color	Circuit No.	Function
1	PPL	6	Starter Solenoid Crank Voltage
2	WHT	776	Transmission Range Switch Signal P
3	LT GRN	275	Neutral Safety Switch Park Signal
4	LT GRN	24	Back Up Lamp Supply Voltage
5	PNK	539	Ignition 1 Voltage
6-7	-	-	Not Used
8	YEL	772	Transmission Range Switch Signal B
9	BLK/WHT	771	Transmission Range Switch Signal A
10	GRY	773	Transmission Range Switch Signal C
11	BLK/WHT	451	Ground
12	YEL	5	Crank Voltage
