Installation Procedure

  1. Install the ground cable.
  2. Install the nut to retain the ground cable to the bellhousing stud.
  3. Install the front transmission mount. Refer to Transmission Mount Replacement - Front in Automatic Transmission.
  4. Install the lower closeout panel.
  5. Lower the vehicle.
  6. Install the negative cable to the retainers.

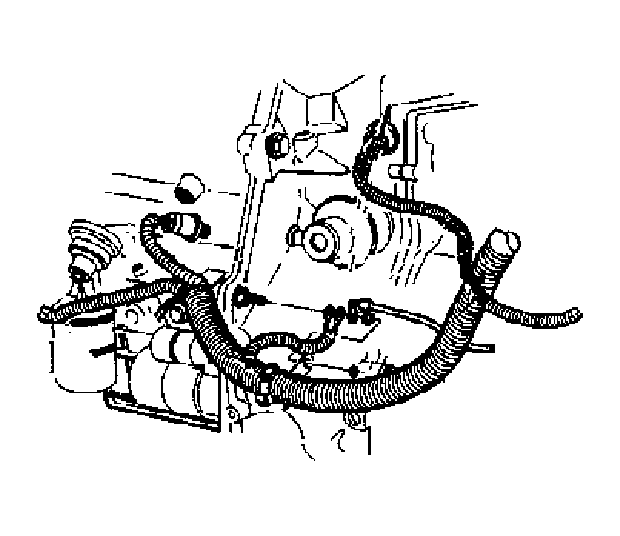

    7. Fig 1: View of Positive & Negative Cables
    GM106524Courtesy of GENERAL MOTORS CORP.
  7. Tape the positive cable and ground strap to the negative cable.

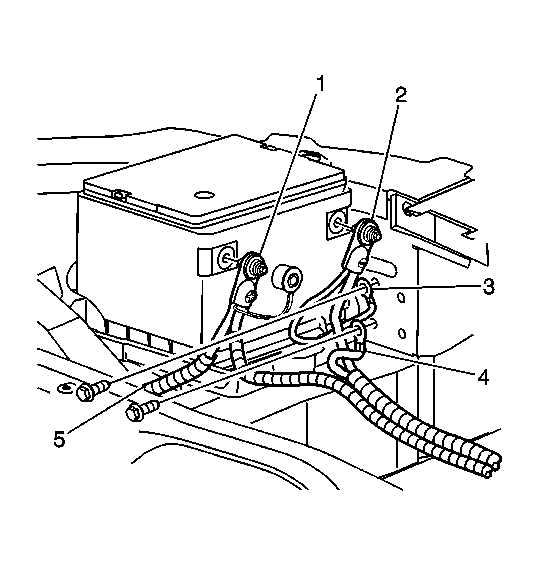

    8. Fig 2: Identifying Battery Components
    GM179591Courtesy of GENERAL MOTORS CORP.
  8. Install the bolt to retain the ground cable to the core support.
  9. Connect the negative ground cable (2). Refer to Battery Negative Cable Disconnect/Connect Procedure .
