Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

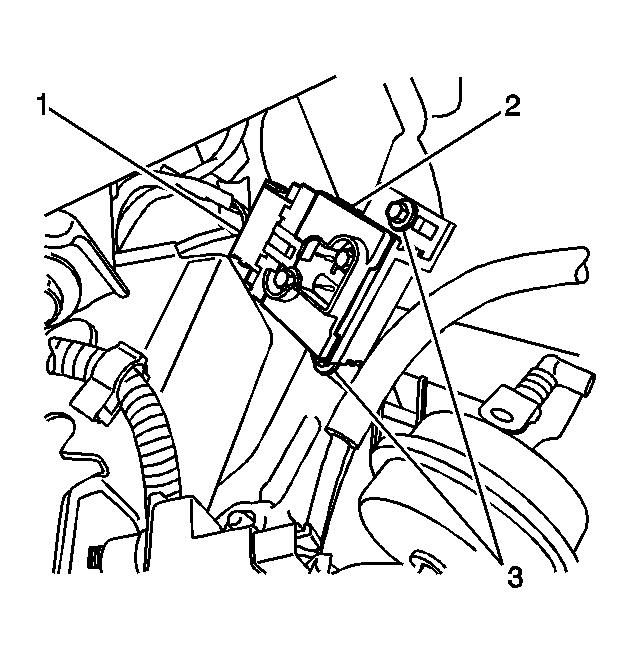

Fig 1: View Of I/P Dimmer Module, Electrical Connector & Bolts

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1) to the I/P dimmer module (2).
Install the I/P dimmer module (2) to the HVAC bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the I/P dimmer module bolts (3).
Tighten: Tighten the bolts to 2.3 N.m (20 lb in).
Install the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left (Outboard) or Closeout/Insulator Panel Replacement - Left (Inboard) in Instrument Panel, Gages, and Console.
