Data Link Communications Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

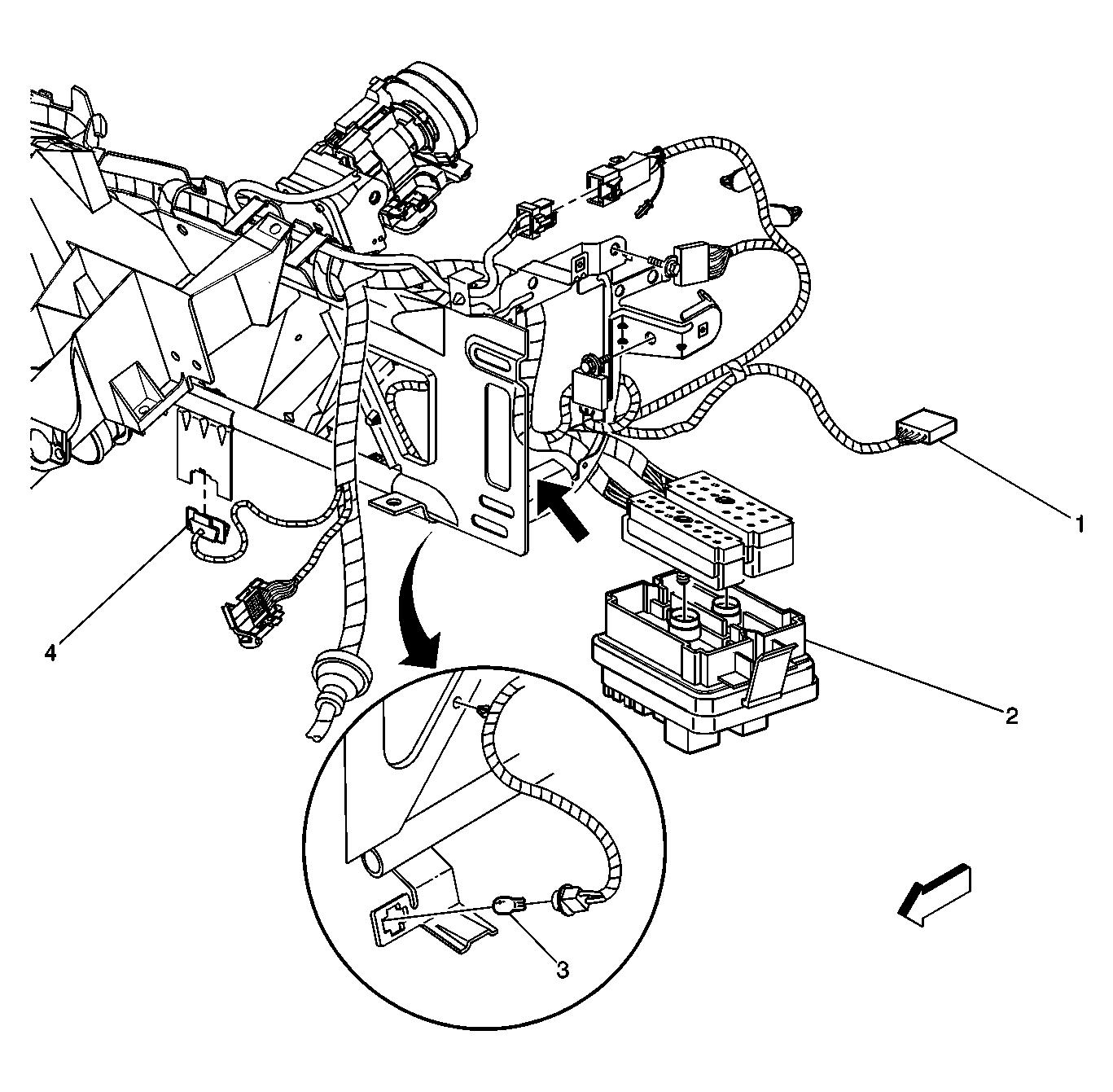

Fig 1: Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch Connector
2	Fuse Block - Left I/P
3	I/P Compartment Lamp (Oldsmobile Only)
4	Data Link Connector (DLC)
